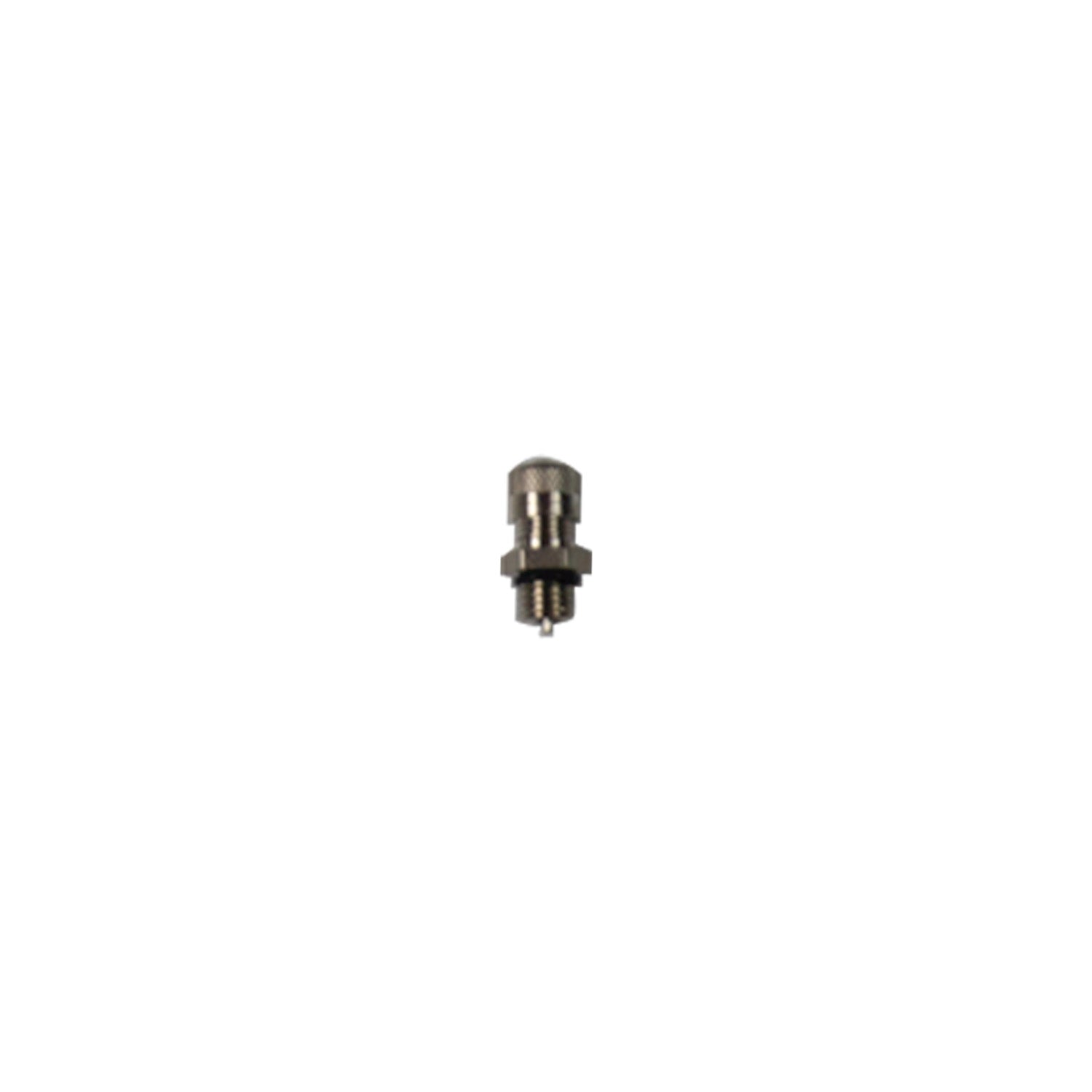

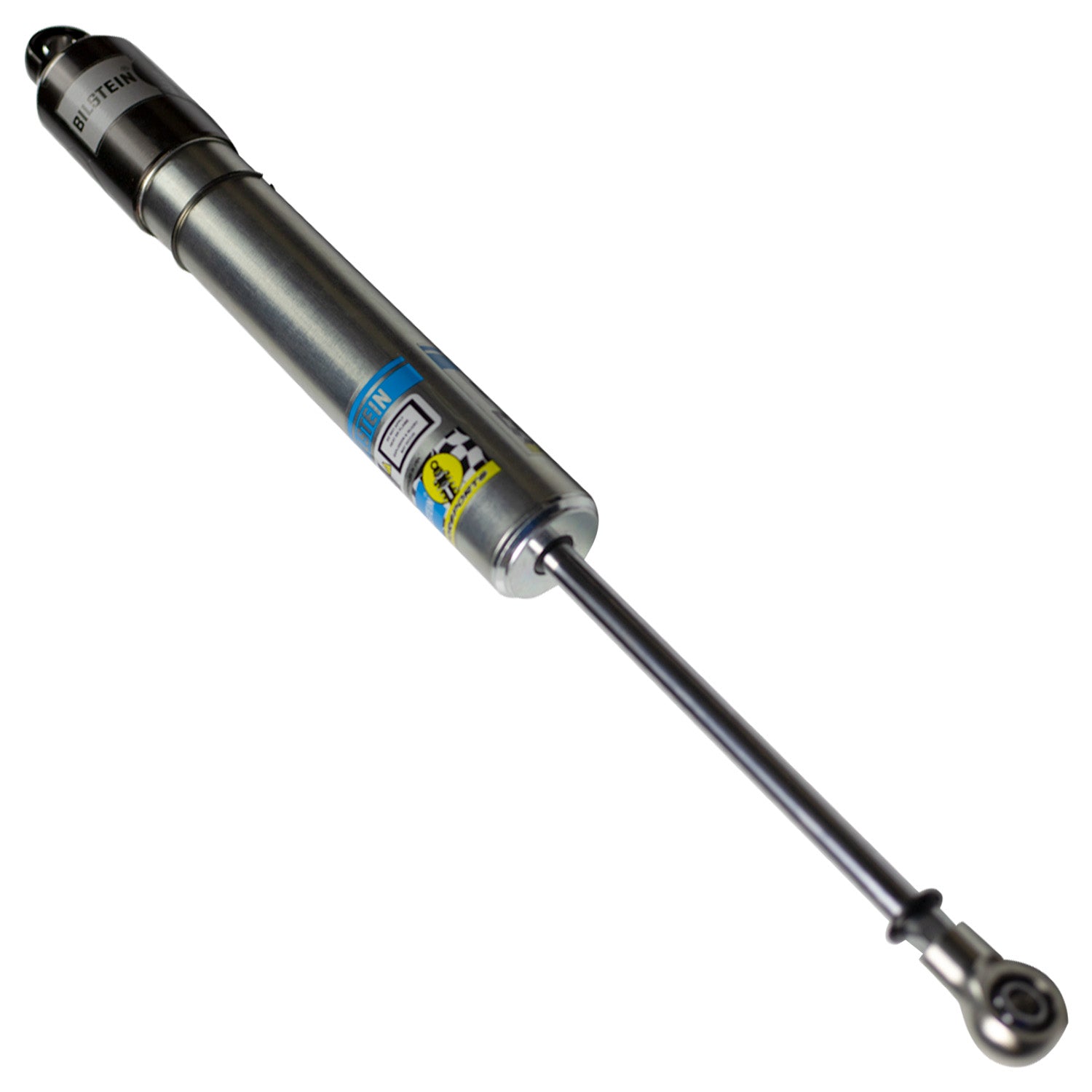

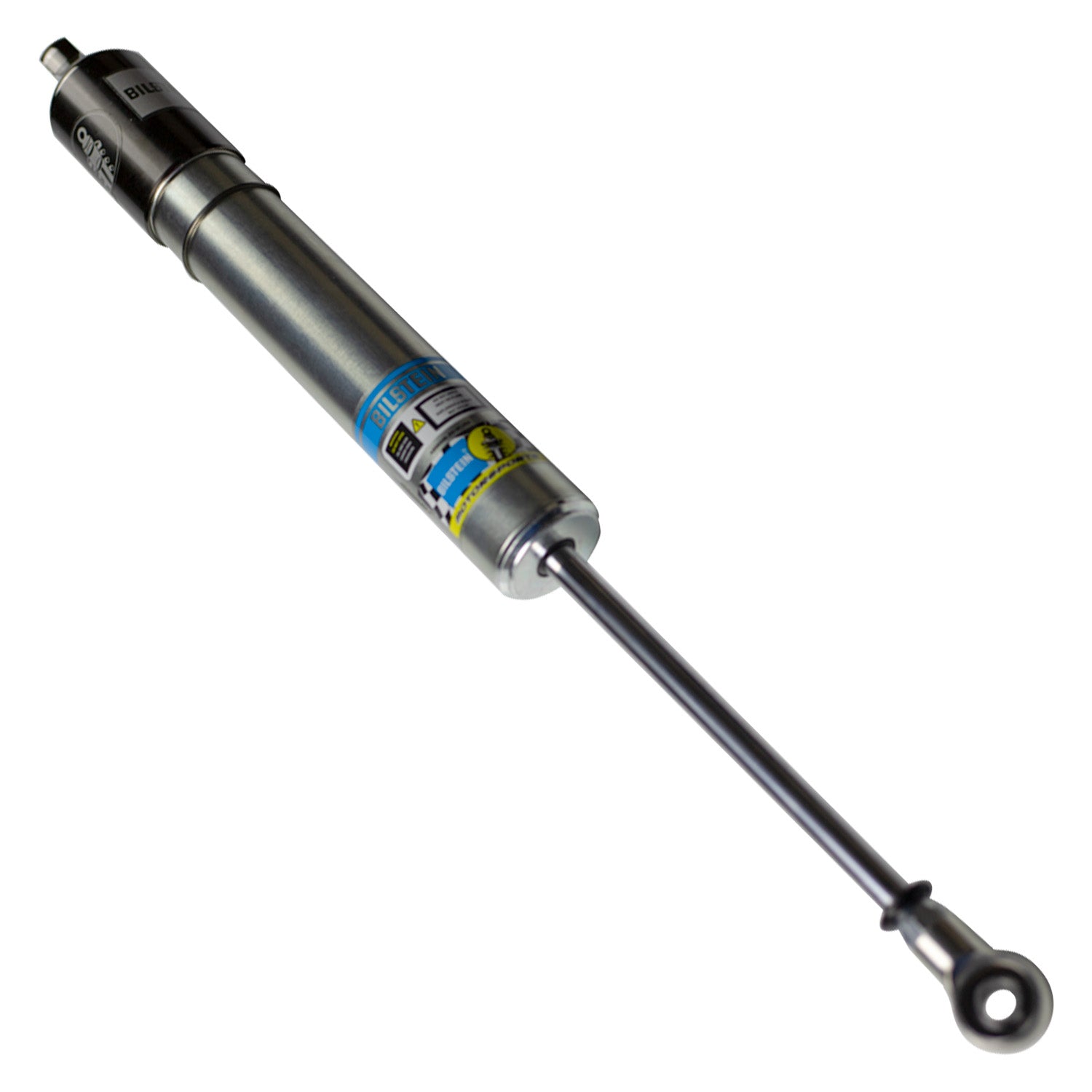

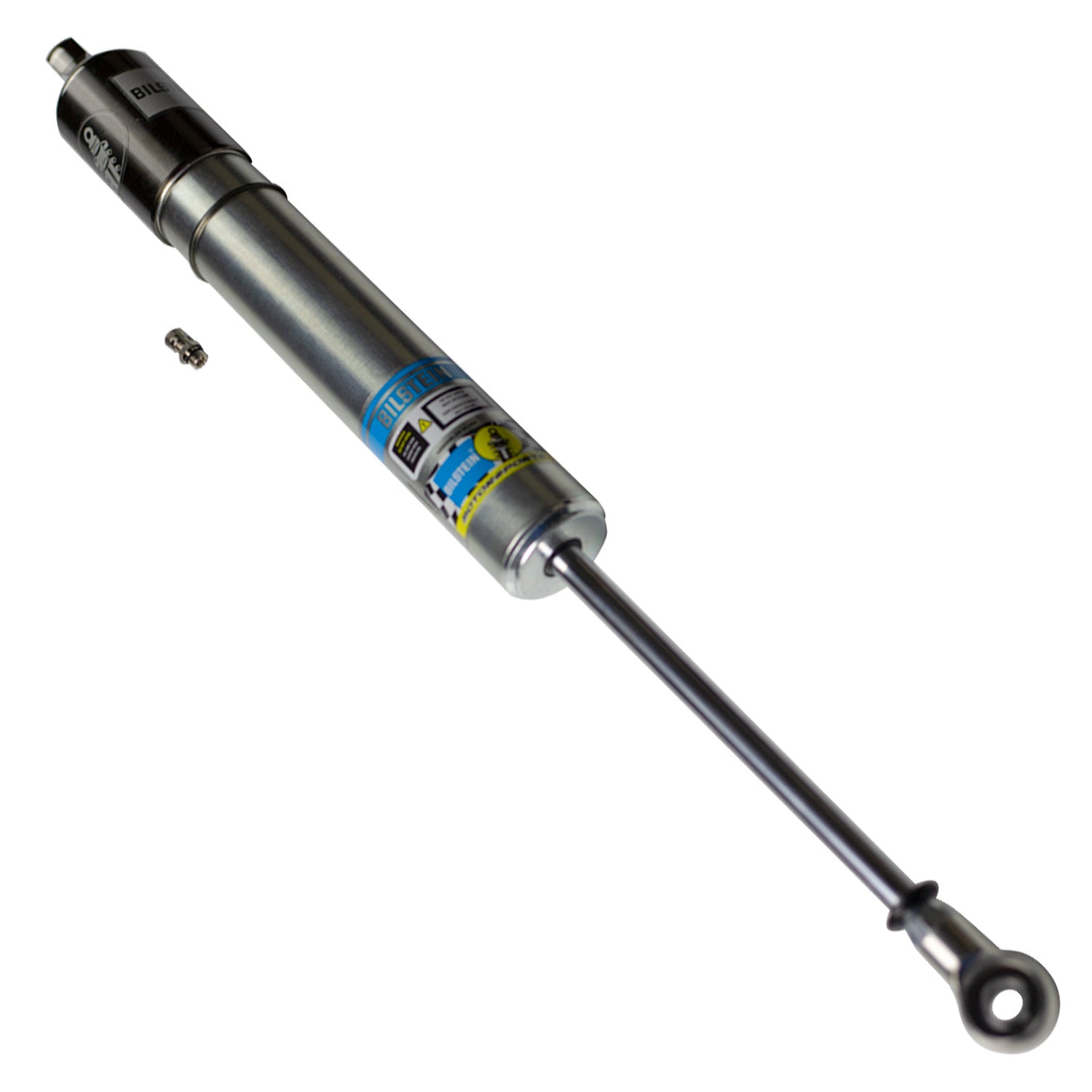

Bilstein SNS2 Series (BV) shock absorbers feature an all-steel smooth body construction with 46mm internal bore (piston and piston band sold separately, base valve assembly and premium Teflon heims.  These shock absorbers include a steel body with external nitrogen fill valve and can be converted to a coilover application (kit sold separately).  SNS2 Series (BV) shock absorbers are ideal for racers competing within sanctioning rules require all-steel body construction who are looking for rebuildable dampers with extra tuning options through base valve technology.
Specifications:
| Description_ASM |
No Applications |
| Description_DEF |
Suspension Shock Absorber |
| Description_DES |
SNS2 Series (BV) - Suspension Shock Absorber |
| Description_LAB |
SNS2 Series (BV) - Suspension Shock Absorber |
| Description_INV |
SNS2 BV, 9" Non Adj. Dig. C10-R2 |
| Description_EXT |
46mm Monotube Shock Absorber |
| Description_MKT |
Bilstein SNS2 Series (BV) shock absorbers feature an all-steel smooth body construction with 46mm internal bore (piston and piston band sold separately, base valve assembly and premium Teflon heims.  These shock absorbers include a steel body with external nitrogen fill valve and can be converted to a coilover application (kit sold separately).  SNS2 Series (BV) shock absorbers are ideal for racers competing within sanctioning rules require all-steel body construction who are looking for rebuildable dampers with extra tuning options through base valve technology. |
| Description_SHO |
Shock |
| Piston Type |
Digressive |
| Lower Mount Type |
1/2in Heim |
| Collapsed Length (IN) |
15.87 |
| Extended Length (MM) |
604.4 |
| Collapsed Length (MM) |
403.2 |
| Finish |
Zinc Plated |
| Adjustable Damping |
Non-Adjustable |
| Body Diameter (ID) |
46mm |
| Body Material |
Steel |
| Internal Design |
Monotube |
| Extended Length (IN) |
23.79 |
| Upper Mount Type |
1/2in Heim |
| Series |
SNS2 Series (BV) |
| Spring Seat Included |
No |
| Valving Identifier |
10/2 (comp/reb) |
| Body Design |
Smooth Body Screw Top (Non-coilover) |
| Title |
Bilstein Shock Absorbers |
| Boot Included |
No |
| California Proposition 65 |
WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov |
| Length |
3.0000 |
| Width |
3.0000 |
| Height |
27.0000 |
| Weight |
5.0000 |
