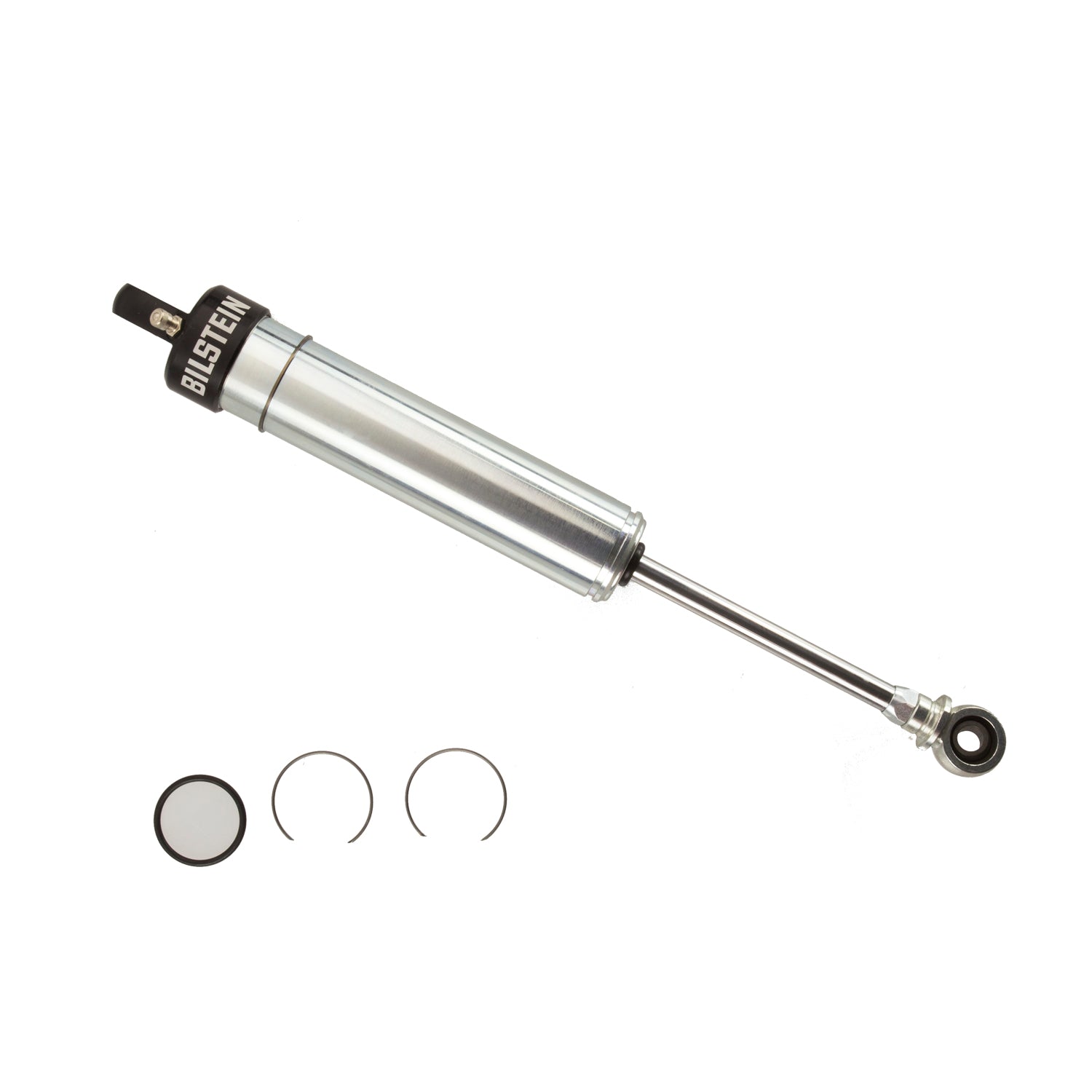

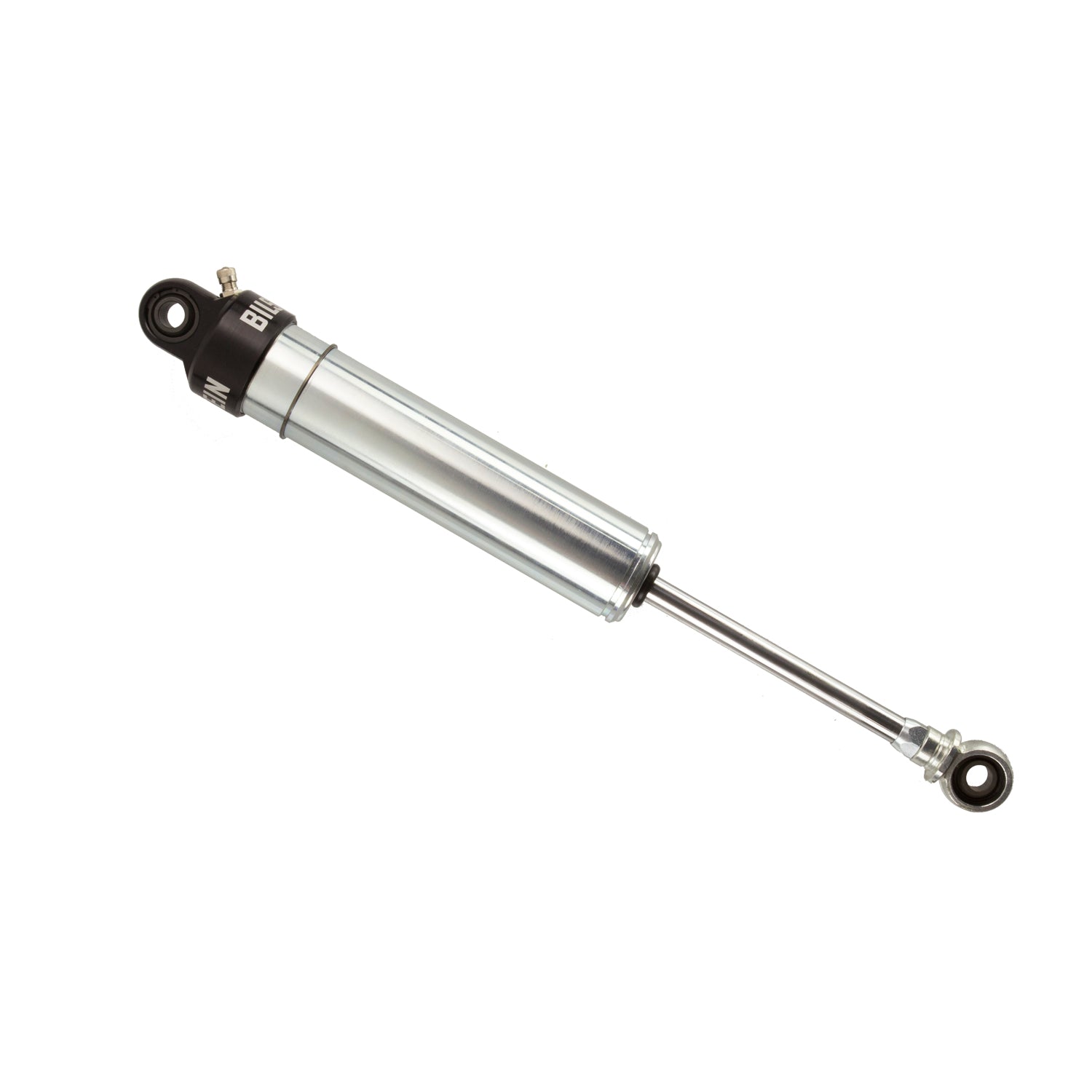

Bilstein SN2 Series shock absorbers feature a steel, smooth body design utilizing the 46mm monotube technology (piston and piston band sold separately) designed for motorsports applications. These shock absorbers are available in non-, single and double adjustable configurations in optimized lengths and can also be converted to a coilover design (kit sold separately). SN2 Series shock absorbers are ideal for racers whose sanctioning rules require steel body shock absorbers but allow for a user rebuildable design and aluminum end caps.
Specifications:
| Description_ASM |
No Applications |
| Description_DEF |
Suspension Shock Absorber |
| Description_DES |
SN2 Series - Suspension Shock Absorber |
| Description_EXT |
46mm Monotube Shock Absorber |
| Description_INV |
Motorsports SN2, 6", Digres., Take Apart |
| Description_LAB |
SN2 Series - Suspension Shock Absorber |
| Description_SHO |
Shock |
| Description_MKT |
Bilstein SN2 Series shock absorbers feature a steel, smooth body design utilizing the 46mm monotube technology (piston and piston band sold separately) designed for motorsports applications. These shock absorbers are available in non-, single and double adjustable configurations in optimized lengths and can also be converted to a coilover design (kit sold separately). SN2 Series shock absorbers are ideal for racers whose sanctioning rules require steel body shock absorbers but allow for a user rebuildable design and aluminum end caps. |
| Body Material |
Steel |
| Series |
SN2 Series |
| Collapsed Length (MM) |
304.8 |
| Finish |
Zinc Plated |
| Spring Seat Included |
No |
| Body Design |
Smooth Body Screw Top (Non-coilover) |
| Body Diameter (ID) |
46mm |
| Title |
Bilstein Shock Absorbers |
| Boot Included |
No |
| Upper Mount Type |
1/2in Heim |
| Collapsed Length (IN) |
12.00 |
| California Proposition 65 |
WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov |
| Extended Length (IN) |
17.81 |
| Valving Identifier |
Digressive Dry Kit (no valving) |
| Lower Mount Type |
1/2in Heim |
| Internal Design |
Monotube |
| Adjustable Damping |
Non-Adjustable |
| Piston Type |
Digressive |
| Extended Length (MM) |
452.3 |
| Length |
3.0000 |
| Width |
3.0000 |
| Height |
27.0000 |
| Weight |
3.0000 |
