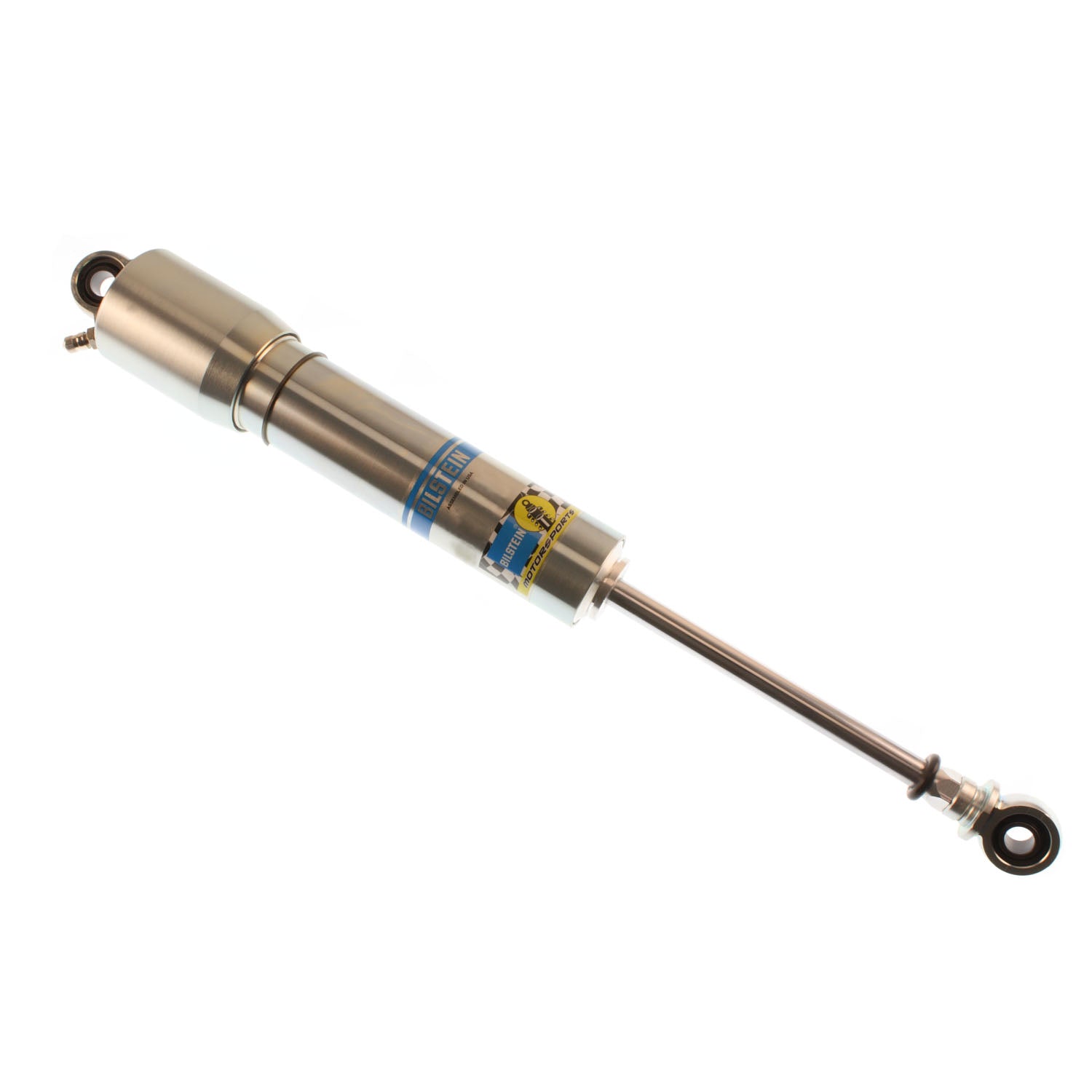

Bilstein XVS-S Series shock absorbers feature a 46mm piston, steel construction, and a threaded body designed for motorsports applications. These shock absorbers are rebuildable via an integrated Schrader valve. The large volume dual zone nitrogen bulb, with optional base valve, allows for lower gas pressure for increased grip. These shock absorbers are available in non-, single and double adjustable configurations for precise on-vehicle tuning options. XVS-S Series shock absorbers are ideal for racers looking for a steel, rebuildable design with multiple upgrade options and superior performance.
Specifications:
| Description_ASM |
No Applications |
| Description_DEF |
Suspension Shock Absorber |
| Description_DES |
XVS-S Series - Suspension Shock Absorber |
| Description_LAB |
XVS-S Series - Suspension Shock Absorber |
| Description_EXT |
46mm Monotube Shock Absorber |
| Description_INV |
Motorsports 9" XVS, Schrader Valve, 4-2S |
| Description_SHO |
Shock |
| Description_MKT |
Bilstein XVS-S Series shock absorbers feature a 46mm piston, steel construction, and a threaded body designed for motorsports applications. These shock absorbers are rebuildable via an integrated Schrader valve. The large volume dual zone nitrogen bulb, with optional base valve, allows for lower gas pressure for increased grip. These shock absorbers are available in non-, single and double adjustable configurations for precise on-vehicle tuning options. XVS-S Series shock absorbers are ideal for racers looking for a steel, rebuildable design with multiple upgrade options and superior performance. |
| Extended Length (MM) |
600.5 |
| Adjustable Damping |
Non-Adjustable |
| Internal Design |
Monotube |
| Compression @0.52m/s |
900 |
| Lower Mount Type |
1/2in Heim |
| Body Diameter (ID) |
46mm |
| Valving Identifier |
4-2S |
| Extended Length (IN) |
23.64 |
| Collapsed Length (MM) |
387.0 |
| Series |
XVS-S Series |
| Finish |
Zinc Plated |
| Spring Seat Included |
No |
| Upper Mount Type |
1/2in Heim |
| Rebound @0.52m/s |
1820 |
| Body Material |
Steel |
| Collapsed Length (IN) |
15.24 |
| Piston Type |
Linear |
| Boot Included |
No |
| Title |
Bilstein Shock Absorbers |
| Body Design |
Smooth Body (Non-Coilover) |
| California Proposition 65 |
WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov |
| Length |
3.0000 |
| Width |
3.0000 |
| Height |
27.0000 |
| Weight |
5.0000 |
