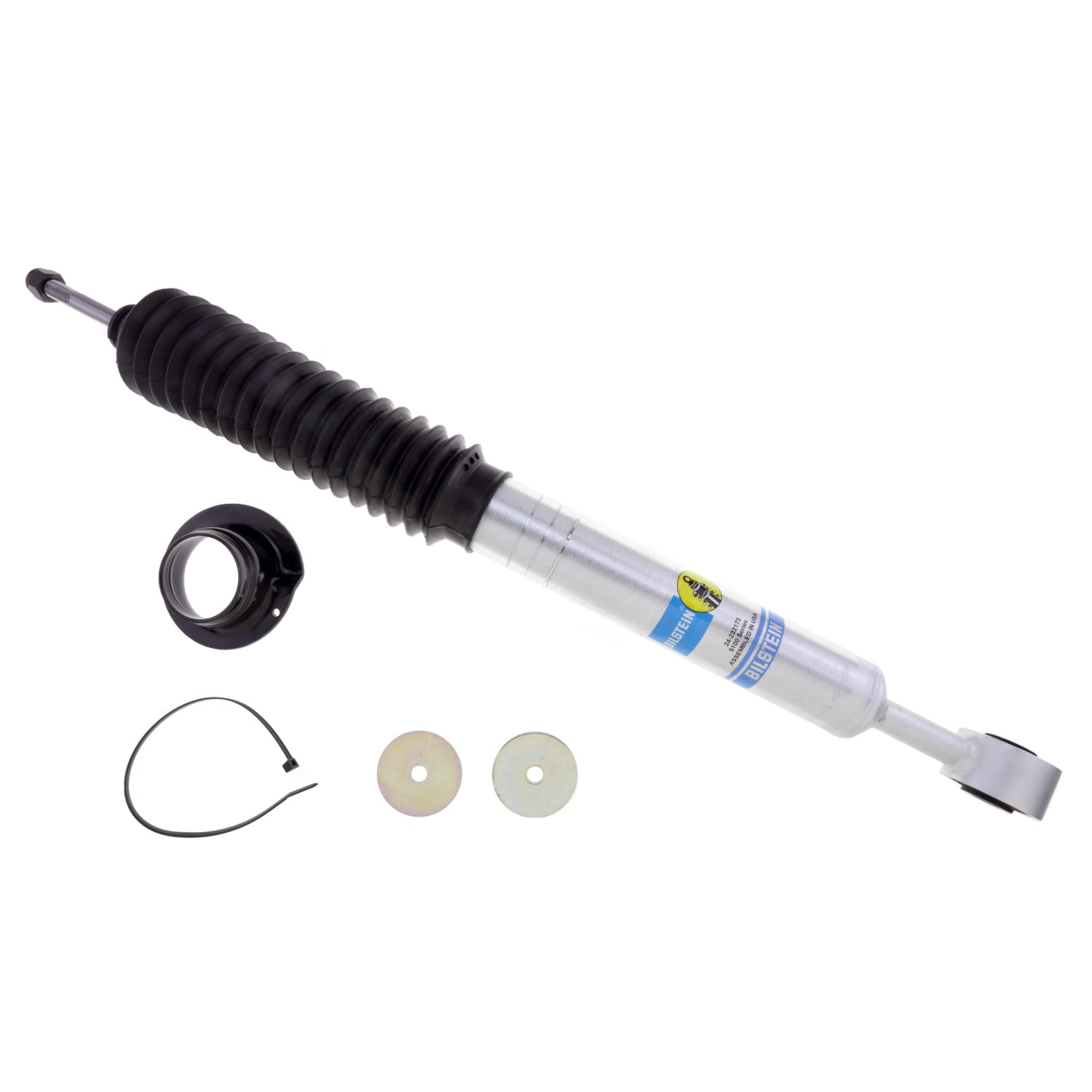

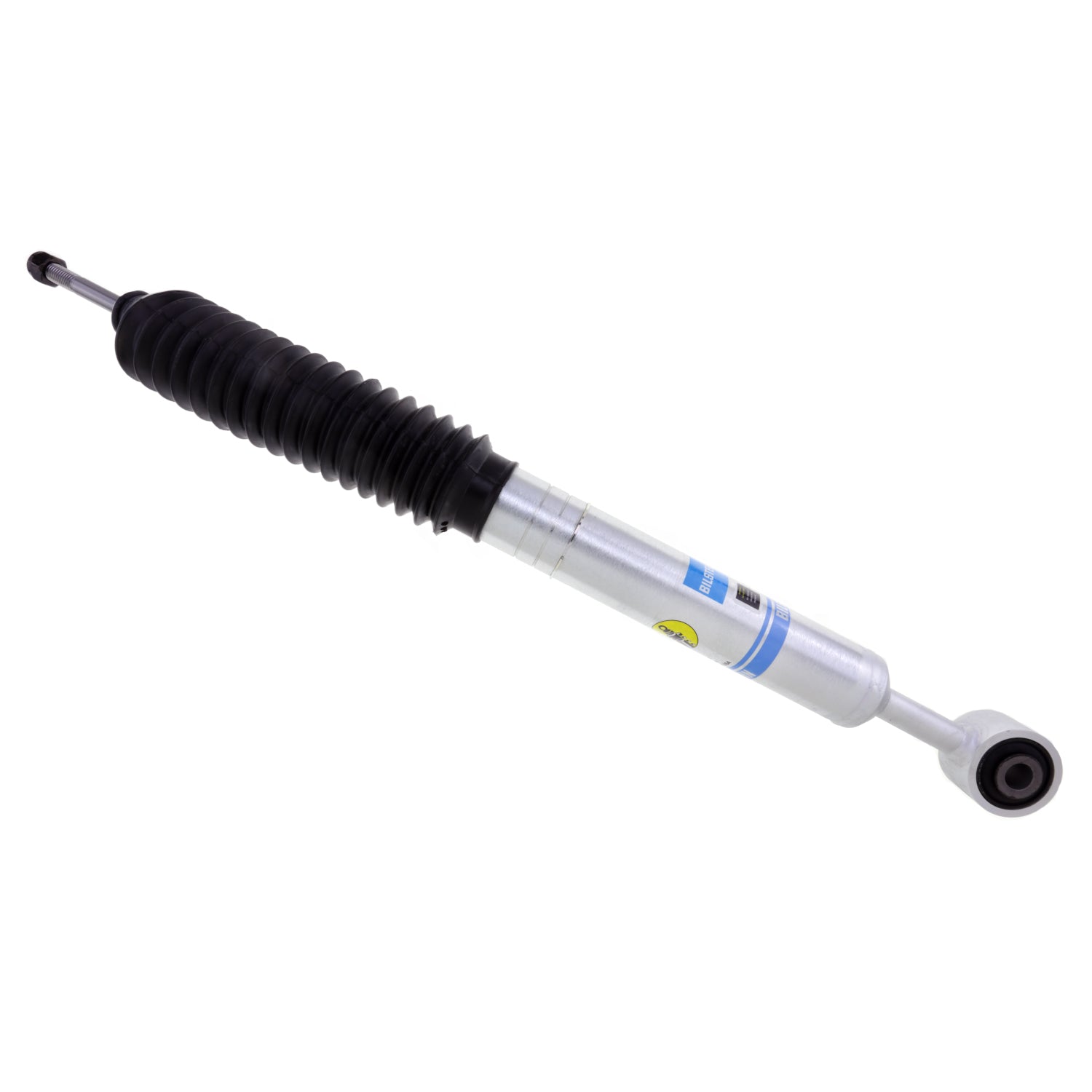

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting.  Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.
Specifications:
Description_ASM |
Toyota Tundra 2021-2007 |
Description_DEF |
Suspension Shock Absorber |
Description_DES |
B8 5100 (Ride Height Adjustable) - Suspension Shock Absorber |
Description_INV |
Toyota Tundra; '07+; F; B8 5100; 2.3" |
Description_EXT |
46mm Monotube Shock Absorber |
Description_MKT |
Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting.  Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle. |
Description_SHO |
Shock |
Description_LAB |
B8 5100 (Ride Height Adjustable) - Suspension Shock Absorber |
Series |
B8 5100 (Ride Height Adjustable) |
Upper Mount Type |
Stem |
Body Design |
Snap Ring Grooved Body (Coilover) |
Extended Length (IN) |
24.21 |
Body Diameter (ID) |
46mm |
Lower Mount Type |
Eye 16.4mm |
Title |
Bilstein Shock Absorbers |
Extended Length (MM) |
615.0 |
Finish |
Zinc Plated |
Adjustable Damping |
Non-Adjustable |

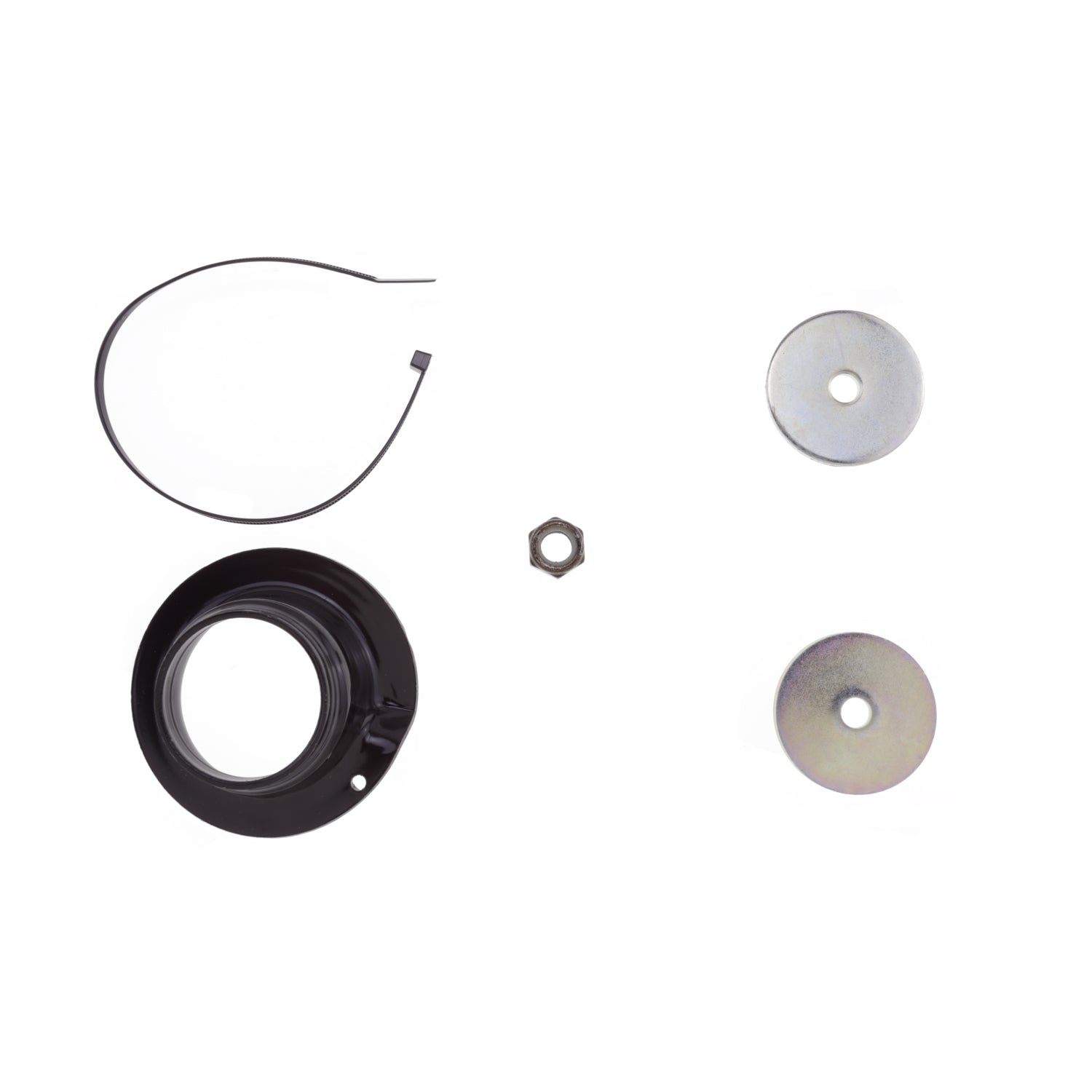

Spring Seat Included |
Yes |
Collapsed Length (MM) |
451.3 |
California Proposition 65 |
WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov |
Reservoir |
No |
Internal Design |
Monotube |
Collapsed Length (IN) |
17.77 |
Boot Included |
Black Bellows |
Length |
4.0000 |
Width |
4.0000 |
Height |
27.0000 |
Weight |
7.0000 |
