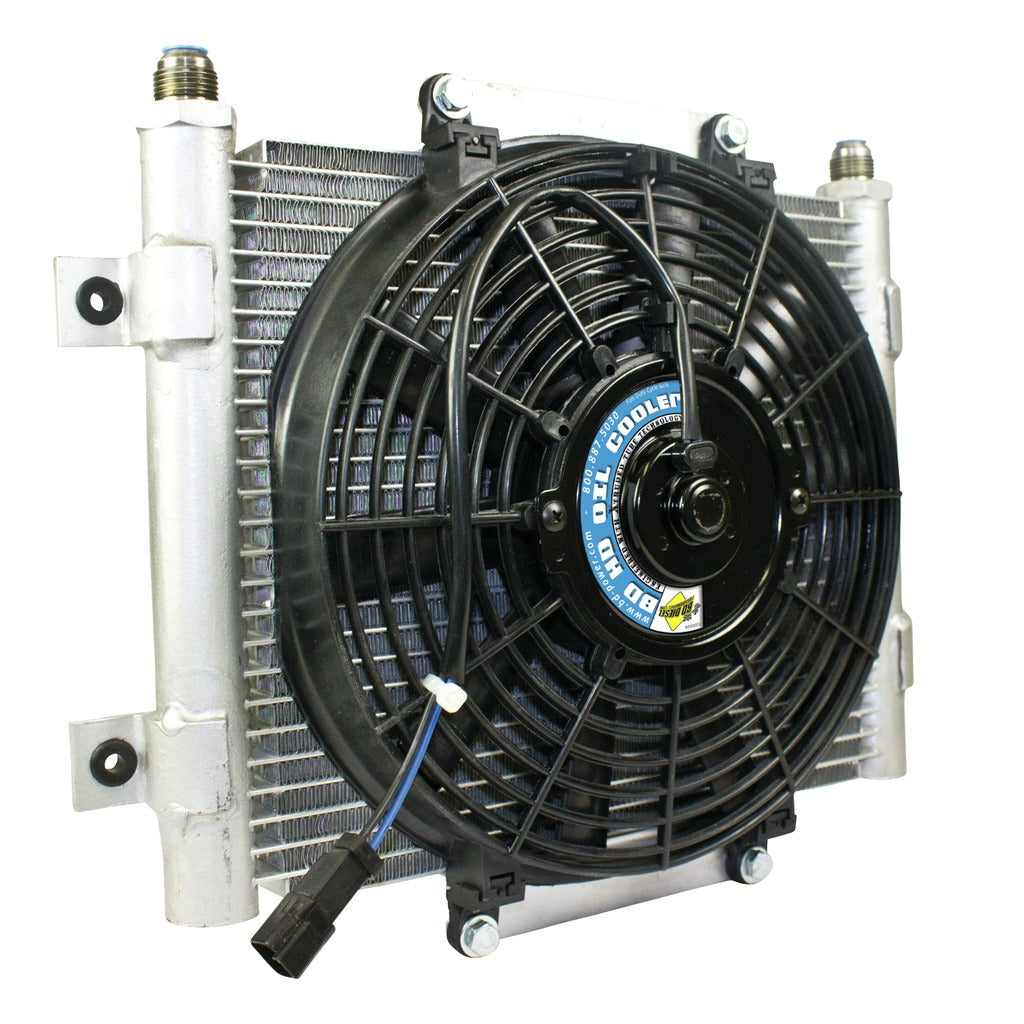

BD Diesel 1300611 BD Xtrude Transmission Cooler with Fan -10 JIC Male Connection

2 sold in last 8 days
BD Diesel
ds_BKJX_1300611
Automatic Transmission Oil Cooler
$469.62 $385.20
$385.20
customers are viewing this product
BD Diesel 1300611 BD Xtrude Transmission Cooler with Fan -10 JIC Male Connection
Details

22% more cooling over other designs; 200 Micro Extruded passages; Large surface area to transfer heat for external air flow cooling; Turbulent oil flow design promotes a more complete cooling; Large 5/8-inch ports prevents inlet/outlet restriction; Furnace brazed rails have been tested to 300psi of pressure; 80-watt, 10-inch, 800 CFM electric fan; 33,930 BTU/HR and in excess of 30,000 GVW!; Motor is IP54 with 65% duty cycle; Cooler Assembly Only

Specifications:

Description_DEF Automatic Transmission Oil Cooler
Description_DES BD Xtrude Transmission Cooler with Fan -10 JIC Male Connection
Description_EXT BD Xtrude Transmission Cooler with Fan -10 JIC Male Connection
Description_FAB 22% more cooling over other designs
Description_FAB 200 Micro Extruded passages
Description_FAB Large surface area to transfer heat for external air flow cooling
Description_FAB Turbulent oil flow design promotes a more complete cooling
Description_FAB Large 5/8-inch ports prevents inlet/outlet restriction
Description_FAB Furnace brazed rails have been tested to 300psi of pressure
Description_FAB 80-watt, 10-inch, 800 CFM electric fan
Description_FAB 33,930 BTU/HR and in excess of 30,000 GVW!
Description_FAB Motor is IP54 with 65% duty cycle
Description_FAB Cooler Assembly Only
Description_INV XTRUDED TRANS COOLER SINGLE COOLER W/FAN
Description_MKT 22% more cooling over other designs; 200 Micro Extruded passages; Large surface area to transfer heat for external air flow cooling; Turbulent oil flow design promotes a more complete cooling; Large 5/8-inch ports prevents inlet/outlet restriction; Furnace brazed rails have been tested to 300psi of pressure; 80-watt, 10-inch, 800 CFM electric fan; 33,930 BTU/HR and in excess of 30,000 GVW!; Motor is IP54 with 65% duty cycle; Cooler Assembly Only
Description_SHO XTRUDED TRANS COOLER
Make Ford
Engine Motorhome Diesel Power
Title BD Xtrude Transmission Cooler with Fan -10 JIC Male Connection
Category Trans Coolers
Prop 65 - Short Label bddiesel_prop65_warning.png
Prop 65 (C, R or CR) CR
Prop 65 Warning WARNING Cancer and Reproductive Harm www.P65Warnings.ca.gov
Prop 65 Yes/No Yes
Length 8.0000
Width 15.0000
Height 18.0000
Weight 8.0000
