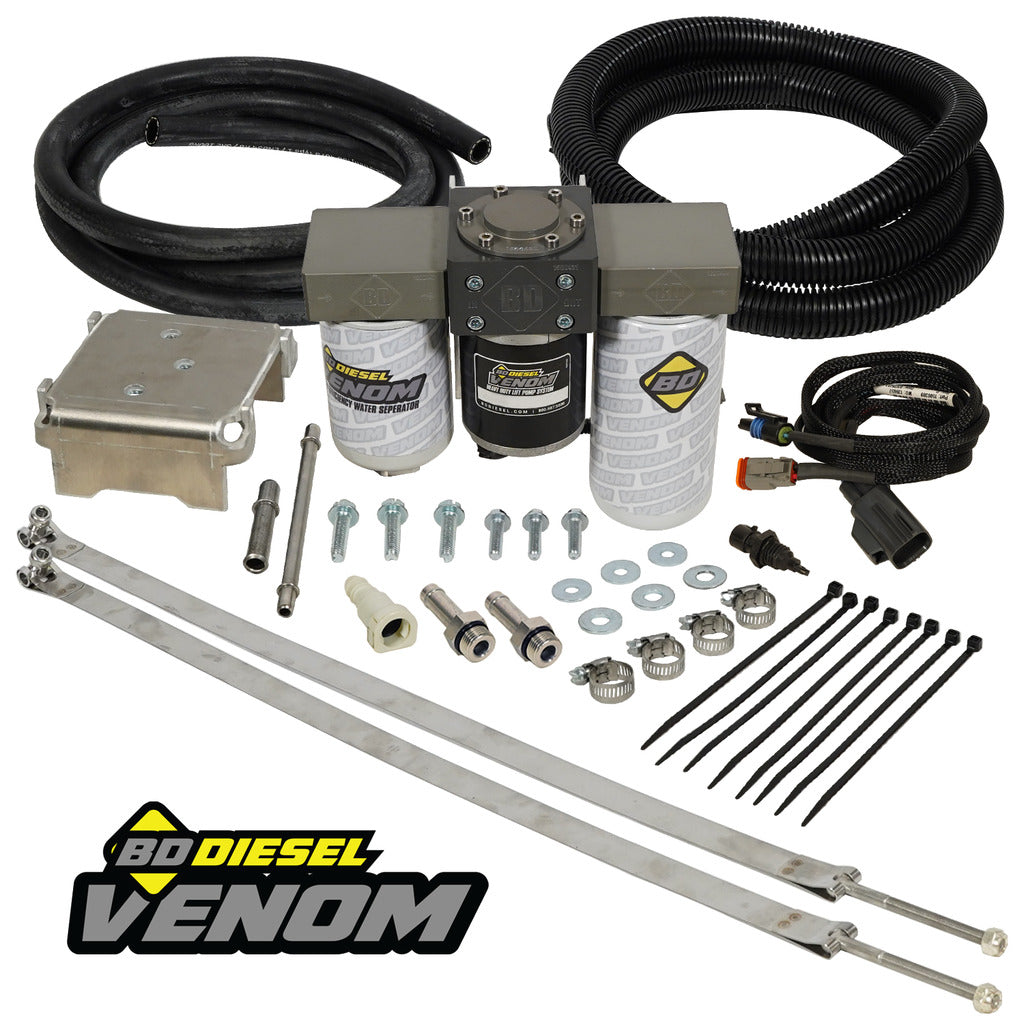

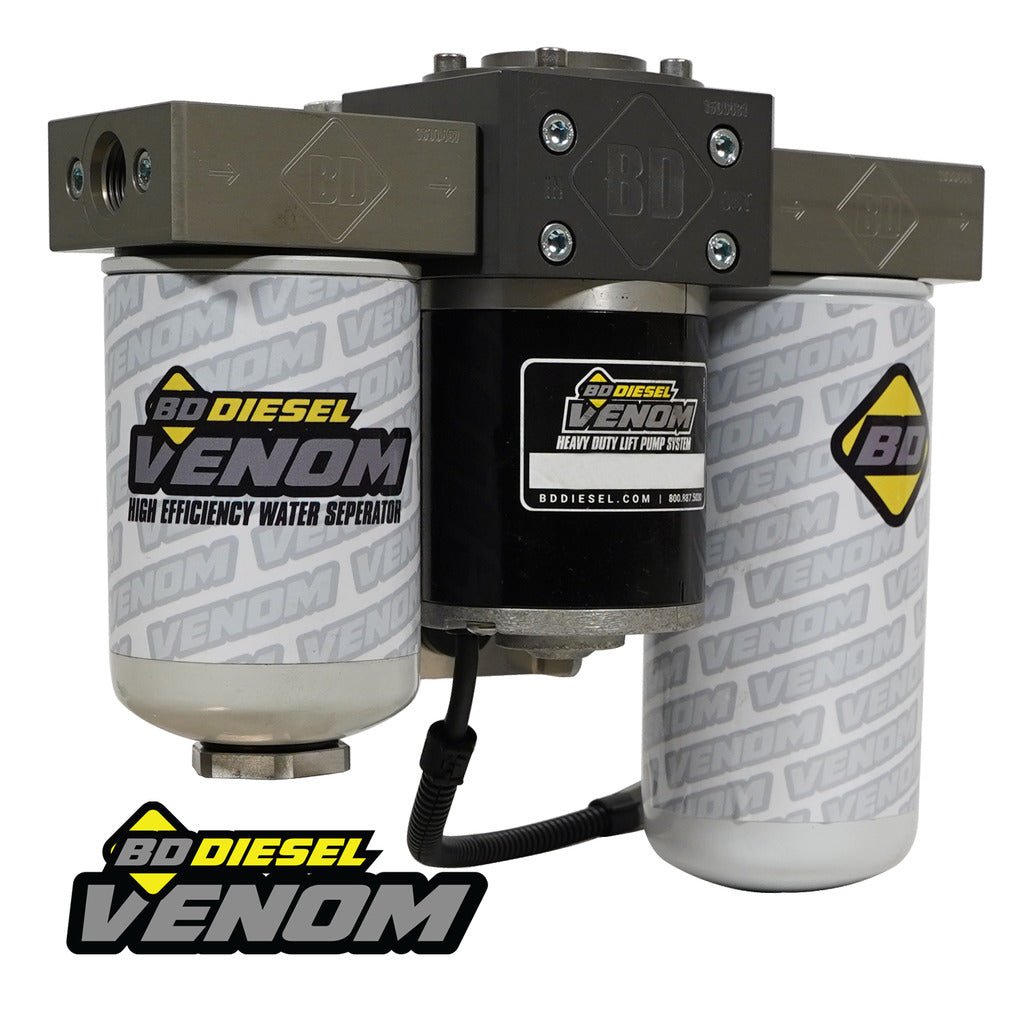

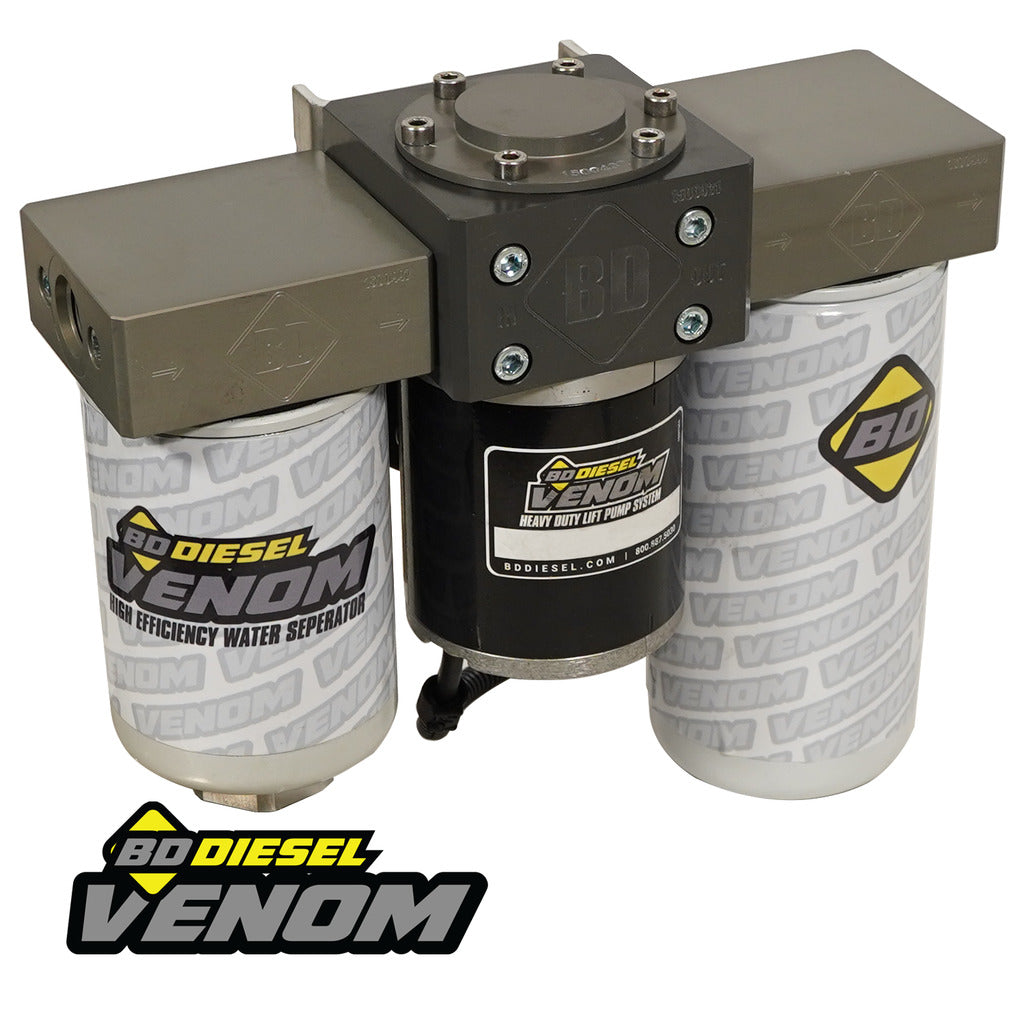

BD's Venom Lift Pump offers a drop in solution that utilizes ultra-quiet ball bearing technology and with improved pressure regulation and efficiency that has enough fuel flow to support up to 900hp. Rated at 165gpm, the Venom Lift Pump will support a single large K16 or dual-fuel kits with stock High Pressure Fuel Pumps (HPFP). Includes a WIF sensor that integrates with your OEM wiring harness to maintain factory diagnostic systems. A rigid aluminum bracket along with quiet vibration isolators allow for versatile and easy installation without having to strap mount to the electric motor like with previous models. Kit includes commonly sourced 3-micron fuel filter and 20-micron water separator filter, plus, everything else needed to install using full-size 1/2-inch fuel lines.
Specifications:
| Description_DEF |
Fuel Lift Pump |
| Description_DES |
BD Venom Power Stroke Fuel Lift Pump c/w Filter & Separator Ford 6.4L 2008-2010 |
| Description_EXT |
BD Venom Power Stroke Fuel Lift Pump c/w Filter & Separator Ford 6.4L 2008-2010 |
| Description_INV |
VENOM LIFT PUMP FORD 6.4L 2008-2010 |
| Description_FAB |

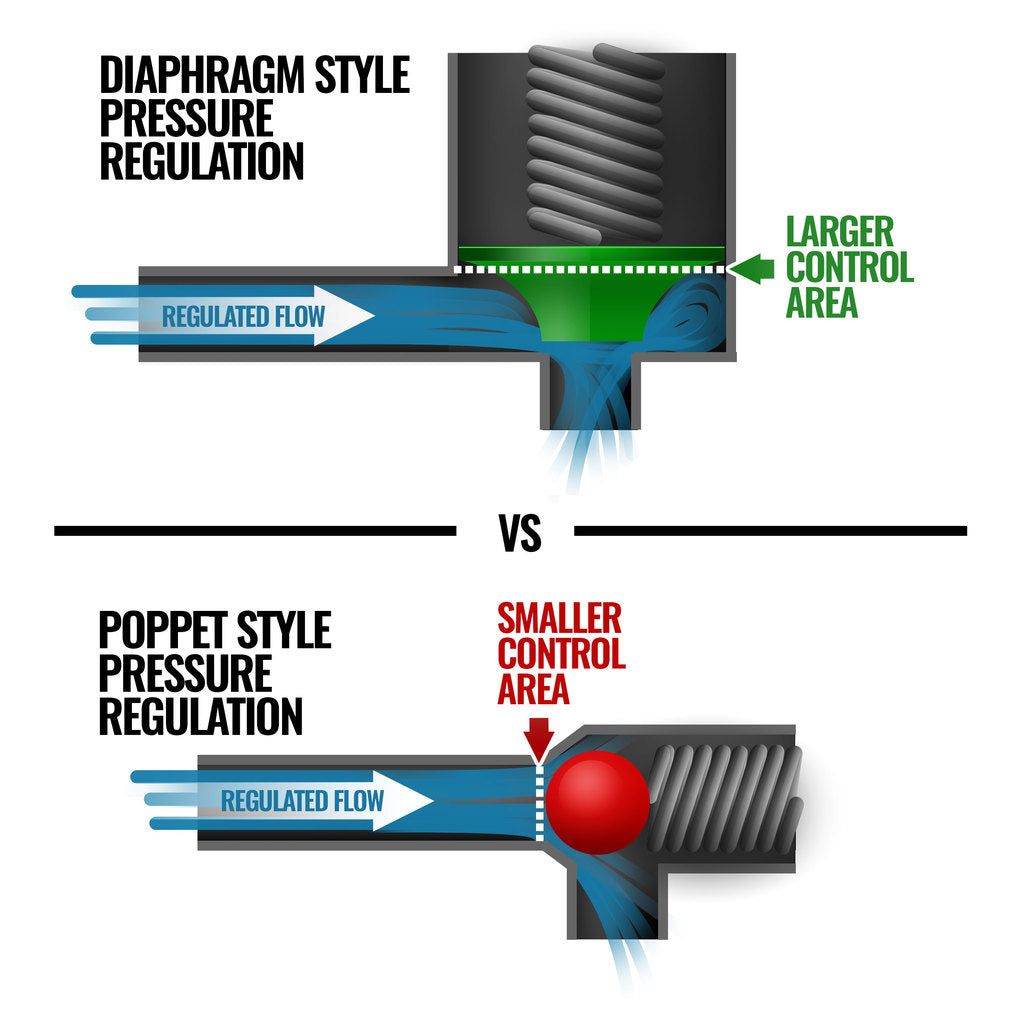

1-1/8in diaphragm-based fuel pressure regulation |
| Description_FAB |
Preset 15 psi |
| Description_FAB |
Updated pump mounting bracket |
| Description_FAB |
Includes commonly sourced water separator, fuel filter, & Water-in-Fuel sensor |
| Description_FAB |
WIF sensor integrates with OEM wiring harness |
| Description_FAB |
165gph supports from stock up to 900hp |
| Description_FAB |
Hard coat billet pump body (military grade), Anodized WIF sensor adaptor |
| Description_FAB |
Quick connect fittings included - no cutting required |
| Description_FAB |
Ultra-compact design |
| Description_FAB |
Replacement fuel filter equivalent Donaldson P551315 |
| Description_FAB |
Replacement water separator filter equivalent Donaldson P550249 |
| Description_MKT |
BD's Venom Lift Pump offers a drop in solution that utilizes ultra-quiet ball bearing technology and with improved pressure regulation and efficiency that has enough fuel flow to support up to 900hp. Rated at 165gpm, the Venom Lift Pump will support a single large K16 or dual-fuel kits with stock High Pressure Fuel Pumps (HPFP). Includes a WIF sensor that integrates with your OEM wiring harness to maintain factory diagnostic systems. A rigid aluminum bracket along with quiet vibration isolators allow for versatile and easy installation without having to strap mount to the electric motor like with previous models. Kit includes commonly sourced 3-micron fuel filter and 20-micron water separator filter, plus, everything else needed to install using full-size 1/2-inch fuel lines. |
| Description_SHO |
VENOM LIFT PUMP KIT |
| Engine |
6.4L Powerstroke 08-10 |
| Prop 65 - Short Label |
bddiesel_prop65_warning.png |
| Prop 65 Yes/No |
Yes |
| Category |
Lift Pumps & Fuel Supply |
| Make |
Ford |
| Prop 65 (C, R or CR) |
CR |
| Prop 65 Warning |
WARNING Cancer and Reproductive Harm www.P65Warnings.ca.gov |
| Title |
BD Venom Power Stroke Fuel Lift Pump c/w Filter & Separator Ford 6.4L 2008-2010 |
| Length |
8.0000 |
| Width |
15.0000 |
| Height |
18.0000 |
| Weight |
16.0000 |
