BD's Super B Twin kit features a pair of stage-compound BorgWarner S300 turbochargers to keep air flow high and exhaust gas temperature (EGT) low. The high-pressure turbo provides quick, low-rpm response, the larger high-flow low-pressure turbo adds for a broad power curve across the engine's rpm range. With enough airflow to easily cool 575 rear wheel horsepower, the Super B Twin kit is great not only for competition applications but also for towing heavy loads with power to spare. By adding BD's Xtruded Charge Air Cooler and the appropriate fuel system enhancements you could get up to 675 rear wheel horsepower! The Super B Twin kit comes complete with a intake kit, flow-matched exhaust and intake piping, and, all necessary heat shields.
Specifications:
| Description_DEF |
Turbocharger Kit |
| Description_DES |
Super B Twin Turbo Kit w/FMW Billet Wheel on Secondary - Dodge 98.5-02 24-valve |
| Description_FAB |
Forged Milled Billet Wheel on secondary turbo |
| Description_FAB |
Includes Turbine Blanket for Primary Turbo |
| Description_FAB |
Stage-compounded AirWerks S300 turbochargers |
| Description_FAB |
High CFM yielding high power with low EGTs |
| Description_FAB |
Quick, low-rpm response |
| Description_FAB |
Broad power curve across the entire engine rpm range |
| Description_FAB |
Easily cool 575 rear wheel horsepower |
| Description_FAB |
Great towing and competition |
| Description_FAB |
Upgrade kits available for Super B Single |
| Description_FAB |
1190 CFM - 82.30 LBS/MN - 650 HP |
| Description_FAB |
Comp Wheel High Pressures: 66mm 2.60in |
| Description_FAB |
Comp Wheel Low Pressures: 58mm 2.28in |
| Description_FAB |

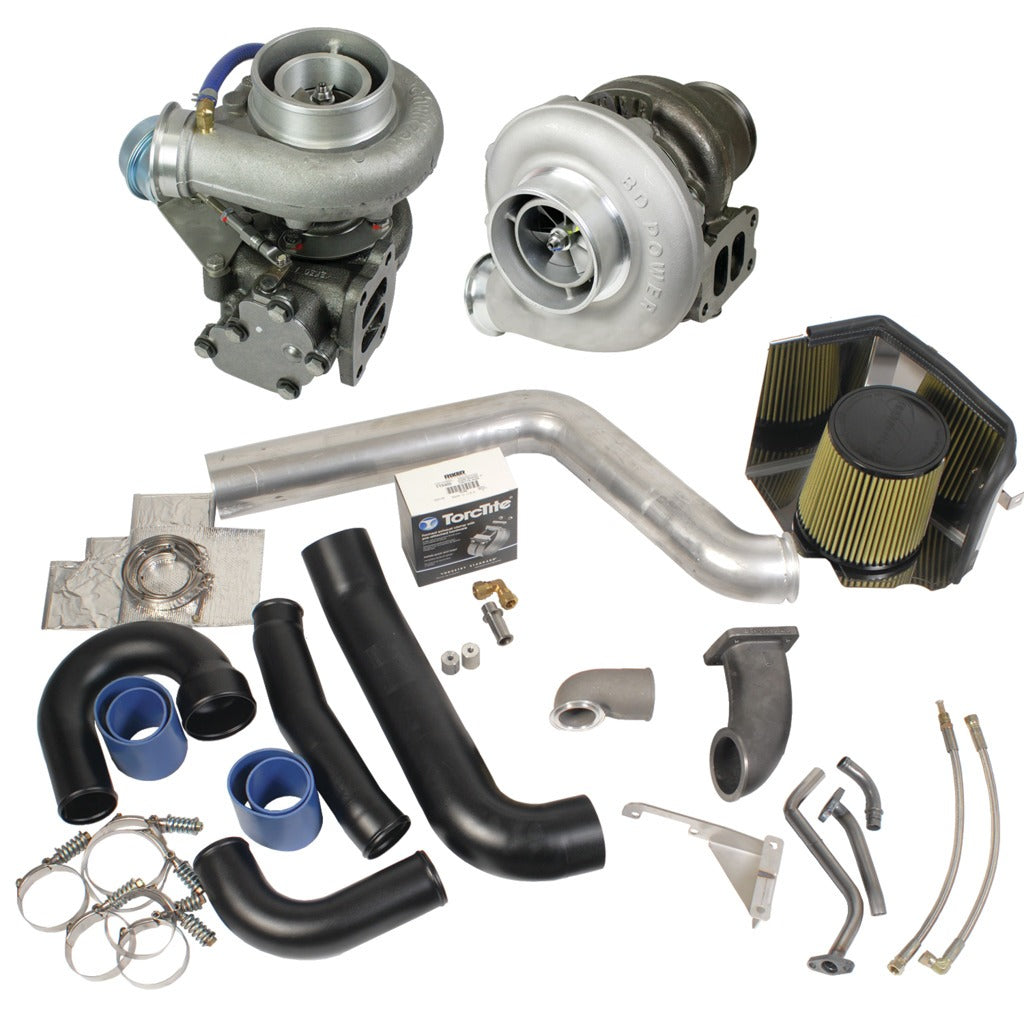

Turbos, Down Pipe, Piping, Air Box, Washable Air Filter, Heat Wrap, Clamps, Hoses, Oil Drains, Brackets and Hardware |
| Description_FAB |
Extended tip compressor wheel technology |
| Description_EXT |
Super B Twin Turbo Kit w/FMW Billet Wheel on Secondary - Dodge 1998.5-2002 24-valve |
| Description_INV |
TURBO TWIN SUPER B DODGE 98.5-02 5.9L |
| Description_MKT |
BD's Super B Twin kit features a pair of stage-compound BorgWarner S300 turbochargers to keep air flow high and exhaust gas temperature (EGT) low. The high-pressure turbo provides quick, low-rpm response, the larger high-flow low-pressure turbo adds for a broad power curve across the engine's rpm range. With enough airflow to easily cool 575 rear wheel horsepower, the Super B Twin kit is great not only for competition applications but also for towing heavy loads with power to spare. By adding BD's Xtruded Charge Air Cooler and the appropriate fuel system enhancements you could get up to 675 rear wheel horsepower! The Super B Twin kit comes complete with a intake kit, flow-matched exhaust and intake piping, and, all necessary heat shields. |
| Description_SHO |
TURBO TWIN SUPER B |
| Prop 65 - Short Label |
bddiesel_prop65_warning.png |
| Box 1 Weight |
62.00 |
| Box 2 Length |
30.50 |
| Engine |
5.9L Cummins 98.5-02 24-Valve |
| Prop 65 Yes/No |
Yes |
| Box 1 Height |
12.50 |
| Box 1 Length |
24.00 |
| Box 1 Width |
12.30 |
| Box 2 Height |
16.00 |
| Box 2 Weight |
58.00 |
| Box 2 Width |
20.50 |
| Category |
Twin Turbo Performance |
| Make |
Dodge |
| Prop 65 (C, R or CR) |
CR |
| Prop 65 Warning |
WARNING Cancer and Reproductive Harm www.P65Warnings.ca.gov |
| Suggested Product |
1041550 |
| Title |
Super B Twin Turbo Kit w/FMW Billet Wheel on Secondary - Dodge 98.5-02 24-valve |
| Length |
29.0000 |
| Width |
21.0000 |
| Height |
31.0000 |
| Weight |
120.0000 |
