BD Diesel 1030606-5/16 Xtruded Trans Oil Cooler - 5/16 inch Cooler Lines for Select Chevrolet C1500, Chevrolet C2500, Chevrolet C3500, Chevrolet K1500, Chevrolet K2500, Chevrolet K3500, Chevrolet R3500, Chevrolet Silverado 1500, Chevrolet V3500, Ford
Guaranteed Fitment
Always the correct part
Added Value
Performance matched parts
In-House Experts
We know our products
Nationwide Delivery
Economy shipping

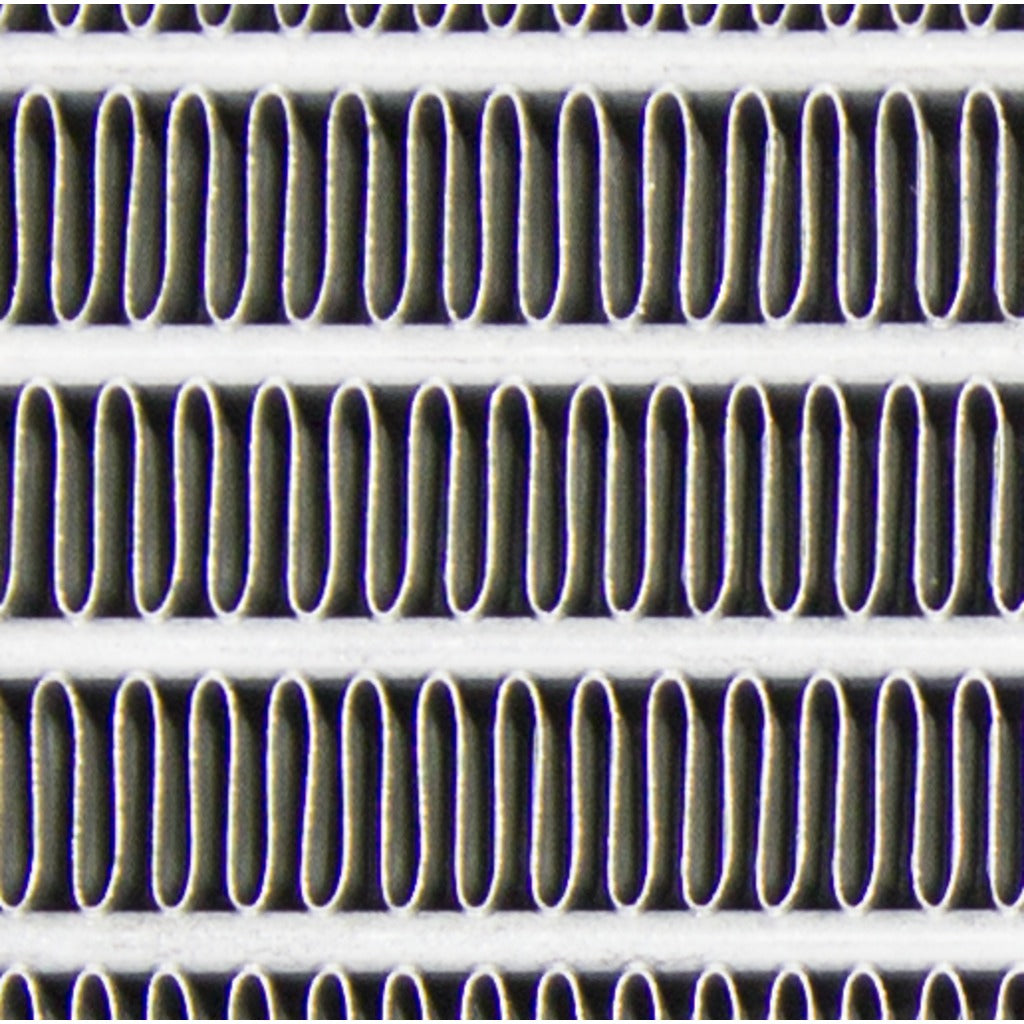

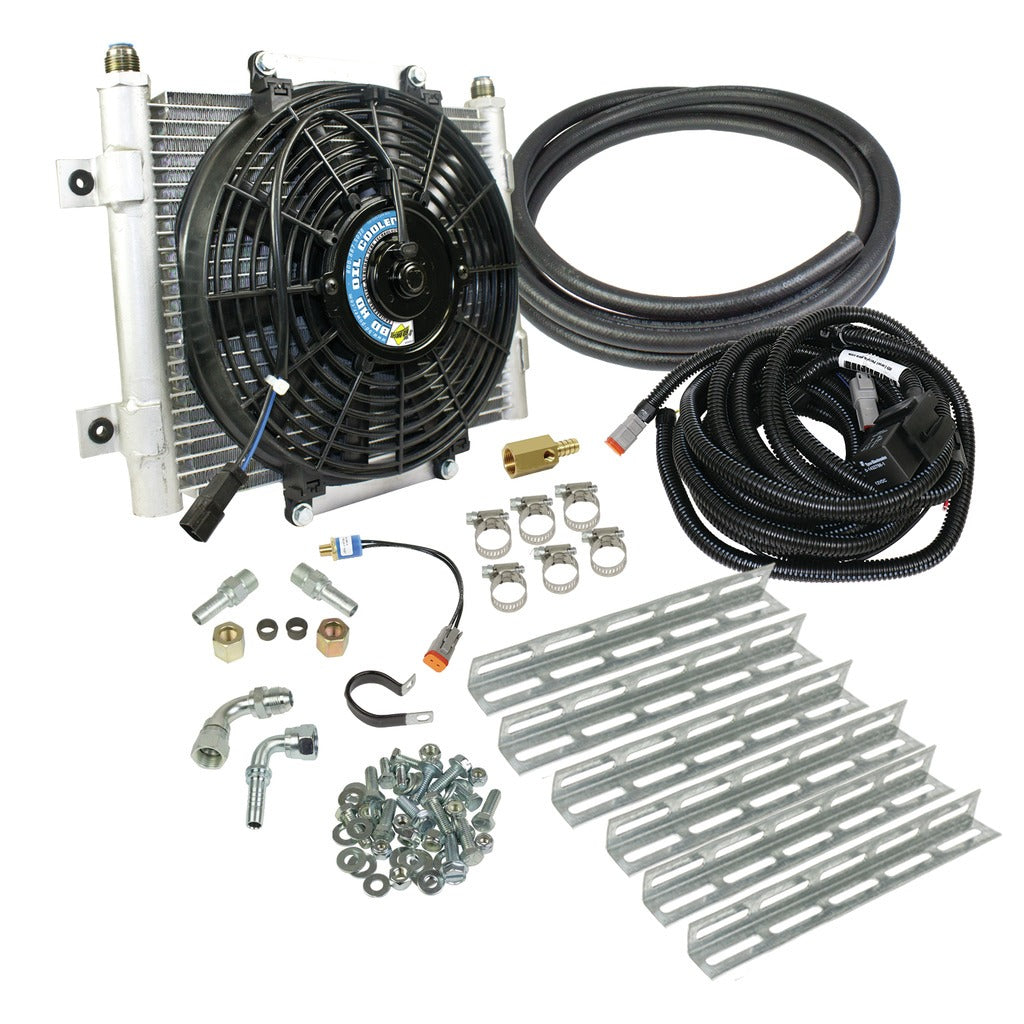

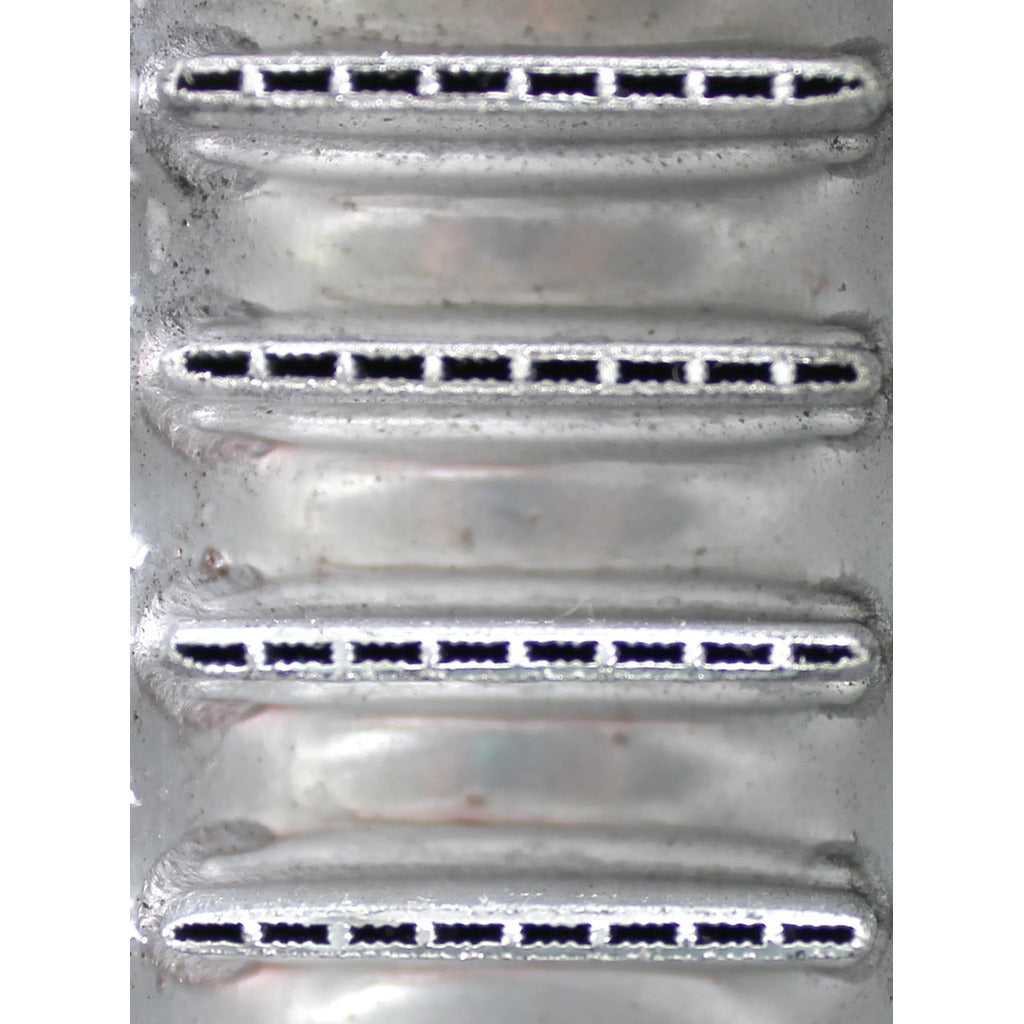

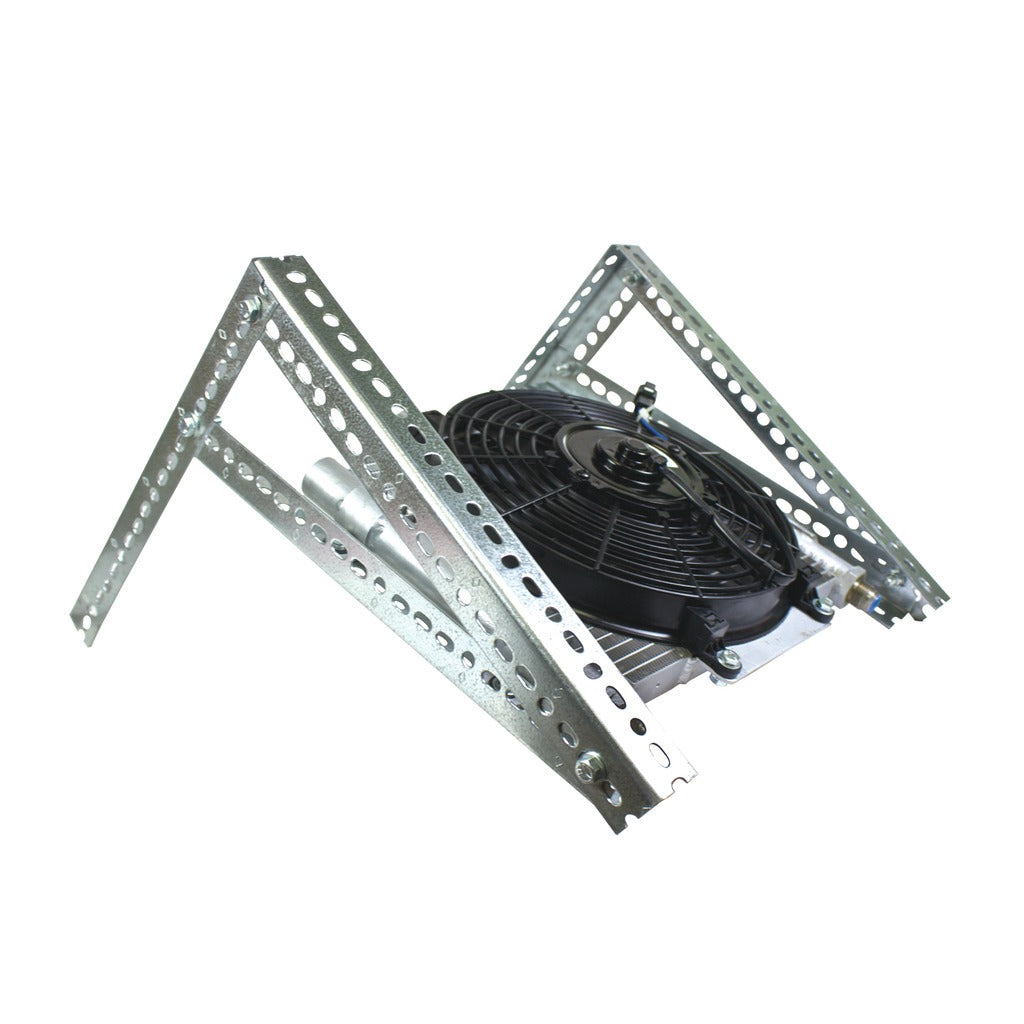

Coolers, providing 22% more cooling over other designs. The 200 Micro Extruded passages provide a large surface area to transfer heat for external air flow cooling while turbulent oil flow design promotes a more complete cooling. Large 5/8-inch ports prevents inlet/outlet restriction and furnace brazed rails have been tested to 300psi of pressure. The thermostatically controlled 80-watt, 10-inch, 800 CFM electric fan offers ultimate automatic oil temperature control. This combination gives BD's Xtruded Transmission Oil Cooler a rating of 33,930 BTU/HR and in excess of 30,000 GVW! Xtruded Transmission Oil Cooler packages come complete with all fittings, clamps, hoses, hardware and a Build-It-Yourself galvanized bracket kit for quicker and cleaner installation - no wasting time fabricating brackets out of scrap metal. The pre-wired loomed harness with fuse and relay comes with OEM style sealed connectors to resist elements and give factory-like install look.
Xtruded Trans Oil Cooler - 5/16 inch Cooler Lines
Fits: 1991-1999 Chevrolet C1500, 1991-1999 Chevrolet C2500, 1991-1999 Chevrolet C3500, 1991-1999 Chevrolet K1500, 1991-1999 Chevrolet K2500, 1991-1999 Chevrolet K3500, 1991 Chevrolet R3500, 1999-2000 Chevrolet Silverado 1500, 1991 Chevrolet V3500, 1994-1997 Ford F-150, 1994-1997 Ford F-250, 1994-1997 Ford F-350, 1991-1997 GMC C1500, 1991-1999 GMC C2500, 1991-1999 GMC C3500, 1991-1998 GMC K1500, 1991-1999 GMC K2500, 1991-1999 GMC K3500
Please review Specifications and the detailed fitment table for notes and exceptions.
