Coolers, providing 22% more cooling over other designs. The 200 Micro Extruded passages provide a large surface area to transfer heat for external air flow cooling while turbulent oil flow design promotes a more complete cooling. Large 5/8-inch ports prevents inlet/outlet restriction and furnace brazed rails have been tested to 300psi of pressure. The thermostatically controlled 80-watt, 10-inch, 800 CFM electric fan offers ultimate automatic oil temperature control. This combination gives BD's Xtruded Transmission Oil Cooler a rating of 33,930 BTU/HR and in excess of 30,000 GVW! Xtruded Transmission Oil Cooler packages come complete with all fittings, clamps, hoses, hardware and a Build-It-Yourself galvanized bracket kit for quicker and cleaner installation - no wasting time fabricating brackets out of scrap metal. The pre-wired loomed harness with fuse and relay comes with OEM style sealed connectors to resist elements and give factory-like install look.
Specifications:
| Description_DEF |
Automatic Transmission Oil Cooler |
| Description_EXT |
Xtruded Trans Oil Cooler - 3/8 inch Cooler Lines |
| Description_DES |
Xtruded Trans Oil Cooler - 3/8 inch Cooler Lines |
| Description_INV |
XTRUDED TRANS COOLER 3/8 INCH LINES |
| Description_FAB |
22% more cooling over other designs |
| Description_FAB |

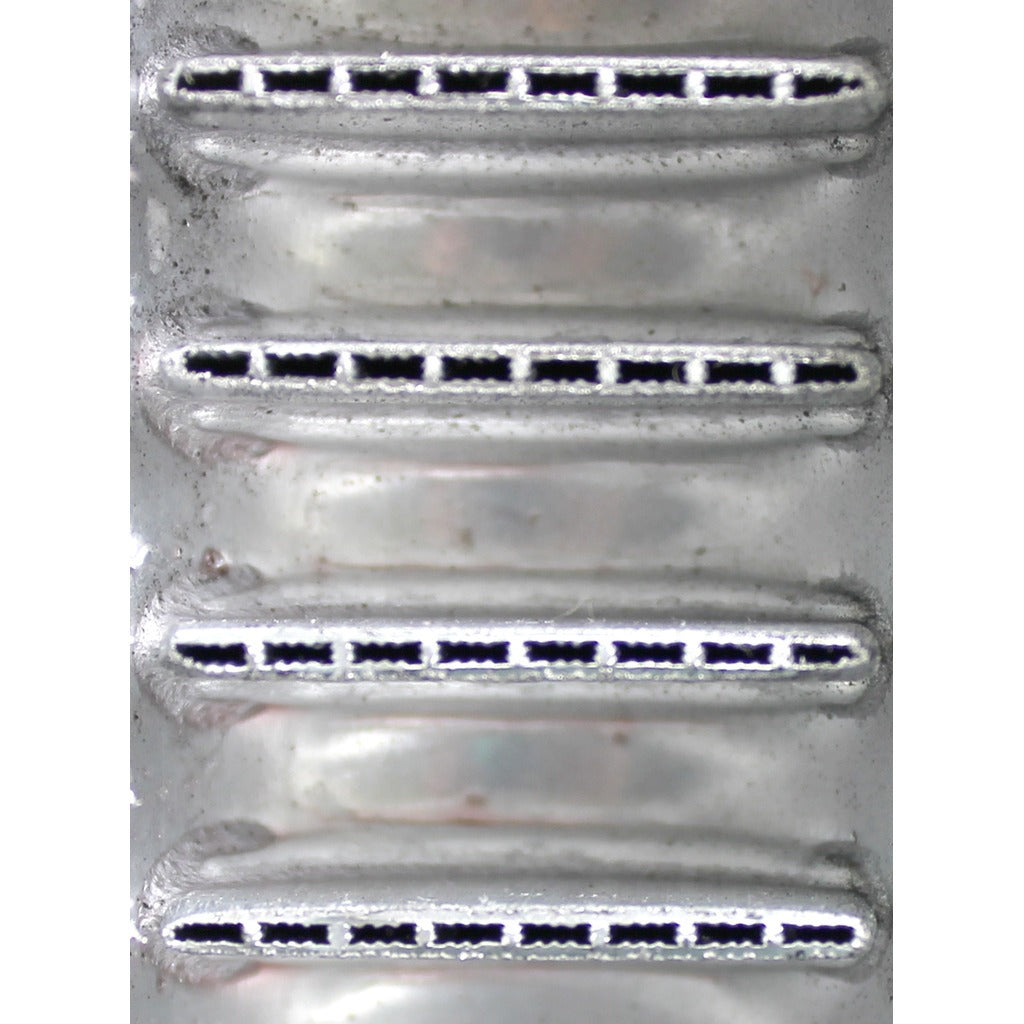

200 Micro Extruded passages |
| Description_FAB |

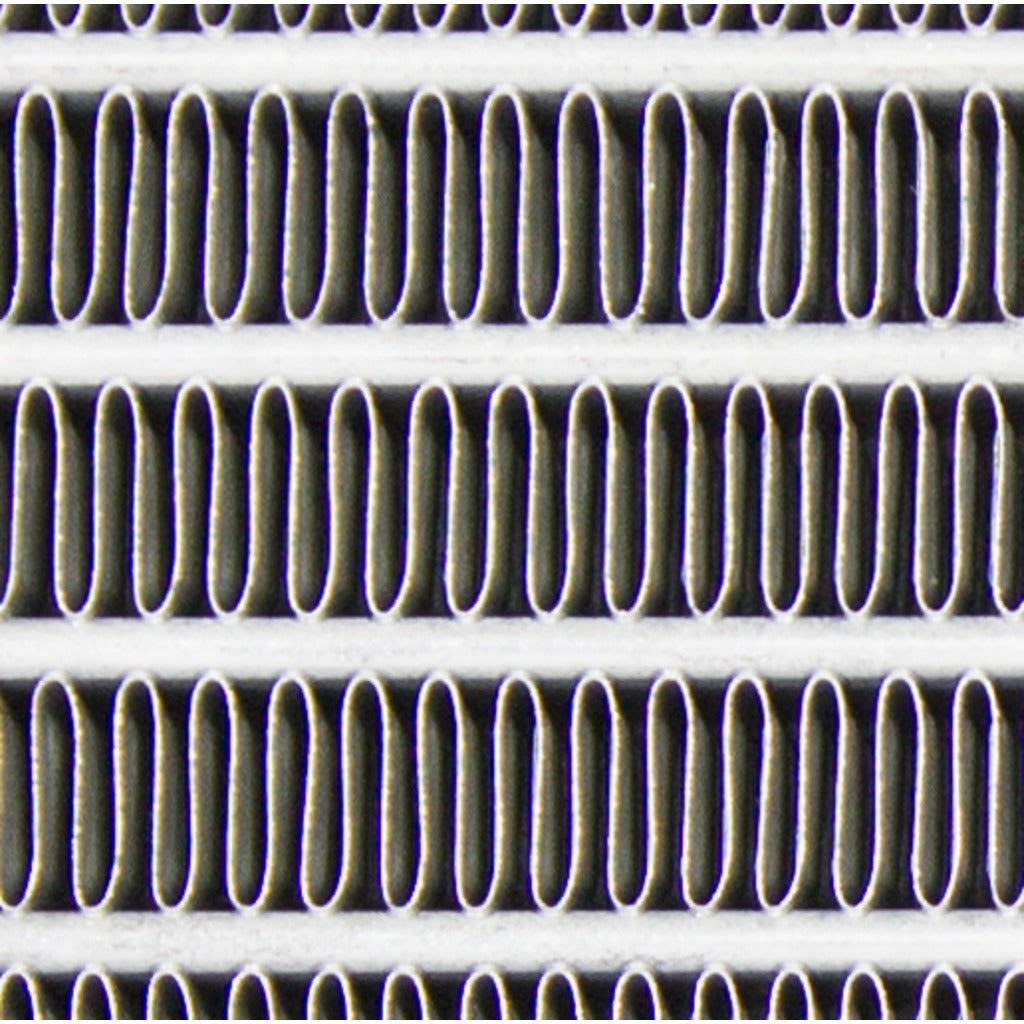

Large surface area to transfer heat for external air flow cooling |
| Description_FAB |
Turbulent oil flow design promotes a more complete cooling |
| Description_FAB |
Large 5/8-inch ports prevents inlet/outlet restriction |
| Description_FAB |
Furnace brazed rails have been tested to 300psi of pressure |
| Description_FAB |
Thermostatically controlled 80-watt, 10-inch, 800 CFM electric fan |
| Description_FAB |
33,930 BTU/HR and in excess of 30,000 GVW! |
| Description_FAB |

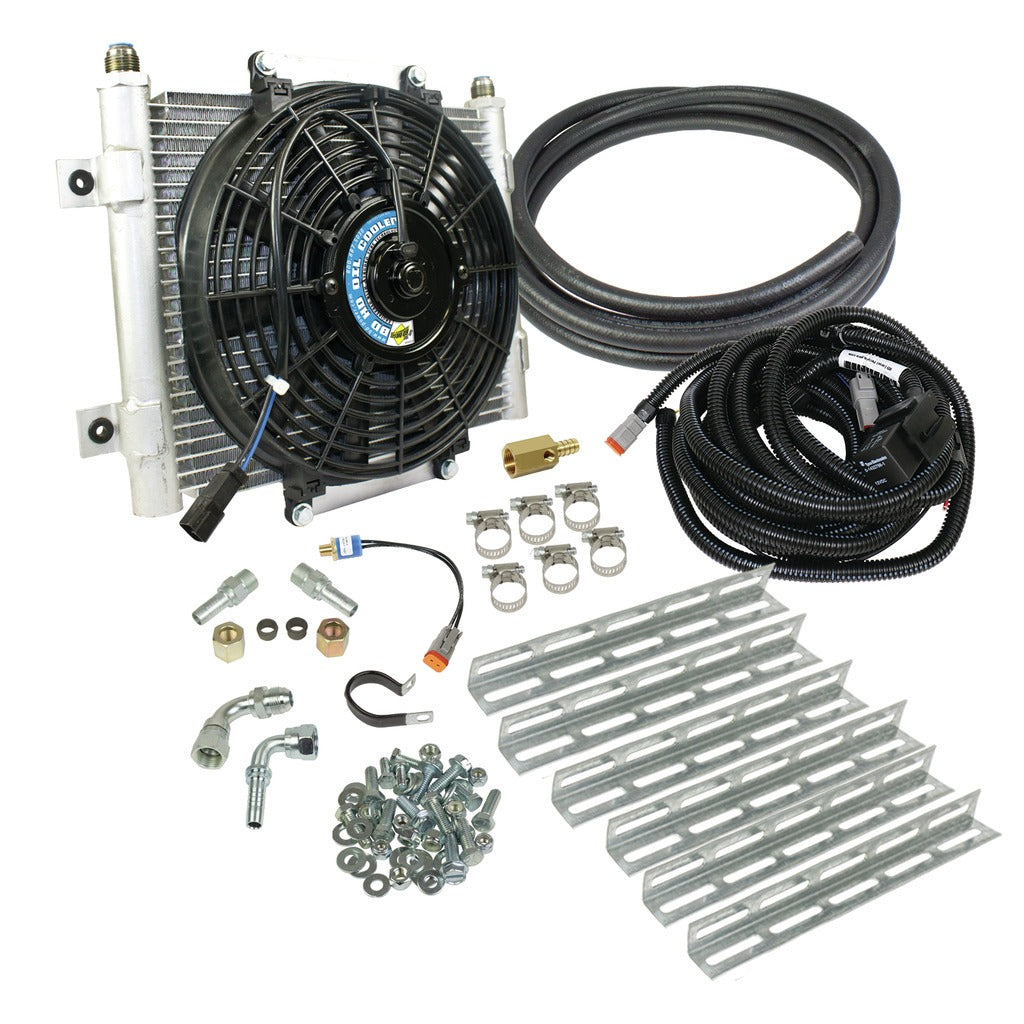

Kits complete with all fittings, clamps, hoses and hardware |
| Description_FAB |

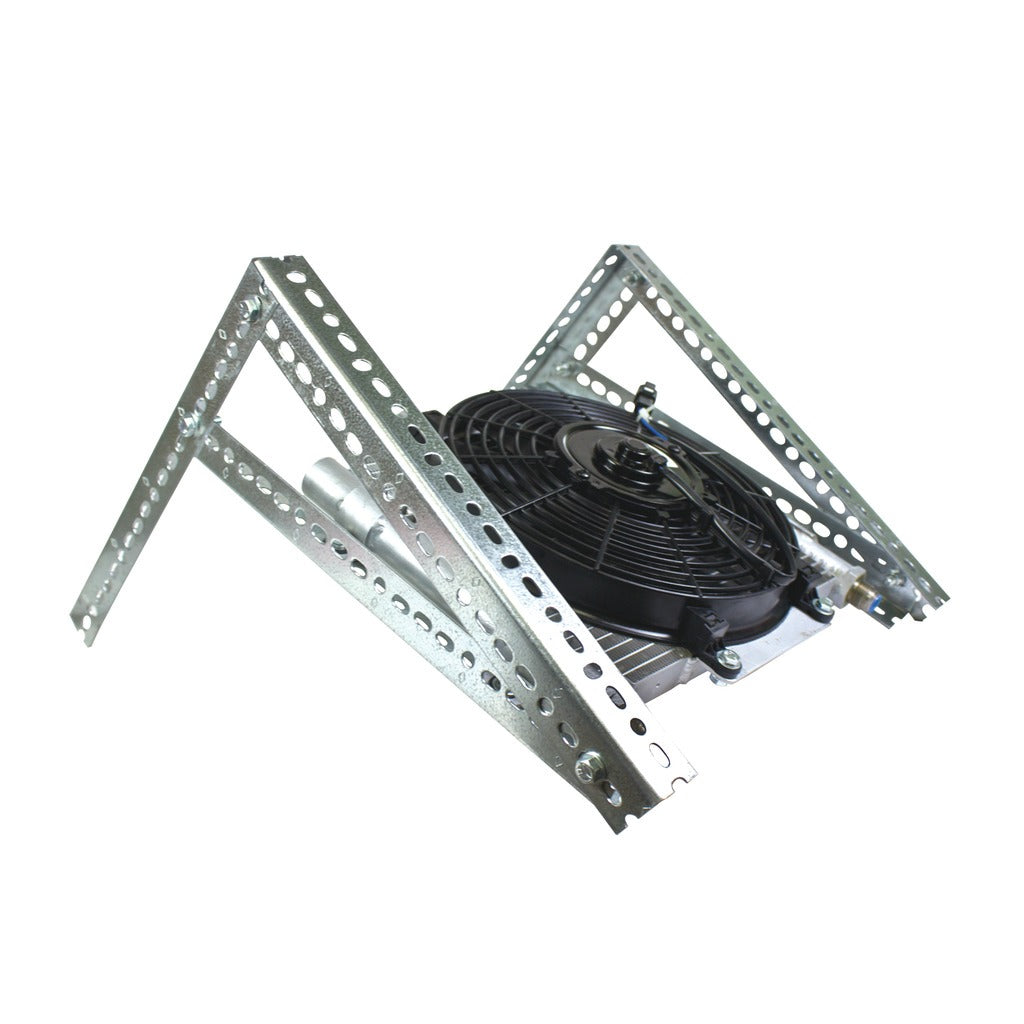

Build-It-Yourself galvanized bracket kit for quick and easy installation - no wasting time fabricating brackets out of scrap metal |
| Description_FAB |
The pre-wired loomed harness with fuse and relay comes with plug-in connectors |
| Description_FAB |
Chevy 1999-2000 4L80E - 3/8-inch Cooler Lines |
| Description_FAB |
Ford 1999-2003 4R100 - 3/8-inch Cooler Lines |
| Description_MKT |
Coolers, providing 22% more cooling over other designs. The 200 Micro Extruded passages provide a large surface area to transfer heat for external air flow cooling while turbulent oil flow design promotes a more complete cooling. Large 5/8-inch ports prevents inlet/outlet restriction and furnace brazed rails have been tested to 300psi of pressure. The thermostatically controlled 80-watt, 10-inch, 800 CFM electric fan offers ultimate automatic oil temperature control. This combination gives BD's Xtruded Transmission Oil Cooler a rating of 33,930 BTU/HR and in excess of 30,000 GVW! Xtruded Transmission Oil Cooler packages come complete with all fittings, clamps, hoses, hardware and a Build-It-Yourself galvanized bracket kit for quicker and cleaner installation - no wasting time fabricating brackets out of scrap metal. The pre-wired loomed harness with fuse and relay comes with OEM style sealed connectors to resist elements and give factory-like install look. |
| Description_SHO |
XTRUDED TRANS COOLER |
| Title |
Xtruded Trans Oil Cooler - 3/8 inch Cooler Lines |
| Category |
Trans Coolers |
| Make |
Ford |
| Suggested Product |
1061830 |
| Engine |
Motorhome Diesel Power |
| Prop 65 - Short Label |
bddiesel_prop65_warning.png |
| Prop 65 (C, R or CR) |
CR |
| Prop 65 Warning |
WARNING Cancer and Reproductive Harm www.P65Warnings.ca.gov |
| Prop 65 Yes/No |
Yes |
| Length |
11.0000 |
| Width |
16.0000 |
| Height |
22.0000 |
| Weight |
17.0000 |
