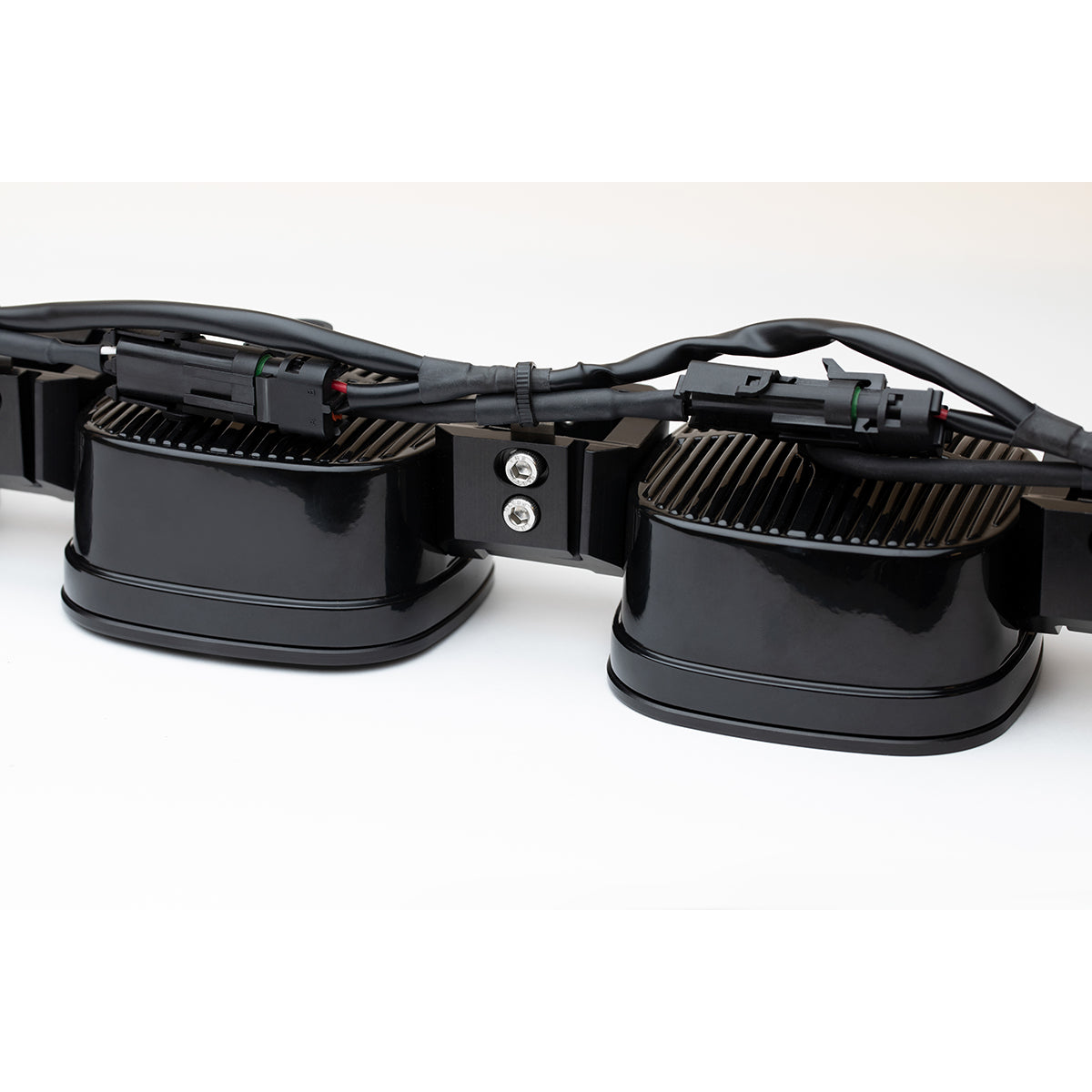

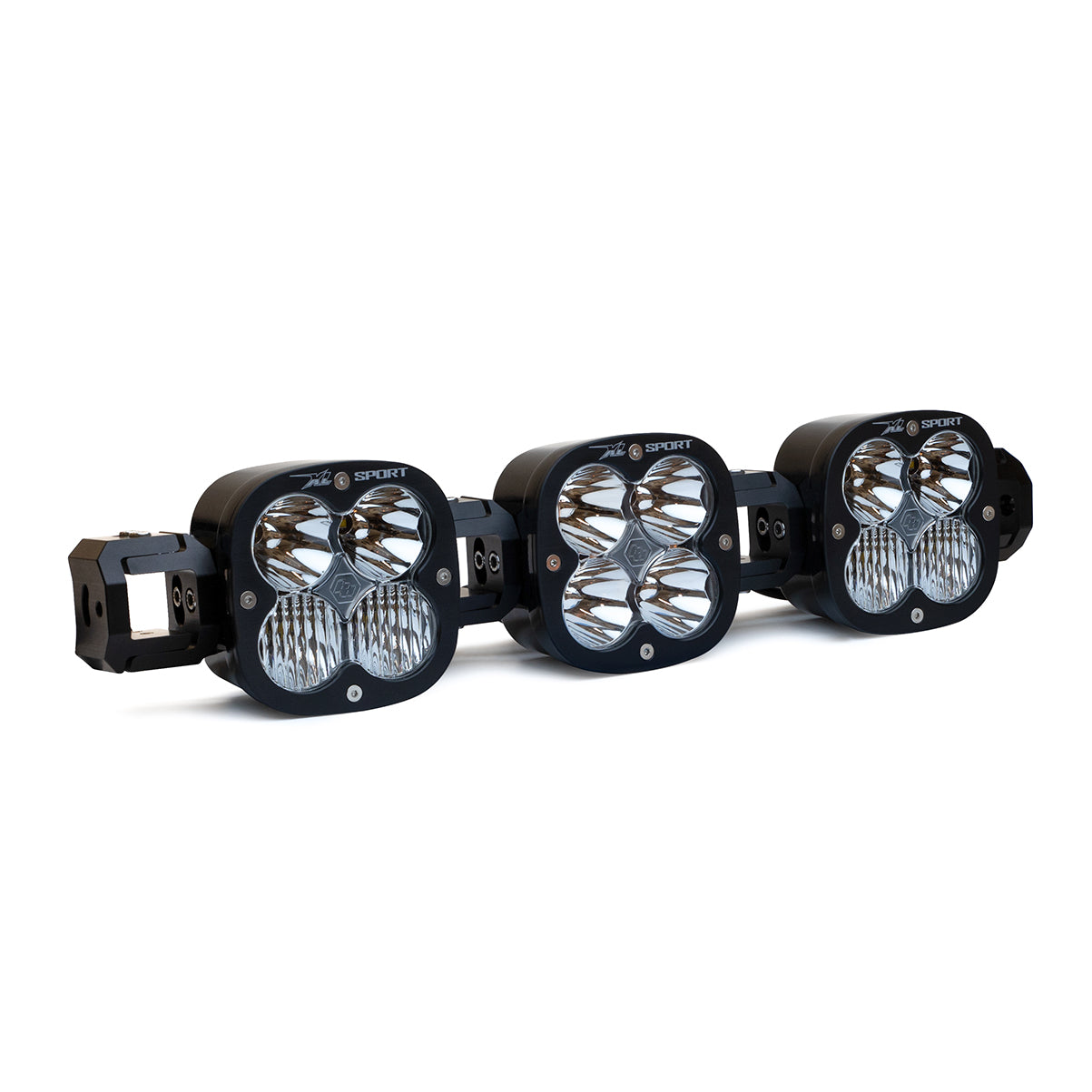

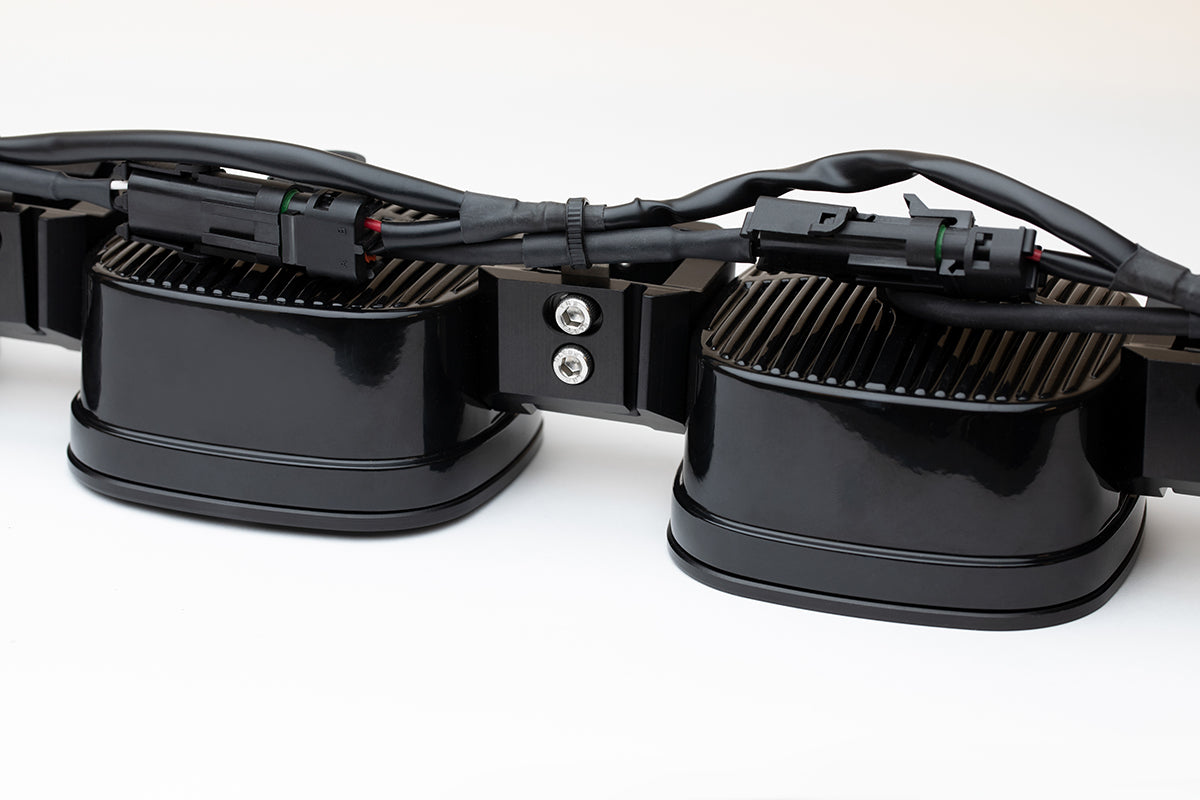

Full adjustment. Total Performance. The XL Linkable was designed for the enthusiast looking to take charge with a light package that is completely customizable for their needs. This kit includes 3 XL Sports, Links, and Rock Guards.This system provides 45 degrees of vertical pitch adjustment within each light or the entire unit. Completely independent horizontal adjustment allows for straight or arced configurations to perfectly match the lines of your vehicle. The wiring comes fully crimped and trimmed, allowing for easy install and the ability to add links down the road. If you're looking to have a lighting system that performs as well as it looks, this is the auxiliary light kit for you!Designs Features:Satisfactions Guarantee - 30 Day Money Back GuaranteeLimited Lifetime Warranty - Complete Purchase ProtectionuService - Replaceable Lenses And OpticsClearView - All The Light, Right Where You Need It.MoistureBlock - Waterproof, Rain Proof, SubmersibleCopperDrive - Only LED Driven At 100 percent5000K Daylight - Less Driver Fatigue, Natural Color Specifications:Lumens: 9,450 Utilizing 12 LEDsWattage/Amps: 78W / 6ALED Life Expectancy: 49,930 HoursFront Lens: Hard Coated PolycarbonateHousing: Powder Coated Cast AluminumBezel: Billet Machined AluminumHardware and Bracket Material: Stainless SteelExceeds MIL-STD810G (Mil-Spec Testing)Built-In Overvoltage ProtectionIP69K (Waterproof, Submersible to 9ft)IK10 Compliant (Mechanical Impact Testing)Includes:x1 XL Sport Spot LED Lightx2 XL Sport Driving/Combo LED Lightx3 XL Sport Rock GuardsPatterns:Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (44 Degree) and spot (6 Degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 44 Degree flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 and 2)High Speed Spot: A longer and narrower 6 Degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 and 5)
Specifications:
| Description_ASC |
Three Light Pods |
| Description_ASM |
Universal |
| Description_DEF |
Light Bar |
| Description_DES |
XL Linkable LED Light Bar |
| Description_FAB |
Satisfaction Guarantee -30-Day Money Back Guarantee |
| Description_FAB |
Limited Lifetime Warranty -Complete Purchase Protection |
| Description_FAB |
uService -Replaceable Lenses And Optics |
| Description_FAB |
ClearView -All The Light, Right Where You Need It |
| Description_FAB |
MoistureBlock -Waterproof, Rain Proof, Submersible |
| Description_FAB |
CopperDrive -Only LED Driven At 100 Percent |
| Description_FAB |
5000K Daylight -Less Driver Fatigue, Natural Color |
| Description_EXT |
XL Linkable LED Light Bar (3 XL; Clear) |
| Description_MKT |
Full adjustment. Total Performance. The XL Linkable was designed for the enthusiast looking to take charge with a light package that is completely customizable for their needs. This kit includes 3 XL Sports, Links, and Rock Guards.This system provides 45 degrees of vertical pitch adjustment within each light or the entire unit. Completely independent horizontal adjustment allows for straight or arced configurations to perfectly match the lines of your vehicle. The wiring comes fully crimped and trimmed, allowing for easy install and the ability to add links down the road. If you're looking to have a lighting system that performs as well as it looks, this is the auxiliary light kit for you!Designs Features:Satisfactions Guarantee - 30 Day Money Back GuaranteeLimited Lifetime Warranty - Complete Purchase ProtectionuService - Replaceable Lenses And OpticsClearView - All The Light, Right Where You Need It.MoistureBlock - Waterproof, Rain Proof, SubmersibleCopperDrive - Only LED Driven At 100 percent5000K Daylight - Less Driver Fatigue, Natural Color Specifications:Lumens: 9,450 Utilizing 12 LEDsWattage/Amps: 78W / 6ALED Life Expectancy: 49,930 HoursFront Lens: Hard Coated PolycarbonateHousing: Powder Coated Cast AluminumBezel: Billet Machined AluminumHardware and Bracket Material: Stainless SteelExceeds MIL-STD810G (Mil-Spec Testing)Built-In Overvoltage ProtectionIP69K (Waterproof, Submersible to 9ft)IK10 Compliant (Mechanical Impact Testing)Includes:x1 XL Sport Spot LED Lightx2 XL Sport Driving/Combo LED Lightx3 XL Sport Rock GuardsPatterns:Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (44 Degree) and spot (6 Degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 44 Degree flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 and 2)High Speed Spot: A longer and narrower 6 Degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 and 5) |
| Description_INV |
Baja Designs Light Bar |
| Description_SHO |
XL Linkable LED Light Bar 3 XLClear Baja Desgins |
| Standards/Compliance (Durability) |
Exceeds MIL-STD810G (Mil-Spec Testing) |
| Mounting Hardware Included |
Yes |
| Prop 65 (C, R or CR) |
CR |
| Standards/Compliance (Water Resistance) |
IP69K (Waterproof up to 9ft & Pressure Washable) |
| Wattage (W) |
78 |
| Wiring Harness Included |
Yes |
| Housing Color |
Black |
| Lighting Technology |
LED |
| Overvoltage Protection |
Built-In |
| Prop 65 Yes/No |
Yes |
| Add-On |
Accessories-668004-Light Cover (Amber) |
| Add-On |
Accessories-668005-Light Cover (Clear) |
| Add-On |
Accessories-668003-Rock Guard (Black) |
| Add-On |
Accessories-660115-Lens Kit (Driving/Combo; Amber) |
| Add-On |
Accessories-660104-Lens Kit (Driving/Combo; Clear) |
| Add-On |
Accessories-660106-Lens Kit (Spot; Clear) |
| Add-On |
Accessories-660107-Lens Kit (Wide Cornering; Amber) |
| Add-On |
Accessories-660105-Lens Kit (Wide Cornering; Clear) |
| Add-On |
Associated Products-748000-Brackets |
| Add-On |
Associated Products-748002-Pre-Load Mount |
| Add-On |
Associated Products-660302-Anti Theft Hardware Kit - 1/4-20x1/2 Socket Pin Head Bolts |
| Add-On |
Associated Products-660303-Anti Theft Hardware Kit - 3/8 in. Tamperproof Nuts |
| Add-On |
Compatible Products-640094-Upfitter Harness |
| Average Rated Life (hr.) |
49,930 |
| Brightness (Lumens) |
9,450 |
| Lens Material |
Hardcoated Polycarbonate |
| Lighting Modes |
Beam |
| Lighting Quantity |
12 |
| Mounting Hardware Description |

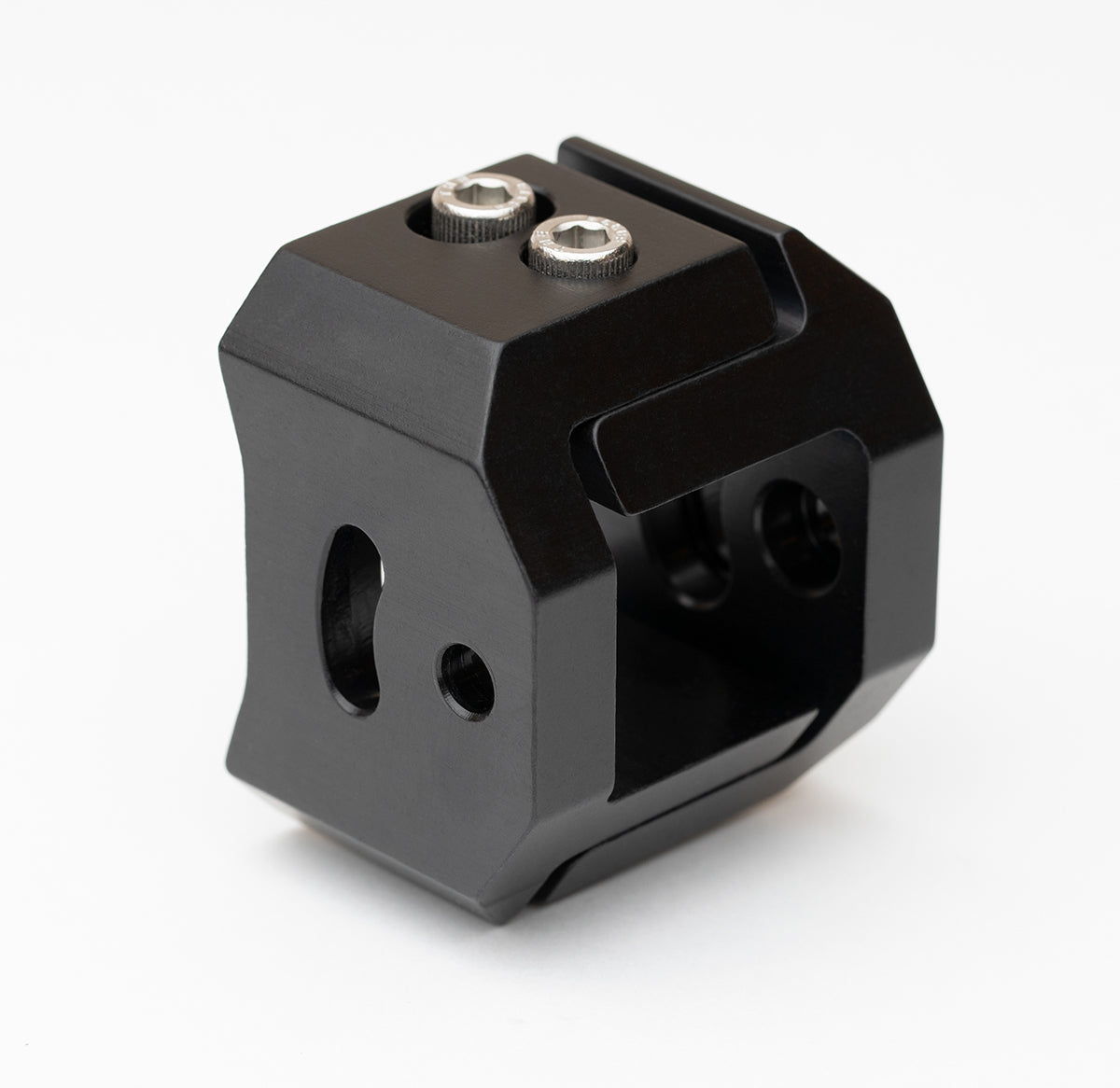

Links; Rock Guards |
| Mounting Hardware Material |
Stainless Steel |
| Product Type |
XL Linkable LED Light Bar |
| Prop 65 - Short Label |
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov |
| Standards/Compliance (Impact Resistance) |
IK10 Compliant (Mechanical Impact Testing) |
| Amperage Rating (A) |
6 |
| Beam Pattern |
Multi-Pattern |
| Bezel Material |
Billet Machined Aluminum |

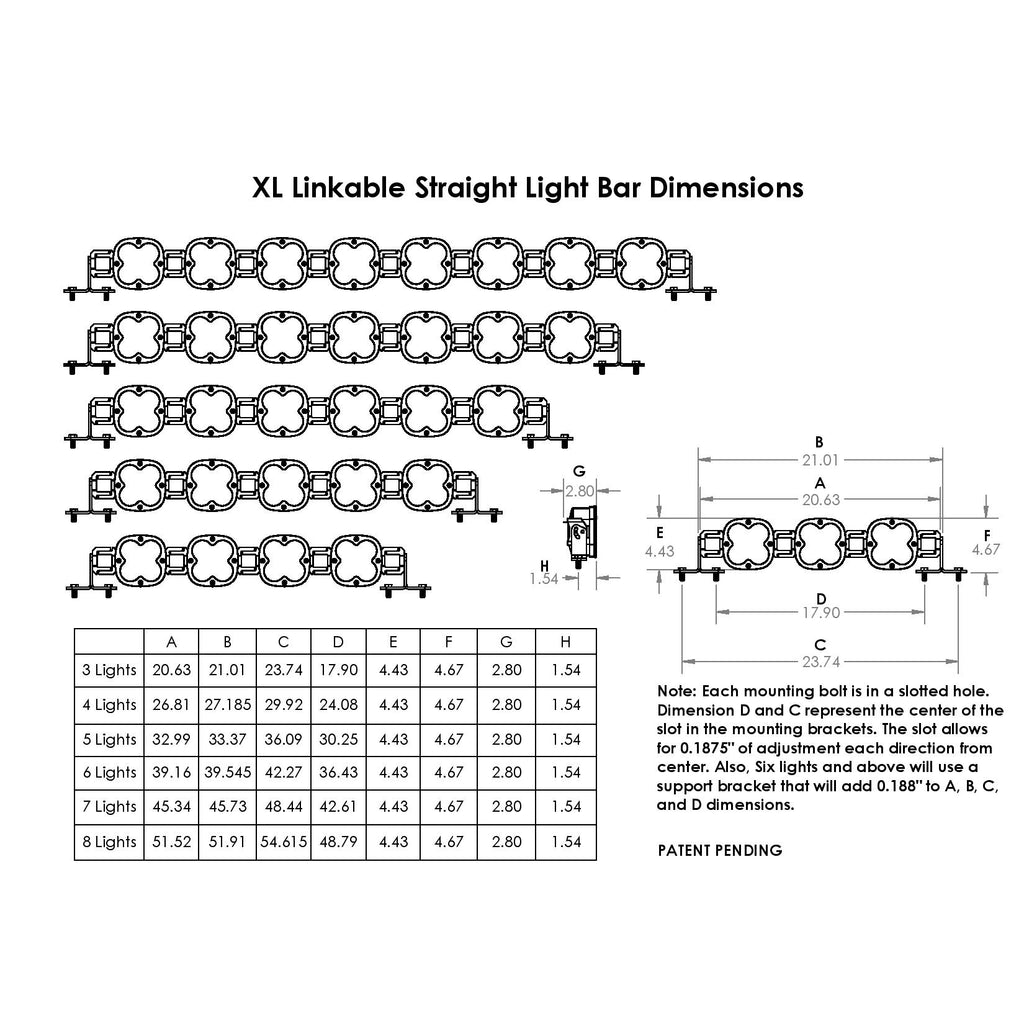

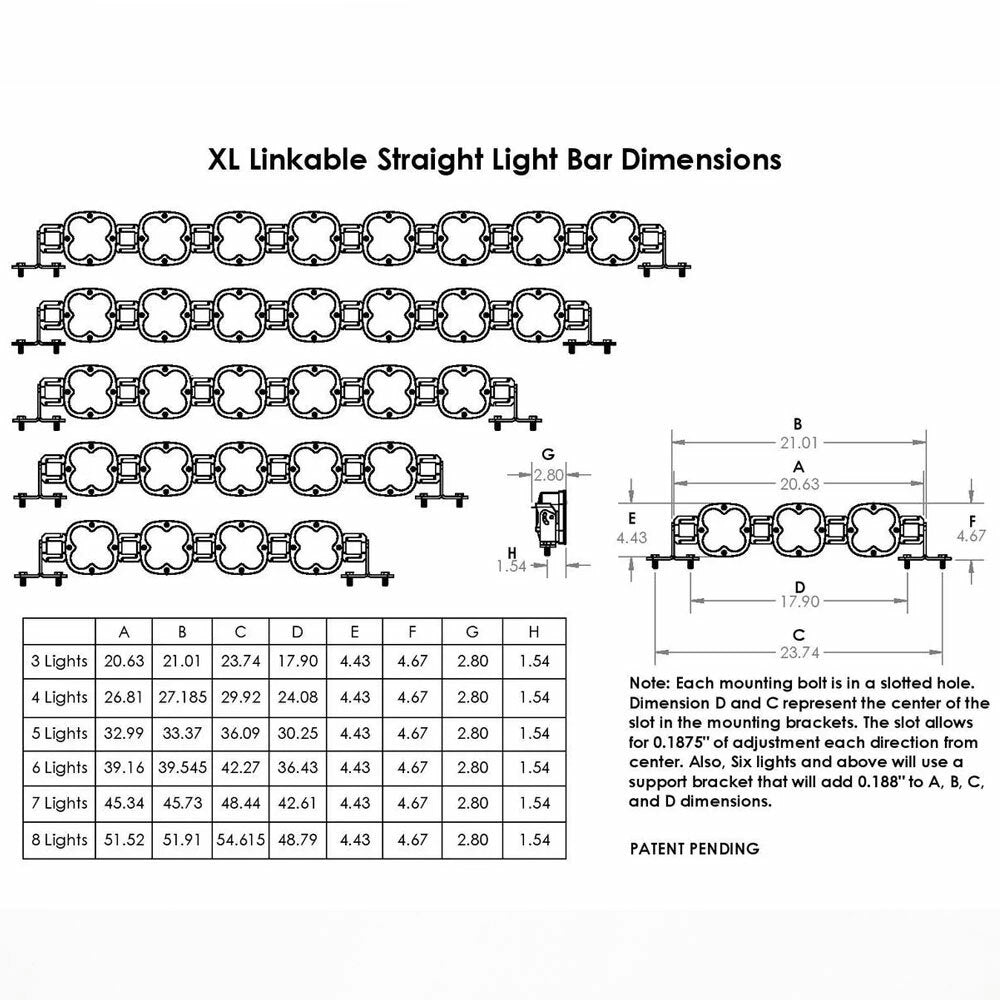

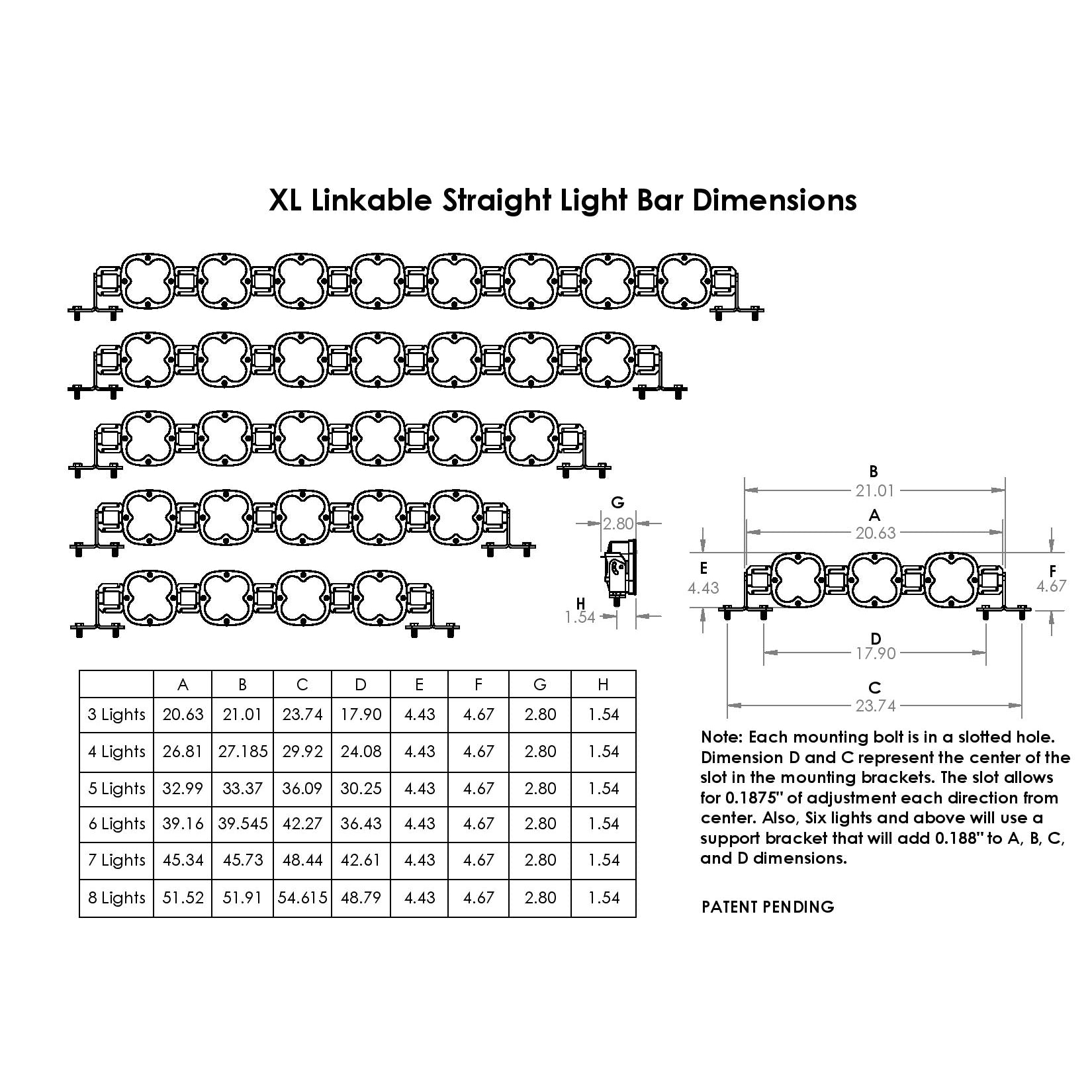

| Depth (in.) |
2.8 |
| Description |
3XL Sport; Multi-Pattern; Clear |
| Height (in.) |
4.43 |
| Housing Material |
Hard Anodized and Powder Coated Cast Aluminum |
| Length (in.) |
20.63 |
| Lens Color |
Clear |
| Light Quantity |
3 |
| Lighting Type |
Forward Projecting |
| Prop 65 Warning Label |
Prop 65 WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. |
| Title |
Baja Designs - 740001 - XL Linkable LED Light Bar |
| Universal or Specific |
Universal |
| finish |
Powdercoat |
| series |
XL Series |
| Length |
8.0000 |
| Width |
10.0000 |
| Height |
12.0000 |
| Weight |
8.0000 |
