| Description_ASC |
One Light Pod |
| Description_ASM |
Universal |
| Description_DEF |
Auxiliary Light |
| Description_DES |

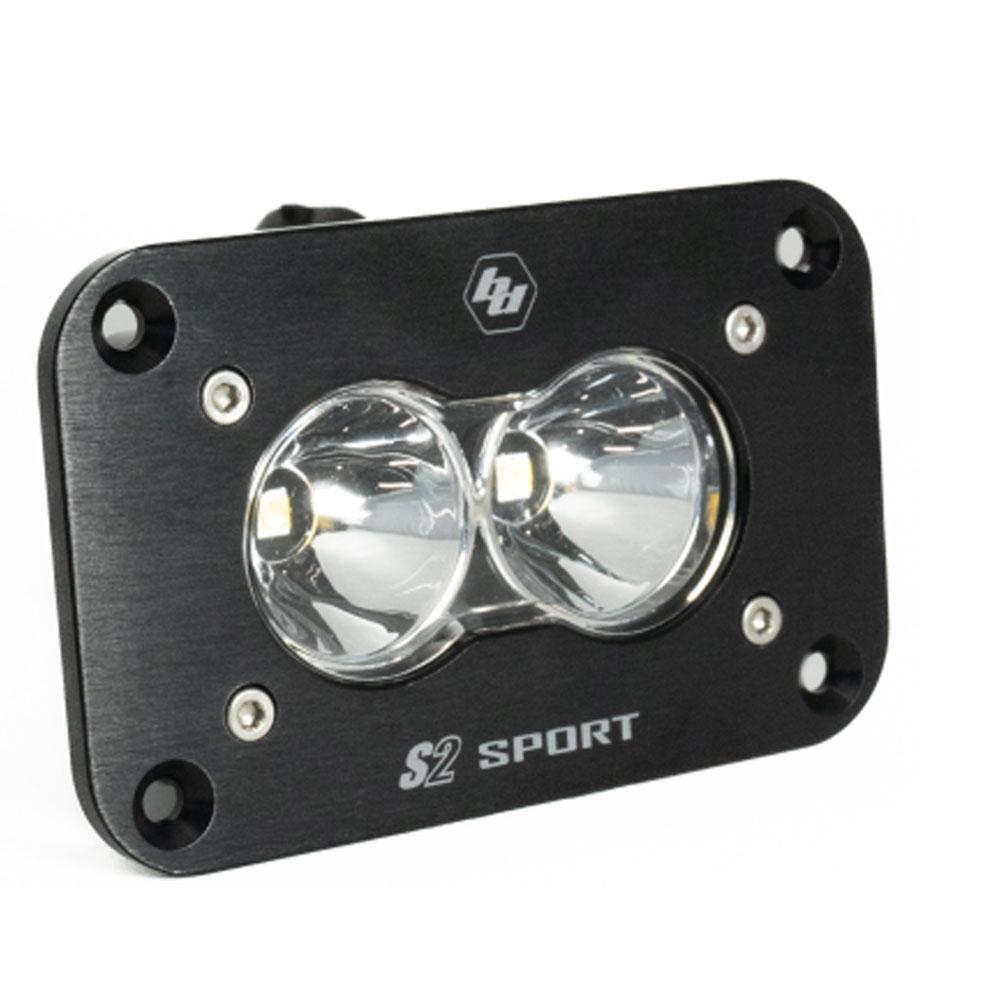

S2 Sport Black Flush Mount LED Auxiliary Light Pod |
| Description_FAB |
Satisfaction Guarantee -30-Day Money Back Guarantee |
| Description_FAB |
Limited Lifetime Warranty -Complete Purchase Protection |
| Description_FAB |
uService -Replaceable Lenses And Optics |
| Description_FAB |
ClearView -All The Light, Right Where You Need It |
| Description_FAB |
MoistureBlock -Waterproof, Rain Proof, Submersible |
| Description_FAB |
CopperDrive -Only LED Driven At 100 Percent |
| Description_FAB |
5000K Daylight -Less Driver Fatigue, Natural Color |
| Description_INV |
Baja Designs Light Pod |
| Description_EXT |
S2 Sport Black Flush Mount LED Light Pod (Spot; Clear) |
| Description_SHO |
LED Work Light Clear Lens Spot Pattern Flush Mount Each S2 Sport Baja Designs |
| Description_MKT |
The S2 Sport features the same quality, fit, and finish that is synonymous with the Baja Designs name, at an attractive price point. The S2 Sport is ideal as a fog, cornering, rack, or reverse light and much more. A compact and powerful light, featuring quality that is second to none.Light Pattern:Spot: Our High Speed Spot optic is a longer and narrower beam Focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights.Baja Designs Features:Satisfactions Guarantee 30 Day Money Back GuaranteeLimited Lifetime Warranty Complete Purchase ProtectionuService Replaceable Lenses And OpticsClearView All The Light, Right Where You Need It.MoistureBlock Waterproof, Rain Proof, SubmersibleCopperDrive Only LED Driven At 100 percent5000K Daylight Less Driver Fatigue, Natural ColorSpecifications:Lumens: 1,130 Utilizing 2 Cree LEDsWattage/Amps: 12W / 9ADimensions: 2.93 x 1.76 x 1.68 inchWeight: 8 ouncesLED Life Expectancy: 49,930 HoursFront Lens: Hard Coated PolycarbonateHousing: Hard Anodized and Powder Coated Cast AluminumBezel: Billet Machined AluminumHardware and Bracket Material: Stainless SteelExceeds MIL-STD810G (Mil-Spec Testing)Built-In Overvoltage ProtectionIP69K (Waterproof up to 9ft and Pressure Washable)IK10 Compliant (Mechanical Impact Testing)Includes:S2 Sport LED Light |
| Length (in.) |
2.93 |
| Lighting Modes |
Beam |
| Mounting Hardware Material |
Stainless Steel |
| Wiring Harness Included |
No |
| Average Rated Life (hr.) |
49,930 |
| Beam Pattern |
Spot |
| Mounting Hardware Included |
Yes |
| Standards/Compliance (Durability) |
Exceeds MIL-STD810G (Mil-Spec Testing) |
| Add-On |
Accessories-660213-Lens Kit (Driving/Combo; Amber) |
| Add-On |
Accessories-660203-Lens Kit (Driving/Combo; Clear) |
| Add-On |
Accessories-660211-Lens Kit (Spot; Amber) |
| Add-On |
Accessories-660112-Lens Kit (Spot; Blue) |
| Add-On |
Accessories-660201-Lens Kit (Spot; Clear) |
| Add-On |
Accessories-660113-Lens Kit (Spot; Green) |
| Add-On |
Accessories-660111-Lens Kit (Spot; Red) |
| Add-On |
Accessories-660215-Lens Kit (Wide Cornering; Amber) |
| Add-On |
Accessories-660205-Lens Kit (Wide Cornering; Clear) |
| Add-On |
Accessories-660216-Lens Kit (Work/Scene; Amber) |
| Add-On |
Accessories-660206-Lens Kit (Work/Scene; Clear) |
| Add-On |
Associated Products-660303-Anti Theft Hardware Kit - 3/8 in. Tamperproof Nuts |
| Add-On |
Associated Products-660300-Anti Theft Hardware Kit - M6x16 Socket Pin Head Bolts |
| Add-On |
Compatible Products-640165-Harness Extension (10 ft.) |
| Add-On |
Compatible Products-613607-Harness Splitter |
| Add-On |
Compatible Products-613600-Harness/Splitter (3 Light Max) |
| Add-On |
Compatible Products-613609-Harness/Splitter (55 Inch) |
| Add-On |
Compatible Products-640117-Harness/Splitter (On/Off) |
| Add-On |
Compatible Products-640093-Upfitter Harness |
| Add-On |
Compatible Products-640164-Wiring Harness (Hi/Low) |
| Prop 65 (C, R or CR) |
CR |
| Wattage (W) |
12 |
| Weight (lbs.) |
0.5 |
| Amperage Rating (A) |
0.9 |
| Brightness (Lumens) |
1,130 |
| Description |
Flush Mount; Spot; Clear |

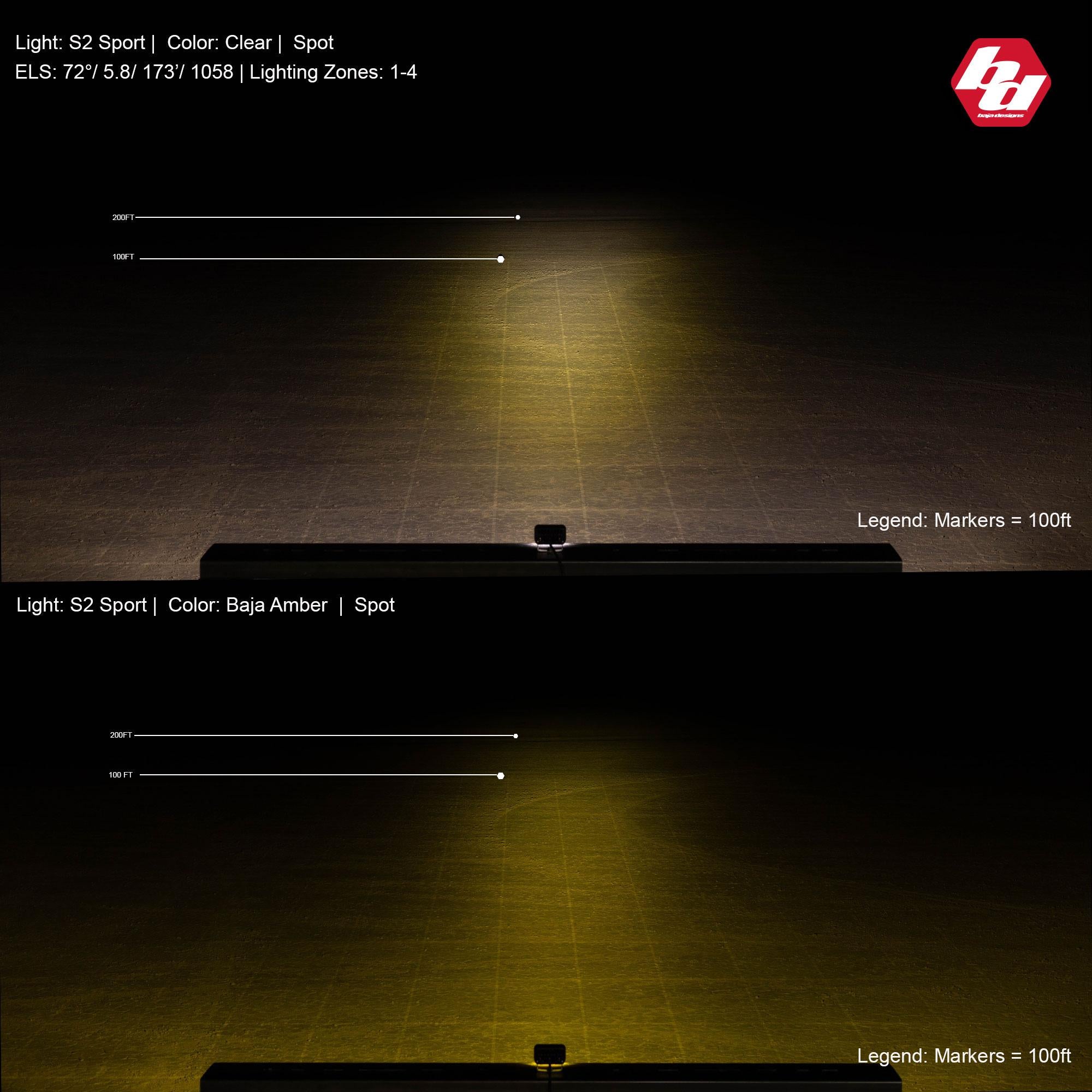

| Effective Lighting Score (ELS) |
1067 / (5.2, 82 degree) / 148 |
| Height (in.) |
1.76 |
| Housing Color |
Black |
| Lighting Quantity |
2 |
| Lighting Technology |
LED |
| Overvoltage Protection |
Built-In |
| Product Type |
S2 Sport Flush Mount LED Light Pod |
| Prop 65 - Short Label |
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov |
| Prop 65 Yes/No |
Yes |
| Standards/Compliance (Water Resistance) |
IP69K (Waterproof up to 9ft & Pressure Washable) |
| color |
Black |
| Bezel Material |
Billet Machined Aluminum |
| Depth (in.) |
1.68 |
| Housing Material |
Powder Coated Cast Aluminum |
| Lens Color |
Clear |
| Lens Material |
Hardcoated Polycarbonate |
| Light Quantity |
1 |
| Lighting Type |
Forward Projecting |
| Prop 65 Warning Label |
Prop 65 WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. |
| Standards/Compliance (Impact Resistance) |
IK10 Compliant (Mechanical Impact Testing) |
| Title |
Baja Designs - 541001 - S2 Sport Black Flush Mount LED Auxiliary Light Pod |
| series |
S2 Sport |
| Length |
12.0000 |
| Width |
12.0000 |
| Height |
12.0000 |
| Weight |
9.0000 |
