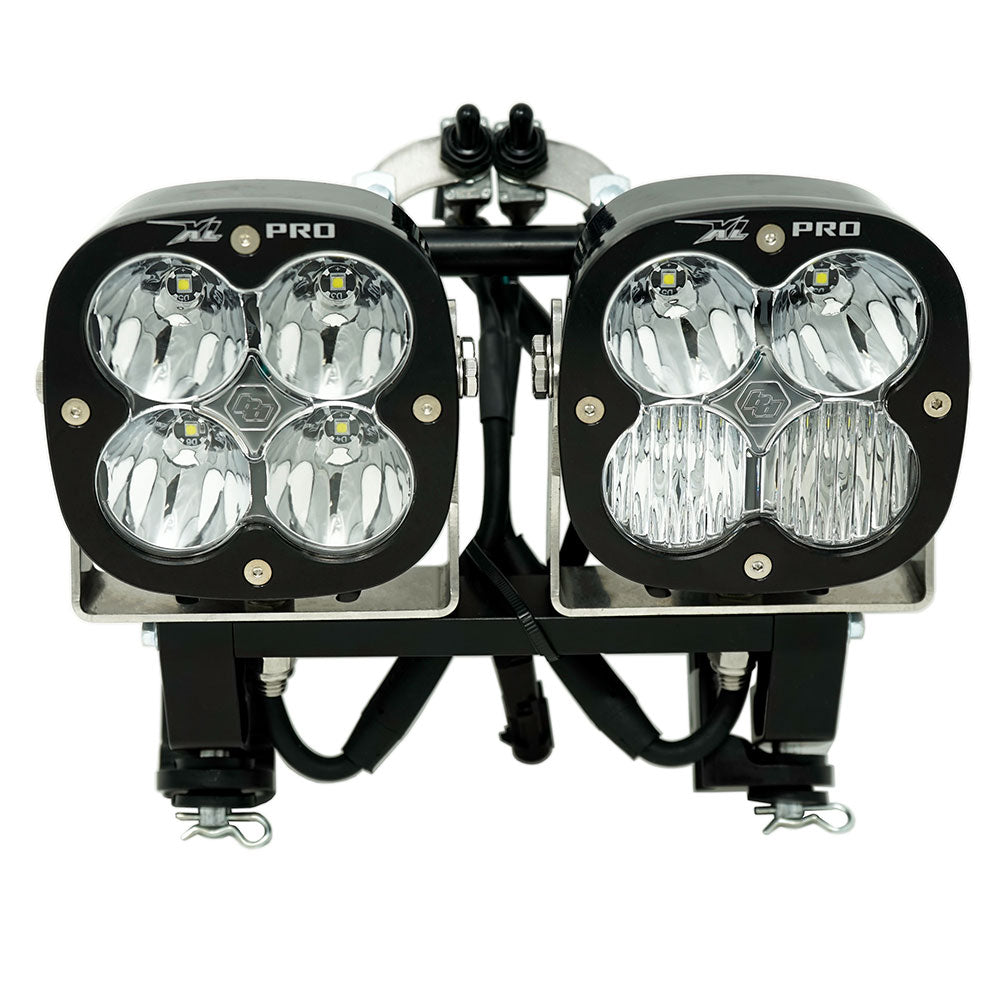

The XL Pro, Dual Motorcycle Race Light is the brightest LED motorcycle light setup on the market today, at 9,800 lumens, 80 watts, and a 50 percent dimming feature. This setup utilizes our trademarked High Speed Spot reflectors leaving you with unmatched performance that will light up the night! Its unique dual setup and styling set this LED light apart from any other. An industry first 30 Day Satisfaction Guarantee and Limited Lifetime Warranty is included for the ultimate in purchase protection.Note: Electric start bikes that require a stator modification or rewind will have to the purchase a switch and wiring harness kit.For Electric-Start Bikes: Some electric-start bikes require the stator to be modified or rewound as well as the addition of a new rectifier/regulator to run LED lights. If your bike requires a new rectifier/regulator please order part (12-2004) (please provide year/make/model of bike). Detailed stator modification instructions and hardware is included for all bikes that require a stator modification to run LED lights.Baja Designs Features:Satisfactions Guarantee 30 Day Money Back GuaranteeLimited Lifetime Warranty Complete Purchase ProtectionuService Replaceable Lenses And OpticsClearView All The Light, Right Where You Need It.MoistureBlock Waterproof, Rain Proof, SubmersibleCopperDrive Only LED Driven At 100 percent5000K Daylight Less Driver Fatigue, Natural ColorSpecifications:Lumens: 4,900 Utilizing 4 Cree XP-L LEDsWattage/Amps: 40W / 3.33ADimensions: 4.43 x 3.65 x 4.43 inchWeight: 2.45 lbsLED Life Expectancy: 49,930 HoursFront Lens: Hard Coated PolycarbonateHousing: Hard Anodized AluminumBezel: Billet Machined AluminumHardware and Bracket Material: Stainless SteelExceeds MIL-STD810G (Mil-Spec Testing)Built-In Overvoltage ProtectionIP69K (Waterproof up to 9ft and Pressure Washable)IK10 Compliant (Mechanical Impact Testing)Includes:XL Pro, Dual Motorcycle Race Light (One High Speed Spot XL Pro and One Driving/Combo XL Pro)
Specifications:
| Description_ASC |
One Light Pod, Mounts |
| Description_ASM |
Universal |
| Description_DEF |
Auxiliary Light |
| Description_DES |
XL Pro Dual Motorcycle Race Light Kit |
| Description_INV |
Baja Designs Auxiliary Light Kit |
| Description_EXT |
XL Pro Dual Motorcycle Race Light Kit (Multi-Pattern; Clear) |
| Description_FAB |
Satisfaction Guarantee -30-Day Money Back Guarantee |
| Description_FAB |
Limited Lifetime Warranty -Complete Purchase Protection |
| Description_FAB |
uService -Replaceable Lenses And Optics |
| Description_FAB |
ClearView -All The Light, Right Where You Need It |
| Description_FAB |
MoistureBlock -Waterproof, Rain Proof, Submersible |
| Description_FAB |
CopperDrive -Only LED Driven At 100 Percent |
| Description_FAB |
5000K Daylight -Less Driver Fatigue, Natural Color |
| Description_SHO |
Dual Motorcycle Race Light Clear Lens XP Pro Series Baja Designs |
| Description_MKT |
The XL Pro, Dual Motorcycle Race Light is the brightest LED motorcycle light setup on the market today, at 9,800 lumens, 80 watts, and a 50 percent dimming feature. This setup utilizes our trademarked High Speed Spot reflectors leaving you with unmatched performance that will light up the night! Its unique dual setup and styling set this LED light apart from any other. An industry first 30 Day Satisfaction Guarantee and Limited Lifetime Warranty is included for the ultimate in purchase protection.Note: Electric start bikes that require a stator modification or rewind will have to the purchase a switch and wiring harness kit.For Electric-Start Bikes: Some electric-start bikes require the stator to be modified or rewound as well as the addition of a new rectifier/regulator to run LED lights. If your bike requires a new rectifier/regulator please order part (12-2004) (please provide year/make/model of bike). Detailed stator modification instructions and hardware is included for all bikes that require a stator modification to run LED lights.Baja Designs Features:Satisfactions Guarantee 30 Day Money Back GuaranteeLimited Lifetime Warranty Complete Purchase ProtectionuService Replaceable Lenses And OpticsClearView All The Light, Right Where You Need It.MoistureBlock Waterproof, Rain Proof, SubmersibleCopperDrive Only LED Driven At 100 percent5000K Daylight Less Driver Fatigue, Natural ColorSpecifications:Lumens: 4,900 Utilizing 4 Cree XP-L LEDsWattage/Amps: 40W / 3.33ADimensions: 4.43 x 3.65 x 4.43 inchWeight: 2.45 lbsLED Life Expectancy: 49,930 HoursFront Lens: Hard Coated PolycarbonateHousing: Hard Anodized AluminumBezel: Billet Machined AluminumHardware and Bracket Material: Stainless SteelExceeds MIL-STD810G (Mil-Spec Testing)Built-In Overvoltage ProtectionIP69K (Waterproof up to 9ft and Pressure Washable)IK10 Compliant (Mechanical Impact Testing)Includes:XL Pro, Dual Motorcycle Race Light (One High Speed Spot XL Pro and One Driving/Combo XL Pro) |
| Lens Color |
Clear |
| Add-On |
Kit Contents-500001-XL Pro (Spot; Clear) |
| Add-On |
Kit Contents-500003-XL Pro (Driving/Combo; Clear) |
| Bezel Material |
Billet Machined Aluminum |
| Description |
Multi-Pattern; Clear; Pair |
| Beam Pattern |
Spot; Driving/Combo |
| Depth (in.) |
3.65 |
| Length (in.) |
4.43 |
| Mounting Hardware Material |
Stainless Steel |
| Product Type |
Motorcycle Dual XL Pro Race Light Kit |
| Prop 65 Warning Label |
Prop 65 WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. |
| Standards/Compliance (Impact Resistance) |
IK10 Compliant (Mechanical Impact Testing) |
| Amperage Rating (A) |
2.9 |
| Average Rated Life (hr.) |
49,930 |
| Housing Color |
Black |
| Overvoltage Protection |
Built-In |
| Prop 65 (C, R or CR) |
CR |
| Prop 65 Yes/No |
Yes |
| Title |
Baja Designs - 500011 - XL Pro Dual Motorcycle Race Light Kit |
| Universal or Specific |
Universal |
| Weight (lbs.) |
2.45 |
| color |
Black |
| series |
XL Pro Series |
| Brightness (Lumens) |
4,900 |
| Height (in.) |
4.43 |
| Housing Material |
Hard Anodized and Powder Coated Cast Aluminum |
| Lens Material |
Hardcoated Polycarbonate |
| Light Quantity |
2 |
| Lighting Quantity |
4 |
| Lighting Technology |
Cree XP-L LED |
| Lighting Type |
Forward Projecting |
| Prop 65 - Short Label |
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov |
| Standards/Compliance (Water Resistance) |
IP69K (Waterproof up to 9ft & Pressure Washable) |
| Wattage (W) |
40 |
| Lighting Modes |
High Beam/Dimming Feature (50%) |
| Mounting Hardware Description |
Dual Mount |
| Mounting Hardware Included |
Yes |
| Standards/Compliance (Durability) |
Exceeds MIL-STD810G (Mil-Spec Testing) |
| Wiring Harness Included |
Yes |
| Length |
12.0000 |
| Width |
12.0000 |
| Height |
12.0000 |
| Weight |
8.0000 |
