| Description_ASC |
One Light Pod |
| Description_ASM |
Universal |
| Description_DEF |
Auxiliary Light |
| Description_DES |
S2 Pro Infrared LED Light Pod |
| Description_FAB |
Satisfaction Guarantee -30-Day Money Back Guarantee |
| Description_FAB |
Limited Lifetime Warranty -Complete Purchase Protection |
| Description_FAB |
uService -Replaceable Lenses And Optics |
| Description_FAB |
ClearView -All The Light, Right Where You Need It |
| Description_FAB |
MoistureBlock -Waterproof, Rain Proof, Submersible |
| Description_FAB |
CopperDrive -Only LED Driven At 100 Percent |
| Description_FAB |
5000K Daylight -Less Driver Fatigue, Natural Color |
| Description_INV |
Baja Designs Light Pod |
| Description_EXT |

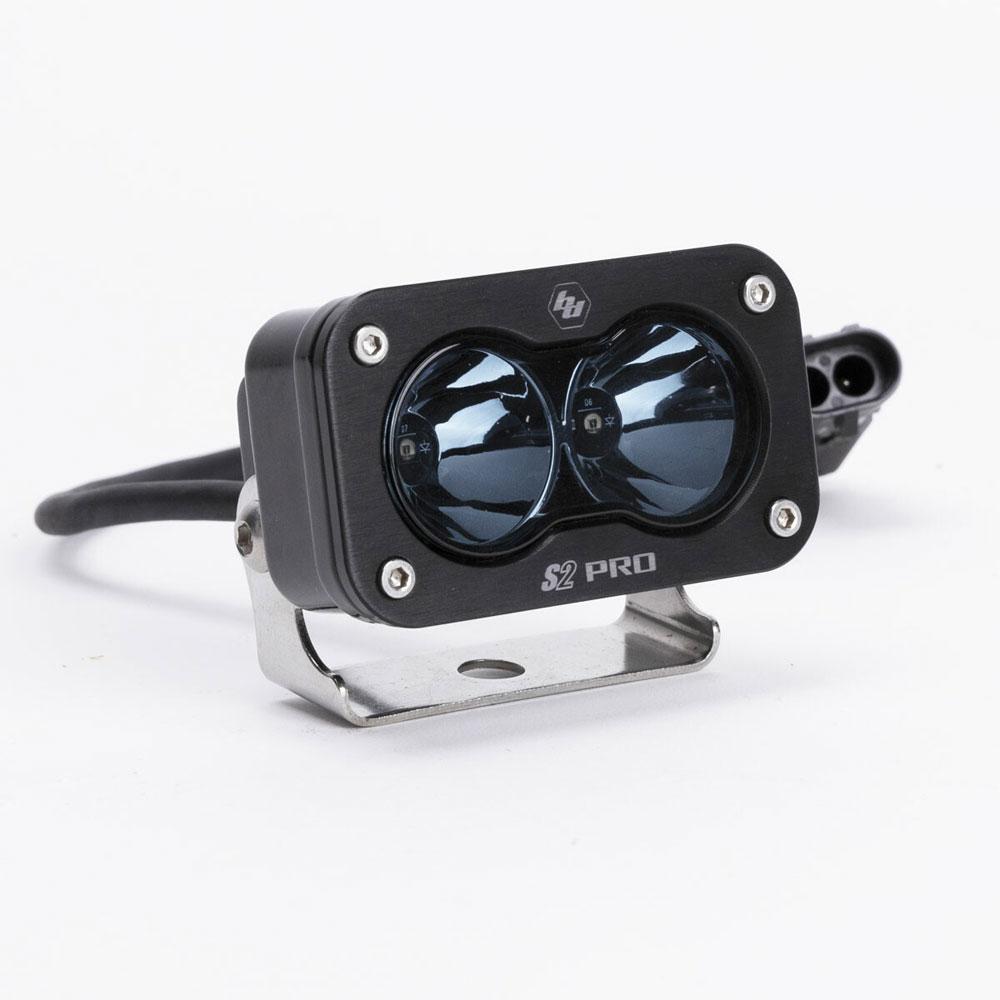

S2 Pro Infrared LED Light Pod (Driving/Combo; IR 850nm) |
| Description_SHO |
S2 Pro 850nm IR LED Driving Fog Light Baja Designs |
| Description_MKT |
Although compact at 3 inch by 2 inch, don't be fooled by its size, the S2 Pro IR 850nm LED light is more powerful than most larger lights on the market today. The S2 Pro IR 850nm LED light is different from other 850nm lights due to the fact that we offer a high/low capability for the S2 Pro IR.This feature allows the lights already low visible signature to be reduced even further in low mode and provides clearer visibility in the field for far distances while driving at high speeds in high mode.Baja Designs Features:Satisfactions Guarantee - 30 Day Money Back GuaranteeLimited Lifetime Warranty - Complete Purchase ProtectionuService- Replaceable Lenses And OpticsClearView- All The Light, Right Where You Need It.MoistureBlock- Waterproof, Rain Proof, SubmersibleCopperDrive- Only LED Driven At 100 percentSpecifications:LED: 2 Osram 850nm SFH4515AS LEDsHigh Output Mode: 1800mW/sr, (4000mW)Low Output Mode: 450mW/sr, (1000mW)Weight: 8 ouncesWattage/Amps/Volts: 13W, .94A at 13.8Vdc, .47A at 27.6VdcDimensions: 2.93 inch x 1.76 inch x 1.68 inchLED Life Expectancy: 49,930 HoursFront Lens: Hard Coated PolycarbonateHousing: Aircraft Grade Aluminum w/Mil-Spec Hard AnodizeBezel: Billet Machined AluminumHardware and Bracket Material: Stainless SteelBuilt-In Overvoltage ProtectionExceeds MIL-STD810G (Mil-Spec Testing)IP69K (Waterproof up to 9ft and Pressure Washable)IK10 Compliant (Mechanical Impact Testing)Includes:S2 Pro, 850nm IR LED LightMounting Bracket |
| Lighting Quantity |
2 |
| Overvoltage Protection |
Built-In |
| Prop 65 - Short Label |
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov |
| Prop 65 Yes/No |
Yes |
| Housing Color |
Black |
| Lighting Technology |
Osram 850nm SFH4515AS LED |
| Standards/Compliance (Water Resistance) |
IP69K (Waterproof up to 9ft & Pressure Washable) |
| Add-On |
Accessories-660100-Rock Guard (Black) |
| Add-On |
Associated Products-660303-Anti Theft Hardware Kit - 3/8 in. Tamperproof Nuts |
| Add-On |
Associated Products-660300-Anti Theft Hardware Kit - M6x16 Socket Pin Head Bolts |
| Add-On |
Compatible Products-640165-Harness Extension (10 ft.) |
| Add-On |
Compatible Products-613607-Harness Splitter |
| Add-On |
Compatible Products-613600-Harness/Splitter (3 Light Max) |
| Add-On |
Compatible Products-613609-Harness/Splitter (55 Inch) |
| Add-On |
Compatible Products-640117-Harness/Splitter (On/Off) |
| Add-On |
Compatible Products-640093-Upfitter Harness |
| Add-On |
Compatible Products-640164-Wiring Harness (Hi/Low) |
| Average Rated Life (hr.) |
49,930 |
| Lighting Modes |
High (1800mW/sr, 4000mW); Low (450mW/sr, 1000mW) |
| Mounting Hardware Included |
Yes |
| Mounting Hardware Material |
Stainless Steel |
| Standards/Compliance (Durability) |
Exceeds MIL-STD810G (Mil-Spec Testing) |
| Voltage |
13.8 |
| Wiring Harness Included |
No |
| Amperage Rating (A) |
0.94 |
| Beam Pattern |
Driving/Combo |
| Bezel Material |
Billet Machined Aluminum |
| Depth (in.) |
1.68 |
| Description |
Driving/Combo; IR 850nm |
| Height (in.) |
1.76 |
| Housing Material |
Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
| Length (in.) |
2.93 |
| Lens Color |
Infrared |
| Lens Material |
Hardcoated Polycarbonate |
| Light Quantity |
1 |
| Lighting Type |
Forward Projecting |
| Product Type |
S2 Pro Infrared LED Light Pod |
| Prop 65 (C, R or CR) |
CR |
| Prop 65 Warning Label |
Prop 65 WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. |
| Standards/Compliance (Impact Resistance) |
IK10 Compliant (Mechanical Impact Testing) |
| Title |
Baja Designs - 487073 - S2 Pro Infrared LED Light Pod |
| Wattage (W) |
13 |
| Weight (lbs.) |
0.5 |
| finish |
Hard Anodized |
| series |
S2 Series |
| Length |
12.0000 |
| Width |
12.0000 |
| Height |
12.0000 |
| Weight |
13.0000 |
