| Description_ASC |
One Light Pod |
| Description_ASM |
Universal |
| Description_DEF |
Auxiliary Light |
| Description_DES |

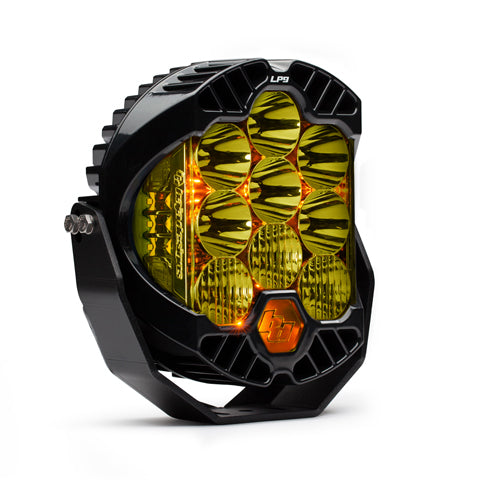

LP9 Pro LED Auxiliary Light Pod |
| Description_EXT |
LP9 Pro LED Light Pod (Driving/Combo; Amber) |
| Description_FAB |
Satisfaction Guarantee -30-Day Money Back Guarantee |
| Description_FAB |
Limited Lifetime Warranty -Complete Purchase Protection |
| Description_FAB |
uService -Replaceable Lenses And Optics |
| Description_FAB |
ClearView -All The Light, Right Where You Need It |
| Description_FAB |
MoistureBlock -Waterproof, Rain Proof, Submersible |
| Description_FAB |
CopperDrive -Only LED Driven At 100 Percent |
| Description_FAB |
5000K Daylight -Less Driver Fatigue, Natural Color |
| Description_INV |
Baja Designs Light Pod |
| Description_MKT |
A design that was inspired by Baja Designs legendary 8 inch La Paz HID; The LP9 features modern styling and performance, with some of the most advanced LED technologies available today. The LP9 utilizes 9 forward projecting LEDS to produce 11,025 Lumens at 105 watts, and 6 LEDs for Integrated Peripheral Technology (IPT) which produce 1,140 lumens at 10.5 watts per side. The IPT provides an incredible 200 degree spread of usable light.The housing was designed to provide exceptional heat dispersion by using Direct Ducted Cooling, which allows air to travel from the front of the housing to the rear. With a day-time running light, low, and high power mode light it will fulfill all your lighting needs.Available in a standard model that is perfect for a wide arrange of off-road use, as well as a Racer Edition configuration that is designed for the demands of high speed driving. The Racer Edition has similar power draw, but produces a much tighter pattern, providing higher visibility at greater distances.Light Pattern-Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both wide cornering (42 degree) and Spot (9 degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)Baja Designs Features:Satisfactions Guarantee 30 Day Money BackGuaranteeLimited Lifetime Warranty Complete Purchase ProtectionuService Replaceable Lenses And OpticsClearView All The Light, Right Where You Need It.MoistureBlock Waterproof, Rain Proof, SubmersibleCopperDrive Only LED Driven At 100 percent5000K Daylight Less Driver Fatigue, Natural ColorSpecifications:Forward Projecting Lumens: 11,025 Utilizing 9 LEDsForward Projecting Wattage/Amps: 105W / 7.6AIPT Lumens: 2,280 Utilizing 6 LEDsIPT Wattage/Amps: 21W / 1.52ADimensions: 8 inch Diameter/ 3.25 inch DepthWeight: 6.5lbsLED Life Expectancy: 49,930 HoursFront Lens: Hardcoated PolycarbonateHousing: Hard Anodized Machined AluminumBezel: Billet Machined AluminumHardware and Bracket Material: Stainless SteelExceeds MIL-STD810G (Mil-Spec Testing)Built-In Overvoltage ProtectionIP69K (Waterproof up to 9ft and Pressure Washable)IK10 Compliant (Mechanical Impact Testing |
| Description_SHO |
LED Light Pods Driving Combo Pattern Amber LP9 Series Baja Designs |
| Add-On |
Accessories-328002-Rock Guard (Amber) |
| Add-On |
Accessories-328001-Rock Guard (Black) |
| Add-On |
Accessories-328003-Rock Guard (Clear) |
| Add-On |
Accessories-668613-Lens Kit (Driving/Combo; Amber) |
| Add-On |
Accessories-668603-Lens Kit (Driving/Combo; Clear) |
| Add-On |
Accessories-668611-Lens Kit (Spot; Amber) |
| Add-On |
Accessories-668601-Lens Kit (Spot; Clear) |
| Add-On |
Associated Products-660302-Anti Theft Hardware Kit - 1/4-20x1/2 Socket Pin Head Bolts |
| Add-On |
Associated Products-660303-Anti Theft Hardware Kit - 3/8 in. Tamperproof Nuts |
| Add-On |
Compatible Products-640176-Backlit Add-On Harness |
| Add-On |
Compatible Products-640168-Controller Module Harness |
| Add-On |
Compatible Products-640172-Splitter Harness (2-Light Max) |
| Add-On |
Compatible Products-640167-Upfitter Lock Out Harness |
| Amperage Rating (A) |
7.6 |
| Average Rated Life (hr.) |
49,930 |
| Backlight Amperage Rating (A) |
0.2 |
| Backlight Wattage (W) |
2.8 |
| Beam Pattern |
Driving/Combo |
| Bezel Material |
Billet Machined Aluminum |
| Brightness (Lumens) |
11,025 |
| Depth (in.) |
3.25 |
| Description |
Driving/Combo; Amber |
| Effective Lighting Score (ELS) |
9757 / (6.8, 142 degree) / 665 |
| Height (in.) |
8 |
| Housing Color |
Black |
| Housing Material |
Hard Anodized Machined Aluminum |
| Length (in.) |
8 |
| Lens Color |
Amber |
| Lens Material |
Hardcoated Polycarbonate |
| Light Quantity |
1 |
| Lighting Modes |
High Beam/Low Beam/Day-Time Running Backlighting |
| Lighting Quantity |
9 |
| Lighting Technology |
LED |
| Lighting Type |
Forward Projecting |
| Mounting Hardware Included |
Yes |
| Mounting Hardware Material |
Stainless Steel |
| Overvoltage Protection |
Built-In |
| Patent No. |
5,504,603 |
| Product Type |
LP9 Pro LED Light Pod |
| Prop 65 - Short Label |
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov |
| Prop 65 (C, R or CR) |
CR |
| Prop 65 Warning Label |
Prop 65 WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. |
| Prop 65 Yes/No |
Yes |
| Secondary Amperage Rating (A) |
1.52 |
| Secondary Brightness (Lumens) |
2,280 |
| Secondary Light Quantity |
6 LEDs |
| Secondary Lighting Technology |
LED |
| Secondary Lighting Type |
Integrated Peripheral Technology (IPT) |
| Secondary Wattage (W) |
21 |
| Standards/Compliance (Durability) |
Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) |
IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) |
IP69K (Waterproof up to 9ft & Pressure Washable) |
| Terminal Connector |
DT06-4S Deutsch |
| Terminal Type |
Mating Connector |
| Title |
Baja Designs - 320013 - LP9 Pro LED Auxiliary Light Pod |
| Universal or Specific |
Universal |
| Wattage (W) |
105 |
| Weight (lbs.) |
6.5 |
| Wiring Harness Included |
No |
| series |
LP9 Series |
| Length |
8.0000 |
| Width |
10.0000 |
| Height |
12.0000 |
| Weight |
7.0000 |
