| Description_ASC |

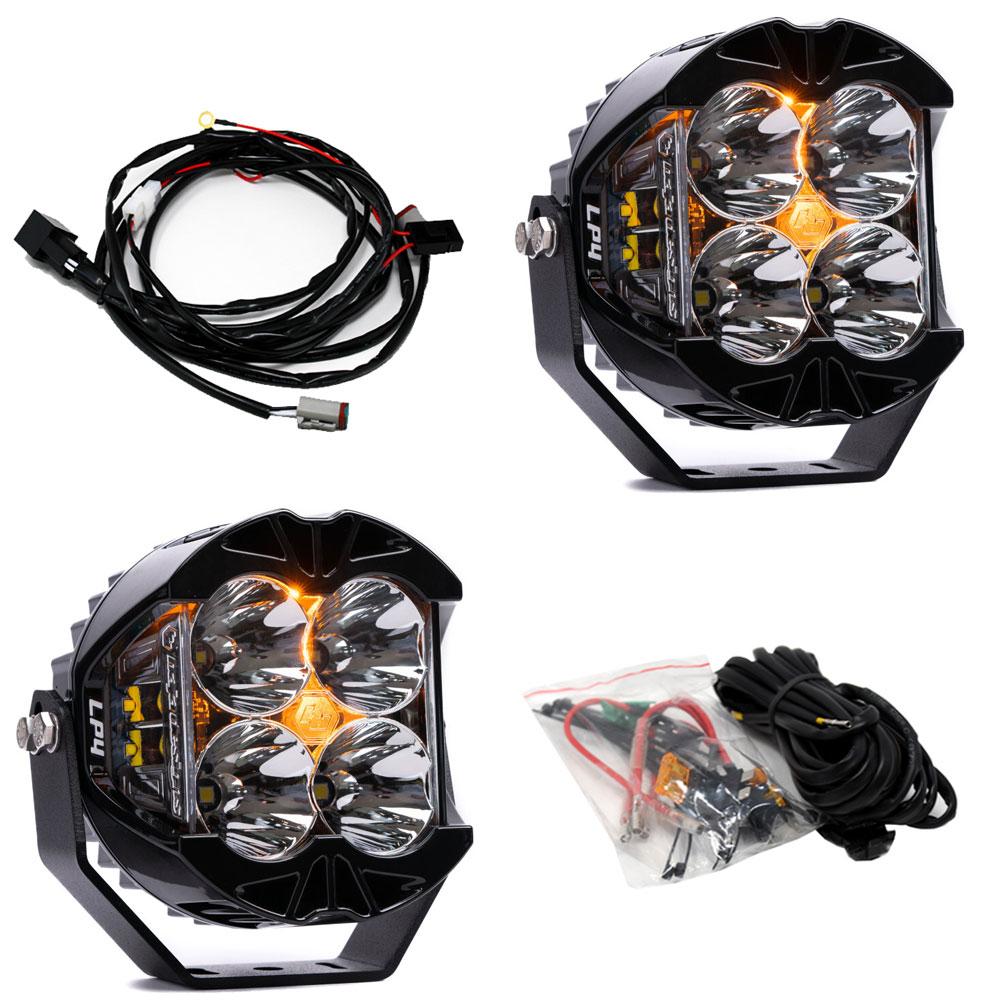

Two Light Pods, Wiring Harness |
| Description_ASM |
Universal |
| Description_DEF |
Auxiliary Light |
| Description_EXT |
LP4 Pro LED Light Pod Pair (Spot; Clear) |
| Description_DES |
LP4 Pro LED Auxiliary Light Pod Pair |
| Description_FAB |
Satisfaction Guarantee -30-Day Money Back Guarantee |
| Description_FAB |
Limited Lifetime Warranty -Complete Purchase Protection |
| Description_FAB |
uService -Replaceable Lenses And Optics |
| Description_FAB |
ClearView -All The Light, Right Where You Need It |
| Description_FAB |
MoistureBlock -Waterproof, Rain Proof, Submersible |
| Description_FAB |
CopperDrive -Only LED Driven At 100 Percent |
| Description_FAB |
5000K Daylight -Less Driver Fatigue, Natural Color |
| Description_INV |
Baja Designs Light Pod |
| Description_MKT |
The LP4 is the smallest variant in the LP line up but maintains all of the power and features of its siblings. The LP4 features a total of 8,750 lumens and a 200 degrees spread of useable LED light.This light pumps out 7,050 forward projecting lumens and 1,700 lumens of dedicated peripheral lighting courtesy of our patented Integrated Peripheral Technology (IPT).To keep your light performing at its highest potential, the LP4 integrates our proprietary Direct Ducted Cooling (DDC) technology.This feature allows air to travel through the front of the housing, over the rear heat sinks - drastically improving cooling capacity and performance.With an amber day-time running light, the LP4 will fulfill all your lighting needs.Baja Designs Features:Satisfactions Guarantee - 30 Day Money Back GuaranteeLimited Lifetime Warranty - Complete Purchase ProtectionuService - Replaceable Lenses And OpticsClearView - All The Light, Right Where You Need It.MoistureBlock - Waterproof, Rain Proof, SubmersibleCopperDrive - Only LED Driven At 100 percent5000K Daylight - Less Driver Fatigue, Natural ColorSpecifications:Forward Projecting Lumens: 7,050 Utilizing 4 LEDsForward Projecting Wattage/Amps: 60W / 6.5AIPT Lumens: 1,700 Utilizing 4 LEDsIPT Wattage/Amps: 15W / 1.0ABacklight Wattage/Amps: 4.83W / 0.35ADimensions: 5.1 Inch Height / 5.1 Inch Width / 3.2 Inch DepthWeight: 2.8lbsLED Life Expectancy: 49,930 HoursFront Lens: Hardcoated PolycarbonateHousing: Hard Anodized Machined AluminumBezel: Billet Machined AluminumHardware and Bracket Material: Stainless SteelExceeds MIL-STD810G (Mil-Spec Testing)Built-In Overvoltage ProtectionIP69K (Waterproof up to 9ft and Pressure Washable)IK10 Compliant (Mechanical Impact Testing)Inlcudes:QTY (2) LP4 LED LightQTY (1) Wiring HarnessPatterns:Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (42 degrees) and the spot (6 degrees) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)High Speed Spot: A longer and narrower 6 degrees beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 and 5) |
| Description_SHO |
LP4 Pro LED Spot Clear Lens Pair Baja Designs |
| Add-On |
Accessories-298002-Rock Guard (Amber) |
| Add-On |
Accessories-298001-Rock Guard (Black) |
| Add-On |
Accessories-298003-Rock Guard (Clear) |
| Add-On |
Accessories-668713-Lens Kit (Driving/Combo; Amber) |
| Add-On |
Accessories-668703-Lens Kit (Driving/Combo; Clear) |
| Add-On |
Accessories-668701-Lens Kit (Spot; Clear) |
| Add-On |
Associated Products-660302-Anti Theft Hardware Kit - 1/4-20x1/2 Socket Pin Head Bolts |
| Add-On |
Associated Products-660303-Anti Theft Hardware Kit - 3/8 in. Tamperproof Nuts |
| Add-On |
Compatible Products-640176-Backlit Add-On Harness |
| Add-On |
Compatible Products-640168-Controller Module Harness |
| Add-On |
Compatible Products-640175-Splitter Harness (2-Light Max) |
| Add-On |
Compatible Products-640189-Splitter Harness (4-Light Max) |
| Add-On |
Compatible Products-640188-Upfitter Harness (Single Light) |
| Housing Color |
Black |
| Prop 65 Yes/No |
Yes |
| Brightness (Lumens) |
7,050 |
| Prop 65 - Short Label |
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov |
| Lighting Quantity |
4 |
| Overvoltage Protection |
Built-In |
| Lighting Technology |
LED |
| Secondary Lighting Technology |
LED |
| Standards/Compliance (Water Resistance) |
IP69K (Waterproof up to 9ft & Pressure Washable) |
| Terminal Connector |
DT06-4S Deutsch |
| Average Rated Life (hr.) |
49,930 |
| Description |
Spot; Clear; Pair |
| Lighting Modes |
Beam/Day-Time Running Backlighting |
| Mounting Hardware Included |
Yes |
| Mounting Hardware Material |
Stainless Steel |
| Secondary Wattage (W) |
15 |
| Standards/Compliance (Durability) |
Exceeds MIL-STD810G (Mil-Spec Testing) |
| Title |
Baja Designs - 297801 - LP4 Pro LED Auxiliary Light Pod Pair |
| Wiring Harness Included |
Yes |
| finish |
Hard Anodized |
| Amperage Rating (A) |
6.5 |
| Backlight Amperage Rating (A) |
0.35 |
| Backlight Wattage (W) |
4.83 |
| Beam Pattern |
Spot |
| Bezel Material |
Billet Machined Aluminum |
| Depth (in.) |
3.2 |
| Effective Lighting Score (ELS) |
7025 / (6.8, 136 degree) / 470 |
| Height (in.) |
5.1 |
| Housing Material |
Hard Anodized Machined Aluminum |
| Length (in.) |
5.1 |
| Lens Color |
Clear |
| Lens Material |
Hardcoated Polycarbonate |
| Light Quantity |
2 |
| Lighting Type |
Forward Projecting |
| Product Type |
LP4 Pro LED Light Pod Pair w/ Wiring Harness |
| Prop 65 (C, R or CR) |
CR |
| Prop 65 Warning Label |
Prop 65 WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. |
| Secondary Amperage Rating (A) |
1.0 |
| Secondary Brightness (Lumens) |
1,700 |
| Secondary Light Quantity |
4 LEDs |
| Secondary Lighting Type |
Integrated Peripheral Technology (IPT) |
| Standards/Compliance (Impact Resistance) |
IK10 Compliant (Mechanical Impact Testing) |
| Terminal Type |
Mating Connector |
| Universal or Specific |
Universal |
| Wattage (W) |
60 |
| Weight (lbs.) |
2.8 |
| series |
LP4 Pro |
| Length |
5.0000 |
| Width |
10.0000 |
| Height |
12.0000 |
| Weight |
10.0000 |
