One Of The Most Necessary Gauges In A Dashboard, Autometer Makes It Easy By Offering 5 Different Resistance Range Configuration To Match Your Existing Fuel Sending Unit. Available In 0-90 Ohm (Gm Mid 60S To Mid 90S), 0-30 Ohm (Early Gm), 73-10 Ohm (Pre 90S Ford And Chrysler), 16-158 Ohm (Later Model Fords) And 240-33 Ohm (Aftermarket Senders Such As The Autometer 3262). Our Patented Air Core Meter Movement Receives Extra Dampening To Help Combat The Effects Fuel Slosh In Non-Baffled Tanks.
Specifications:
| Description_ASC |
PHANTOM II |
| Description_DEF |

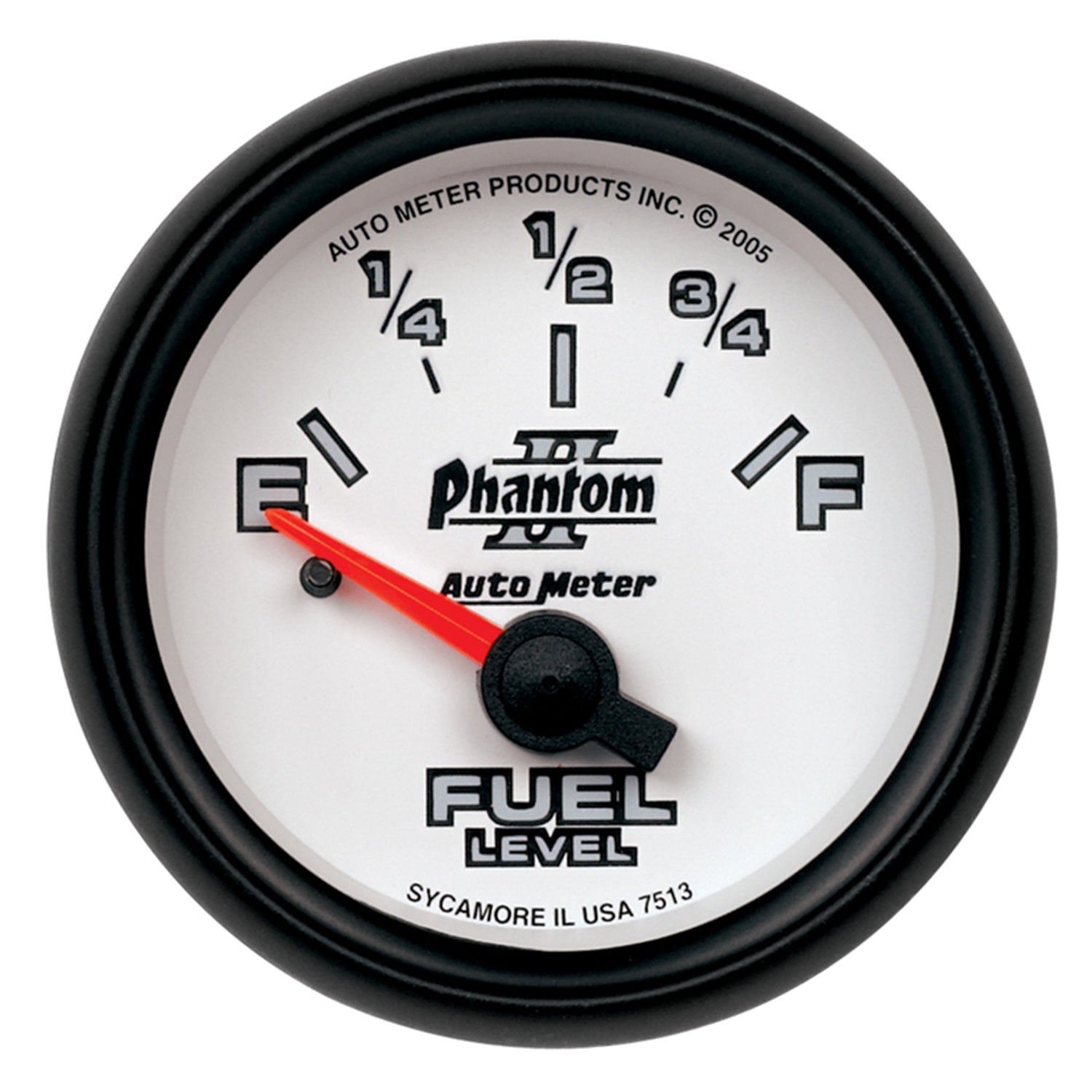

Fuel Level Gauge |
| Description_EXT |

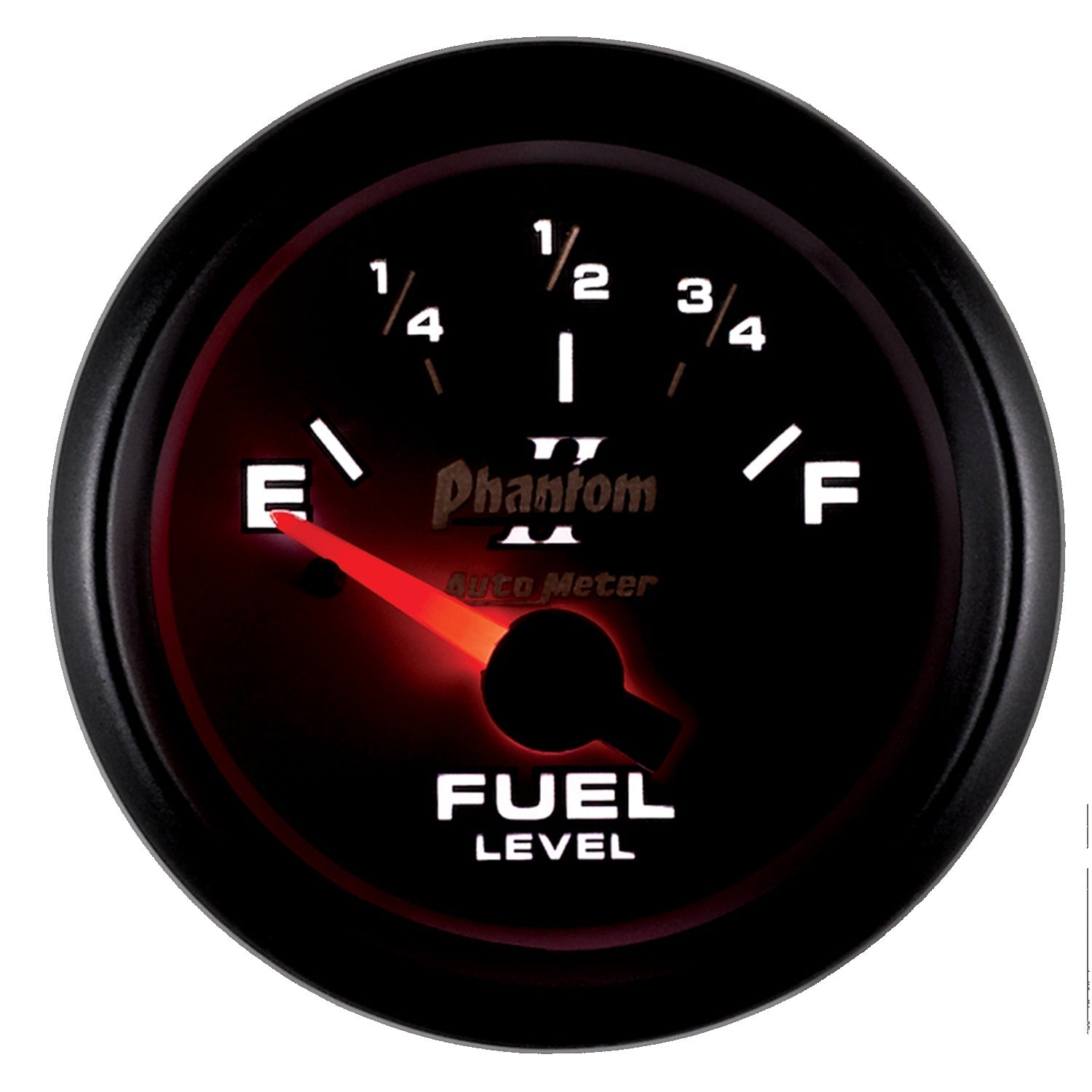

Modern white LED through-the-dial lighting provides clear visibility during nighttime use |
| Description_DES |
GAUGE, FUEL LEVEL, 2 1/16", 0OE TO 90OF, ELEC, PHANTOM II |
| Description_INV |
2-1/16" FUEL LEVEL, 0-90 OHMS, SSE, GM |
| Description_MKT |
One Of The Most Necessary Gauges In A Dashboard, Autometer Makes It Easy By Offering 5 Different Resistance Range Configuration To Match Your Existing Fuel Sending Unit. Available In 0-90 Ohm (Gm Mid 60S To Mid 90S), 0-30 Ohm (Early Gm), 73-10 Ohm (Pre 90S Ford And Chrysler), 16-158 Ohm (Later Model Fords) And 240-33 Ohm (Aftermarket Senders Such As The Autometer 3262). Our Patented Air Core Meter Movement Receives Extra Dampening To Help Combat The Effects Fuel Slosh In Non-Baffled Tanks. |
| Description_FAB |
Modern white LED through-the-dial lighting provides clear visibility during nighttime use |
| Description_FAB |
Gauge kit includes 20 ft. wiring harness, mounting hardware, and detailed instructions for installation |
| Description_FAB |
Adjustable Scale w/ 7 preset ranges for common vehicle types (73E/10F, 16E/158F, 0E/30F, 0E/90F, 240E/33F, 107.5E/7F, 131E/12F) |
| Description_FAB |
User definable resistance setting programmable anywhere between 0-280 ohms |
| Description_FAB |
12 and 16 volt compatible, compatible with nearly every street car or race car electrical system |
| Description_FAB |
Autometers Race Proven Digital Stepper Motor Electric Instruments Provide Unmatched Accuracy Which Is Further Increased By Utilizing A Self Calibration Sequence During Power Up |
| Description_SHO |
2-1/16" FUEL LEVEL, |
| Title |
2-1/16 in. FUEL LEVEL, 0-90 O, SSE, GM |
| Add-On |
N/A |
| Length |
5.0000 |
| Width |
4.0000 |
| Height |
5.0000 |
| Weight |
1.0000 |
