| Description_ASM |
1972 - 1976 Plymouth/Dodge A-Body (Duster, Demon, Dart, Scamp, & Valiant) |
| Description_DEF |
Gauge Set |
| Description_DES |
DIGITAL INSTRUMENT DISPLAY, 72-76 A-BODY, COLOR LCD |
| Description_INV |
INVISION '72-'76 A-BODY, DIGITAL DASH |
| Description_FAB |

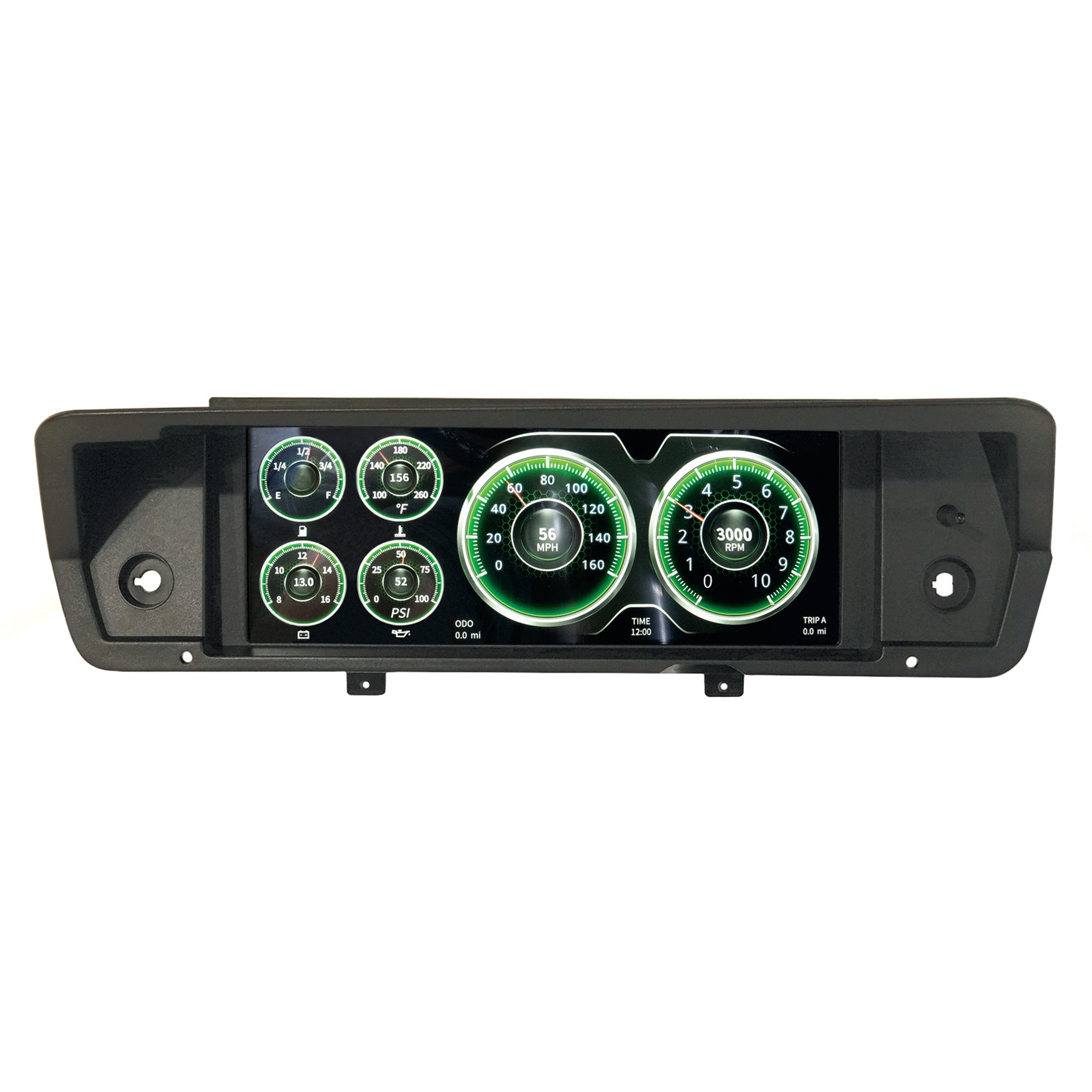

Direct-fit instrumentation solution that monitors speedometer, tachometer, water temperature, oil pressure, fuel level, and volts all in a high resolution and colorful display. |
| Description_FAB |
12.3 LCD display with four user selectable screens |
| Description_FAB |
Integrated notifications for high beams and turn signals as well as instrument warnings and a check engine light |
| Description_FAB |
Includes universal wiring harness, and sending units for water temperature and oil pressure as well as a joystick for dash customization |
| Description_FAB |
Helps identify critical parameters with visual or audible alarms - low fuel level/oil pressure/voltage and high water temperature |
| Description_FAB |
Displays output programmable for imperial or metric measurements |
| Description_FAB |
Requires no cutting, drilling or modification to factory pieces |
| Description_FAB |
Speedometer easily calibrates to OEM or aftermarket vehicle speed sensors and the tachometer is capable of calibrating to many engine types (1-12 cylinders) |
| Description_FAB |
User-selectable fuel level resistance ranges designed for OEM and aftermarket sending units |
| Description_KEY |
Lcd, Dash, Display, Panel, Instrument, Digital, Auto, Meter; Autometer; Gauge; Gage; Instrument |
| Description_MKT |
Instrumentation is the focal point of any interior. Make your dash stand out from the crowd with the new InVision Digital Dash from AutoMeter. This complete Direct Fit Digital Dash System for the 1972 to 1976 Plymouth/Dodge A-Body is a one model solution for your entire dash. Monitor the speedometer, tachometer, fuel level, oil pressure, water temperature, and volts all in one place. Upgrade your dash with the latest, modern LCD offering from AutoMeter! |
| Description_SHO |
INVISION A-BODY |
| Gauge Type |
LCD Dash |
| Prop 65 - Warning Label |
ftp://downloads.autometer.com/AutoMeter_Images/Auto_Meter_High_Performance/Misc/Prop%2065%20Warning.png |
| Prop 65 Yes/No |
Yes |
| Add-On |
N/A |
| Bezel Color |
Black |
| Instruction Manual Part Number |
2650-2043-77 |
| Lighting Color |
Multi Color LCD display |
| Product Type |
Dash Display |
| Prop 65 - Short Label |
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer. For more information, visit www.p65warnings.ca.gov. |
| Prop 65 (C, R or CR) |
C |
| Related Item |
2160 |
| Upsell |
6021 |
| Cross Sell |
5291 |
| Includes Adapter/Fitting |
3/8in NPT and 1/2in NPT adapter fittings |
| Includes Mounting Hardware |
Brackets Included |
| Includes Sensor Unit |
2258, 2242 |
| Lens Style |
Flat, Clear |
| Lighting Type |
Digital LCD |
| Range |
User Configurable |
| Title |
INVISION LCD DASH KIT, 72-76 A-BODY, DIRECT FIT DIGITAL DASH |
| Length |
22.0000 |
| Width |
11.0000 |
| Height |
9.0000 |
| Weight |
7.0000 |
