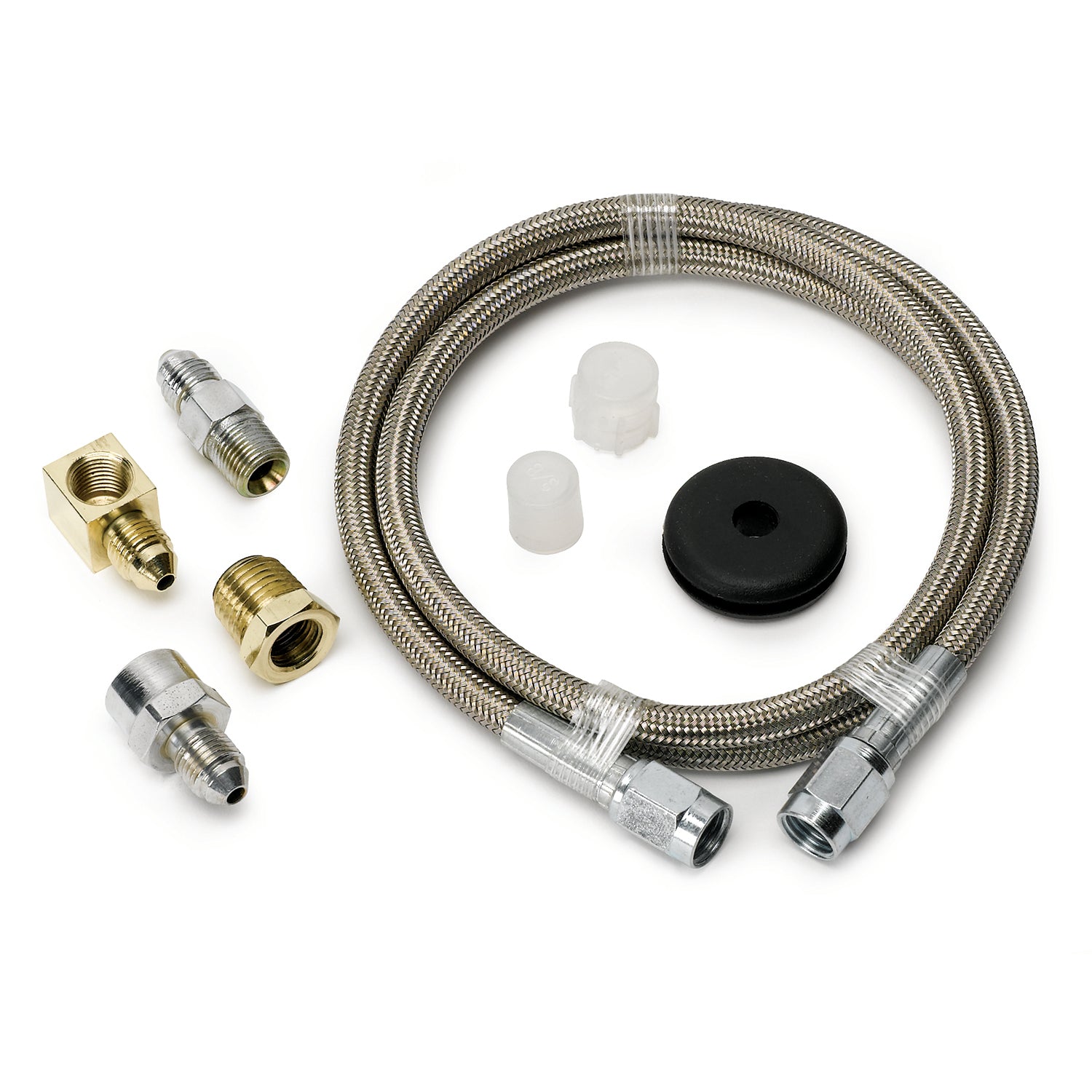

Includes 3ft. of #3 braided stainless steel line, firewall pass through grommet, 1/8" NPT female right angle to -3AN male fitting, -3AN male to 1/8" NPT male fitting, -3AN male to 1/8" NPT female fitting, 1/8" NPT to 1/4" NPT adapter bushing. Recommended for use with fuel pressure gauges. For use with mechanical pressure gauges and for remote mounting of electric gauge pressure senders.
Specifications:
| Description_ASC |
ACCESSORIES |
| Description_DEF |
Braided Hose |
| Description_DES |
LINE, BRAIDED STAINLESS STEEL, #3 DIA., 3FT. LENGTH, -3AN AND 1/8" NPTF FITTINGS |
| Description_EXT |
3ft hose length |
| Description_SHO |
Hose Ptfe Sst 3 -3 |
| Description_FAB |
3ft hose length |
| Description_FAB |
PTFE lined hose, resistant to most fluids |
| Description_FAB |
Type 304 Stainless braid |
| Description_FAB |
Maximum Operating Pressure - 3000 PSI |
| Description_FAB |
Burst Pressure - 12,000 PSI |
| Description_FAB |
-65 Degrees F to 450 Degrees F Operating Temperature Range |
| Description_FAB |
Includes 1/8" NPT male to -3AN female straight, 1/8" FPT Female to -3AN Male straight, 1/8" NPT Female to 1/4" NPT male straight, and -3AN to 1/8" NPT female 90 degree fittings |
| Description_INV |
3' STAINLESS GAUGE LINE KIT #3 |
| Description_MKT |
Includes 3ft. of #3 braided stainless steel line, firewall pass through grommet, 1/8" NPT female right angle to -3AN male fitting, -3AN male to 1/8" NPT male fitting, -3AN male to 1/8" NPT female fitting, 1/8" NPT to 1/4" NPT adapter bushing. Recommended for use with fuel pressure gauges. For use with mechanical pressure gauges and for remote mounting of electric gauge pressure senders. |
| Add-On |
N/A |
| Title |
LINE, BRAIDED STAINLESS STEEL, #3 DIA., 3FT. LENGTH, -3AN AND 1/8 in. NPTF FITTINGS |
| Length |
12.0000 |
| Width |
6.0000 |
| Height |
1.0000 |
