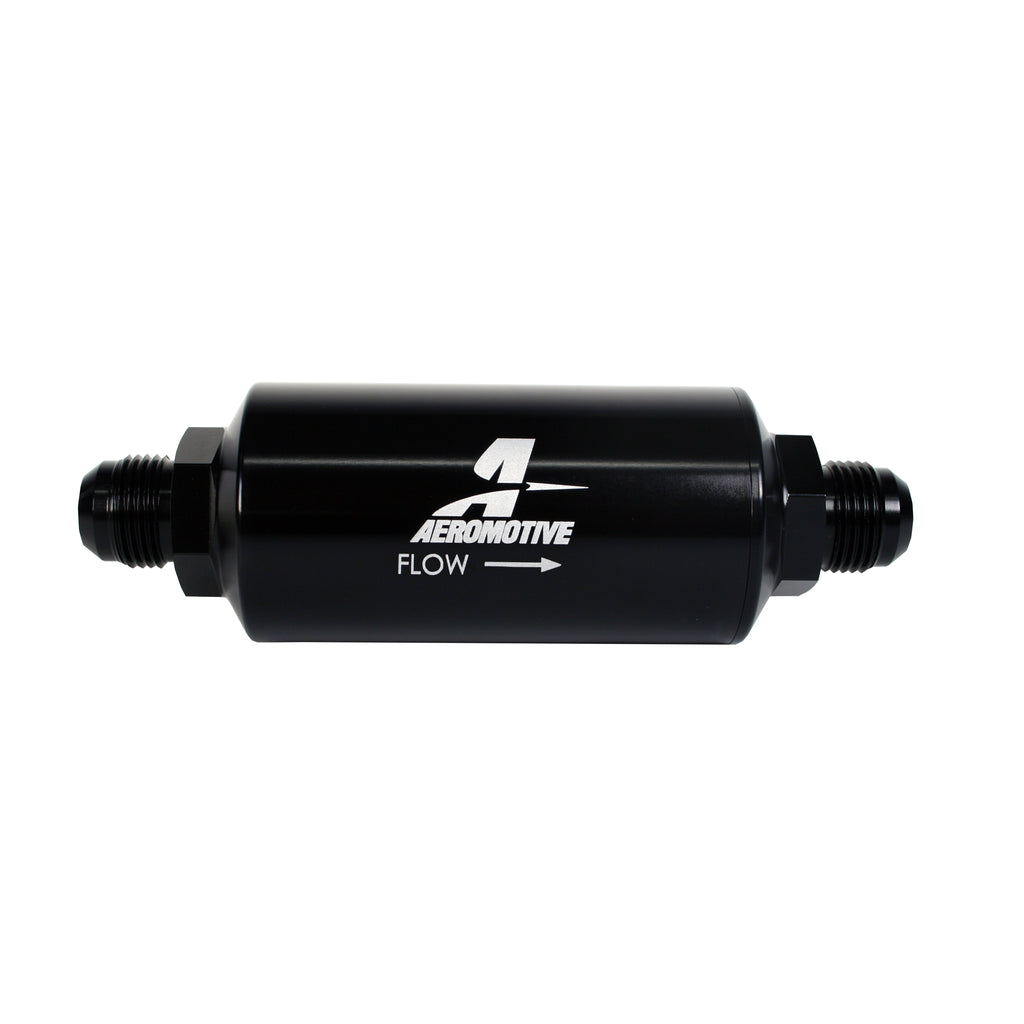

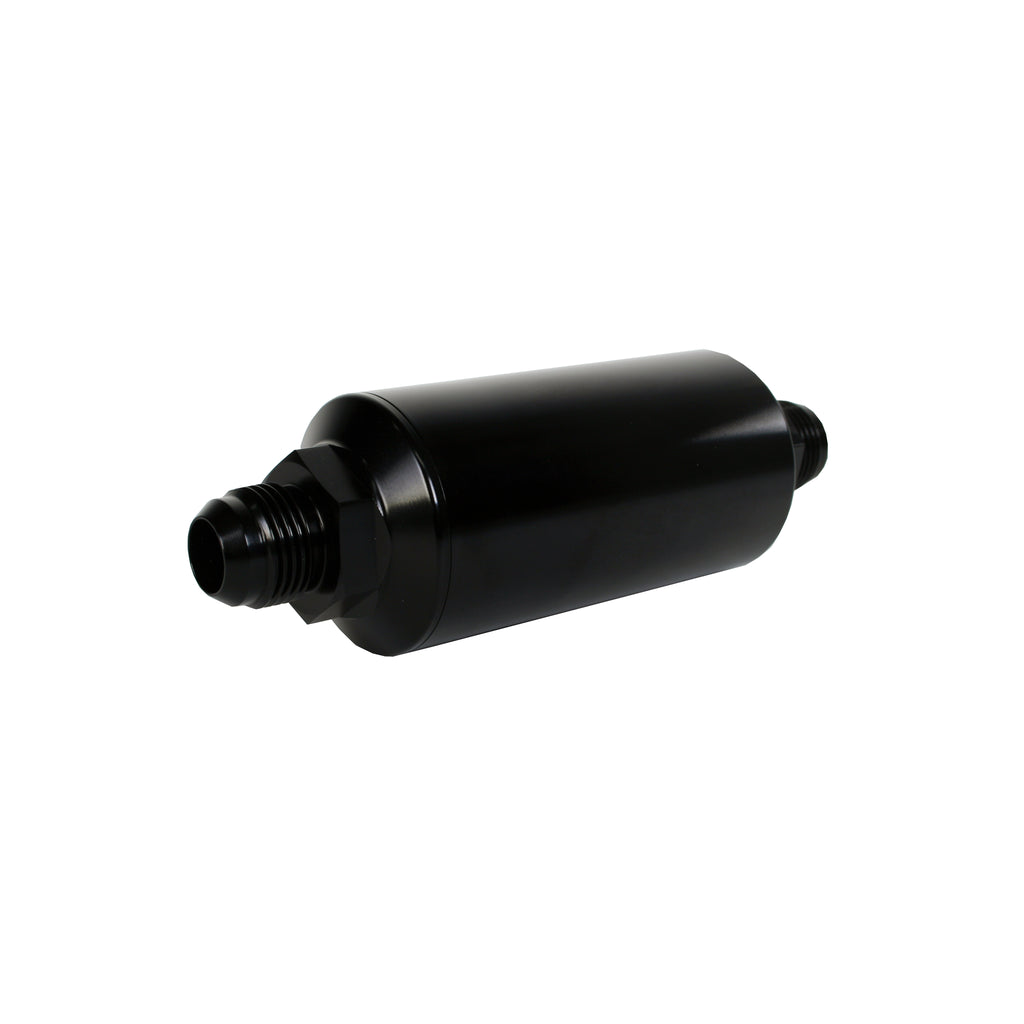

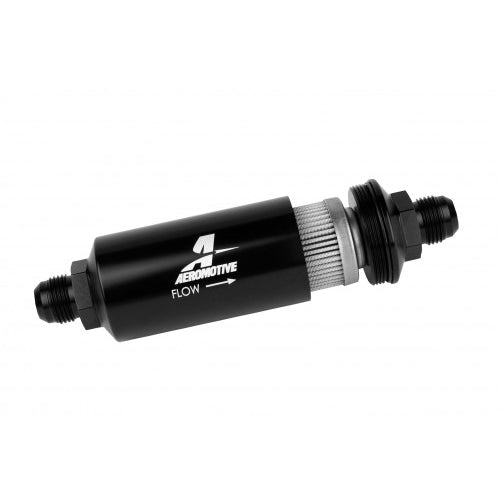

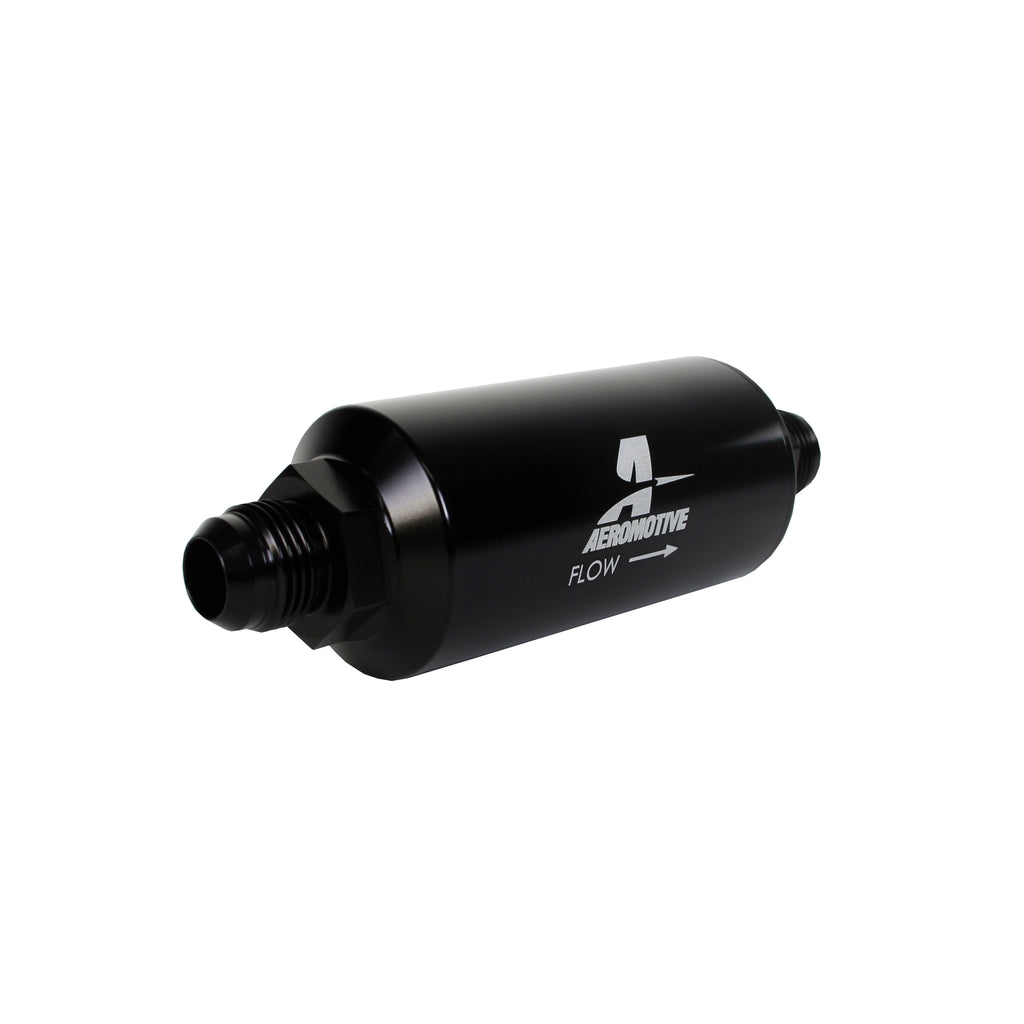

AN-10, 40 micron stainless steel element, black anodize finish. An inexpensive insurance policy to protect your investment, proper filtration is key to fuel system performance. Engineered filter solutions are required to achieve protection with minimum restriction. For 200 3,000 plus HP applications, our filter assemblies offer unmatched flow, ease of installation and maintenance, along with the impeccable mach ining and finish you've come to expect from all Aeromotive components. High-flow, 40-micron Stainless replaceable element. Flows 2,000 lb/hr with a pressure drop of less than 1 PSI. Male AN-10. All filter assemblies feature an O-ring for positive sealing in high pressure applications. CNC-machined from 6061-T6 aircraft aluminum. Bright dip black anodized finish for a corrosion resistant, show car quality appearance.
Specifications:
| Description_ASC |
In-Line filter; In-Line Filter, AN-10 size with a 40 micron stainless steel element and black anodize finish |
| Description_DEF |
Fuel Filter |
| Description_DES |
Male AN-10 Stainless 40m Filter |
| Description_EXT |
Filter, In-Line, 40-m Stainless Mesh Element, AN-10 Male, Bright-Dip Black, 2" OD. |
| Description_INV |
Aeromotive Filter |
| Description_MKT |
AN-10, 40 micron stainless steel element, black anodize finish. An inexpensive insurance policy to protect your investment, proper filtration is key to fuel system performance. Engineered filter solutions are required to achieve protection with minimum restriction. For 200 3,000 plus HP applications, our filter assemblies offer unmatched flow, ease of installation and maintenance, along with the impeccable mach ining and finish you've come to expect from all Aeromotive components. High-flow, 40-micron Stainless replaceable element. Flows 2,000 lb/hr with a pressure drop of less than 1 PSI. Male AN-10. All filter assemblies feature an O-ring for positive sealing in high pressure applications. CNC-machined from 6061-T6 aircraft aluminum. Bright dip black anodized finish for a corrosion resistant, show car quality appearance. |
| Description_SHO |
Fuel Filter |
| Outside Diameter (In) |
2 |
| Length |
5.5 |
| Flow Rate |
2000 |
| Fuel Filter Style |
Inline |
| Shape |
Straight |
| Color |
Black |
| Filter Housing Finish |
Anodized |
| Inlet Size |
AN-10 |
| Outlet Size |
AN-10 |
| Prop 65 - Long Label |
WARNING: This product can expose you to chemicals including chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov |
| Prop 65 (C, R or CR) |
CR |
| Quantity |
Sold individually. |
| End 2 Gender |
Male |
| Gasket Or Seal Included |
Yes |
| Housing Material |
Aluminum |
| Micron Rating |
40 |
| Clamps Included |
No |
| Fuel Type |
All Fuels |
| Maximum Fuel Pressure (psi) |
70 |
| Outlet Attachment |
Male Thread |
| Outlet Outside Diameter |
AN-10 |
| Outlet Quantity |
1 |
| Outside Diameter |
2 |
| Title |
Aeromotive Male AN-10 Stainless 40m Filter |
| End 1 Gender |
Male |
| California Proposition 65 |
WARNING: This product can expose you to chemicals including chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov |
| Filter Element Included |
Yes |
| Filter Element Material |
Stainless steel mesh |
| Filter Housing Color |
Black |
| Filter Housing Diameter |
2.0 |
| Filter Housing Length |
5.5 |
| Filter Housing Material |
Billet Aluminum |
| Fittings Included |
No |
| Inlet Attachment |
Male Thread |
| Inlet Outside Diameter |
AN-10 |
| Inlet Quantity |
1 |
| Mounting Bracket Included |
No |
| Overall Length |
5.5 |
| Overall Length (In) |
5 |
| Prop 65 - Short Label |
P65_Warning_Chromium.jpg |
| Prop 65 Flag |
Yes |
| Smallest Particle Filtered |
40 microns |
| Fitting Type |
AN-10 |
| Mounting Type |
External |
| Universal Or Specific Fit |
Universal |
| Length |
2.0000 |
| Width |
3.5000 |
| Height |
9.1300 |
| Weight |
0.6800 |
