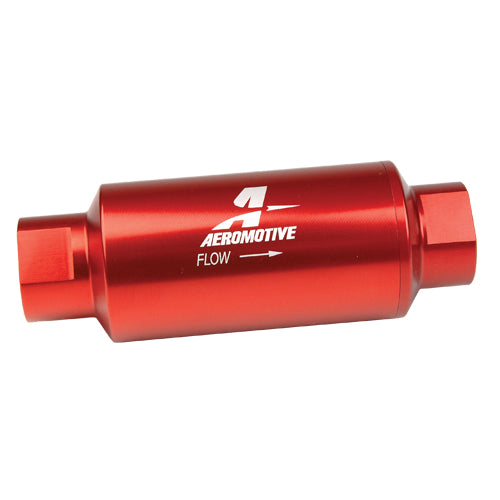

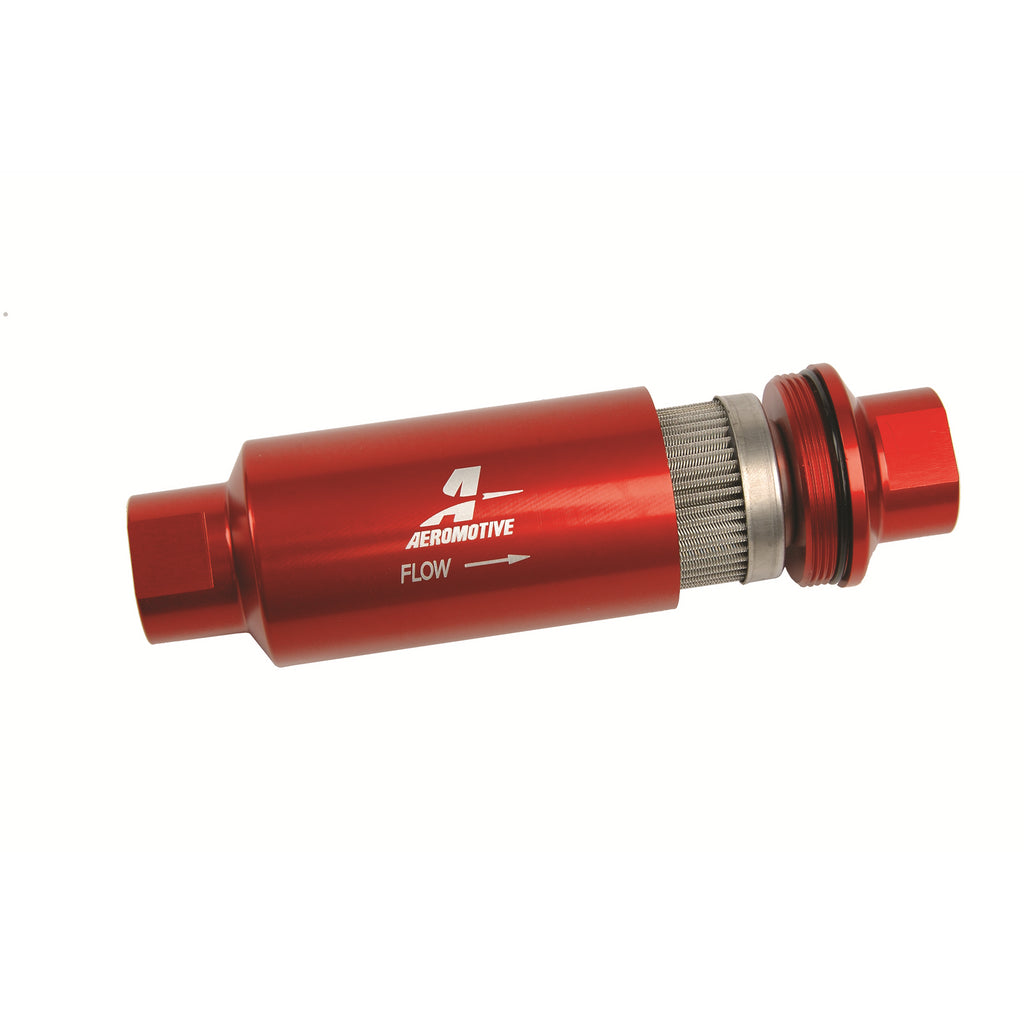

An inexpensive insurance policy to protect your investment, proper filtration is key to fuel system performance. Engineered filter solutions are required to achieve protection with minimum restriction. For 200 3,000 plus HP applications, our filter assemblies offer unmatched flow, ease of installation and maintenance, along with the impeccable machining and finish you've come to expect from all Aeromotive components. High-flow, 100-micron stainless steel (coarse) cleanable element. Flows 2,000 lb/hr with a pressure drop of less than 1 PSI. Compact size: 5.5" long x 2" diameter. ORB-10 ports. Fittings available to adapt these filters to AN-10, -08 and -06 line sizes. All filter assemblies feature an O-ring for positive sealing in high pressure applications. CNC-machined from 6061-T6 aircraft aluminum. Bright dip red anodized finish for a corrosion resistant, show car quality appearance. 100-micron filters are designed for use between the fuel tank and the fuel pump to protect the pump.
Specifications:
| Description_ASC |
In-line, high-flow fuel filter; red anodized; 100-micron stainless steel element; compact size: 5.5" long x 2" diameter. |
| Description_DEF |
Fuel Filter |
| Description_EXT |
Filter, In-Line, 100-m Stainless Mesh Element, ORB-10 Port, Bright-Dip Red, 2" OD. |
| Description_DES |
100 Micron, ORB-10 Red Fuel Filter |
| Description_SHO |
Fuel Filter |
| Description_MKT |
An inexpensive insurance policy to protect your investment, proper filtration is key to fuel system performance. Engineered filter solutions are required to achieve protection with minimum restriction. For 200 3,000 plus HP applications, our filter assemblies offer unmatched flow, ease of installation and maintenance, along with the impeccable machining and finish you've come to expect from all Aeromotive components. High-flow, 100-micron stainless steel (coarse) cleanable element. Flows 2,000 lb/hr with a pressure drop of less than 1 PSI. Compact size: 5.5" long x 2" diameter. ORB-10 ports. Fittings available to adapt these filters to AN-10, -08 and -06 line sizes. All filter assemblies feature an O-ring for positive sealing in high pressure applications. CNC-machined from 6061-T6 aircraft aluminum. Bright dip red anodized finish for a corrosion resistant, show car quality appearance. 100-micron filters are designed for use between the fuel tank and the fuel pump to protect the pump. |
| Description_INV |
Aeromotive Filter |
| Mounting Type |
External |
| Maximum Fuel Pressure (psi) |
70 |
| California Proposition 65 |
WARNING: This product can expose you to chemicals including chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov |
| Fuel Type |
All Fuels |
| Flow Rate |
2000 |
| Smallest Particle Filtered |
100 microns |
| End 2 Gender |
Female |
| Fittings Included |
No |
| Inlet Outside Diameter |
AN-10 |
| Outside Diameter (In) |
2.0 |
| Prop 65 - Long Label |
WARNING: This product can expose you to chemicals including chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov |
| Quantity |
Sold individually. |
| Title |
Aeromotive 100 Micron, ORB-10 Red Fuel Filter |
| Fitting Type |
AN-10 |
| Housing Material |
Aluminum |
| Universal Or Specific Fit |
Universal |
| Clamps Included |
No |
| Color |
Red |
| Filter Housing Diameter |
2.0 |
| Inlet Size |
AN-10 |
| Outlet Size |
AN-10 |
| Overall Length (In) |
5.5 |
| Length |
5.5 |
| Micron Rating |
100 |
| Shape |
Straight |
| Filter Element Included |
Yes |
| Filter Element Material |
Stainless steel mesh |
| Filter Housing Color |
Red |
| Filter Housing Finish |
Anodized |
| Filter Housing Length |
5.5 |
| Filter Housing Material |
Billet Aluminum |
| Fuel Filter Style |
Inline |
| Inlet Attachment |
Female Thread |
| Inlet Quantity |
1 |
| Mounting Bracket Included |
No |
| Outlet Attachment |
Female Thread |
| Outlet Outside Diameter |
AN-10 |
| Outlet Quantity |
1 |
| Outside Diameter |
2.0 |
| Overall Length |
5.5 |
| Prop 65 - Short Label |
P65_Warning_Chromium.jpg |
| Prop 65 (C, R or CR) |
CR |
| Prop 65 Flag |
Yes |
| End 1 Gender |
Female |
| Gasket Or Seal Included |
Yes |
| Length |
2.0000 |
| Width |
3.5000 |
| Height |
9.1300 |
| Weight |
0.8400 |
