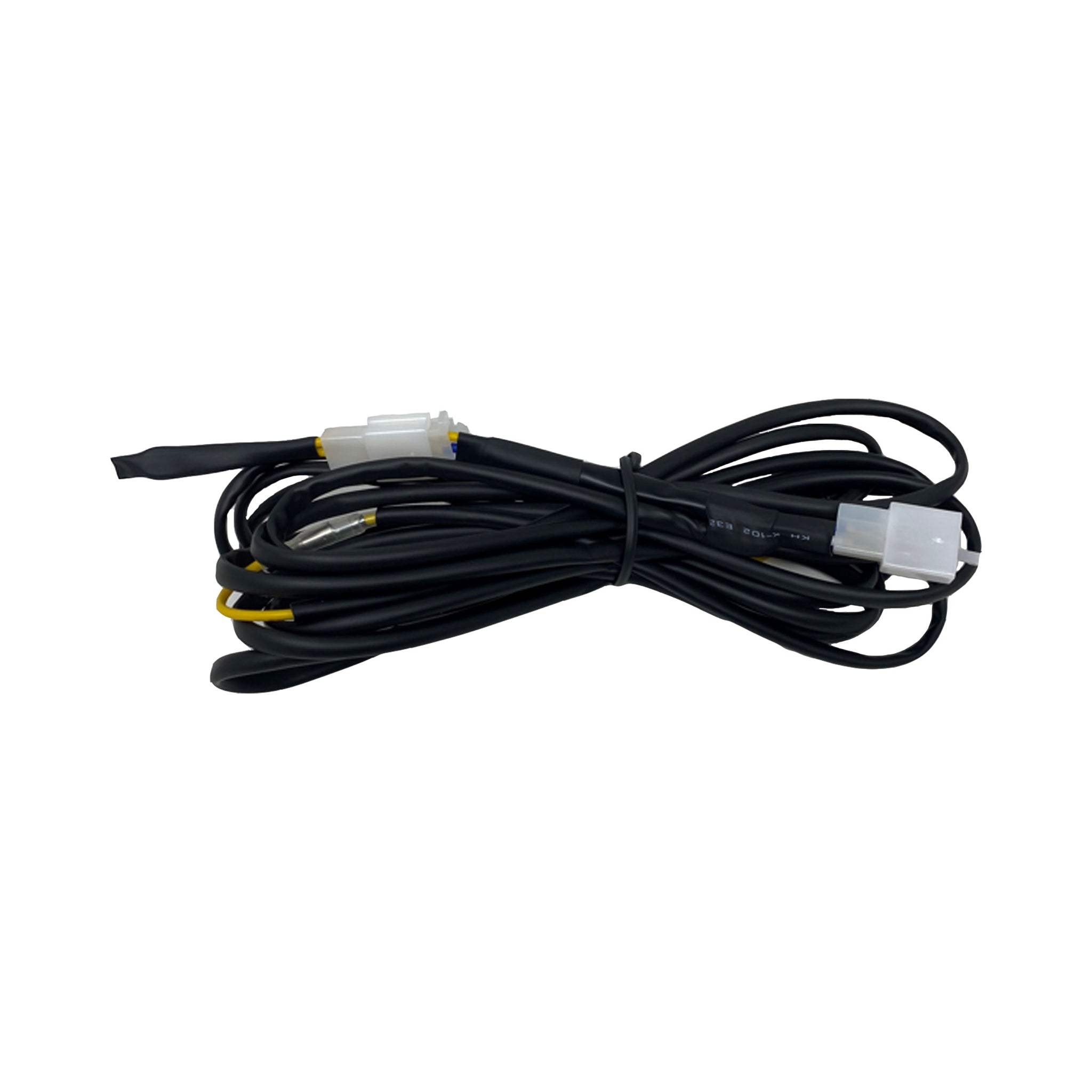

This add-on harness can add dual functionality to several Baja Designs harnesses, or simply avoid having to wire through the firewall and mount a switch to the dash.Using a three-position switch (On-Off-Triggered ON), this will allow you to turn the lights on, off, or on when the trigger wire has voltage.To use the trigger wire only, there is a jumper connector included that will replace the switch lead portion of the harness and eliminate the need to wire the switch into the cab.The trigger wire is long enough to reach a taillight reverse wire, but also has an intermediate bullet connector that can be used to shorten the trigger wire to reach a headlight high beam wire. The harnesses that this switch lead is compatible with are:64-0117 - Squadron/S2 Off/On Wire Harness-2 lights max 150 watts64-0121 - Sport Series, 3-Pin Wiring Harness (Pair)64-0175 - Wiring Harness, LP9 Sport, LP6, LP4, 2-Light Max64-0115 - OnX6+/S8 (10-30 inch) Off/On Harness64-0139 - Squadron/ S2/ S1, Off/ On Harness64-0163 - Pro and Sport 3-pin, Hi-beam Harness-2 light max 150 watts
Specifications:
| Description_ASC |
One Wiring Harness |
| Description_ASM |
Universal |
| Description_DEF |
Auxiliary Light Wiring |
| Description_DES |
Trigger Switch Harness Lead |
| Description_MKT |
This add-on harness can add dual functionality to several Baja Designs harnesses, or simply avoid having to wire through the firewall and mount a switch to the dash.Using a three-position switch (On-Off-Triggered ON), this will allow you to turn the lights on, off, or on when the trigger wire has voltage.To use the trigger wire only, there is a jumper connector included that will replace the switch lead portion of the harness and eliminate the need to wire the switch into the cab.The trigger wire is long enough to reach a taillight reverse wire, but also has an intermediate bullet connector that can be used to shorten the trigger wire to reach a headlight high beam wire. The harnesses that this switch lead is compatible with are:64-0117 - Squadron/S2 Off/On Wire Harness-2 lights max 150 watts64-0121 - Sport Series, 3-Pin Wiring Harness (Pair)64-0175 - Wiring Harness, LP9 Sport, LP6, LP4, 2-Light Max64-0115 - OnX6+/S8 (10-30 inch) Off/On Harness64-0139 - Squadron/ S2/ S1, Off/ On Harness64-0163 - Pro and Sport 3-pin, Hi-beam Harness-2 light max 150 watts |
| Description_EXT |
Trigger Switch Harness Lead |
| Description_FAB |
The harnesses that this switch lead is compatible with are: 64-0117, 64-0121, 64-0175, 64-0115, 64-0139, 64-0163 |
| Description_INV |
Baja Designs Wiring Harness |
| Description_SHO |
Trigger Switch Harness Lead Baja Designs |
| Prop 65 Warning Label |
Prop 65 WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. |
| Universal or Specific |
Universal |
| Application |
4-0117, 64-0121, 64-0175, 64-0115, 64-0139, 64-0163 |
| Mounting Hardware Included |
No |
| Prop 65 (C, R or CR) |
CR |
| Switch Included |
Yes |
| Switch Type |
On/Off/Triggered On |
| Title |
Baja Designs - 640180 - Trigger Switch Harness Lead |
| Wiring Harness Description |
Trigger Swtich |
| Wiring Harness Included |
Yes |
| Description |
Add-on Dual Function Harness |
| Product Type |
Trigger Switch Harness Lead |
| Prop 65 - Short Label |
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov |
| Prop 65 Yes/No |
Yes |
| Length |
8.0000 |
| Width |
8.0000 |
| Height |
8.0000 |
| Weight |
1.0000 |
