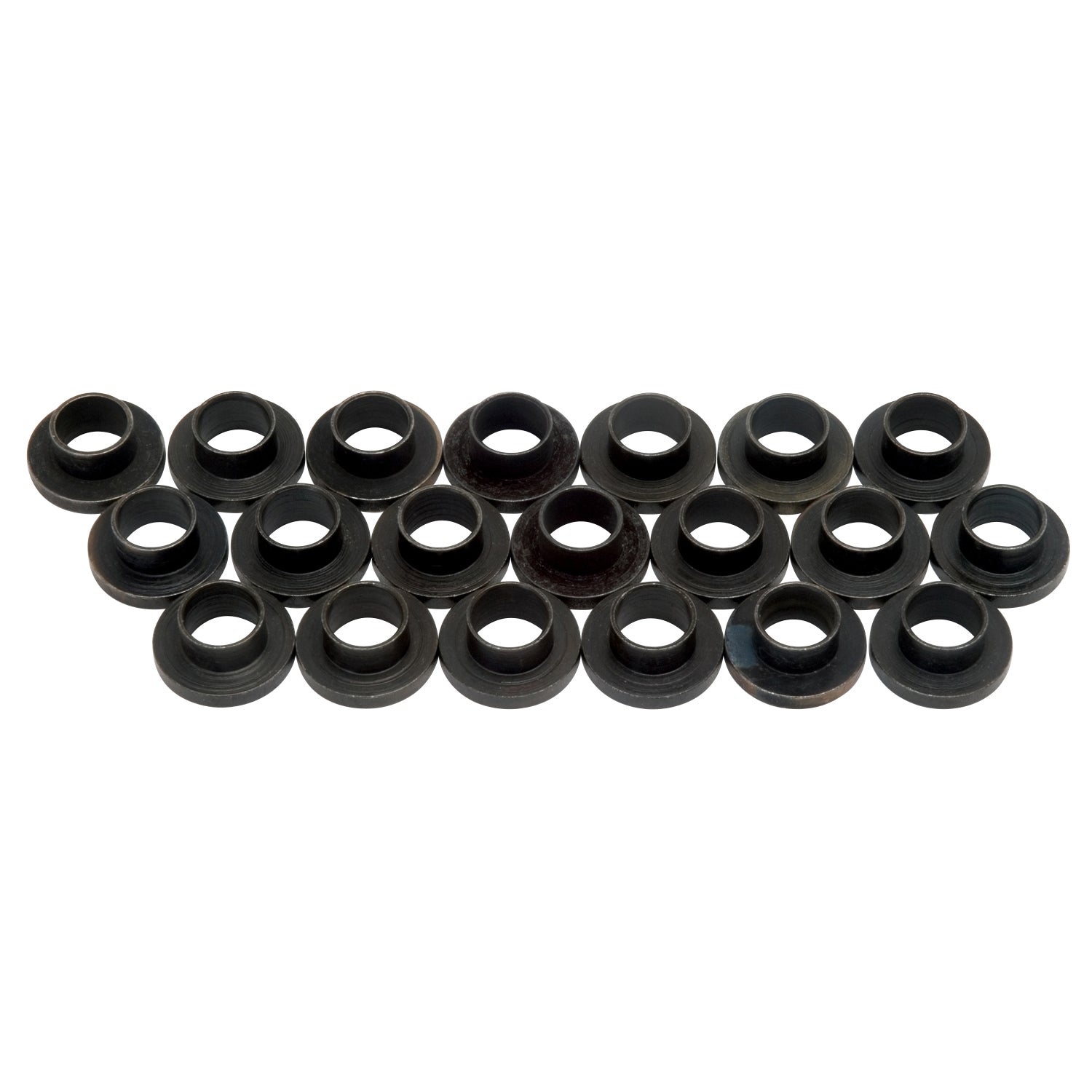

The Edelbrock #9680 bolt bushing kit contain a complete set of the highest quality head bolt bushings. Cold-formed to ensure molecular integrity and heat treated prior to thread rolling and machining
Specifications:
| Description_ABR |
FordHeadBolt |
| Description_ASM |
Ford:-:302 (5.0L) |
| Description_DEF |
Engine Cylinder Head Bolt Washer Set |
| Description_EXT |
Edelbrock #9680 Head Bolt Bushings with Integral Washers must be used on 289-302 S/B Ford Engines with 7/16" Head Bolts. Complete Set of 20 High Quality Head Bolt Bushings. Use with Edelbrock Head Bolt Kit #8552 or Stock 7/16" Head Bolts. |
| Description_MKT |
The Edelbrock #9680 bolt bushing kit contain a complete set of the highest quality head bolt bushings. Cold-formed to ensure molecular integrity and heat treated prior to thread rolling and machining |
| Description_INV |
Ford 5.0L Head Bolt Bushings |
| Description_LAB |
Ford 5.0L Head Bolt Bushings |
| Description_TRA |
The Edelbrock #9680 is made specifically for 289-302 Ford engines |
| Description_TRA |
Apply oil or suitable thread lubricant to head bolt threads and the underside of bolt heads and washers. |
| Description_TRA |
Using the torque sequence (See Figure 1), torque all 7/16" bolts to 65-70 ft./lbs and all 1/2" bolts to 100-110 ft./lbs in four steps (30, 40, 50, 60-75 |
| Description_TRA |
or 30, 60, 90, 100-110). |
| Description_TRA |
Installation is the same as for original equipment cylinder heads. Consult service manual for specific procedures, if necessary. |
| Description_TRA |
BOSS 302 CLONE ENGINES - Use Edelbrock Head Bolt Bushings with Integral Washers #9680 in place of washers supplied with your head bolt kit. Torque 7/16" bolts to 65-70 ft./lbs. in four steps (30, 40, 50, 65-70) following the factory tightening sequence. ALL ENGINES - A re-torque is recommended after initial start-up and cool-down (allow 2-3 hours for adequate cooling). |
| Material |
Chromoly |
| Maximum Outside Diameter |
0.875 |
| Maximum Inside Diameter |
0.438 |
| Minimum Outside Diameter |
0.500 |
| RGL |
WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Finish |
Black Oxide |
| Thickness |
0.1250 |
| Quantity |
Set of 20 |
| Length |
2.0000 |
| Width |
6.0000 |
| Height |
7.0000 |
| Weight |
1.0000 |
