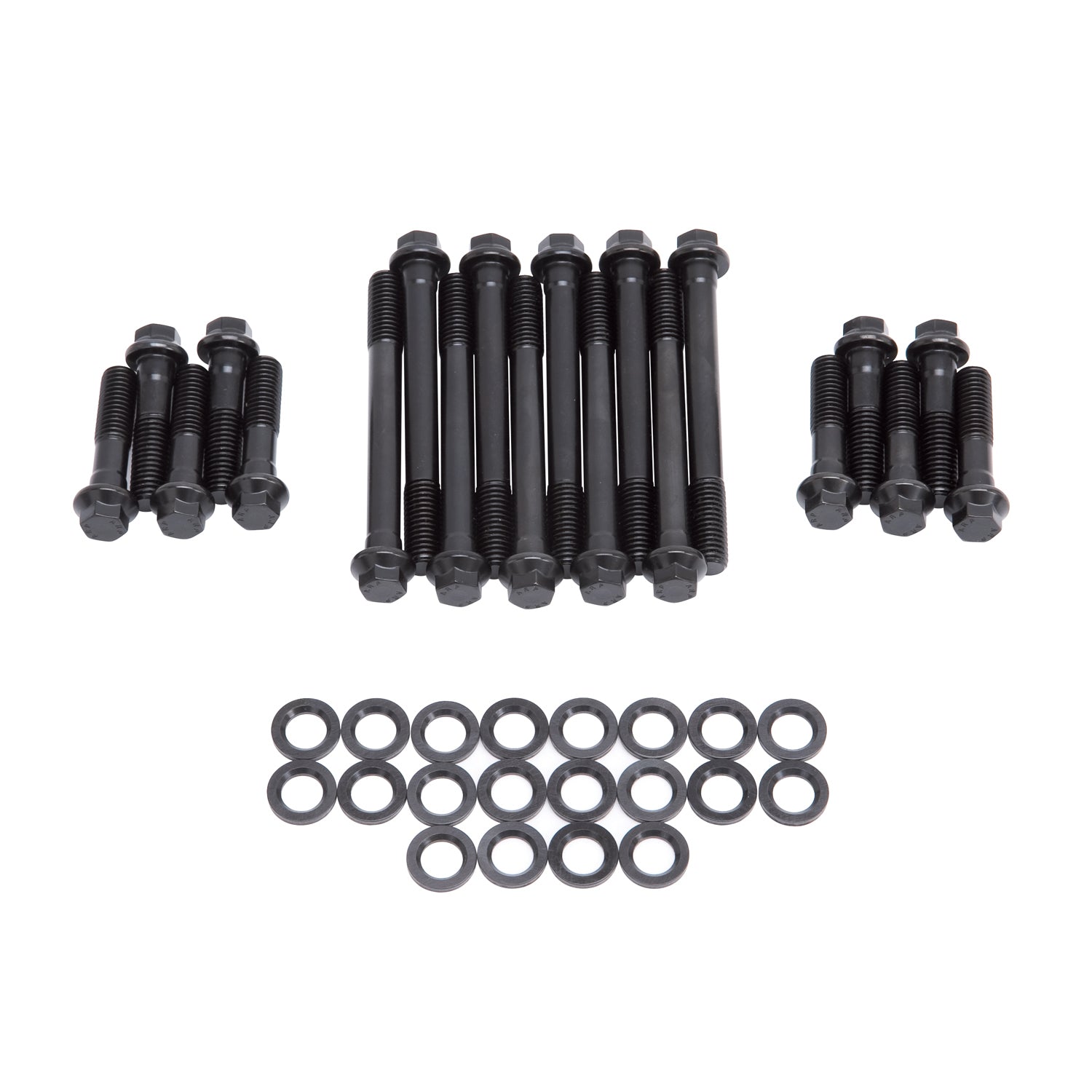

Edelbrock E-Series Cylinder Head Bolt Kit #85772 is a high-quality replacement bolt set for Chrysler 5.2L and 5.9L Magnum engines equipped with Performer RPM #61779 and #61775 aluminum heads. This kit contains all necessary parts to replace the factory head bolts. E-Series bolts have a yield tensile strength of 190,000 PSI for strong and reliable loading with generous filleting throughout to eliminate stress risers. Bolt threads are rolled after heat-treating for superior form and strength, while a small hex head provides extra space for socket clearance in tight situations. E-Series Cylinder Head Bolts have a durable black oxide finish with sealer and come with the distinctive Edelbrock ΓÇ£E" stamped into the head.
Specifications:
| Description_ABR |
HeadBoltKit |
| Description_ASM |
Chrysler:Magnum:318 (5.2L)/360 (5.9L) |
| Description_DEF |
Engine Cylinder Head Bolt Set |
| Description_DES |
Edelbrock E-Series Cylinder Head Bolt Kit #85772 for 5.2L/5.9L Magnum |
| Description_FAB |
For Chrysler 5.2L and 5.9L Magnum with aluminum heads |
| Description_FAB |
Yield tensile strength of 190,000 PSI |
| Description_FAB |
Heat treating with rolled threads for superior form and strength |
| Description_FAB |
black-oxide finish with sealer |
| Description_FAB |
Edelbrock ΓÇ£E" logo stamped on bolt head |
| Description_EXT |
Edelbrock #85772 is a Head Bolt Kit for 1992+ Small-Block Chrysler 5.2L/5.9L "Magnum" Engines with Edelbrock 61767, 61769, 61779, & 61775 Performer RPM Cylinder Heads. Kit contains a complete set of Head Bolts & Washers for a pair of heads. |
| Description_INV |
Edelbrock Cylinder Head Bolt Kit #85772 |
| Description_LAB |
Edelbrock E-Series Cylinder Head Bolt Kit #85772 for 5.2L/5.9L Magnum |
| Description_MKT |
Edelbrock E-Series Cylinder Head Bolt Kit #85772 is a high-quality replacement bolt set for Chrysler 5.2L and 5.9L Magnum engines equipped with Performer RPM #61779 and #61775 aluminum heads. This kit contains all necessary parts to replace the factory head bolts. E-Series bolts have a yield tensile strength of 190,000 PSI for strong and reliable loading with generous filleting throughout to eliminate stress risers. Bolt threads are rolled after heat-treating for superior form and strength, while a small hex head provides extra space for socket clearance in tight situations. E-Series Cylinder Head Bolts have a durable black oxide finish with sealer and come with the distinctive Edelbrock ΓÇ£E" stamped into the head. |
| Description_SHP |
None |
| Description_TRA |
The Edelbrock #8577 is made specifically for Chrysler Magnum V8 |
| Description_TRA |
Installation is the same as for original equipment cylinder heads. Consult a service manual for specific procedures, if necessary. |
| Description_TRA |
Be sure that the surface of the block and the surface of the head is thoroughly cleaned to remove any oily film before installation. Use alcohol or lacquer thinner on a lint-free rag to clean. |
| Description_TRA |
Apply oil suitable thread lubricant to head bolt threads and the underside of bolt heads and washers. |
| Description_TRA |
Torque bolts to 95 ft/lbs in three steps (45-65-95), following the factory tightening sequence. A re torque is recommended after initial start-up and cool-down (allow 2-3 hours for adequate cooling). |
| Length |
(10) 2.125 in, (10) 4.625 |
| RGL |
WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Finish |
Black Oxide |
| Grade Type |
Performance |
| Quantity |
Kit |
| Length |
3.0000 |
| Width |
5.0000 |
| Height |
7.0000 |
| Weight |
4.0000 |
