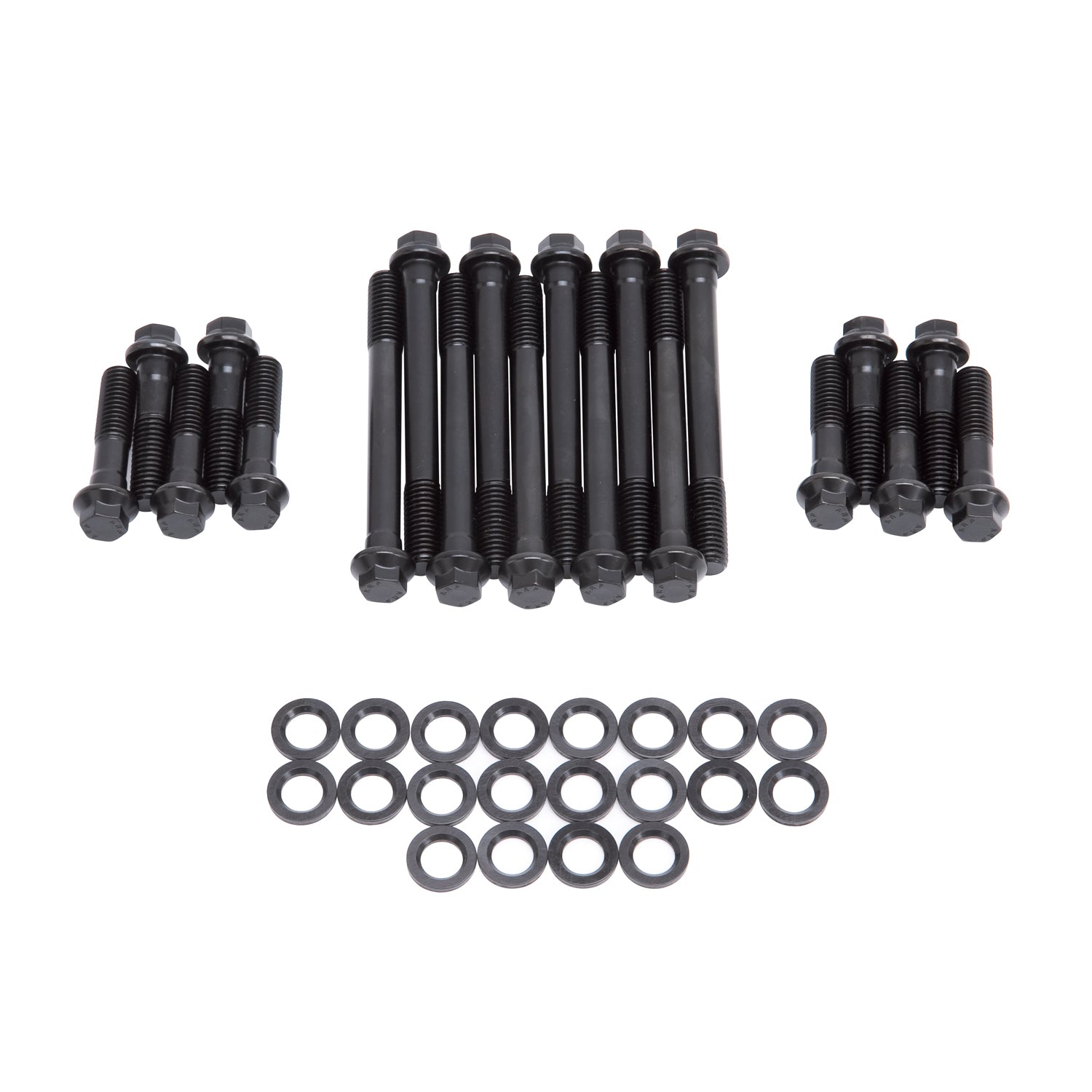

The Edelbrock #8577 bolt kit contain a complete set of the highest quality head bolts and hardened washers available. Cold-formed to ensure molecular integrity and heat treated prior to thread rolling and machining. Reduced diameter bolt heads eliminate the need for valve train removal to facilitate cylinder head re-torqueing. Hardened and parallel-ground washers are included. Rated at 170,000 p.s.i.
Specifications:
| Description_ABR |
HeadBlotKit |
| Description_ASM |
Chrysler:Magnum:318 (5.2L)/360 (5.9L) |
| Description_DEF |
Engine Cylinder Head Bolt Set |
| Description_EXT |
Edelbrock #8577 is a Head Bolt Kit for 1992+ Small-Block Chrysler 5.2L/5.9L "Magnum" Engines with Edelbrock 61767, 61769, 61779, & 61775 Performer RPM Cylinder Heads. Kit contains a complete set of Head Bolts & Washers for a pair of heads. |
| Description_MKT |
The Edelbrock #8577 bolt kit contain a complete set of the highest quality head bolts and hardened washers available. Cold-formed to ensure molecular integrity and heat treated prior to thread rolling and machining. Reduced diameter bolt heads eliminate the need for valve train removal to facilitate cylinder head re-torqueing. Hardened and parallel-ground washers are included. Rated at 170,000 p.s.i. |
| Description_LAB |
5.2-5.8 Magnum Head Bolt Kit |
| Description_INV |
5.2-5.8 Magnum Head Bolt Kit |
| Description_TRA |
The Edelbrock #8577 is made specifically for Chrysler Magnum V8 |
| Description_TRA |
Installation is the same as for original equipment cylinder heads. Consult a service manual for specific procedures, if necessary. |
| Description_TRA |
Be sure that the surface of the block and the surface of the head is thoroughly cleaned to remove any oily film before installation. Use alcohol or lacquer thinner on a lint-free rag to clean. |
| Description_TRA |
Apply oil suitable thread lubricant to head bolt threads and the underside of bolt heads and washers. |
| Description_TRA |
Torque bolts to 95 ft/lbs in three steps (45-65-95), following the factory tightening sequence. A re torque is recommended after initial start-up and cool-down (allow 2-3 hours for adequate cooling). |
| Thread Diameter |
0.50 |
| Washers Included |
Yes |
| Minimum Length |
2.125 |
| RGL |
WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Thread Type |
Coarse |
| Material |
Chromoly |
| Finish |
Black Oxide |
| Length |
(10) 2.125 in, (10) 4.625 |
| Grade Type |
Performance |
| Head Drive Type |
Hex |
| Quantity |
Kit |
| Length |
3.0000 |
| Width |
5.0000 |
| Height |
9.0000 |
| Weight |
5.0000 |
