| Description_ABR |
HeadBoltKit |
| Description_ASM |
Pontiac:-:326 (5.3L)-455 (7.5L) |
| Description_DEF |
Engine Cylinder Head Bolt Set |
| Description_DES |

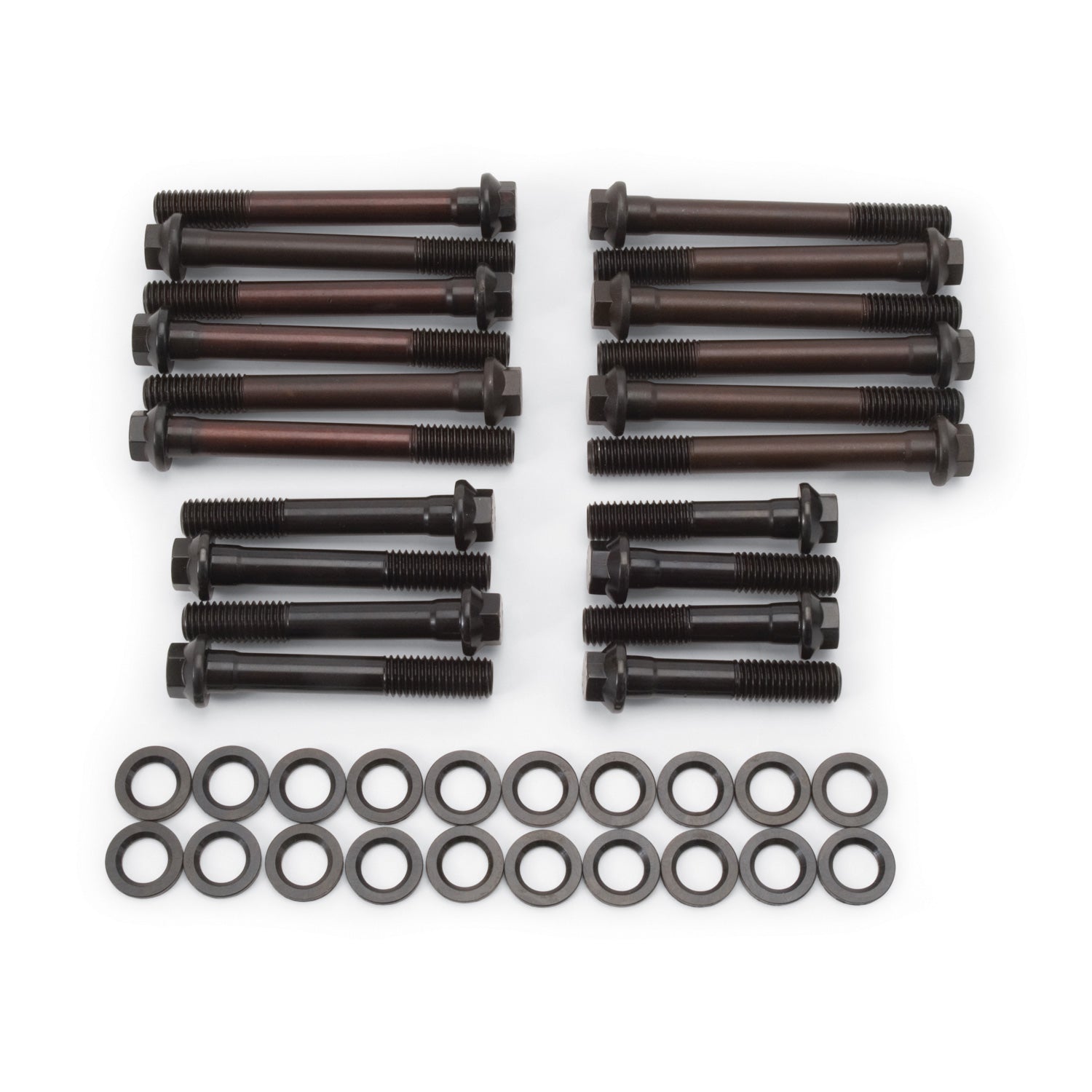

Edelbrock E-Series Cylinder Head Bolt Kit #85612 for Pontiac w/Edelbrock head |
| Description_MKT |
Edelbrock E-Series Cylinder Head Bolt Kit #85612 is designed for use on Pontiac engines with Edelbrock Performer #61569, #61579 and #61599 D-Port Cylinder Heads. This kit contains all the necessary parts to replace the factory head bolts. E-Series bolts have a yield tensile strength of 190,000 PSI for strong and reliable loading. Bolt threads are rolled after heat-treating for superior form and strength, while a small hex head provides extra space for socket clearance in tight situations. E-Series Cylinder Head Bolts have a durable black oxide finish with sealer and come with the distinctive Edelbrock ΓÇ£E" stamped into the head. |
| Description_LAB |
Edelbrock E-Series Cylinder Head Bolt Kit #85612 for Pontiac w/Edelbrock head |
| Description_INV |
E-Series Pontiac Head Bolt Kit #85612 |
| Description_EXT |
E-Series #85612 is a Head Bolt Kit for 1961-1979 Pontiac 326-455 Engines with Edelbrock 61569, 61579 and 61599 Performer D-Port Pontiac Cylinder Heads. Complete set of Head Bolts & Washers for a pair of heads. |
| Description_FAB |
For use with Performer D-Port heads for Pontiac |
| Description_FAB |
Yield tensile strength of 190,000 PSI |
| Description_FAB |
Heat treating with rolled threads for superior form and strength |
| Description_FAB |
black-oxide finish with sealer |
| Description_FAB |
Edelbrock ΓÇ£E" logo stamped on bolt heads |
| Description_SHP |
None |
| Description_TRA |
The Edelbrock #8561 is made specifically for Pontiac V8 |
| Description_TRA |
Installation is the same as for original equipment cylinder heads. Consult service manual for specific procedures, if necessary. |
| Description_TRA |
For 389-455 engines, use Edelbrock #7381, Fel-Pro #1016 or equivalent head gaskets. NOTE: Edelbrock Cylinder Head Gasket Set #7382 may also be used. |
| Description_TRA |
This gasket set includes all necessary gaskets for cylinder head installation, including cylinder head, intake, exhaust, water neck and valve cover gaskets. |
| Description_TRA |
Be sure that the surface of the block and the surface of the head are thoroughly cleaned to remove any oily film before installation. |
| Description_TRA |
Use alcohol or lacquer thinner on a lint-free rag to clean. Coat threads, washers, and underside of bolt heads with motor oil for accurate torque readings. |
| Description_TRA |
Torque upper row of bolts to 105 ft. /lbs., torque lower row of bolts to 95 ft./lbs. in three even increments. Start in center and work out towards ends. A re-torque is recommended after initial start-up and cool-down (allow 2-3 hours for adequate cooling). |
| Quantity |
Kit |
| Grade Type |
Performance |
| Length |
(4) 2.25 in, (4) 3.00 in, (4) 3.75 in, (2) 4.00 in, (6) 4.25 |
| Finish |
Black Oxide |
| RGL |
WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Length |
3.0000 |
| Width |
5.0000 |
| Height |
7.0000 |
| Weight |
5.0000 |
