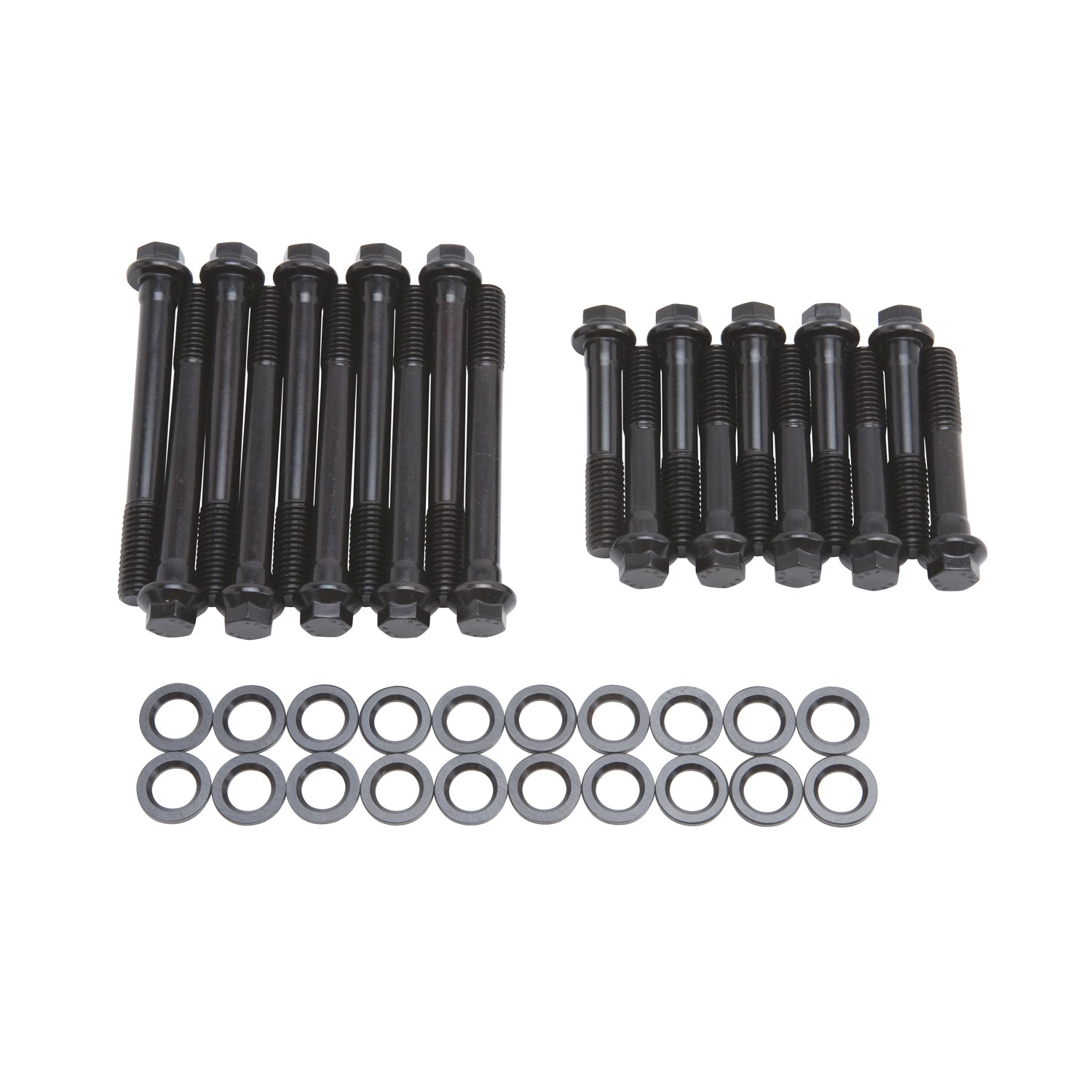

Edelbrock E-Series Cylinder Head Bolt Kit #85572 is a high-quality set of replacement bolts for use with Ford FE 390-428 heads. This kit contains all the necessary parts top replace the factory head bolts. E-Series bolts have a yield tensile strength of 190,000 PSI for strong and reliable loading with generous filleting throughout to eliminate stress risers. Bolt threads are rolled after heat-treating for superior form and strength, while a small hex head provides extra space for socket clearance in tight situations. E-Series Cylinder Head Bolts have a durable black oxide finish with sealer and come with the distinctive Edelbrock ΓÇ£E" stamped into the head.
Specifications:
| Description_ABR |
HeadBoltKit |
| Description_ASM |
Ford:FE:390 (6.4L)-428 (7.0L) |
| Description_DEF |
Engine Cylinder Head Bolt Set |
| Description_DES |
Edelbrock E-Series Cylinder Head Bolt Kit #85572 for Ford 390-428 FE engines |
| Description_INV |
Edelbrock Cylinder Head Bolt Kit #85572 |
| Description_EXT |
Edelbrock #85572 is a Head Bolt Kit for 1958-76 Ford FE 390-428 heads and FE engines equipped with Edelbrock 60059, 60089, 60065, 60069, 60075, & 60079 Performer RPM Cylinder Heads. Complete set of Head Bolts & Washers for a pair of heads. |
| Description_LAB |
Edelbrock E-Series Cylinder Head Bolt Kit #85572 for Ford 390-428 FE engines |
| Description_MKT |
Edelbrock E-Series Cylinder Head Bolt Kit #85572 is a high-quality set of replacement bolts for use with Ford FE 390-428 heads. This kit contains all the necessary parts top replace the factory head bolts. E-Series bolts have a yield tensile strength of 190,000 PSI for strong and reliable loading with generous filleting throughout to eliminate stress risers. Bolt threads are rolled after heat-treating for superior form and strength, while a small hex head provides extra space for socket clearance in tight situations. E-Series Cylinder Head Bolts have a durable black oxide finish with sealer and come with the distinctive Edelbrock ΓÇ£E" stamped into the head. |
| Description_FAB |
For Ford FE 390-428 heads |
| Description_FAB |
Yield tensile strength of 190,000 PSI |
| Description_FAB |
Heat treating with rolled threads for superior form and strength |
| Description_FAB |
black-oxide finish with sealer |
| Description_FAB |
Edelbrock ΓÇ£E" logo stamped on bolt head |
| Description_TRA |
The Edelbrock #8557 is made specifically for |
| Description_TRA |
Installation is the same as for original equipment cylinder heads. Consult service manual for specific procedures, if necessary. |
| Description_TRA |
Be sure that the surface of the block and the surface of the head are thoroughly cleaned to remove any oily film before installation. |
| Description_TRA |
Use alcohol or lacquer thinner on a lint-free rag to clean. Apply oil or suitable thread lubricant to head bolt threads and the underside of bolt heads and washers to prevent galling and improper torque readings. |
| Description_TRA |
Use thread sealant on any bolts that go into coolant passages. Torque top row of bolts to 110 ft./lbs. and bottom row of bolts to 100 ft./lbs. in three or four steps, following the factory tightening sequence. A re-torque is recommended after the initial star-up and cool-down (allow 2-3 hours for adequate cooling) |
| Description_SHP |
None |
| Grade Type |
Performance |
| Finish |
Black Oxide |
| Length |
(10) 4.450 in, (10) 2.875 |
| Quantity |
Kit |
| RGL |
WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Length |
3.0000 |
| Width |
5.0000 |
| Height |
7.0000 |
| Weight |
5.0000 |
