| Description_ABR |
HeadBoltKit |
| Description_ASM |
Pontiac:-:326 (5.3L)-455 (7.5L) |
| Description_DEF |
Engine Cylinder Head Bolt Set |
| Description_DES |

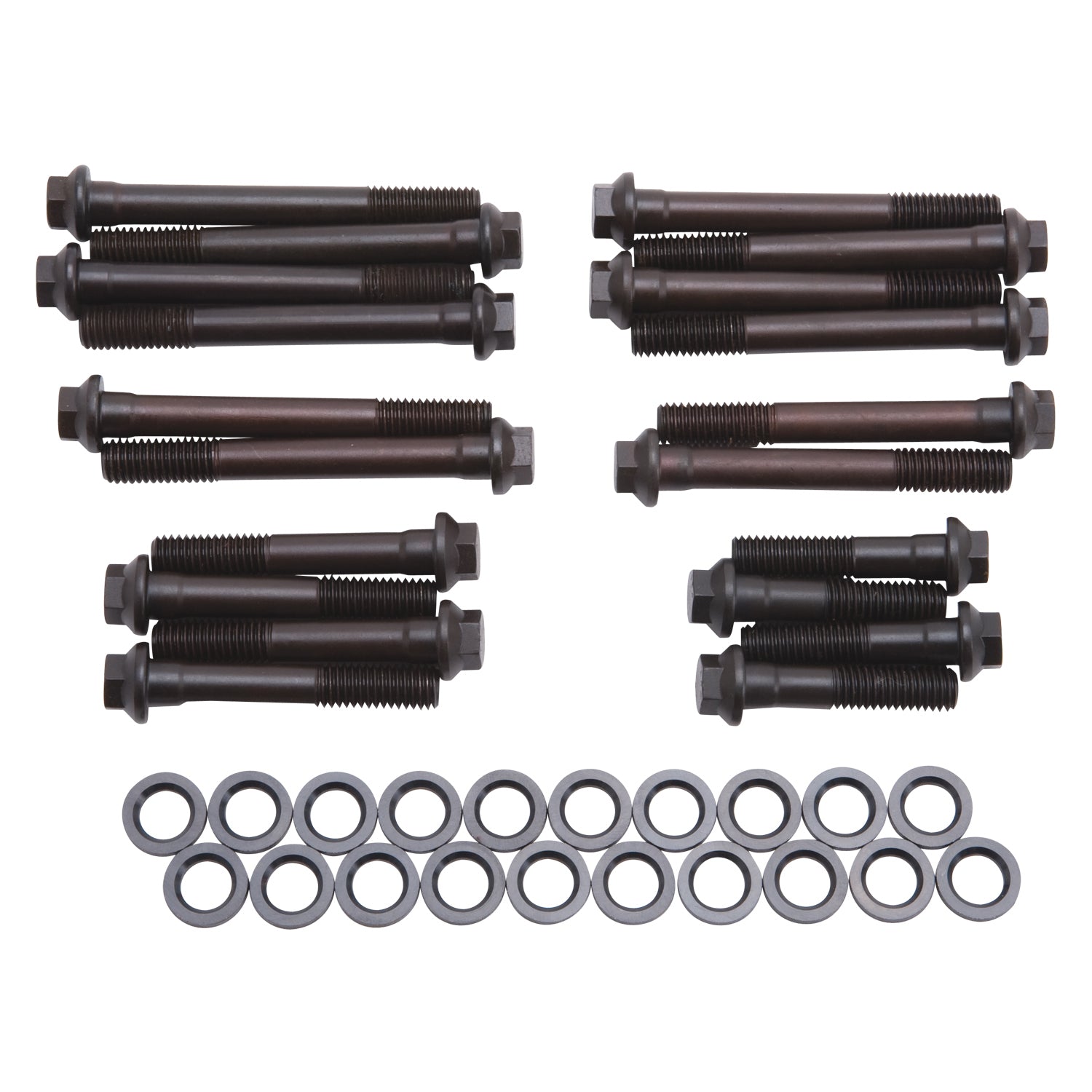

Edelbrock E-Series Cylinder Head Bolt Kit #85562 for Pontiac w/Edelbrock heads |
| Description_MKT |
Edelbrock E-Series Cylinder Head Bolt Kit #85562 is designed for use on Pontiac engines with Edelbrock Performer and Performer RPM Cylinder Heads #6056-6058. Note that this head bolt kit is required to install these Edelbrock Pontiac heads. The 6056-6058 cylinder heads require a head bolt kit that is similar to that needed for a Ram-Air IV head, which is different from a standard D-port head. Several of the bolt boss heights have been increased to enhance the potential of the heads. E-Series bolts have a yield tensile strength of 190,000 PSI for strong and reliable loading. Bolt threads are rolled after heat-treating for superior form and strength, while a small hex head provides extra space for socket clearance in tight situations. E-Series Cylinder Head Bolts have a durable black oxide finish with sealer and come with the distinctive Edelbrock ΓÇ£E" stamped into the head. |
| Description_LAB |
Edelbrock E-Series Cylinder Head Bolt Kit #85562 for Pontiac w/Edelbrock heads |
| Description_EXT |
Edelbrock #85562 is a Head Bolt Kit for 1961-79 Pontiac 326-455 Engines with Edelbrock #6056-6058 Cylinder Heads. Not for Stock Heads. |
| Description_FAB |
For use with Performer/Performer RPM heads for Pontiac |
| Description_FAB |
Yield tensile strength of 190,000 PSI |
| Description_FAB |
Heat treating with rolled threads for superior form and strength |
| Description_FAB |
black-oxide finish with sealer |
| Description_FAB |
Edelbrock ΓÇ£E" logo stamped on bolt head |
| Description_INV |
E-Series Pontiac Head Bolt Kit #85562 |
| Description_SHP |
None |
| Description_TRA |
The Edelbrock #8556 is made specifically for Pontiac V8 |
| Description_TRA |
Installation is the same as for original equipment cylinder heads. Consult service manual for specific procedures, if necessary. |
| Description_TRA |
For 389-455 engines, use Edelbrock #7381, Fel-Pro #1016 or equivalent head gaskets. NOTE: Edelbrock Cylinder Head Gasket Set #7382 may also be used. |
| Description_TRA |
This gasket set includes all necessary gaskets for cylinder head installation, including cylinder head, intake, exhaust, water neck and valve cover gaskets. |
| Description_TRA |
Be sure that the surface of the block and the surface of the head are thoroughly cleaned to remove any oily film before installation. |
| Description_TRA |
Use alcohol or lacquer thinner on a lint-free rag to clean. Coat threads, washers, and underside of bolt heads with motor oil for accurate torque readings. |
| Description_TRA |
Torque upper row of bolts to 105 ft. /lbs., torque lower row of bolts to 95 ft./lbs. in three even increments. Start in center and work out towards ends. A re-torque is recommended after initial start-up and cool-down (allow 2-3 hours for adequate cooling). |
| Length |
(4) 2.25 in, (4) 4.15 in, (2) 4.25 in, (2) 3.75 in, (4) 4.00 in, (4) 3.00 |
| Quantity |
Kit |
| RGL |
WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Finish |
Black Oxide |
| Grade Type |
Performance |
| Length |
3.0000 |
| Width |
5.0000 |
| Height |
7.0000 |
| Weight |
5.0000 |
