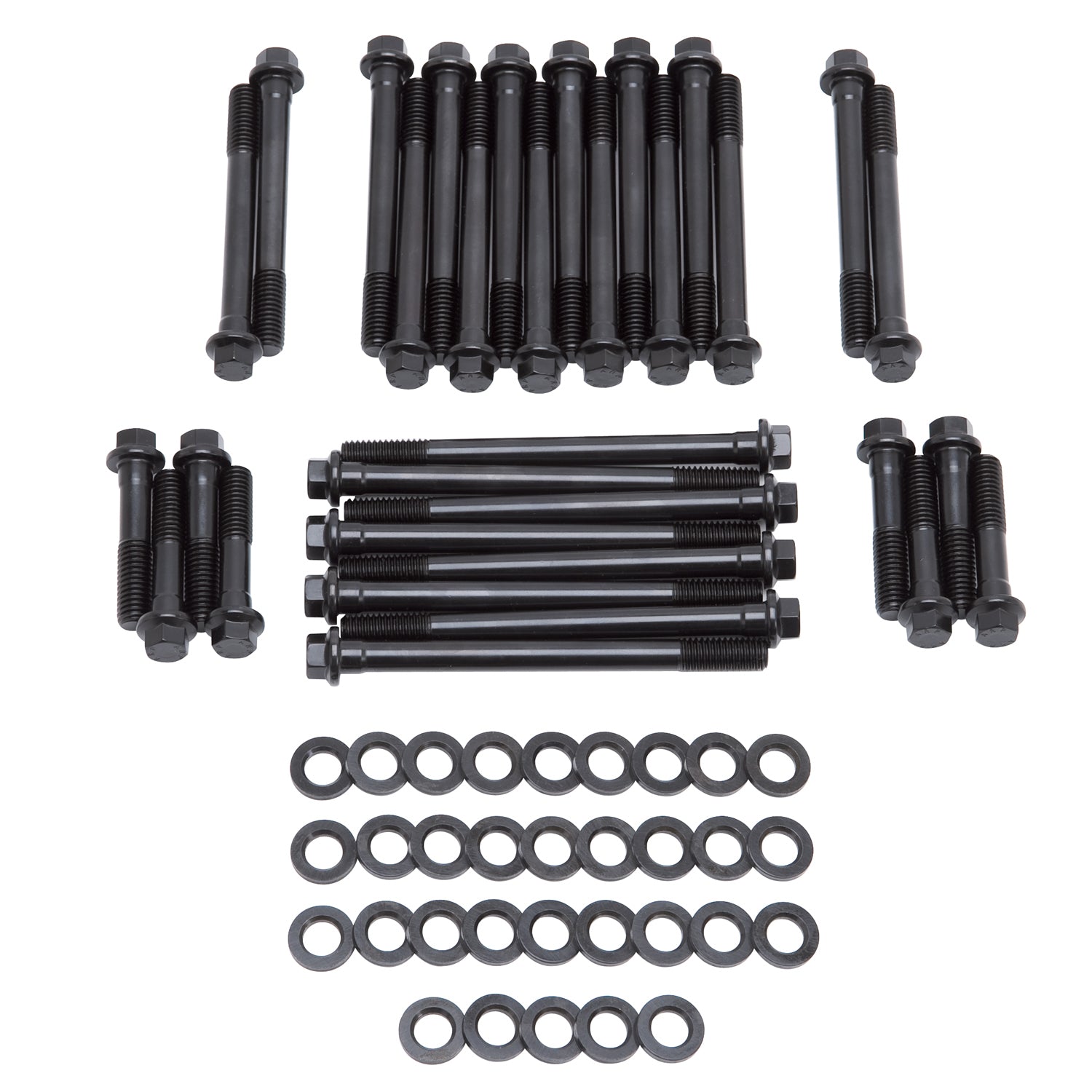

The Edelbrock #8551 bolt kit contain a complete set of the highest quality head bolts and hardened washers available. Cold-formed to ensure molecular integrity and heat treated prior to thread rolling and machining. Reduced diameter bolt heads eliminate the need for valve train removal to facilitate cylinder head re-torqueing. Hardened and parallel-ground washers are included. Rated at 170,000 p.s.i.
Specifications:
| Description_ABR |
HeadBlotKit |
| Description_ASM |
Chevrolet:Big-Block Mark IV:396 (6.5L)-502 (8.2L) |
| Description_DEF |
Engine Cylinder Head Bolt Set |
| Description_EXT |
Edelbrock #8551 Head Bolt Kit is for 1965-90 Big-Block Chevrolet 396-454 Mark IV Engines with Edelbrock #50459, 60459, 60479, 60499, 60559, 61459, 61559, 79539, & 79559 Performer & RPM Cylinder Heads. Not for Stock Heads. |
| Description_MKT |
The Edelbrock #8551 bolt kit contain a complete set of the highest quality head bolts and hardened washers available. Cold-formed to ensure molecular integrity and heat treated prior to thread rolling and machining. Reduced diameter bolt heads eliminate the need for valve train removal to facilitate cylinder head re-torqueing. Hardened and parallel-ground washers are included. Rated at 170,000 p.s.i. |
| Description_LAB |
BBC Head Bolt Kit |
| Description_INV |
BBC Head Bolt Kit |
| Description_TRA |
The Edelbrock #8551 is made specifically for big block Chevy V8. |
| Description_TRA |
Installation is the same as for original equipment cylinder heads. Consult service manual for specific procedures, if necessary. |
| Description_TRA |
For 454 and smaller Mark IV engines, use Edelbrock head gasket #7302, Fel-Pro head gasket #1017-1, or equivalent. |
| Description_TRA |
For 454 Mark V engines, use Fel-Pro head gasket #1037 or equivalent. For 502 c.i.d. Mark V engines, use Fel-Pro head gasket #1047 or equivalent. |
| Description_TRA |
Be sure that the surface of the block and the surface of the head is thoroughly cleaned to remove any oily film before installation. |
| Description_TRA |
Use alcohol or lacquer thinner on a lint-free rag to clean. Apply liquid Teflon or suitable thread sealer to head bolt threads. Torque short bolts to 65 ft./lbs. and long ones to 75 ft./lbs. in three steps following the factory tightening sequence (see Figure 1). A re-torque is recommended after initial start-up and cool-down (allow 2-3 hours for adequate cooling). |
| Material |
Chromoly |
| Grade Type |
Performance |
| Length |
(8) 2.19 in, (4) 3.95 in, (12) 4.19, (8) 5.25 |
| Quantity |
Kit |
| Minimum Length |
2.19 |
| Washers Included |
Yes |
| RGL |
WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Head Drive Type |
Hex |
| Finish |
Black Oxide |
| Thread Diameter |
0.4375 |
| Thread Type |
Coarse |
| Length |
3.0000 |
| Width |
5.0000 |
| Height |
9.0000 |
| Weight |
6.0000 |
