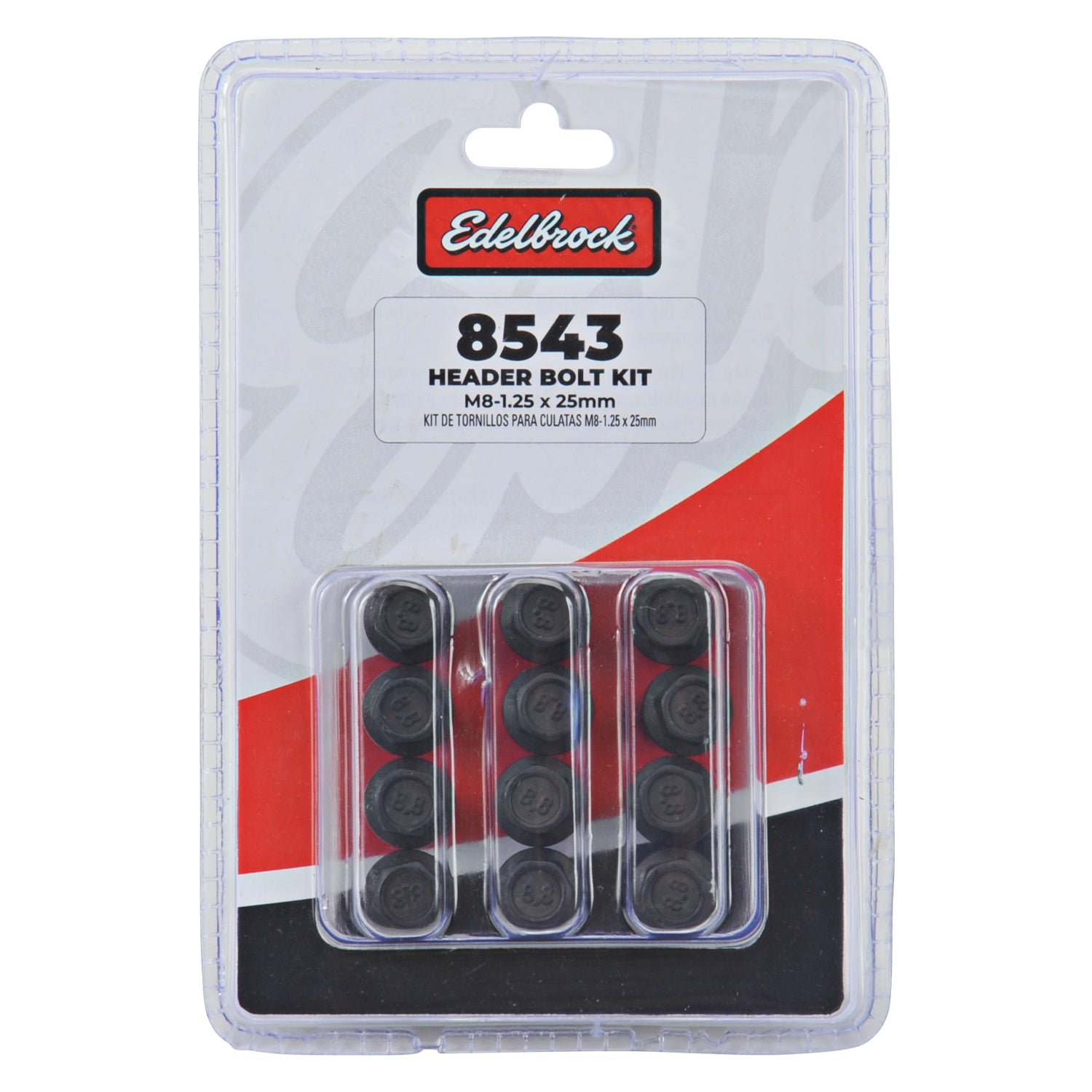

Edelbrock Exhaust Header Bolt Kit #8543 contains a set of 12 high-quality black oxide steel flanged bolts for universal applications that require a M8-1.25 thread pitch and 25mm length. These header bolts feature a combination hex-Allen head that allows you to use a 10mm combination wrench. The flange design helps to distribute pressure and eliminates the need for separate washers. The black oxide finish provides a nice aesthetic look with mild resistance to corrosion in dry environments.
Specifications:
| Description_ABR |
Header Bolts |
| Description_ASM |
Universal |
| Description_DEF |
Exhaust Header Bolt |
| Description_INV |
Edelbrock Exhaust Header Bolt Kit #8543 |
| Description_EXT |
Edelbrock Exhaust Header Bolt Kit #8543 contains a set of 12 high-quality black oxide steel flanged bolts for universal applications that require a M8-1.25 thread pitch and 25mm length. |
| Description_FAB |
Universal header bolt set of twelve |
| Description_FAB |
Hex-Allen head design |
| Description_FAB |
Grade 5-bolt |
| Description_FAB |
Flanged bolt design distributes pressure and eliminates the need for a washer |
| Description_FAB |
Black oxide finish offers resistance to corrosion in dry environments |
| Description_MKT |
Edelbrock Exhaust Header Bolt Kit #8543 contains a set of 12 high-quality black oxide steel flanged bolts for universal applications that require a M8-1.25 thread pitch and 25mm length. These header bolts feature a combination hex-Allen head that allows you to use a 10mm combination wrench. The flange design helps to distribute pressure and eliminates the need for separate washers. The black oxide finish provides a nice aesthetic look with mild resistance to corrosion in dry environments. |
| Description_LAB |
Exhaust Header Bolts #8543, M8-1.25 X 25mm, Black Oxide (Set Of 12) |
| Description_TRA |
Recommended torque: 15-20 lb-ft |
| Description_TRA |
Length measured from base of flange |
| Material |
Steel |
| Bolt Hex Size |
10 |
| Quantity |
Set of 12 |
| Thread Type |
Coarse |
| Thread Pitch |
1.25 |
| Grade Type |
5 |
| Length |
25 |
| Head Drive Type |
Hex |
| Finish |
Black Oxide |
| Thread Diameter |
M8 |
| RGL |
WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Bolt Grade |
(Recommended) 15-20 |
| Length |
2.0000 |
| Width |
4.0000 |
| Height |
6.0000 |
