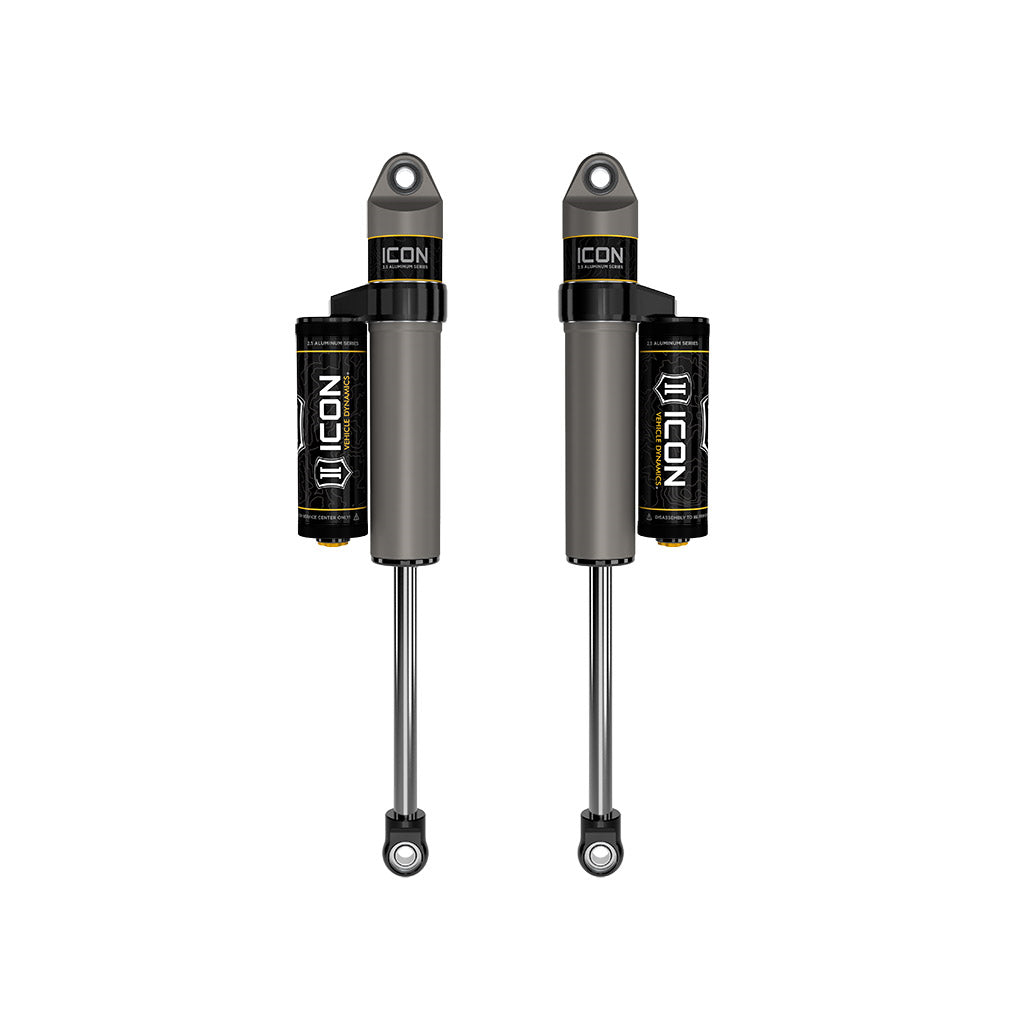

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDCV) shocks.
Specifications:
| Description_ASC |
TECH NOTE: Compatible with 0-1" of rear lift over stock on most F-150 models |
| Description_ASC |
TECH NOTE: Not compatible with F-150 Tremor |
| Description_ASC |
TECH NOTE: Not compatible with models equipped with Continuous Control Damping (CCD) system |
| Description_ASC |
TECH NOTE: Not compatible with models equipped with BlueCruise |
| Description_DEF |
Suspension Shock Absorber Set |
| Description_ASM |
ICON 09-23 F150 2/4WD 04-08 F150 4WD REAR 2.5 VS PB PAIR |
| Description_DES |
09-23 F150 2/4WD 04-08 F150 4WD REAR 2.5 VS PB PAIR |
| Description_EXT |
ICON 2.5 Series shocks are configured specifically for each application in both length and damping tune. Piggyback reservoir improves cooling and creates an internal Bump Zone that when used creates an additional 20% of damping force. |
| Description_FAB |
ICON's internal ΓÇ£Bump Zone" increases damping by 20% to provide more control as the shock approaches full compression |
| Description_FAB |
All ICON 2.5 Series Piggyback and Remote Reservoir shocks can be upgraded to ICON's Compression Damping Control Valve (CDCV) |
| Description_FAB |
100% Rebuildable |
| Description_FAB |
100% Revalveable |
| Description_FAB |
Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use |
| Description_FAB |
Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range |
| Description_FAB |
Nitrogen charged monotube design with piggyback reservoir |
| Description_FAB |
One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road |
| Description_FAB |
7/8" diameter induction hardened, chrome plated shock shaft |
| Description_FAB |
PTFE lined spherical bearings and application specific mounting hardware |
| Description_FAB |
6061 aircraft grade aluminum CNC machined components |
| Description_FAB |
One-piece, hard anodized, impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish |
| Description_INV |
97720P |
| Description_SHO |
SHOCK ABSORBERS |
| Description_MKT |
ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDCV) shocks. |
| Description_TRA |
ICON 09-23 Ford F150 2/4WD/ 04-08 F150 4WD Rear 2.5 VS Shocks PB Reservoir, Pair, 97720P |
| Description_TLE |
ICON 09-23 Ford F150 2/4WD/ 04-08 F150 4WD Rear 2.5 VS Shocks PB Reservoir, Pair |
| Service Parts |
191016 - 7.5" FINNED RESI UPGRADE KIT |
| External Reservoir |
Yes |
| Cylinder Color |
Grey |
| California Proposition 65 |
WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Cylinder Material |
Aluminum |
| Shaft Material |
Chrome |
| Damping Type |
Oil |
| Grade Type |
Performance |
| Shaft Diameter |
0.875 |
| Title |
ICON 09-23 Ford F150 2/4WD/ 04-08 F150 4WD Rear 2.5 VS Shocks PB Reservoir, Pair |
| Length |
9.0000 |
| Width |
15.0000 |
| Height |
39.0000 |
| Weight |
22.0000 |
