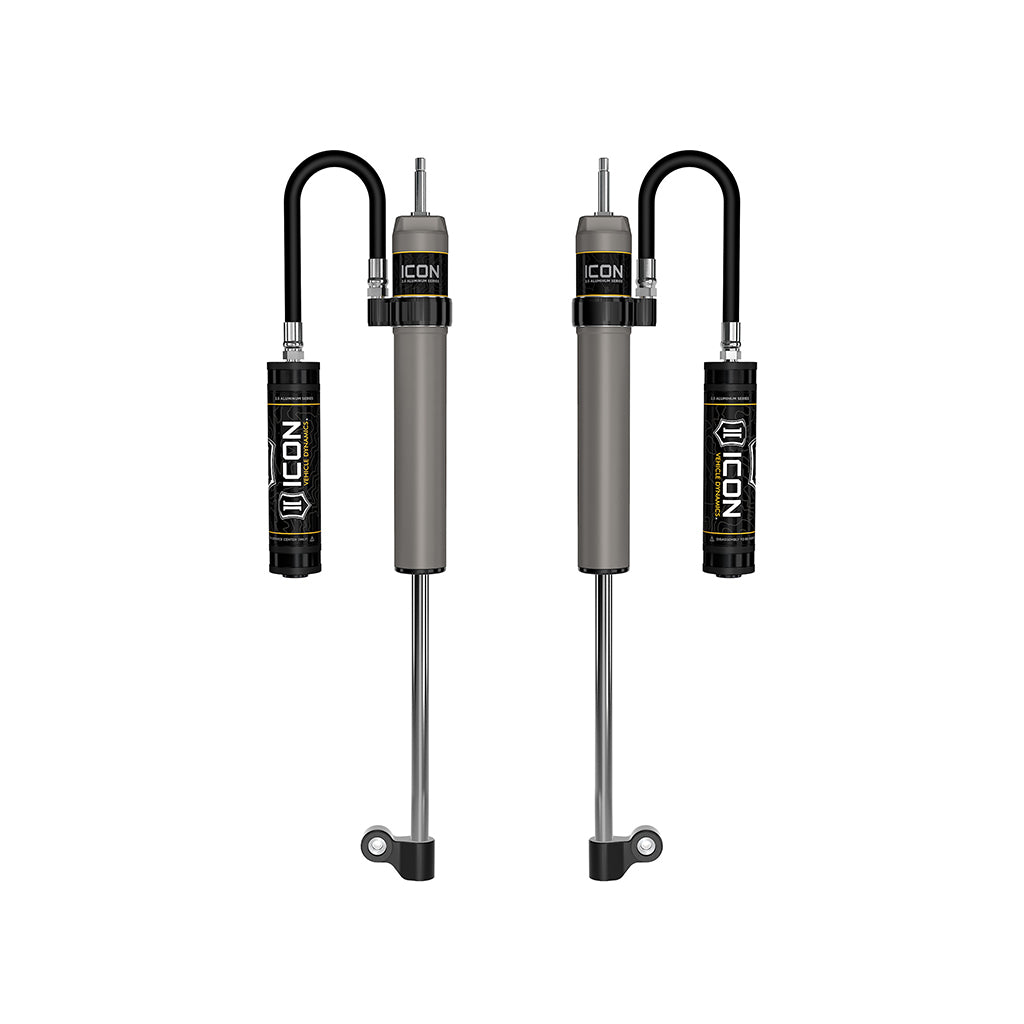

ICON's 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Featuring one-piece impact extruded aluminum cylinders, these 2.5 Aluminum Series shocks offer lighter weight, improved corrosion resistance, and a more uniform finish than traditional plated steel cylinders. Like all ICON'S Shock Absorbers, 2.5 Aliminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDCV) or Omega Series bypass shocks.
Specifications:
| Description_DEF |
Suspension Shock Absorber Set |
| Description_DES |
07-21 TUNDRA RXT REAR 2.5 VS RR PAIR |
| Description_EXT |
2007-2021 TOYOTA TUNDRA RXT REAR 2.5 VS REMOTE RESERVOIR SHOCK PAIR |
| Description_INV |
07-21 TUNDRA RXT REAR RR PAIR |
| Description_FAB |
ICON's internal ΓÇ£Bump Zone" increases damping by 20% to provide more control as the shock approaches full compression |
| Description_FAB |
PTFE lined spherical bearings and application specific mounting hardware |
| Description_FAB |
6061 aircraft grade aluminum CNC machined components |
| Description_FAB |
One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish |
| Description_FAB |
Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use |
| Description_FAB |
Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range |
| Description_FAB |
Nitrogen charged monotube design with remote reservoir |
| Description_FAB |
Double-sealed Schrader caps reduce risk of damage |
| Description_FAB |
One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road |
| Description_FAB |
7/8" diameter induction hardened, chrome plated shock shaftS |
| Description_FAB |
100% Rebuildable |
| Description_FAB |
100% Revalveable |
| Description_TRA |
ICON 2007-21 Toyota Tundra, Rear, RXT 2.5 VS RR Shocks, Pair, 57823P |
| Description_TLE |
ICON 2007-21 Toyota Tundra, Rear, RXT 2.5 VS Remote Reservoir Shocks, Pair |
| Description_SHO |
SHOCK ABSORBERS |
| Description_MKT |
ICON's 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Featuring one-piece impact extruded aluminum cylinders, these 2.5 Aluminum Series shocks offer lighter weight, improved corrosion resistance, and a more uniform finish than traditional plated steel cylinders. Like all ICON'S Shock Absorbers, 2.5 Aliminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDCV) or Omega Series bypass shocks. |
| Add-On Part |
252012 - -4 TO -10 HOSE SHIELD KIT |
| External Reservoir |
Yes |
| California Proposition 65 |
WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Cylinder Material |
Aluminum |
| Service Parts |
191015 - 10" FINNED RESI UPGRADE KIT |
| Title |
07-21 TUNDRA RXT REAR 2.5 VS RR PAIR |
| Length |
9.0000 |
| Width |
10.0000 |
| Height |
39.0000 |
| Weight |
30.0000 |
