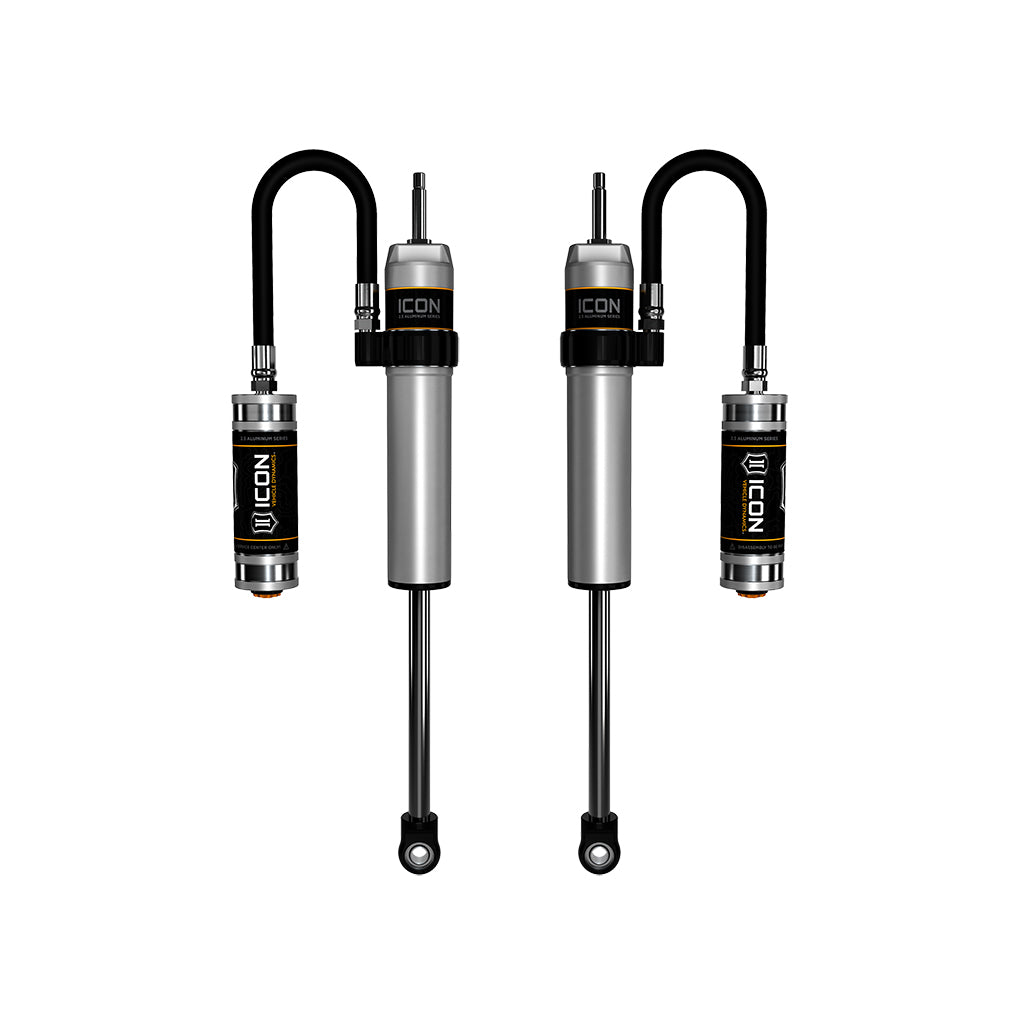

ICON 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDCV) or the Omega Series bypass shocks.
Specifications:
| Description_ASM |
ICON 07-UP FJ/03-UP 4RNR/03-UP GX 1-3" REAR 2.5 VS RR PAIR |
| Description_DEF |
Suspension Shock Absorber Set |
| Description_DES |
07-UP FJ/03-UP 4RNR/03-UP GX 1-3" REAR 2.5 VS RR PAIR |
| Description_INV |
57810P |
| Description_EXT |
ICON VS 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. They feature remote reservoirs and are 100% rebuildable/revalveable. |
| Description_FAB |
ICON's internal ΓÇ£Bump Zone" increases damping by 20% to provide more control as the shock approaches full compression |
| Description_FAB |
100% Rebuildable |
| Description_FAB |
100% Revalveable |
| Description_FAB |
All ICON 2.5 Aluminum Series Piggyback and Remote Reservoir shocks can be upgraded to ICON's Compression Damping Control Valve (CDCV) |
| Description_FAB |
Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use |
| Description_FAB |
Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range |
| Description_FAB |
Nitrogen charged monotube design with piggyback reservoir |
| Description_FAB |
One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road |
| Description_FAB |
7/8" diameter induction hardened, chrome plated shock shaft |
| Description_FAB |
PTFE lined spherical bearings and application specific mounting hardware |
| Description_FAB |
6061 aircraft grade aluminum CNC machined components |
| Description_FAB |
One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish |
| Description_SHO |
REAR SHOCK ABSORBERS |
| Description_MKT |
ICON 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDCV) or the Omega Series bypass shocks. |
| Description_TRA |
ICON 07-Up Toyota FJ/03-Up 4Runner/GX, 1-3" Lift, Rear 2.5 VS RR Shocks, Pair, 57810P |
| Description_TLE |
ICON 07-Up Toyota FJ/03-Up 4Runner/GX, 1-3" Lift, Rear 2.5 VS RR Shocks, Pair |
| Service Parts |
191016 - 7.5" FINNED RESI UPGRADE KIT |
| Cylinder Material |
Aluminum |
| Add-On Part |
252008 - 2.5 X 13 SHOCK BOOT BLACK (PAIR) |
| External Reservoir |
Yes |
| California Proposition 65 |
WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Shaft Diameter |
0.875 |
| Damping Type |
Oil |
| Grade Type |
Performance |
| Shaft Material |
Chrome |
| Title |
07-UP FJ/03-UP 4RNR/03-UP GX 1-3" REAR 2.5 VS RR PAIR |
| Cylinder Color |
Silver |
| Length |
9.0000 |
| Width |
15.0000 |
| Height |
39.0000 |
| Weight |
30.0000 |
