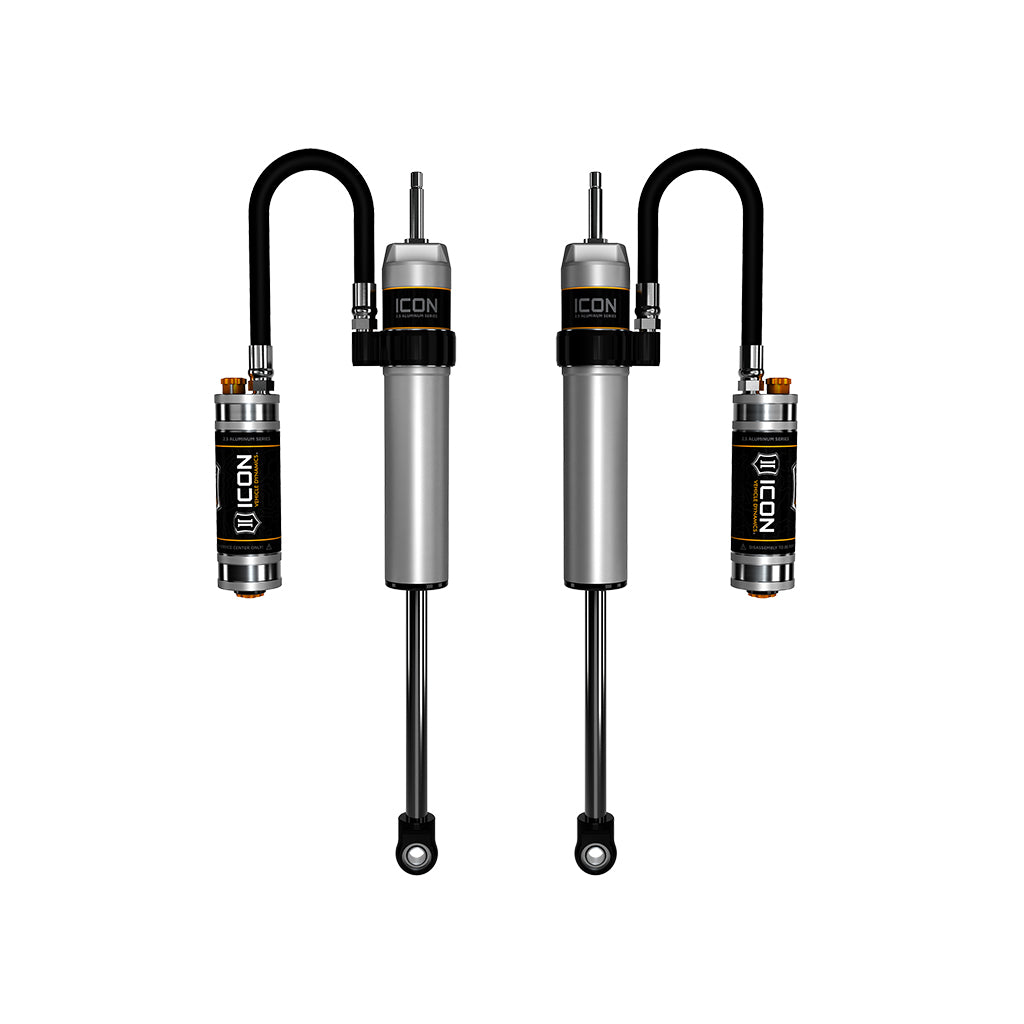

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges.
Specifications:
| Description_DEF |
Suspension Shock Absorber Set |
| Description_DES |
91-07 LAND CRUISER 80/100 4-6" REAR 2.5 VS RR CDCV PAIR |
| Description_FAB |
ICON's internal ΓÇ£Bump Zone" increases damping by 20% to provide more control as the shock approaches full compression |
| Description_FAB |
Nitrogen charged monotube design with piggyback reservoir |
| Description_FAB |
6061 aircraft grade aluminum CNC machined components |
| Description_FAB |
Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use |
| Description_FAB |
7/8" diameter induction hardened, chrome plated shock shaft |
| Description_FAB |
One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road |
| Description_FAB |
One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish |
| Description_FAB |
ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob |
| Description_FAB |
Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range |
| Description_FAB |
PTFE lined spherical bearings and application specific mounting hardware |
| Description_FAB |
100% Rebuildable |
| Description_FAB |
100% Revalveable |
| Description_EXT |
1991-2007 LAND CRUISER 80/100 SERIES 4-6" LIFT REAR 2.5 VS REMOTE RESERVOIR CDCV SHOCK PAIR |
| Description_INV |
91-07 LC 80/100 4-6 REAR 2.5 VS RR CDCV |
| Description_MKT |
ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges. |
| Description_SHO |
REAR SHOCK ABSORBERS |
| Description_TLE |
ICON 2005-Up Toyota Tacoma, 0-1.5" Lift, Rear, 2.5 VS RR/CDCV Shocks, Pair |
| Description_TRA |
ICON 2005-Up Toyota Tacoma, 0-1.5" Lift, Rear, 2.5 VS RR/CDCV Shocks, Pair, 57804CP |
| Add-On Part |
252012 - -4 TO -10 HOSE SHIELD KIT |
| California Proposition 65 |
WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| External Reservoir |
Yes |
| Cylinder Color |
Silver |
| Cylinder Material |
Aluminum |
| Damping Type |
Oil |
| Grade Type |
Performance |
| Shaft Material |
Chrome |
| Shaft Diameter |
0.875 |
| Service Parts |
191016 - 7.5" FINNED RESI UPGRADE KIT |
| Title |
91-07 LAND CRUISER 80/100 4-6" REAR 2.5 VS RR CDCV PAIR |
| Length |
9.0000 |
| Width |
15.0000 |
| Height |
39.0000 |
| Weight |
33.0000 |
