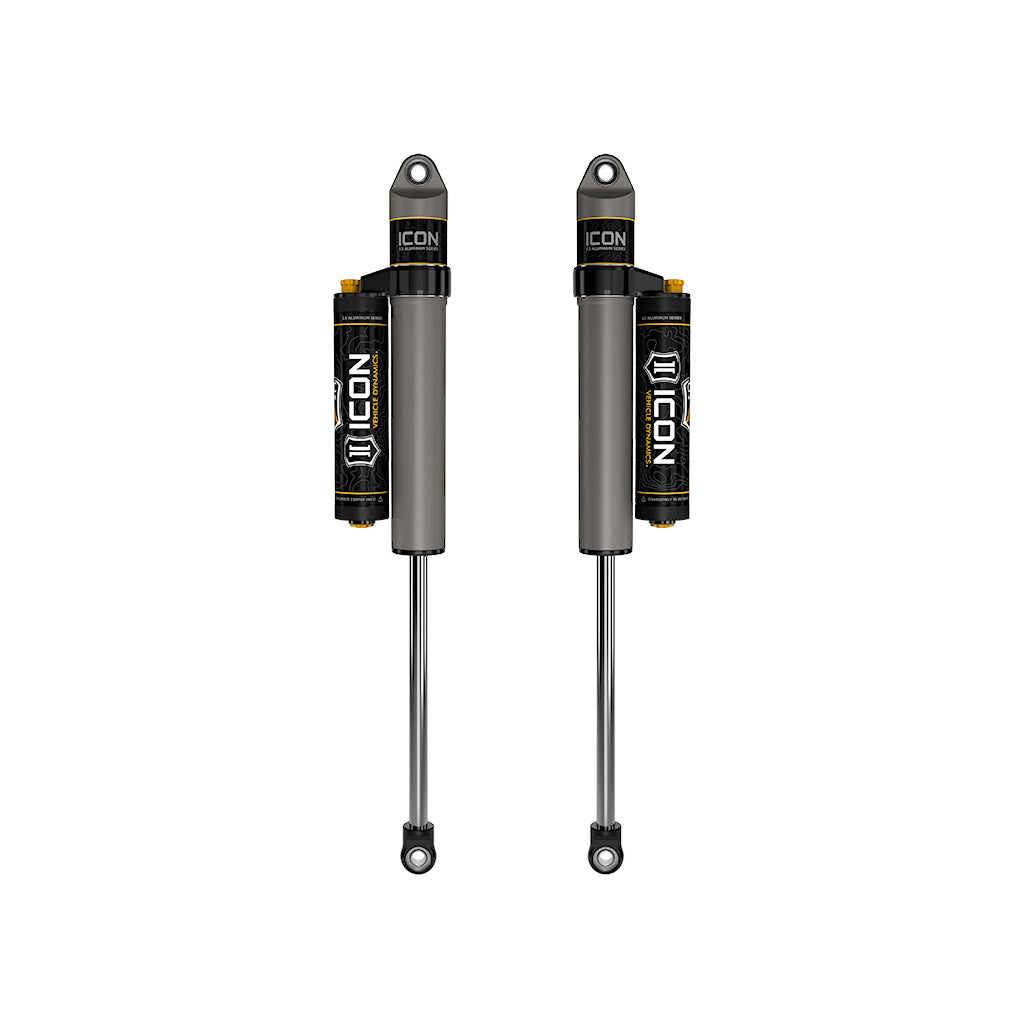

ICON Vehicle Specific (V.S.) 2.5 Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges.
Specifications:
| Description_ASC |
TECH NOTE: Compatible with 0-3" of rear lift over stock |
| Description_ASC |
TECH NOTE: Not compatible with F-350/F-450 Cab & Chassis models |
| Description_ASM |
ICON 99-23 FSD 0-3" REAR 2.5 VS PB CDCV PAIR |
| Description_DEF |
Suspension Shock Absorber Set |
| Description_EXT |
These ICON VS 2.5 Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. They feature remote reservoirs, damping adjustability, and are 100% rebuildable/revalveable. |
| Description_DES |
99-23 FSD 0-3" REAR 2.5 VS PB CDCV PAIR |
| Description_INV |
37705CP |
| Description_MKT |
ICON Vehicle Specific (V.S.) 2.5 Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges. |
| Description_FAB |
ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob |
| Description_FAB |
ICON's internal ΓÇ£Bump Zone" increases damping by 20% to provide more control as the shock approaches full compression |
| Description_FAB |
Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use |
| Description_FAB |
Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range |
| Description_FAB |
Nitrogen charged monotube design with piggyback reservoir |
| Description_FAB |
One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road |
| Description_FAB |
7/8" diameter induction hardened, chrome plated shock shaft |
| Description_FAB |
PTFE lined spherical bearings and application specific mounting hardware |
| Description_FAB |
6061 aircraft grade aluminum CNC machined components |
| Description_FAB |
One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish |
| Description_FAB |
100% Rebuildable |
| Description_FAB |
100% Revalveable |
| Description_SHO |
FSD REAR SHOCKS |
| Description_TRA |
ICON 1999-Up Ford F250/F350 SD 4WD, 0-3" Lift, Rear 2.5 VS PB/CDCV Shocks, Pair, 37705CP |
| Description_TLE |
ICON 1999-2023 Ford Super Duty 4WD, 0-3" Lift, Rear 2.5 VS PB/CDCV Shocks, Pair |
| Grade Type |
Performance |
| Cylinder Material |
Aluminum |
| California Proposition 65 |
WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| External Reservoir |
Yes |
| Title |
ICON 1999-2023 Ford Super Duty 4WD, 0-3" Lift, Rear 2.5 VS PB/CDCV Shocks, Pair |
| Shaft Diameter |
0.875 |
| Service Parts |
191015 - 10" FINNED RESI UPGRADE KIT |
| Shaft Material |
Chrome |
| Cylinder Color |
Silver |
| Damping Type |
Oil |
| Length |
6.0000 |
| Width |
7.0000 |
| Height |
37.0000 |
| Weight |
25.0000 |
