ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges. Shin guards are also included with this application to help protect the shock shafts from debris strikes during off-road use.
Specifications:
| Description_ASC |
Rear shocks require sway bar relocation kit (Part #22062) or sway bar link kit (Part #22070) to be used in conjunction with JT coil spacer (Part #22065) or JT coil spring (Part #22066) |
| Description_DEF |
Suspension Shock Absorber Set |
| Description_DES |
20-UP JT 1.5" REAR 2.5 VS PB CDCV PAIR |
| Description_FAB |
ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob |
| Description_FAB |
One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish |
| Description_FAB |
Protective shin guards standard with every shock |
| Description_FAB |
100% Rebuildable |
| Description_FAB |
100% Revalveable |
| Description_FAB |
ICON's internal ΓÇ£Bump Zone" increases damping by 20% to provide more control as the shock approaches full compression |
| Description_FAB |
Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use |
| Description_FAB |
Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range |
| Description_FAB |
Nitrogen charged monotube design with piggyback reservoir |
| Description_FAB |
One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road |
| Description_FAB |
7/8" diameter induction hardened, chrome plated shock shaft |
| Description_FAB |
PTFE lined spherical bearings and application specific mounting hardware |
| Description_FAB |
6061 aircraft grade aluminum CNC machined components |
| Description_INV |
JT 1.5" REAR 2.5 VS PB CDCV PAIR |
| Description_EXT |
2020-UP JEEP GLADIATOR JT 1.5" LIFT REAR 2.5 VS PIGGYBACK CDCV SHOCK PAIR |
| Description_MKT |
ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges. Shin guards are also included with this application to help protect the shock shafts from debris strikes during off-road use. |
| Description_SHO |
SHOCK ABSORBERS |
| Description_TRA |

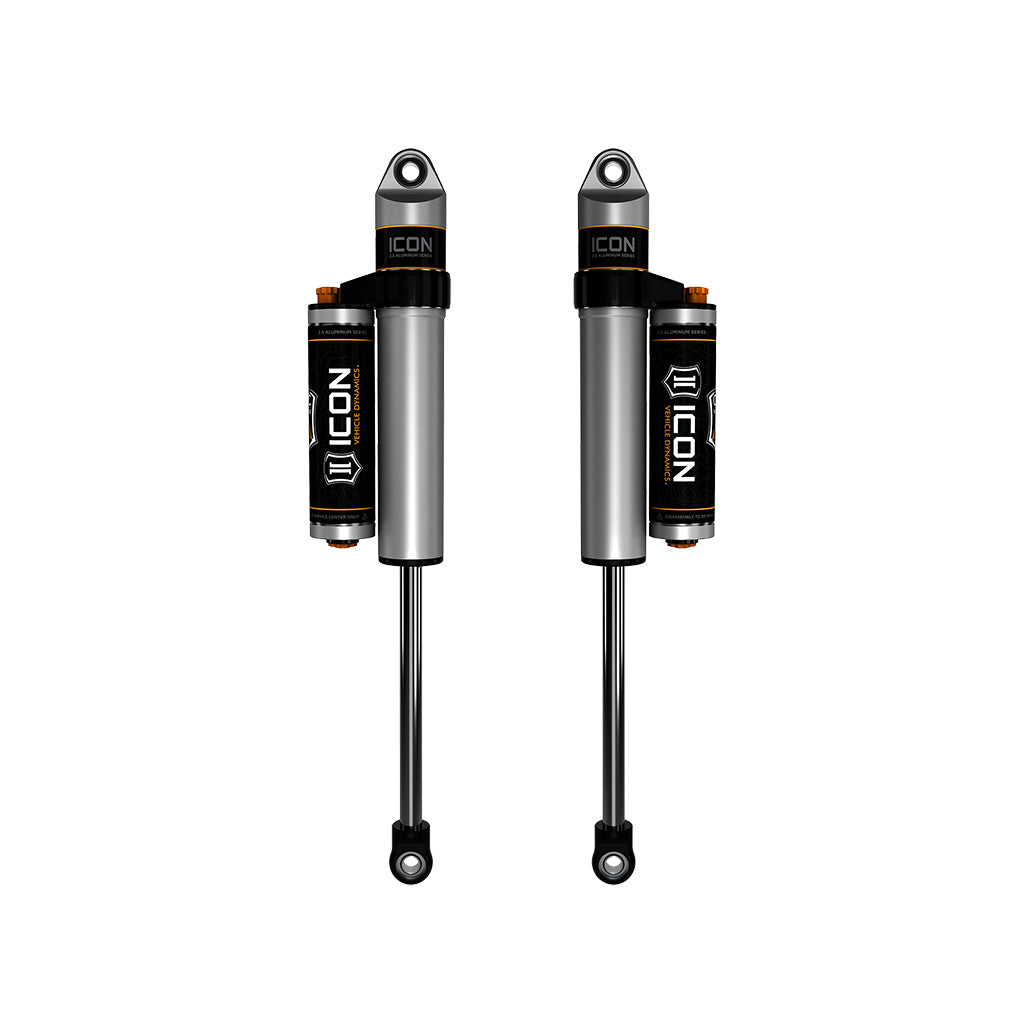

ICON 2020-Up Jeep JT Gladiator, 1.5" Lift, Rear, 2.5 VS Piggy/CDCV Shocks, Pair, 27727CP |
| Description_TLE |
ICON 2020-Up Jeep JT Gladiator, 1.5" Lift, Rear, 2.5 VS Piggy/CDCV Shocks, Pair |
| Grade Type |
Performance |
| California Proposition 65 |
WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Cylinder Material |
Steel |
| Title |
20-UP JT 1.5" REAR 2.5 VS PB CDCV PAIR |
| Damping Type |
Oil |
| External Reservoir |
Yes |
| Shaft Material |
Chrome |
| Shaft Diameter |
0.875 |
| Service Parts |
191016 - 7.5" FINNED RESI UPGRADE KIT |
| Cylinder Color |
Silver |
| Length |
9.0000 |
| Width |
10.0000 |
| Height |
39.0000 |
| Weight |
25.0000 |
