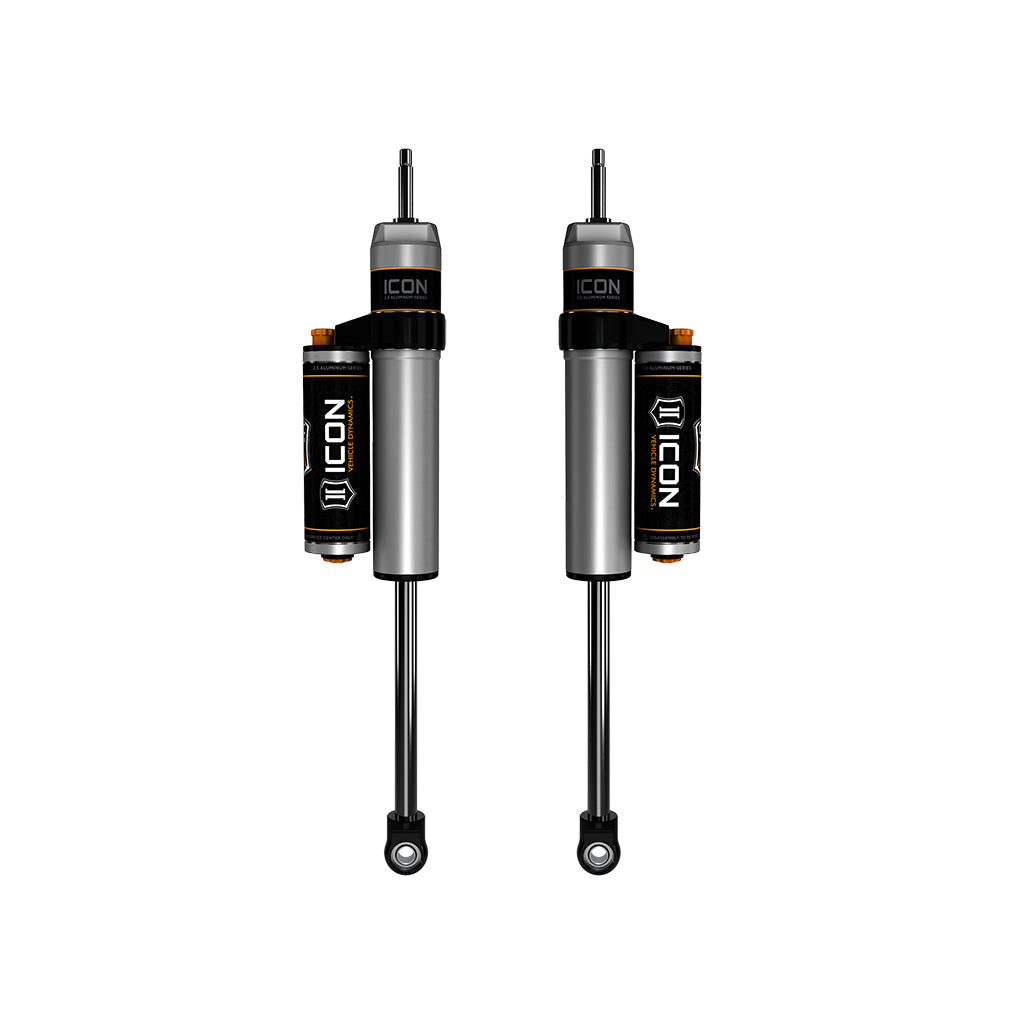

ICON's 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Featuring one-piece impact extruded aluminum cylinders, these 2.5 Aluminum Series shocks offer lighter weight, improved corrosion resistance, and a more uniform finish than traditional plated steel cylinders. Like all ICON'S Shock Absorbers, 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below thetop cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges.
Specifications:
| Description_ASC |
TECH NOTE: Not compatible with 2019-2022 Ram 1500 Classic models |
| Description_ASC |
TECH NOTE: Not compatible with 2021-Up Ram 1500 TRX trims. |
| Description_DEF |
Suspension Shock Absorber Set |
| Description_DES |
19-UP RAM 1500 0-3" REAR 2.5 VS PB CDCV PAIR |
| Description_FAB |
ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob |
| Description_FAB |
One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish |
| Description_FAB |
100% Rebuildable |
| Description_FAB |
100% Revalveable |
| Description_FAB |
ICON's internal ΓÇ£Bump Zone" increases damping by 20% to provide more control as the shock approaches full compression |
| Description_FAB |
Piggyback reservoir design improves heat dissipation to reduce shock fade during prolonged use |
| Description_FAB |
Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range |
| Description_FAB |
Nitrogen charged monotube design with piggyback reservoir |
| Description_FAB |
Double-sealed Schrader caps reduce risk of damage |
| Description_FAB |
One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road |
| Description_FAB |
7/8" diameter induction hardened, chrome plated shock shaft |
| Description_FAB |
PTFE lined spherical bearings and application specific mounting hardware |
| Description_FAB |
6061 aircraft grade aluminum CNC machined components |
| Description_EXT |
2019-UP RAM 1500 0-3" LIFT REAR 2.5 VS PIGGYBACK CDCV SHOCK PAIR |
| Description_INV |
19-UP RAM 1500 0-3 REAR 2.5 PB CDC PAIR |
| Description_MKT |
ICON's 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Featuring one-piece impact extruded aluminum cylinders, these 2.5 Aluminum Series shocks offer lighter weight, improved corrosion resistance, and a more uniform finish than traditional plated steel cylinders. Like all ICON'S Shock Absorbers, 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below thetop cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges. |
| Description_SHO |
REAR SHOCK ABSORBERS |
| Description_TLE |
ICON 2019-Up Ram 1500, 0-3" Lift, Rear, 2.5 VS Piggy/CDCV Shocks, Pair |
| Description_TRA |
ICON 2019-Up Ram 1500, 0-3" Lift, Rear, 2.5 VS Piggy/CDCV Shocks, Pair, 217716CP |
| Grade Type |
Performance |
| Title |
19-UP RAM 1500 0-3" REAR 2.5 VS PB CDCV PAIR |
| Shaft Diameter |
0.875 |
| Shaft Material |
Chrome |
| Cylinder Color |
Silver |
| Damping Type |
Oil |
| External Reservoir |
Yes |
| California Proposition 65 |
WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Cylinder Material |
Aluminum |
| Service Parts |
191016 - 7.5" FINNED RESI UPGRADE KIT |
| Length |
9.0000 |
| Width |
10.0000 |
| Height |
39.0000 |
| Weight |
25.0000 |
