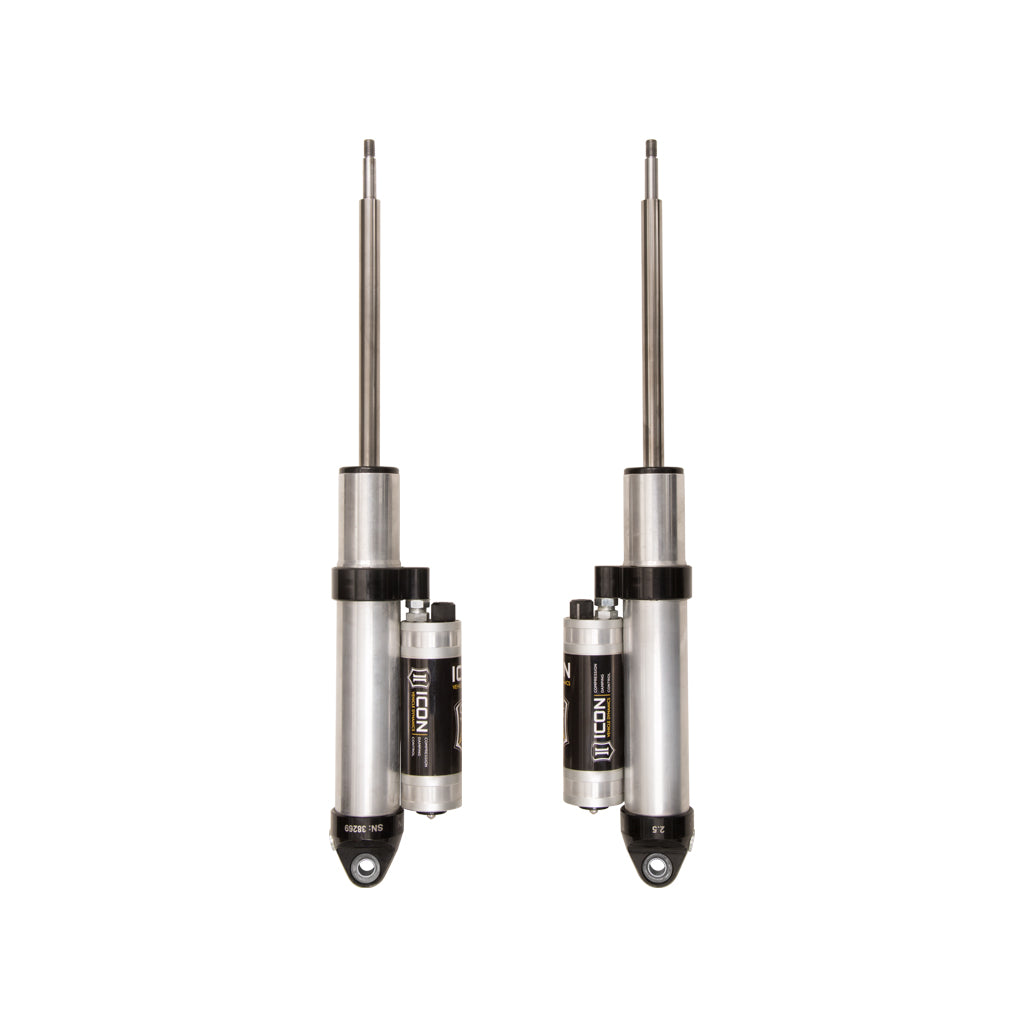

ICON Vehicle Specific (V.S.) 2.5 Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges.
Specifications:
| Description_DEF |
Suspension Shock Absorber Set |
| Description_DES |
14-UP RAM 2500 2" STANDARD REAR 2.5 VS PB CDCV PAIR |
| Description_FAB |
ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob |
| Description_FAB |
ICON's internal ΓÇ£Bump Zone" increases damping by 20% to provide more control as the shock approaches full compression |
| Description_FAB |
Piggyback reservoir design improves heat dissipation to reduce shock fade during prolonged use |
| Description_FAB |
Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range |
| Description_FAB |
Nitrogen charged monotube design with piggyback reservoir |
| Description_FAB |
One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road |
| Description_FAB |
7/8" diameter induction hardened, chrome plated shock shaft |
| Description_FAB |
PTFE lined spherical bearings and application specific mounting hardware |
| Description_FAB |
6061 aircraft grade aluminum CNC machined components |
| Description_FAB |
CAD plated, precision machined 1026 DOM steel shock body for maximum durability and corrosion resistance |
| Description_FAB |
100% Rebuildable |
| Description_FAB |
100% Revalveable |
| Description_EXT |
2014-UP RAM 2500 2" STANDARD REAR 2.5 VS PIGGYBACK CDCV SHOCK PAIR |
| Description_INV |
14-UP RAM 2500 2 REAR 2.5 PB CDCV PAIR |
| Description_MKT |
ICON Vehicle Specific (V.S.) 2.5 Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges. |
| Description_SHO |
REAR SHOCK ABSORBERS |
| Description_TLE |
ICON 2014-Up Ram 2500, 2" Lift, Rear 2.5 VS Standard Piggyback/CDCV Shocks, Pair |
| Description_TRA |
ICON 2014-Up Ram 2500, 2" Lift, Rear, 2.5 VS Standard Piggyback/CDCV Shocks, Pair, 217707CP |
| External Reservoir |
Yes |
| California Proposition 65 |
WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Service Parts |
191016 - 7.5" FINNED RESI UPGRADE KIT |
| Cylinder Material |
Steel |
| Damping Type |
Oil |
| Grade Type |
Performance |
| Title |
14-UP RAM 2500 2" STANDARD REAR 2.5 VS PB CDCV PAIR |
| Cylinder Color |
Silver |
| Shaft Diameter |
0.875 |
| Shaft Material |
Chrome |
| Length |
5.0000 |
| Width |
10.0000 |
| Height |
29.0000 |
| Weight |
30.0000 |
