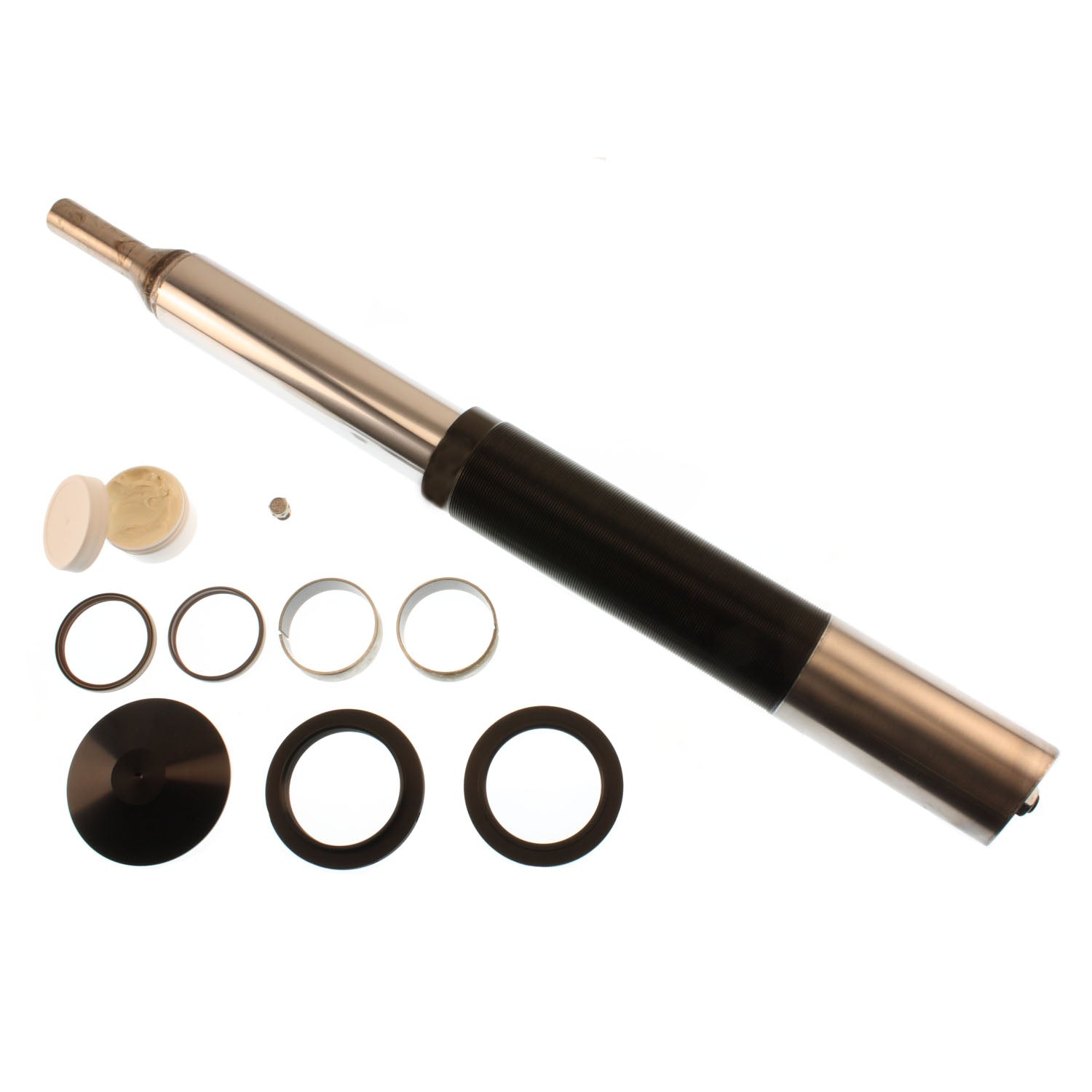

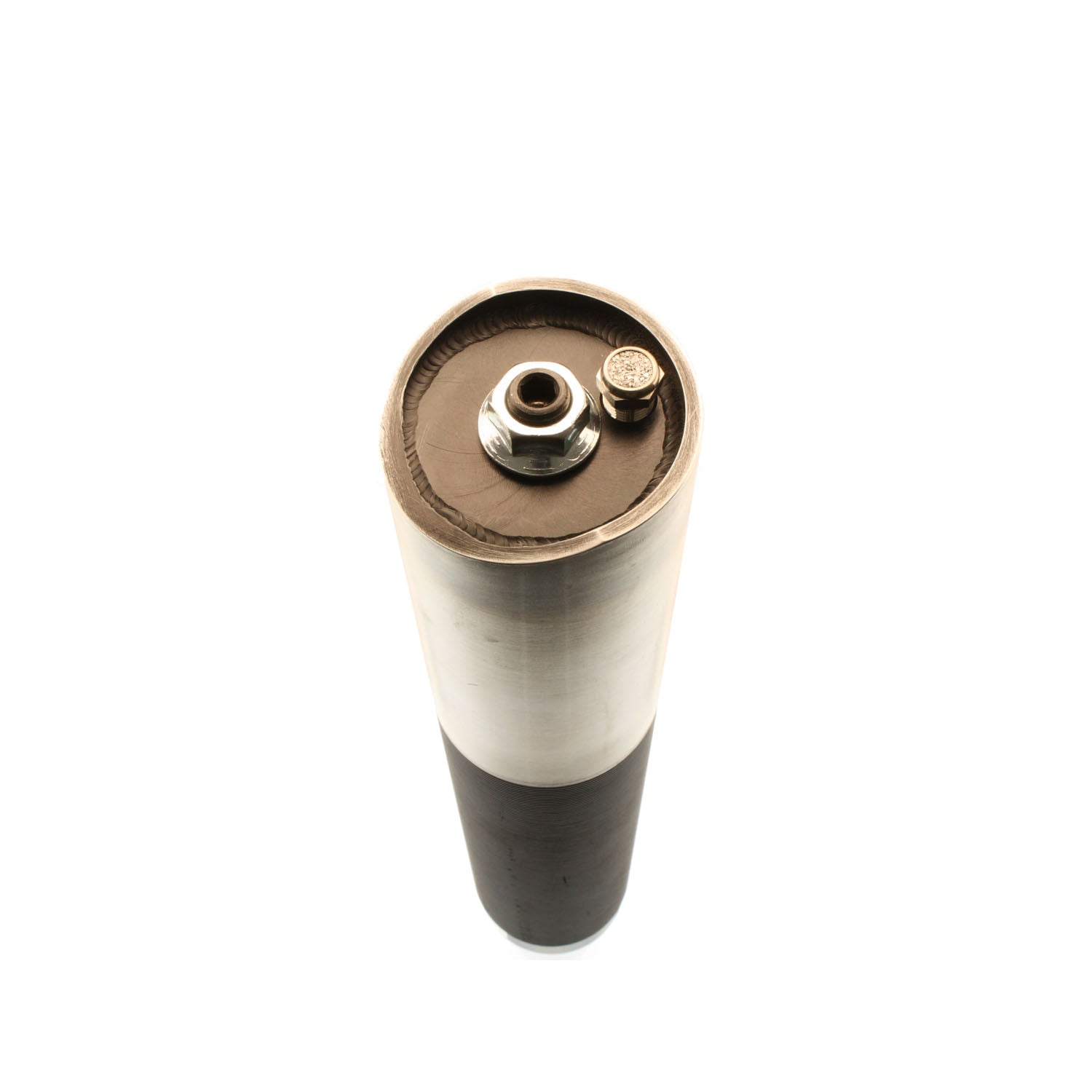

Bilstein Universal Motorsports Struts are massive 46mm I.D. inverted monotube dampers intended to be adapted to MacPherson strut style suspension systems. The strut insert is provided with a blank upper-stem that can be machined down to fit a specific top mount or camber/caster plate variations. Each strut is supplied with a matched external housing that permits the builder to fabricate weld tabs for mounting the unit to a vehicle's lower steering knuckle. Additionally, the threaded housing allows the builder to adjust the ride height of the vehicle to ensure the proper ride height is met in order for the vehicle to perform at the highest level possible.
Specifications:
| Description_ASM |
No Applications |
| Description_DEF |
Suspension Strut Assembly |
| Description_DES |
Universal Motorsports Strut - Suspension Strut Assembly |
| Description_INV |
Universal 46mm Strut, 8.8" trvl, 300/100 |
| Description_EXT |
46mm Monotube Strut Assembly |
| Description_LAB |
Universal Motorsports Strut - Suspension Strut Assembly |
| Description_MKT |
Bilstein Universal Motorsports Struts are massive 46mm I.D. inverted monotube dampers intended to be adapted to MacPherson strut style suspension systems. The strut insert is provided with a blank upper-stem that can be machined down to fit a specific top mount or camber/caster plate variations. Each strut is supplied with a matched external housing that permits the builder to fabricate weld tabs for mounting the unit to a vehicle's lower steering knuckle. Additionally, the threaded housing allows the builder to adjust the ride height of the vehicle to ensure the proper ride height is met in order for the vehicle to perform at the highest level possible. |
| Description_SHO |
Strut |
| California Proposition 65 |
WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov |
| Boot Included |
No |
| Internal Design |
Monotube |
| Finish |
Olive-Drab Zinc |
| Extended Length (MM) |
602.0 |
| Lower Mount Type |
Housing |
| Collapsed Length (MM) |
377.0 |
| Collapsed Length (IN) |
14.84 |
| Extended Length (IN) |
23.70 |
| Title |
Bilstein Shock Absorbers |
| Series |
Universal Motorsports Strut |
| Upper Mount Type |
Stem |
| Rebound @0.52m/s |
2990 |
| Spring Seat Included |
Yes |
| Length |
2.0000 |
| Width |
7.0000 |
| Height |
37.0000 |
| Weight |
15.0000 |
