| Description_ASC |
OEM Wheels & Tires Fitment: Yes |
| Description_ASC |
Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required) |
| Description_ASC |
APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. LIFT HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE. |
| Description_ASC |
APPLICATION NOTE #85: ADVERTISED LIFT HEIGHT RANGES ARE FOR A STOCK EQUIPPED VEHICLE. INCREASING WEIGHT OF VEHICLE DUE TO ACCESSORIES WILL ALTER LIFT RANGE. |
| Description_ASC |
APPLICATION NOTE #142: NOT COMPATIBLE WITH TUNDRA/SEQUOIA EQUIPPED WITH LOAD-LEVELING REAR HEIGHT CONTROL AIR SUSPENSION. |
| Description_ASC |
APPLICATION NOTE #144: NOT COMPATIBLE WITH TRD PRO |
| Description_ASC |
APPLICATION NOTE #148: ICON DOES NOT RECOMMEND LIFTING ABOVE 2.25" (TUNDRA)/3.75" (SEQUOIA) WITHOUT AN ICON UPPER CONTROL ARM, FAILURE TO DO SO CAN RESULT IN IMPROPER WHEEL ALIGNMENT AND CAUSE DAMAGE TO FRONT AXLES ON 4WD MODELS |
| Description_ASC |
APPLICATION NOTE #149: FOR 4WD MODELS WITHOUT TRD OFF-ROAD PACKAGE ICON RECOMMENDS USING ICON DIFF DROP (PART# 55156) OR USING TOYOTA TRD AXLES (PART# 434200C020 DRIVER / 434100C020 PASS). FAILURE TO DO SO COULD RESULT IN FRONT AXLE DAMAGE. NOT REQUIRED FOR TRD PRO. |
| Description_ASC |
TECH NOTE: Most Sequoia sub-models will have front lift height range of 3-3.75" over stock |
| Description_DEF |
Suspension Lift Kit |
| Description_DES |
23 SEQUOIA 3-3.75" STAGE 3 SUSPENSION SYSTEM |
| Description_EXT |
The ICON Stage 3 suspension system for the 23 Sequoia represents full coilover performance suspension system, providing improved performance as well as front/rear-end lift and leveling for a proper stance and fitment of up to 35" tires. |
| Description_FAB |
Vehicle specific design for 2023 Toyota Sequoia |
| Description_FAB |
2.5 Series front coilovers with internal reservoirs for superior damping and vehicle control |
| Description_FAB |
Adjustable front ride heights from 3-3.75" of front lift over stock when used with stock UCAs |
| Description_FAB |
Included sway bar drop brackets reduce bind in OE sway bar links |
| Description_FAB |
Allows for full wheel travel without overstressing OE components |
| Description_FAB |
Allows for up to 40% increase in front wheel travel over stock without overstressing OE components |
| Description_FAB |
Dual rate rear coil springs improve performance and ride quality while providing 3" of rear lift |
| Description_FAB |
2.0 Aluminum Series rear shocks provide balanced tune with coilovers and increased performance |
| Description_FAB |
All ICON shock absorbers are fully rebuildable and re-tunable |
| Description_SHO |
SUSPENSION SYSTEM |
| Description_MKT |
The ICON Vehicle Dynamics Stage 3 complete suspension system for the 2023 Toyota Sequoia is our most basic system that features complete ICON threaded-body V.S. 2.5 Series Coilovers in the front, providing improved on- and off-road performance as well as front-end lift and leveling for a proper stance and fitment of up to 35" tires. This system features the innovative new 2.5 EXP series coilover shocks and sway bar drop kit for the front of the truck along with dual rate coil springs and our proven 2.0 nitrogen charged monotube shocks with internal reservoirs for the rear. |
| Description_MKT |
This Stage 3 system features the 2023 Toyota Sequoia VS 2.5 Series internal reservoir front coilovers. These adjustable coilovers allow up to 3-3.75" of lift height adjustability over stock when using the OE upper control arms, allowing the use of larger, more aggressive wheel and tire combinations. ICON's Vehicle-specific shock length and valving along with the larger 2.5" shock body and increased piston area over stock components yield the maximum travel possible (up to 40% increase over stock) along with superior ride quality and suspension performance both on- and off-road. |
| Description_MKT |
The included sway bar drop brackets help minimize sway bar link bind through the suspension travel range. This helps the suspension move more freely and allows for the full range of wheel travel without overstressing any OE components. |
| Description_MKT |
The dual-rate rear coil design provides a softer ride height spring rate with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance. 3" of rear lift height over stock allows a for level stance front to rear. |
| Description_MKT |

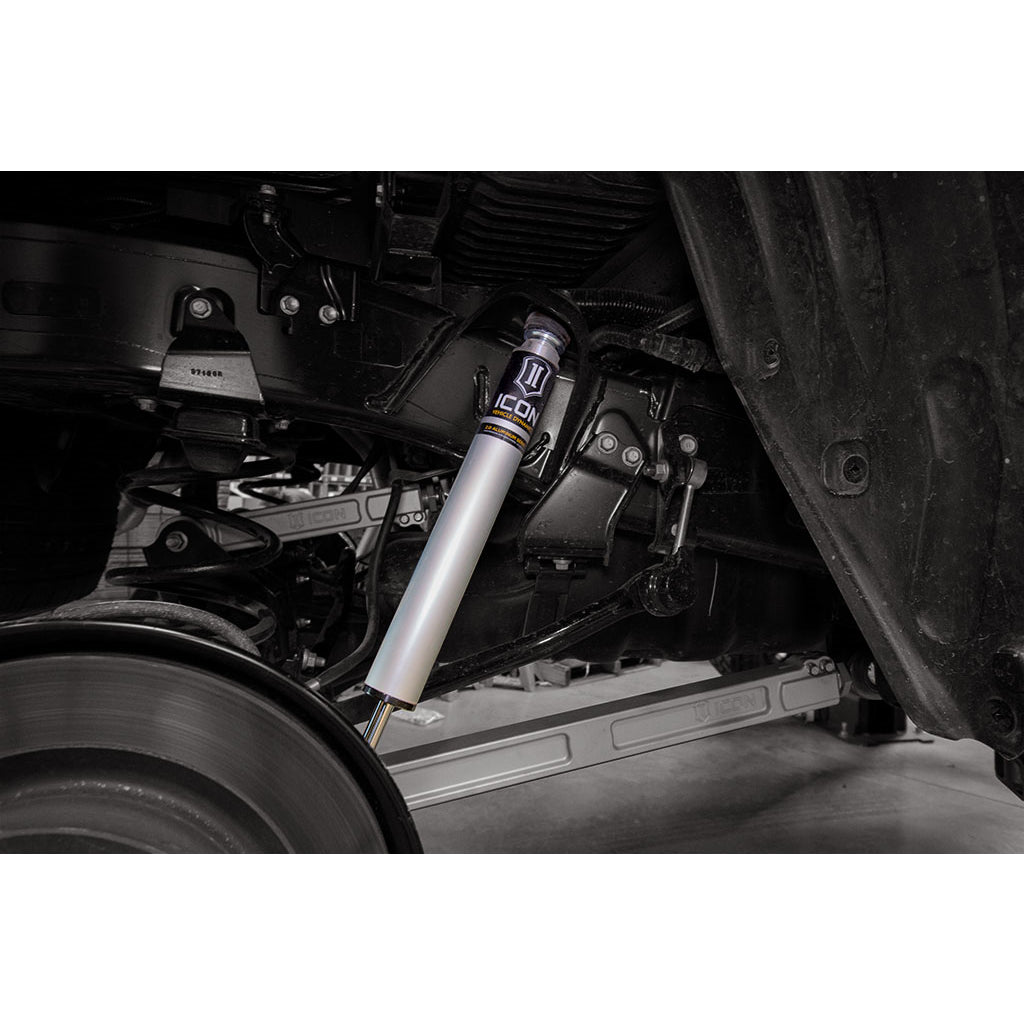

Rounding out the Stage 3 suspension system are V.S. 2.0 Aluminum Series rear shocks specially tailored for the 2023 Sequoia. The 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Their pairing with the ICON 2.5 Series front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Sequoia. |
| Description_INV |
K53233 |
| Description_TLE |
ICON 2023 Toyota Sequoia, 3-3.75" Lift, Stage 3 Suspension System |
| Length |
7.0000 |
| Width |
13.0000 |
| Height |
31.0000 |
| Weight |
104.0000 |
