OEM Wheels & Tires Fitment: Yes |
| Description_ASC |
Recommended Aftermarket Wheels: 17x8.5" w/ 5.75" Backspace / 25mm Offset |
| Description_ASC |
Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required) |
| Description_ASC |
APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. LIFT HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE. |
| Description_ASC |
APPLICATION NOTE #85: ADVERTISED LIFT HEIGHT RANGES ARE FOR A STOCK EQUIPPED VEHICLE. INCREASING WEIGHT OF VEHICLE DUE TO ACCESSORIES WILL ALTER LIFT RANGE. |
| Description_ASC |
APPLICATION NOTE #142: NOT COMPATIBLE WITH TUNDRAS EQUIPPED WITH LOAD-LEVELING REAR HEIGHT CONTROL AIR SUSPENSION. |
| Description_ASC |
APPLICATION NOTE #149: FOR 4WD MODELS WITHOUT TRD OFF-ROAD PACKAGE ICON RECOMMENDS USING ICON DIFF DROP (PART# 55156) OR USING TOYOTA TRD AXLES (PART# 434200C020 DRIVER / 434100C020 PASS). FAILURE TO DO SO COULD RESULT IN FRONT AXLE DAMAGE. NOT REQUIRED FOR TRD PRO. |
| Description_ASC |
TECH NOTE: If upgrading a Tundra equipped with Adaptive Variable Suspension (AVS) all other vehicle systems remain functional |
| Description_ASC |
TECH NOTE: Most Tundra sub-models equipped with i-Force gasoline engine will have front lift height range of 2-3.5" over stock |
| Description_ASC |
TECH NOTE: Most Tundra sub-models equipped with i-Force MAX hybrid engine will have front lift height range of 2-3" over stock |
| Description_ASC |
TECH NOTE: Tundra SR5 equipped with TRD Sport Suspension package will have lift height range of 3-4.5" over stock |
| Description_ASC |
TECH NOTE: Tundra TRD Pro will have front lift height range of 0-1.75" over stock |
| Description_ASC |
TECH NOTE: Included rear shocks are compatible with 0-1.5" of rear lift over stock on models equipped with rear coil springs without TRD suspension package. Rear shocks are compatible with 0-1" of rear lift over stock on models equipped with rear coil springs with TRD suspension package and TRD Pro. |
| Description_ASM |
ICON 22-23 TUNDRA 2-3.5" STAGE 7 SUSPENSION SYSTEM TUBULAR |
| Description_DEF |
Suspension Lift Kit |
| Description_DES |
22-23 TUNDRA 2-3.5" STAGE 7 SUSPENSION SYSTEM TUBULAR |
| Description_FAB |
Vehicle specific design for 2022-2023 Toyota Tundra |
| Description_FAB |
2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling |
| Description_FAB |
Adjustable front ride heights from 2-3.5" of front lift over stock when used with included tubular UCAs |
| Description_FAB |
Tubular UCAs for added strength, durability, and alignment correction for better drivability |
| Description_FAB |
UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation |
| Description_FAB |
Included sway bar drop brackets reduce bind in OE sway bar links |
| Description_FAB |
Allows for up to 40% increase in front wheel travel over stock without overstressing OE components |
| Description_FAB |
2.5 Aluminum Series rear remote reservoir shocks provide increased performance and balanced tune with coilovers |
| Description_FAB |
All ICON shock absorbers are fully rebuildable and re-tunable |
| Description_EXT |
Stage 7 includes remote reservoir coilovers for 2-3.5" of front lift, better off-road performance and 35" tire fitment. Tubular UCAs for alignment correction and 2.5 Series remote reservoir rear shocks for balanced shock tuning. |
| Description_TLE |

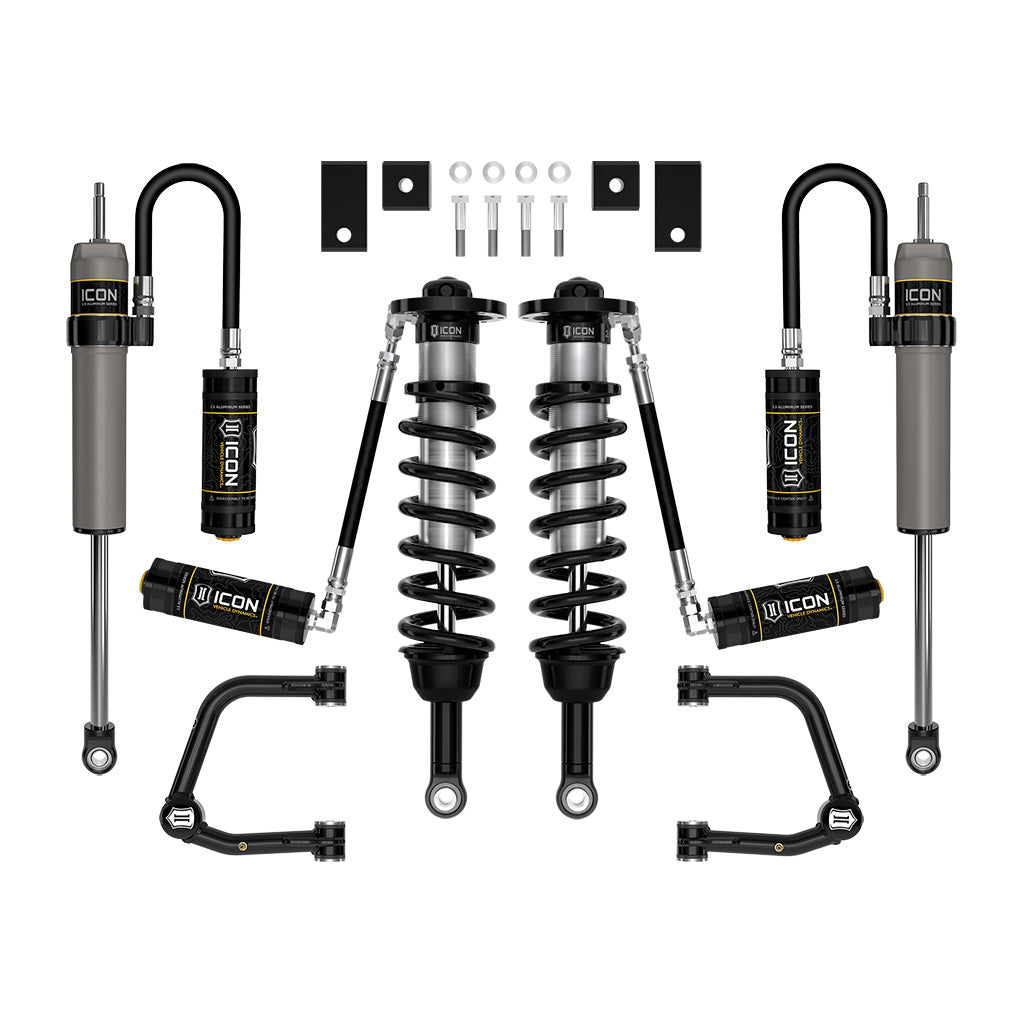

ICON 22-23 Toyota Tundra 2-3.5" Lift, Stage 7, 2.5 Suspension System, Tubular |
| Description_INV |
K53197T |
| Description_TRA |
ICON 2022-2023 Toyota Tundra 2-3.5" Lift, Stage 7, 2.5 Suspension System, Tubular, K53197T |
| Description_SHO |
SUSPENSION SYSTEM |
| Description_MKT |
The ICON Vehicle Dynamics Stage 7 complete suspension system for the 2022-2023 Toyota Tundra builds upon the Stage 6 system with the upgrade of the rear shocks to 2.5 Aluminum Series shocks with remote reservoirs. This system offers improved on- and off-road performance, with significantly increased rear shock performance and heat dissipation, as well as improved alignment specs and increased front-end lift height range for a proper stance and fitment of up to 35" tires. To compliment the 2.5 Aluminum Series remote reservoir rear shocks, a 2.5 Series remote reservoir front coilover shock and tubular front upper control arm combo is included along with a front sway bar drop kit. |
| Description_MKT |
This Stage 7 system features the 2022-2023 Toyota Tundra VS 2.5 Series remote reservoir front coilovers. These adjustable coilovers allow up to 2-3.5" of lift height adjustability over stock when using the ICON tubular front upper control arms, allowing the use of larger, more aggressive wheel and tire combinations. ICON's Vehicle-specific shock length and valving along with the larger 2.5" shock body and increased piston area over stock components yield the maximum travel possible (up to 40% increase over stock) along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. |
| Description_MKT |
The included ICON tubular upper control arm kit is designed to improve the overall performance of the new 2022-2023 Toyota Tundra with corrected front-end geometry, built in additional caster, and improved suspension component clearance. Additionally, replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind. |
| Description_MKT |
The included sway bar drop brackets help minimize sway bar link bind through the suspension travel range. This helps the suspension move more freely and allows for the full range of wheel travel without overstressing any OE components. |
| Description_MKT |
Rounding out the Stage 7 suspension system are 2.5 Aluminum Series rear remote reservoir shocks specially tailored for the 2022-2023 Tundra. The 2.5 Aluminum Series shocks' larger diameter offers outstanding performance off-road and a smooth ride on the street. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. They also feature a unique internal Bump Zone that when used creates an additional 20% of damping force to help better control hard bottom outs. Their pairing with the ICON V.S. 2.5 Series front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Tundra. |
| Add-On Part |
191013 - NIPPLE GREASING ADAPTER KIT |
| California Proposition 65 |
WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Front Spring Rate Type |
Linear |
| OEM Wheels & Tires Fitment |
Yes |
| Title |
ICON 22-23 Toyota Tundra 2-3.5" Lift, Stage 7, 2.5 Suspension System, Tubular |
| Recommended Aftermarket Wheels |
17x8.5" w/ 5.75" Backspace / 25mm Offset |
| Recommended Aftermarket Tires |
35" x 12.50" (Minor fender trimming and modifications may be required) |
| Length |
7.0000 |
| Width |
13.0000 |
| Height |
30.0000 |
| Weight |
119.0000 |
