| Description_ASC |
OEM Wheels & Tires Fitment: Yes |
| Description_ASC |
Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.) |
| Description_ASC |
APPLICATION NOTE #46: SUSPENSION SYSTEM COMPATIBLE WITH KDSS. FRONT SWAY BAR RELOCATION BRACKETS NOT USED FOR KDSS EQUIPPED VEHICLES. CERTAIN YEARS REQUIRE TRIMMING FOR FRONT RESERVOIR BRACKET FITMENT |
| Description_ASC |
APPLICATION NOTE #47: 700LB/IN EXPEDITION COIL AVAILABLE FOR HEAVIER EQUIPPED VEHICLES |
| Description_ASC |
APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE |
| Description_ASC |
APPLICATION NOTE #102: KDSS EQUIPPED REQUIRE REAR TRACK BAR 54200 |
| Description_ASC |
Ships in multiple boxes |
| Description_DEF |
Suspension Lift Kit |
| Description_FAB |
Increased wheel travel and ride quality over stock |
| Description_FAB |
Bolt-on system means no cutting or welding necessary for install |
| Description_FAB |
Vehicle specific tuned front and rear shocks for superior shock damping and control |
| Description_FAB |
Adjustable coilovers provide 0-3.5" of front lift height |
| Description_FAB |
Extended Travel coilovers matched with ICON UCA provides increased front droop travel |
| Description_FAB |
Tubular rear lower links offer increased strength, improved geometry, and pinion angle adjustment |
| Description_FAB |
6061 aircraft grade aluminum CNC machined components |
| Description_FAB |
Corrosion resistant CAD plated coilover shock body with 7/8" shaft |
| Description_FAB |
FK Rod End bearings for extended longevity and minimal deflection |
| Description_FAB |
2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts |
| Description_EXT |
2010-UP 4RUNNER/2010-2014 FJ CRUISER 0-3.5" LIFT STAGE 4 SUSPENSION SYSTEM WITH TUBULAR UCA |
| Description_DES |
10-UP FJ/10-UP 4RUNNER 0-3.5" STAGE 4 SUSPENSION SYSTEM W TUBULAR UCA |
| Description_TLE |

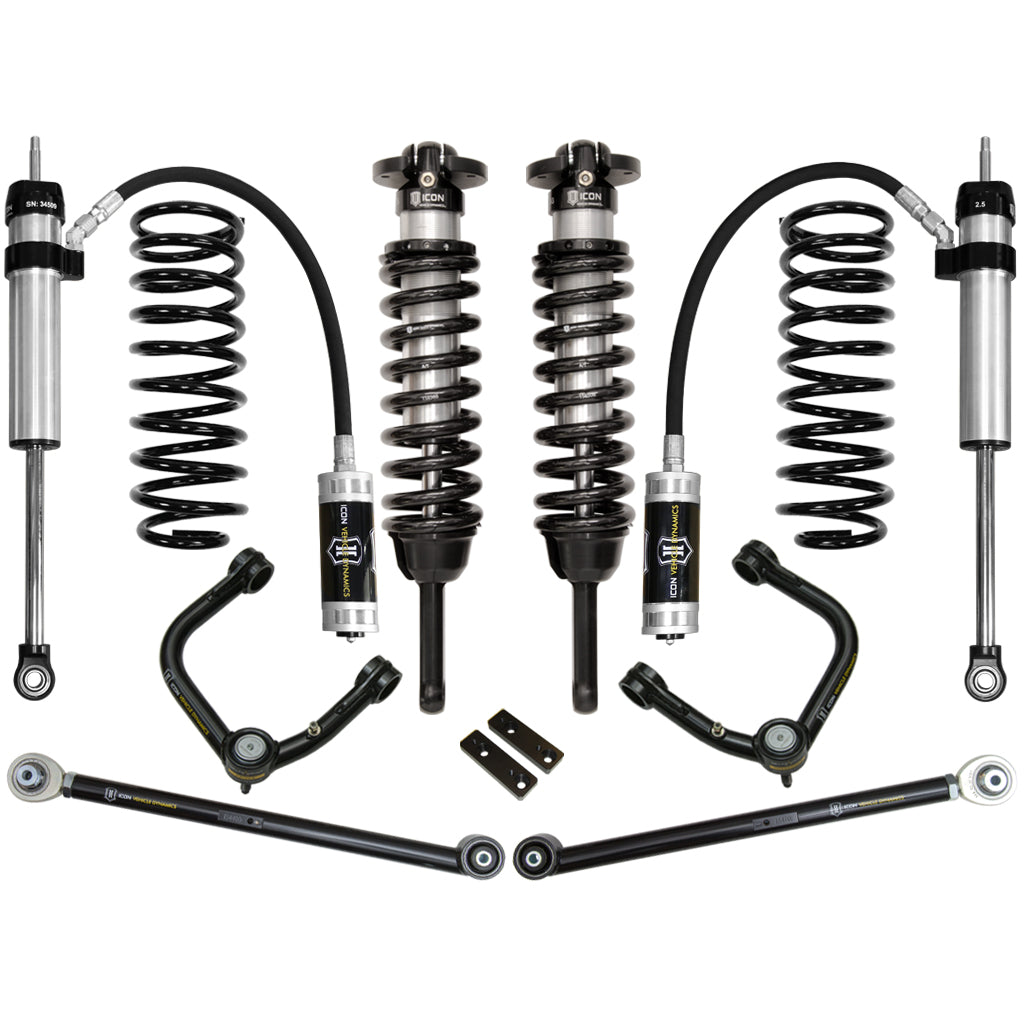

ICON 10-Up 4Runner/FJ Cruiser 0-3.5" Lift Stage 4 Suspension System, Tubular UCA |
| Description_INV |
4RUNNER/FJ STAGE 4 SUSP SYS TUBE UCA |
| Description_TRA |
ICON 10-Up 4Runner/FJ Cruiser 0-3.5" Lift Stage 4 Suspension System, Tubular UCA, K53064T |
| Description_MKT |
ICON's 2010-UP Toyota 4Runner/2010-2014 FJ Cruiser Stage 4 suspension system provides a significant increase to the on and off-road performance of the vehicle. This system includes the components featured in the Stage 3 setup - extended travel 2.5 Series coilover shocks, an ICON tubular Delta Joint upper control arm kit, 2" rear coil springs, and a tubular rear lower link arm kit - but sees the addition of 2.5 Aluminum Series Remote Reservoir rear shocks for balanced damping characteristics front to rear. The remote reservoir design allows for increased shock oil volume and enhanced cooling so that the rear of the vehicle can work harder for longer durations without noticeable ΓÇ£fade" occurring. The 2.5 Aluminum Series Remote Reservoir rear shocks also feature ICON's ΓÇ£Bump Zone" technology which significantly increases damping ability in the last 2" of compression travel, preventing harsh bottom-out sensation and giving the vehicle a much more controlled ride quality over varying terrain. ICON's tubular steel lower links are much stronger than the OE units, feature a low maintenance multi-durometer bushing, and can be adjusted for optimum pinion angle. On top of it all, these links have been designed to provide correct roll steer geometry for the best possible handling on and off-road. |
| Description_MKT |
This system features upper control arms with ICON's patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint. |
| Description_SHO |
SUSPENSION SYSTEM |
| Add-On Part |
191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25) |
| California Proposition 65 |
WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| OEM Wheels & Tires Fitment |
Yes |
| Title |
10-UP FJ/10-UP 4RUNNER 0-3.5" STAGE 4 SUSPENSION SYSTEM W TUBULAR UCA |
| Recommended Aftermarket Wheels |
ICON Alloys |
| Recommended Aftermarket Tires |
33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.) |
| Length |
7.0000 |
| Width |
13.0000 |
| Height |
26.0000 |
| Weight |
143.0000 |
