| Description_ASC |
OEM Wheels & Tires Fitment: Yes |
| Description_ASC |
Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required) |
| Description_ASC |
APPLICATION NOTE #6: SPRINGS ARE RATED FOR DIESEL ENGINES ONLY |
| Description_ASC |
APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE |
| Description_ASC |
Ships in Multiple Boxes |
| Description_DEF |
Suspension Lift Kit |
| Description_DES |
03-12 RAM 2500/3500 4WD 2.5" STAGE 4 SUSPENSION SYSTEM |
| Description_EXT |
2003-2012 RAM 2500/3500 4WD 2.5" LIFT STAGE 4 SUSPENSION SYSTEM |
| Description_INV |
03-12 RAM HD 4WD 2.5" STAGE 4 SUSP SYS |
| Description_FAB |
ICON engineered dual rate coil springs with match tuned 2.5" V.S. Aluminum Series shocks |
| Description_FAB |
2.5 Aluminum Series shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish |
| Description_FAB |
Adjustable track bar with PTFE lined FK bearings |
| Description_FAB |
Heavy-duty steel upper and lower link bars |
| Description_FAB |
Increased wheel travel and ride quality over stock with no change in towing capacity |
| Description_FAB |
Level stance front to rear |
| Description_FAB |
Less body roll than stock |
| Description_FAB |
No drive shaft modifications needed |
| Description_MKT |

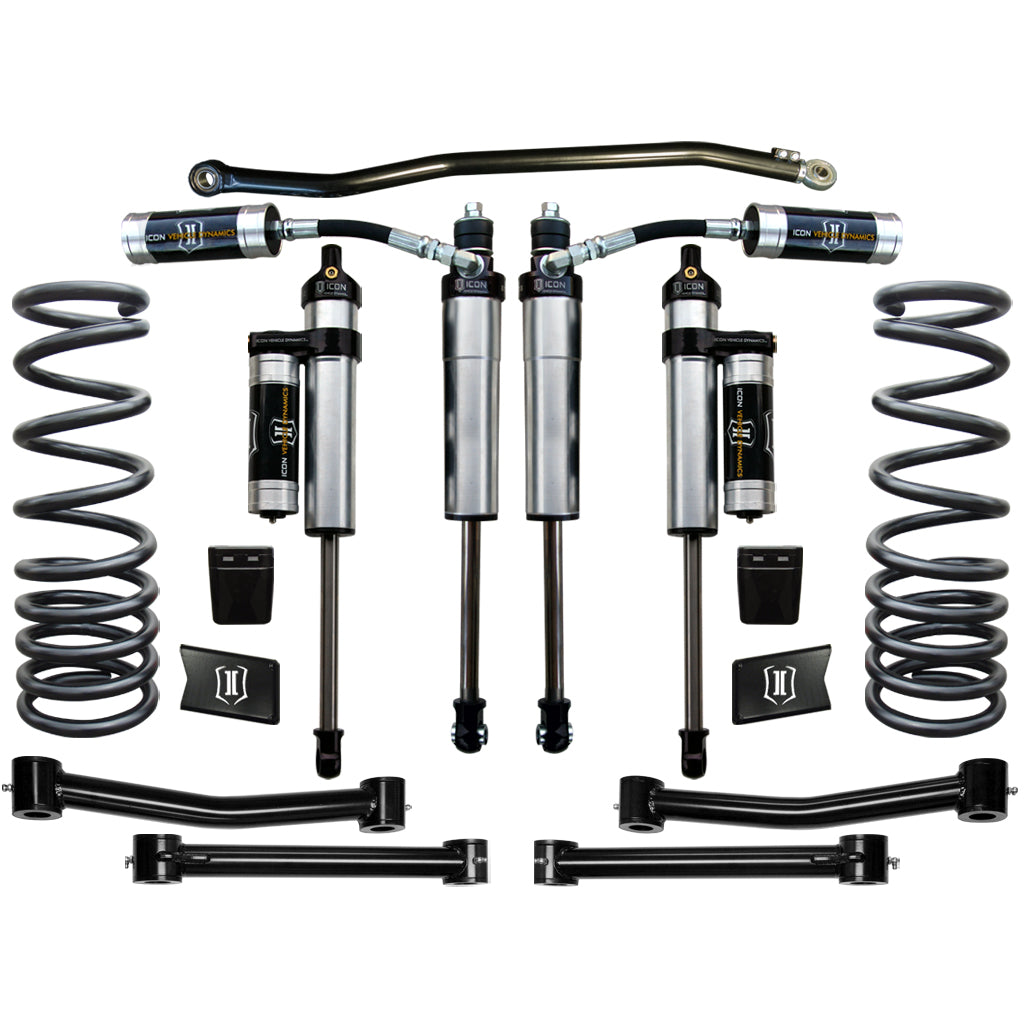

2003-2012 Ram 2500/3500 2.5" Stage 4 Suspension System is our ultimate performance kit that offers extraordinary diversity across any terrain. This system not only levels out the stance, it increases ride quality and performance substantially both on and off-road. The Stage 4 System is comprised of dual rate coil springs, polyurethane bump stops, sway bar drop brackets, 2.5" V.S. Aluminum Series shocks, bearing style adjustable track bar, and tubular steel upper & lower links. ICON 2.5" Aluminum Series shocks extend the performance of the kit by increasing the duration of consistent damping regardless of situation. These shocks include FK bearings, billet top cap & rod ends, and 7/8" shafts for strength. The adjustable track bar with bearings not only improves rigidity over the flexible factory joints, but offers adjustability to center the front axle under the truck. ICON steel upper & lower links increase performance, strength, and range of alignment. These link arms decrease the bind found in the factory link bushings. ICON has spent endless hours testing and tuning our suspension components and shocks together, so you can rest assured you have the best suspension solution on the market. |
| Description_TRA |
ICON 2003-12 Ram 2500/3500 4WD, 2.5" Lift, Stage 4 Suspension System, K212504T |
| Description_TLE |
ICON 2003-12 Ram 2500/3500 4WD, 2.5" Lift, Stage 4 Suspension System |
| Description_SHO |
2.5" SUSP SYS STG 4 |
| OEM Wheels & Tires Fitment |
Yes |
| Title |
03-12 RAM 2500/3500 4WD 2.5" STAGE 4 SUSPENSION SYSTEM |
| Recommended Aftermarket Wheels |
ICON Alloys |
| Dual Rate Coil Springs |
Yes |
| Recommended Aftermarket Tires |
33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required) |
| California Proposition 65 |
WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Add-On Part |
191014 - .25" COLLAR SPANNER PIN WRENCH |
| Length |
10.0000 |
| Width |
19.0000 |
| Height |
26.0000 |
| Weight |
193.0000 |
