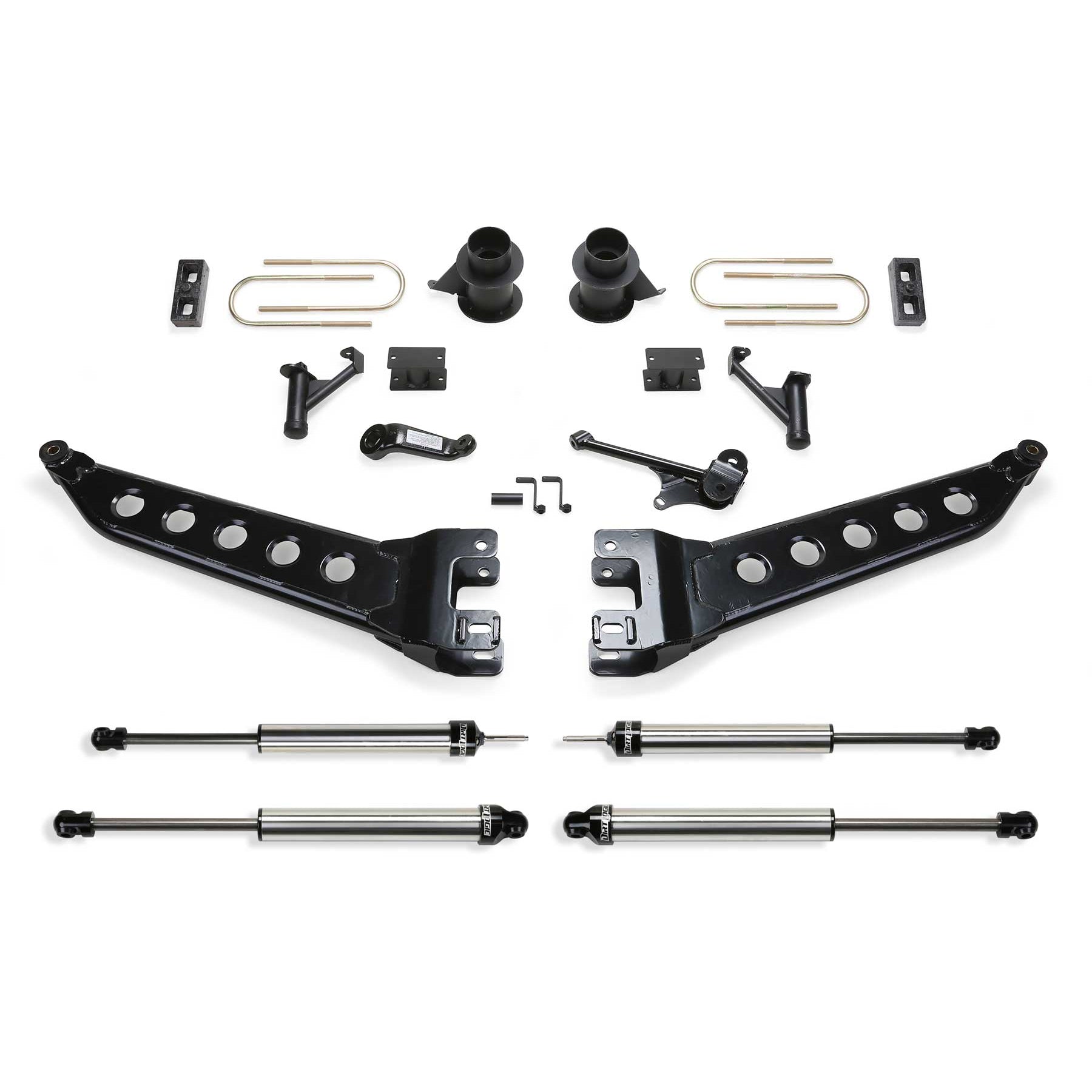

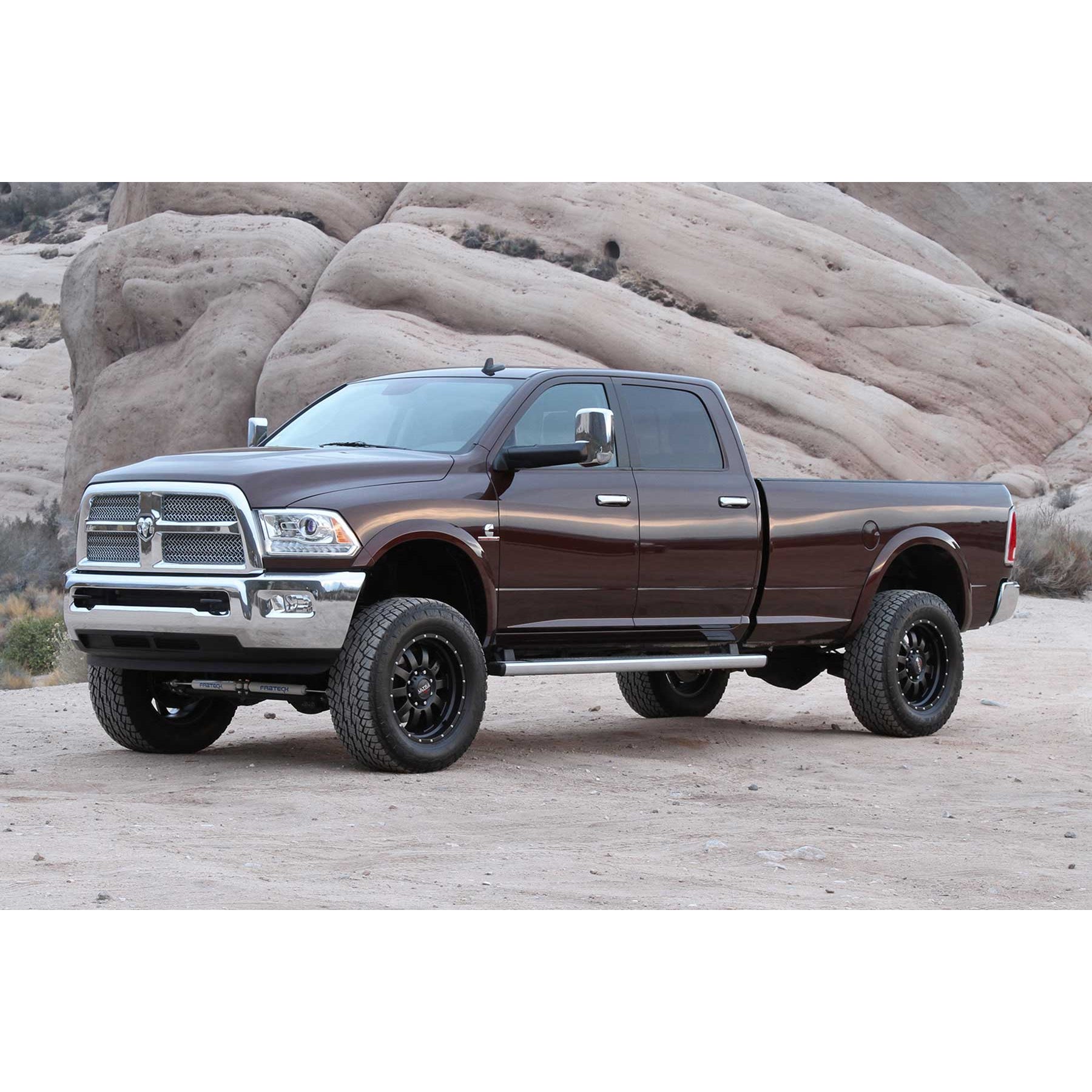

Improving on the Ram's new front suspension design this 5'' System includes replacement tubular Radius Arms with Fabtech's exclusive dimple die side plates for superior strength and a rugged appearance. These new Radius Arms provide increased caster for use with oversized tires and lifted suspension heights. The stock front coil springs are mounted with angular steel spacers to retain the factory spring bow. This is an important feature as Chrysler designed this bow to aid in their unique alignment spec and ride quality. Flat spacers do not provide this. Heavy duty 1/4'' thick steel front Track Bar drop bracket centers the axle under the vehicle with the new ride height. A Fabtech innovation on this system is the steel front bump extensions. They will not blow out like extra long urethane bump stops found in other aftermarket suspensions. No chance of spring and shock damage with the Fabtech'steel extensions. The rear suspension receives a block and u bolt system with bump stop extensions. The 5'' Radius Arm System will clear 37'' tall tires and includes front and rear 2.25 Dirt Logic Stainless Steel shocks. Estimated installation time - 4.5 Hours. 10 holes to drill for installation. No Welding Required.
Specifications:
| Description_ASC |
TIRE SIZE - 37/12.50R17 Wheel - 17X9 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 37/12.50R18 Wheel - 18X9 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 37/13.50R20 Wheel - 20X9.5 W/5" BS W/MINOR TRIMMING; NON DUALLY MODELS ONLY.; 130. WILL NOT FIT FACTORY AIR SUSPENSION. |
| Description_DEF |
Suspension Lift Kit |
| Description_DES |
5" RADIUS ARM KIT W/DLSS SHKS 2013-16 RAM 3500 4WD W/FACTORY RADIUS ARMS |
| Description_INV |
Fabtech-5" RADIUS ARM KIT W/ |
| Description_EXT |
5" RADIUS ARM KIT W/DLSS SHKS 2013-16 RAM 3500 4WD W/FACTORY RADIUS ARMS. |
| Description_MKT |
Improving on the Ram's new front suspension design this 5'' System includes replacement tubular Radius Arms with Fabtech's exclusive dimple die side plates for superior strength and a rugged appearance. These new Radius Arms provide increased caster for use with oversized tires and lifted suspension heights. The stock front coil springs are mounted with angular steel spacers to retain the factory spring bow. This is an important feature as Chrysler designed this bow to aid in their unique alignment spec and ride quality. Flat spacers do not provide this. Heavy duty 1/4'' thick steel front Track Bar drop bracket centers the axle under the vehicle with the new ride height. A Fabtech innovation on this system is the steel front bump extensions. They will not blow out like extra long urethane bump stops found in other aftermarket suspensions. No chance of spring and shock damage with the Fabtech'steel extensions. The rear suspension receives a block and u bolt system with bump stop extensions. The 5'' Radius Arm System will clear 37'' tall tires and includes front and rear 2.25 Dirt Logic Stainless Steel shocks. Estimated installation time - 4.5 Hours. 10 holes to drill for installation. No Welding Required. |
| Description_SHO |
5" RADIUS ARM KIT W/ |
| California Proposition 65 |
WARNING: Cancer & Reproductive Harm and image |
| Title |
Fabtech 5" RADIUS ARM KIT W/DLSS SHKS 2013-16 RAM 3500 4WD W/FACTORY RADIUS ARMS |
| Length |
15.0000 |
| Width |
13.0000 |
| Height |
46.0000 |
| Weight |
150.0000 |
