| Description_ASC |
OEM Wheels & Tires Fitment: Yes |
| Description_ASC |
Recommended Aftermarket Wheels: 17x8.5" w/ 5.75" Backspace / 25mm Offset |
| Description_ASC |
Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required) |
| Description_ASC |
APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. LIFT HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE. |
| Description_ASC |
APPLICATION NOTE #85: ADVERTISED LIFT HEIGHT RANGES ARE FOR A STOCK EQUIPPED VEHICLE. INCREASING WEIGHT OF VEHICLE DUE TO ACCESSORIES WILL ALTER LIFT RANGE. |
| Description_ASC |
APPLICATION NOTE #146: TUNDRA SR5 EQUIPPED WITH TRD SPORT PACKAGE LIFT RANGE WILL BE 2.25-4.5" |
| Description_ASC |
APPLICATION NOTE #148: ICON DOES NOT RECOMMEND LIFTING ABOVE 2.25" (TUNDRA)/3.75" (SEQUOIA) WITHOUT AN ICON UPPER CONTROL ARM, FAILURE TO DO SO CAN RESULT IN IMPROPER WHEEL ALIGNMENT AND CAUSE DAMAGE TO FRONT AXLES ON 4WD MODELS |
| Description_ASC |
APPLICATION NOTE #149: FOR 4WD MODELS WITHOUT TRD OFF-ROAD PACKAGE ICON RECOMMENDS USING ICON DIFF DROP (PART# 55156) OR USING TOYOTA TRD AXLES (PART# 434200C020 DRIVER / 434100C020 PASS). FAILURE TO DO SO COULD RESULT IN FRONT AXLE DAMAGE. NOT REQUIRED FOR TRD PRO. |
| Description_ASC |
TECH NOTE: If upgrading a vehicle equipped with Adaptive Variable Suspension (AVS) all other vehicle systems remain functional |
| Description_ASC |
TECH NOTE: Most Tundra sub-models equipped with i-Force gasoline engine will have front lift height range of 1.25-3.5" over stock |
| Description_ASC |
TECH NOTE: Most Tundra sub-models equipped with i-Force MAX hybrid engine will have front lift height range of .75-3" over stock |
| Description_ASC |
TECH NOTE: Tundra TRD Pro will have front lift height range of 0-1.75" over stock |
| Description_ASC |
TECH NOTE: Most Sequoia sub-models will have front lift height range of 3.5-4.5" over stock |
| Description_ASC |
TECH NOTE: Not compatible with Sequoia TRD Pro |
| Description_ASC |
TECH NOTE: Tundra lift heights above 2.25" require sway bar drop bracket kit part number 55154. Required for all lift heights on Tundra TRD Pro and Sequoia. |
| Description_ASM |

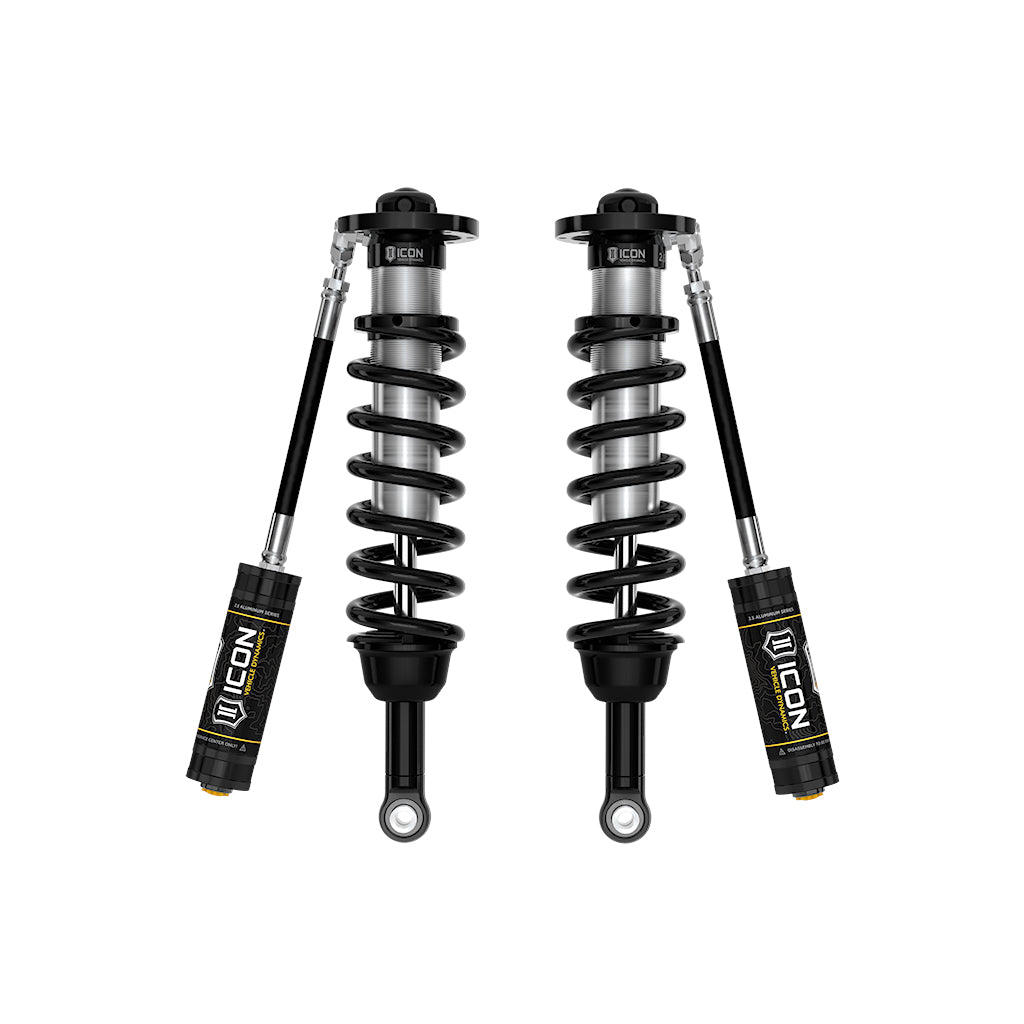

ICON 22-23 TUNDRA/23 SEQUOIA 2.5 VS RR COILOVER KIT |
| Description_DEF |
Coilover Spring and Shock Assembly |
| Description_DES |
22-23 TUNDRA/23 SEQUOIA 2.5 VS RR COILOVER KIT |
| Description_EXT |
ICON's Vehicle-specific shock length and valving along with the larger 2.5" shock body and increased piston area over stock yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. |
| Description_FAB |
Increased wheel travel and improved ride quality over stock |
| Description_FAB |
Vehicle specific tuned for superior shock damping and control |
| Description_FAB |
Adjustable up to 1.25-3.5" of front lift height over stock (Tundra) or 3-4.5" of lift over stock (Sequoia) |
| Description_FAB |
Remote reservoirs maintain cooler operating temperatures during extended off-road use |
| Description_FAB |
ICON engineered coil springs |
| Description_FAB |
6061 Aircraft grade aluminum CNC machined components |
| Description_FAB |
Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts |
| Description_FAB |
FK rod end bearings for extended longevity and minimal deflection |
| Description_FAB |
Fully rebuildable and re-tunable |
| Description_FAB |
100% Bolt-on - no drilling, cutting or welding necessary for installation |
| Description_INV |
58770 |
| Description_MKT |
ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2022-2023 Toyota Tundra or 2023 Toyota Sequoia. These adjustable coilovers allow up to 1.25-3.5" of lift height adjustability on Tundra or 3-4.5" of lift on Sequoia, allowing the use of larger, more aggressive wheel and tire combinations. ICON's Vehicle-specific shock length and valving along with the larger 2.5" shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. When paired with ICON 2.0 or 2.5 Aluminum Series rear coilovers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tundra or Sequoia. |
| Description_SHO |
COILOVER KIT |
| Description_TLE |
ICON 22-23 Tundra 1.25-3.5", 23 Sequoia 3-4.5" Lift, 2.5 Front RR CO Kit, Pair |
| Description_TRA |
ICON 2022-2023 Toyota Tundra, 1.25-3.5" Lift, 2.5 VS Front Coilover Kit, Pair, 58770 |
| Title |
ICON 22-23 Tundra 1.25-3.5", 23 Sequoia 3-4.5" Lift, 2.5 Front RR CO Kit, Pair |
| Spring Material |
Steel |
| Material |
Aluminum |
| Recommended Aftermarket Tires |
35" x 12.50" (Minor fender trimming and modifications may be required) |
| Dust Shield |
No |
| Shaft Diameter |
0.875 |
| Coil Over Springs Included |
Yes |
| Damping Type |
Oil |
| Grade Type |
Performance |
| Add-On Part |
198000 - 2 PIN COILOVER SPANNER WRENCH KIT |
| Remote Reservoir |
Yes |
| Adjustable Damping |
NO |
| Maximum Lift |
3.5 |
| California Proposition 65 |
WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Recommended Aftermarket Wheels |
17x8.5" w/ 5.75" Backspace / 25mm Offset |
| Spring Rate Type |
Linear |
| OEM Wheels & Tires Fitment |
Yes |
| Spring Color |
Black |
| Service Parts |
252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT |
| Length |
8.0000 |
| Width |
12.0000 |
| Height |
27.0000 |
| Weight |
61.0000 |
