| Description_ASC |
Factory Wheels & Tires Fitment: Yes |
| Description_ASC |
Recommended Aftermarket Wheels: 8.5" wide wheel with 4.75" backspace |
| Description_ASC |
Recommended Aftermarket Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required) |
| Description_DEF |
Coilover Spring and Shock Assembly |
| Description_DES |

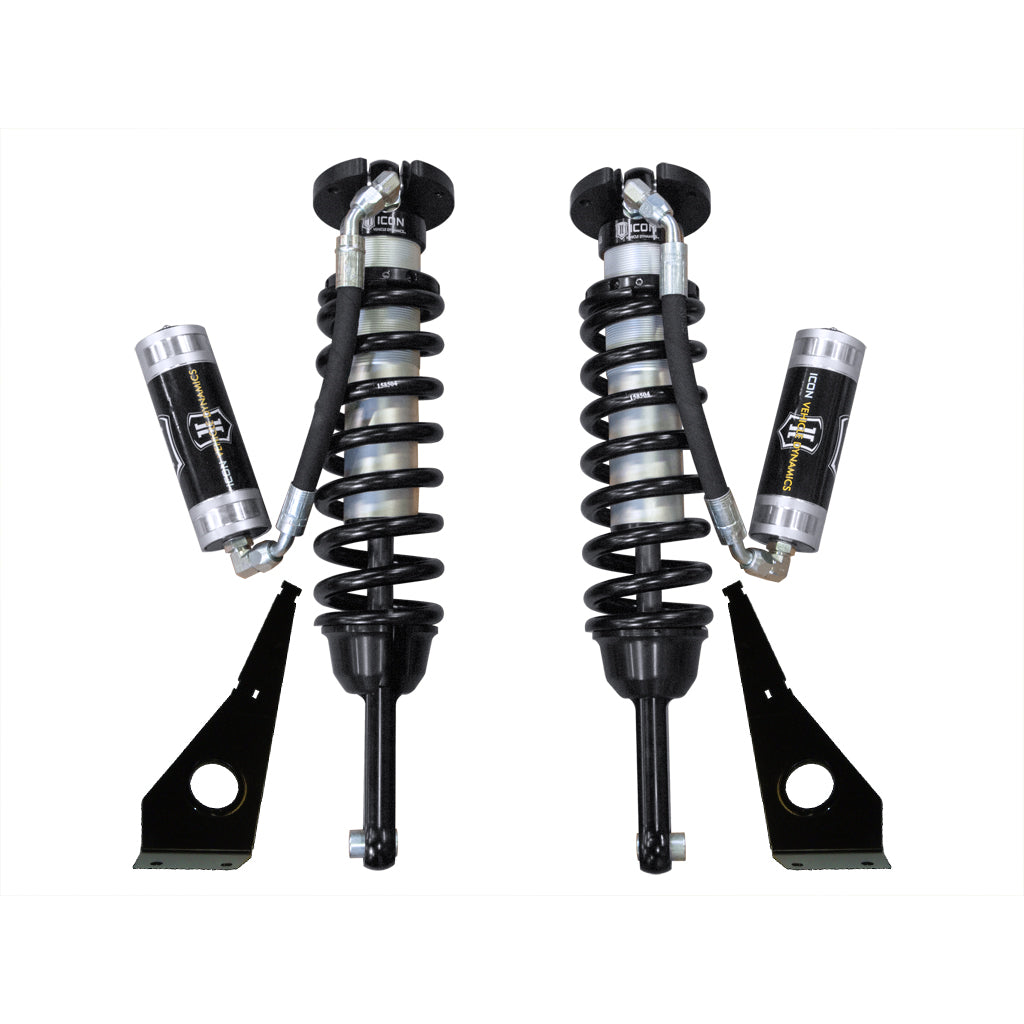

07-09 FJ/03-09 4RUNNER 2.5 VS RR COILOVER KIT |
| Description_INV |
FJ/4RUNNER 2.5 VS RR COILOVER KIT |
| Description_EXT |
2007-2009 FJ CRUISER/2003-2009 4RUNNER 2.5 VS REMOTE RESERVOIR COILOVER KIT |
| Description_FAB |
Adjustable ride height from 0" - 3" |
| Description_FAB |
Race shock piston with flutter stack compression valving |
| Description_FAB |
Kit Includes Sway bar relocation brackets |
| Description_FAB |
Kit also Includes Reservoir Mounting Brackets |
| Description_FAB |
Cad-plated threaded body / Extreme Weather Plating Option Available |
| Description_FAB |
Billet aluminum upper mount |
| Description_FAB |
5/8" PTFE-lined spherical bearing |
| Description_FAB |
Completely re-buildable |
| Description_FAB |
Hose Length Optimized for Increased Fluid Transfer |
| Description_FAB |
Mounting Bracket Orients Reservoir for Optimum Tire Clearance |
| Description_FAB |
External Reservoir Ensures Maximum Cooling |
| Description_FAB |
Chrome-silicon spring |
| Description_FAB |
250 PSI nitrogen-charged internal reservoir |
| Description_MKT |
ICON Vehicle Dynamics has taken their already perfect performing coilover shocks and given it the heat dissipation and long lasting performance of a full blown race shock. All of this has been developed to bolt on and install with ease. They increase suspension travel and dramatically increase the capabilities of your FJ Cruiser or 4Runner's front suspension. These coilovers come complete with all the hardware necessary to complete the installation as well as a sway bar relocation bracket kit to adjust the location of the sway bar to clear the larger shock. |
| Description_TLE |
ICON 03-09 4Runner/2007-09 FJ Cruiser, 2.5 VS Remote Reservoir Coilover Kit |
| Description_TRA |
ICON 03-09 4Runner/2007-09 FJ Cruiser, 2.5 VS Remote Reservoir Coilover Kit, 58740 |
| Description_SHO |
FJ/T4R COILOVER KIT |
| Spring Rate |
650 |
| Add-On Part |
191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25) |
| OEM Wheels & Tires Fitment |
Yes |
| California Proposition 65 |
WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Adjustable Damping |
NO |
| Spring Color |
Black |
| Dust Shield |
No |
| Recommended Aftermarket Tires |
33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required) |
| Grade Type |
Performance |
| Shaft Diameter |
0.875 |
| Recommended Aftermarket Wheels |
ICON Alloys |
| Title |
07-09 FJ/03-09 4RUNNER 2.5 VS RR COILOVER KIT |
| Damping Type |
Oil |
| Service Parts |
191016 - 7.5" FINNED RESI UPGRADE KIT |
| Coil Over Springs Included |
Yes |
| Spring Material |
Steel |
| Remote Reservoir |
Yes |
| Length |
8.0000 |
| Width |
12.0000 |
| Height |
27.0000 |
| Weight |
52.0000 |
