| Description_ASC |
Factory Wheels & Tires Fitment: Yes |
| Description_ASC |
Recommended Aftermarket Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required) |
| Description_ASC |
TECH NOTE: Aftermarket front upper control arms required for installation |
| Description_ASC |
TECH NOTE: 700lb/in spring rate only recommended for trucks with additional weight added to front end. See ICON Help Center for information. |
| Description_DEF |

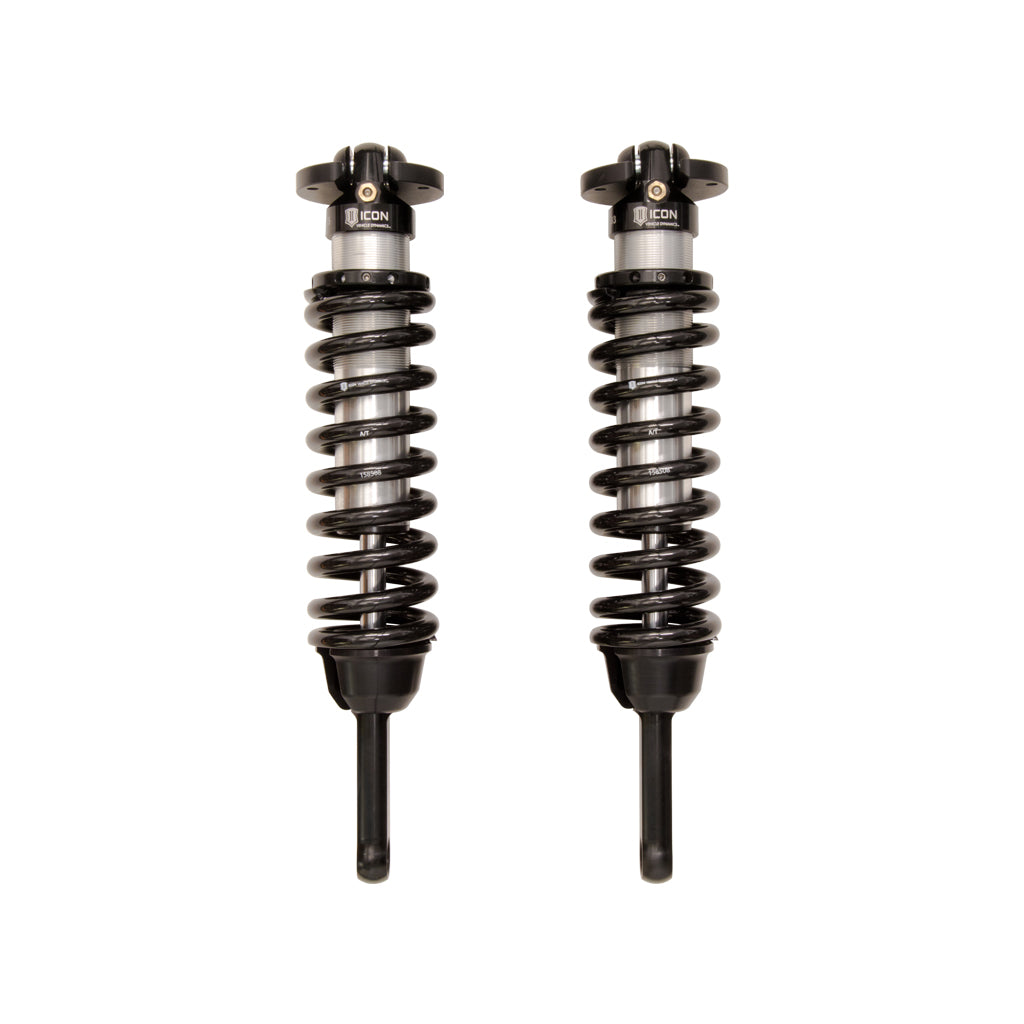

Coilover Spring and Shock Assembly |
| Description_EXT |
2007-2009 FJ CRUISER/2003-2009 4RUNNER/2003-2009 GX470 EXTENDED TRAVEL 2.5 VS INTERNAL RESERVOIR COILOVER KIT WITH 700LB COIL |
| Description_DES |
07-09 FJ/03-09 4RNR/03-09 GX EXT TRAVEL 2.5 VS IR COILOVER KIT 700LB |
| Description_MKT |
ICON's Vehicle Specific (V.S.) 2.5 Series coilover shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Upgraded coil springs are included to better support added weight from accessories such as front bumpers and winches. These extended length versions offer increased wheel travel but also require the installation of aftermarket upper control arms in conjunction with the coilovers. Like all ICON shock absorbers, V.S. 2.5 Series shocks are 100% rebuildable and 100% revalveable. |
| Description_INV |
58645-700 |
| Description_FAB |
Adjustable coilovers yield 0-3.5" of front lift height |
| Description_FAB |
Increased wheel travel and vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use |
| Description_FAB |
Extended Travel length requires installation of aftermarket front upper control arms |
| Description_FAB |
Superior low speed control reduces body roll and increases on-road stability |
| Description_FAB |
High quality ICON-engineered coil springs with higher spring rate included to better support added weight to front end |
| Description_FAB |
Corrosion resistant CAD plated shock body with 7/8" shaft |
| Description_FAB |
FK Rod End bearings provide extended longevity and minimal deflection |
| Description_FAB |
Fully serviceable design allows for revalves, rebuilds, and an immeasurable service life |
| Description_FAB |
Bolt-in design makes for an easy install into OEM shock location |
| Description_SHO |
FJ/T4R/GX COILOVERS |
| Description_TRA |
ICON 07-09 FJ/03-09 4Runner & GX470 Extended Travel 2.5 VS Coilover Kit, 700lb, 58645-700 |
| Description_TLE |
ICON 07-09 FJ/03-09 4Runner & GX470 Extended Travel 2.5 VS Coilover Kit, 700lb |
| Shaft Diameter |
0.875 |
| Service Parts |
252001 - 2.5 FIXED SPANNER WRENCH |
| Recommended Aftermarket Tires |
33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required) |
| Dust Shield |
No |
| Material |
Aluminum |
| Spring Material |
Steel |
| Add-On Part |
191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25) |
| Coil Over Springs Included |
Yes |
| Damping Type |
Oil |
| Recommended Aftermarket Wheels |
ICON Alloys |
| Remote Reservoir |
NO |
| Spring Rate |
700 |
| Grade Type |
Performance |
| California Proposition 65 |
WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Adjustable Damping |
NO |
| Spring Color |
Black |
| OEM Wheels & Tires Fitment |
Yes |
| Title |
07-09 FJ/03-09 4RNR/03-09 GX EXT TRAVEL 2.5 VS IR COILOVER KIT 700LB |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
27.0000 |
| Weight |
48.0000 |
