FOX devotes countless hours of research and development to design race-winning suspension that withstands incredible punishment and provides consistent performance you can rely on. Regardless of whether you are flying high over the desert or struggling to stick to a rock face on an off-camber climb, our shocks will give you the damping performance, suspension control and proper spring rate to get the job done.
Specifications:
| Description_DEF |
Suspension Shock Absorber |
| Description_DES |

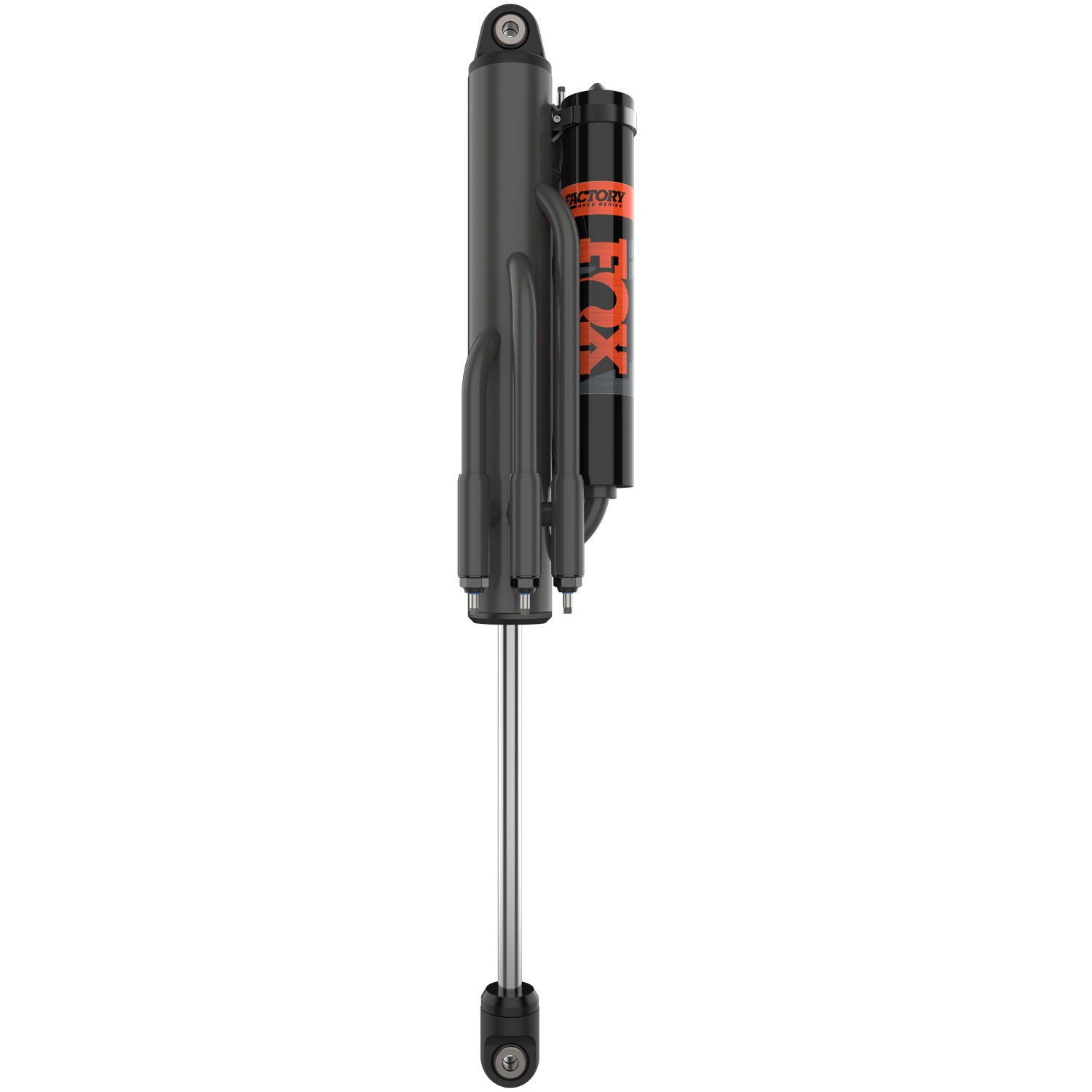

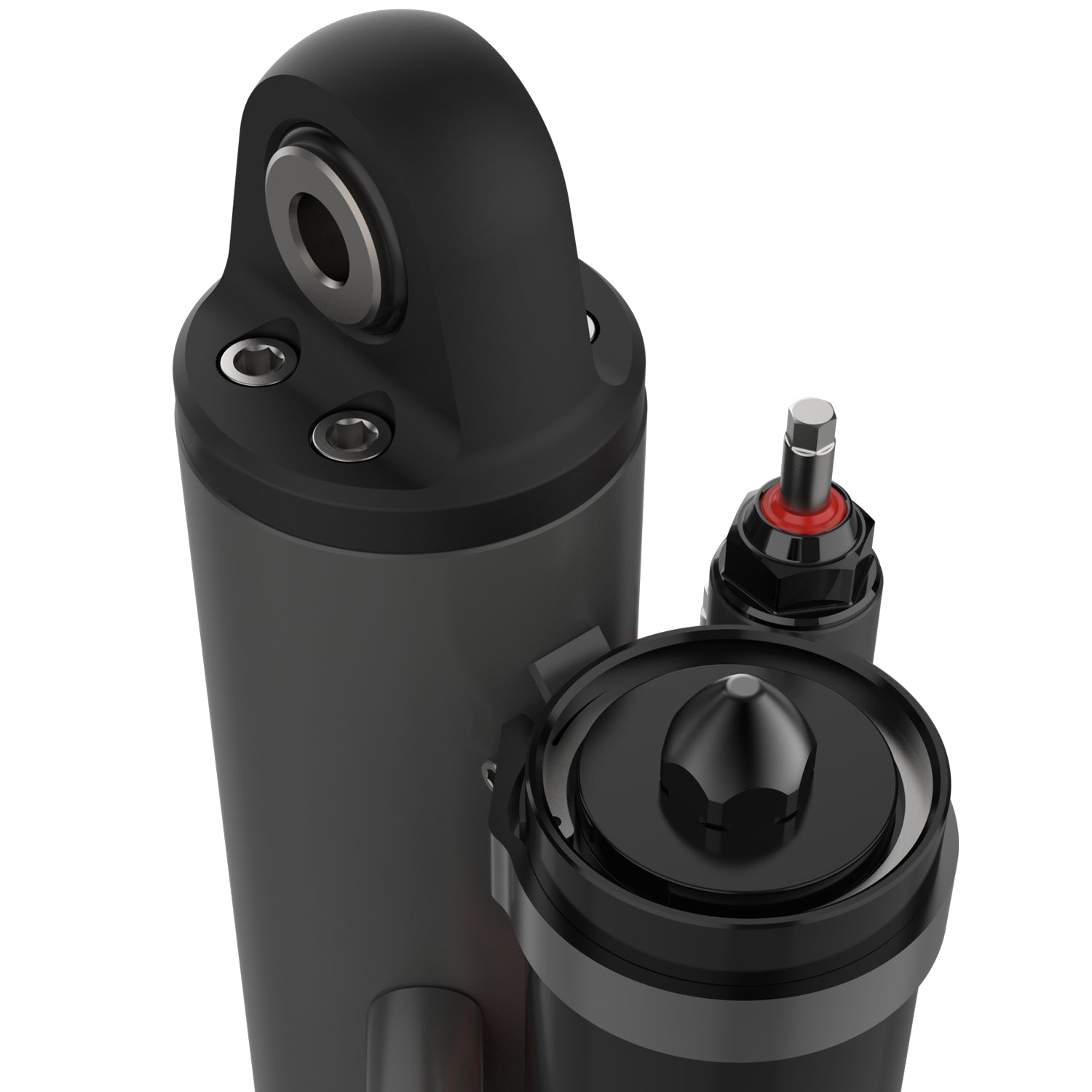

FACTORY RACE 3.5 X 16 EXTERNAL BYPASS (5 TUBE, 3/4") PIGGYBACK SHOCK (RIGHT) |
| Description_INV |
FOX 3.5 X 16.0 Bypass (5 Tube) Piggyback |
| Description_EXT |
Rebuildable and serviceable. Custom valving options availavble. |
| Description_FAB |
NEW proprietary Cerakote (R) protective ceramic coating over zinc plated basecoat |
| Description_FAB |
17-4 H900 hard chrome plated stainless steel shaft |
| Description_FAB |
Owner serviceable and rebuildable |
| Description_FAB |
JM92 MIL-SPEC oil developed specifically for off-road racing |
| Description_FAB |
Black Anodized CNC Machined Aluminum Components |
| Description_SHO |
3.5 External Bypass |
| Description_MKT |
FOX devotes countless hours of research and development to design race-winning suspension that withstands incredible punishment and provides consistent performance you can rely on. Regardless of whether you are flying high over the desert or struggling to stick to a rock face on an off-camber climb, our shocks will give you the damping performance, suspension control and proper spring rate to get the job done. |
| Description_LAB |
3.5 FRS, EXBP, 5T (3/4"), P/B, 16", RH |
| Body Material |
Steel |
| Top Mount |
Eyelet |
| Adjuster Type |
External Bypass Clicker - Gen 3 |
| Bottom Mount |
Eyelet |
| Mounting |
5/8 x 1-1/2 |
| Series |
Factory Race |
| Title |
FACTORY RACE 3.5 X 16 EXTERNAL BYPASS (5 TUBE, 3/4") PIGGYBACK SHOCK (RIGHT) |
| Eyelet Length (in) |
2.05 |
| Body Diameter (in) |
3.5 |
| California Proposition 65 |
! Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Bypass Tubes |
5 |
| Compressed Length (in) |
26.47 |
| Extended Length (in) |
42.47 |
| Fox Catalog |
OFFROAD |
| Label Name |
3.5 FRS, EXBP, 5T (3/4"), P/B, 16", RH |
| Reservoir Dimensions |
3.00 x 16.00 |
| Reservoir Type |
Piggyback |
| Shaft Size (in) |
1 |
| Travel (in) |
16.00 |
| Type |
External Bypass |
| Valving |
807-24-701 |
| Body Finish |
FOX Grey Cerakote |
| Length |
4.5000 |
| Width |
6.5000 |
| Height |
47.0000 |
