FOX devotes countless hours of research and development to design race-winning suspension that withstands incredible punishment and provides consistent performance you can rely on. Regardless of whether you are flying high over the desert or struggling to stick to a rock face on an off-camber climb, our shocks will give you the damping performance, suspension control and proper spring rate to get the job done.
Specifications:
| Description_DEF |
Suspension Shock Absorber |
| Description_FAB |
NEW proprietary Cerakote (R) protective ceramic coating over zinc plated basecoat |
| Description_FAB |
17-4 H900 hard chrome plated stainless steel shaft |
| Description_FAB |
Owner serviceable and rebuildable |
| Description_FAB |
JM92 MIL-SPEC oil developed specifically for off-road racing |
| Description_FAB |
Black Anodized CNC Machined Aluminum Components |
| Description_DES |

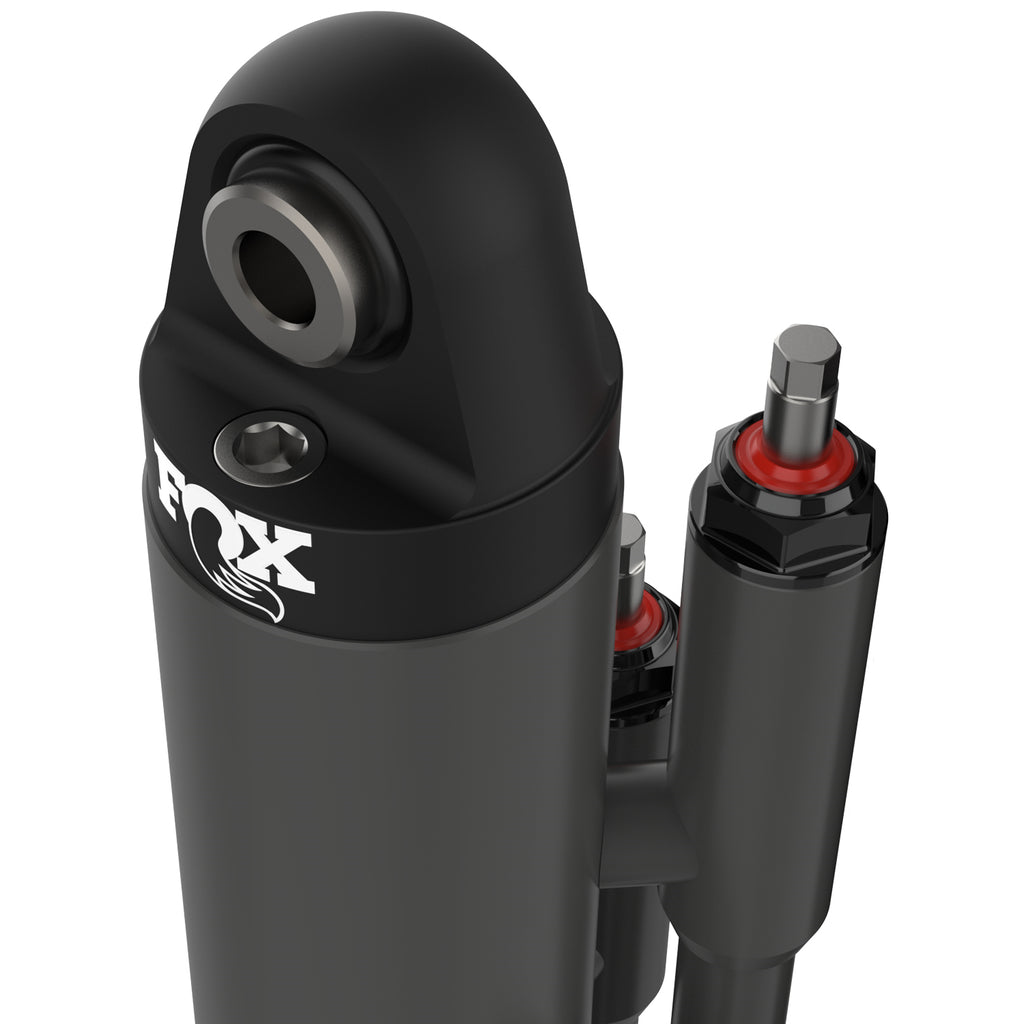

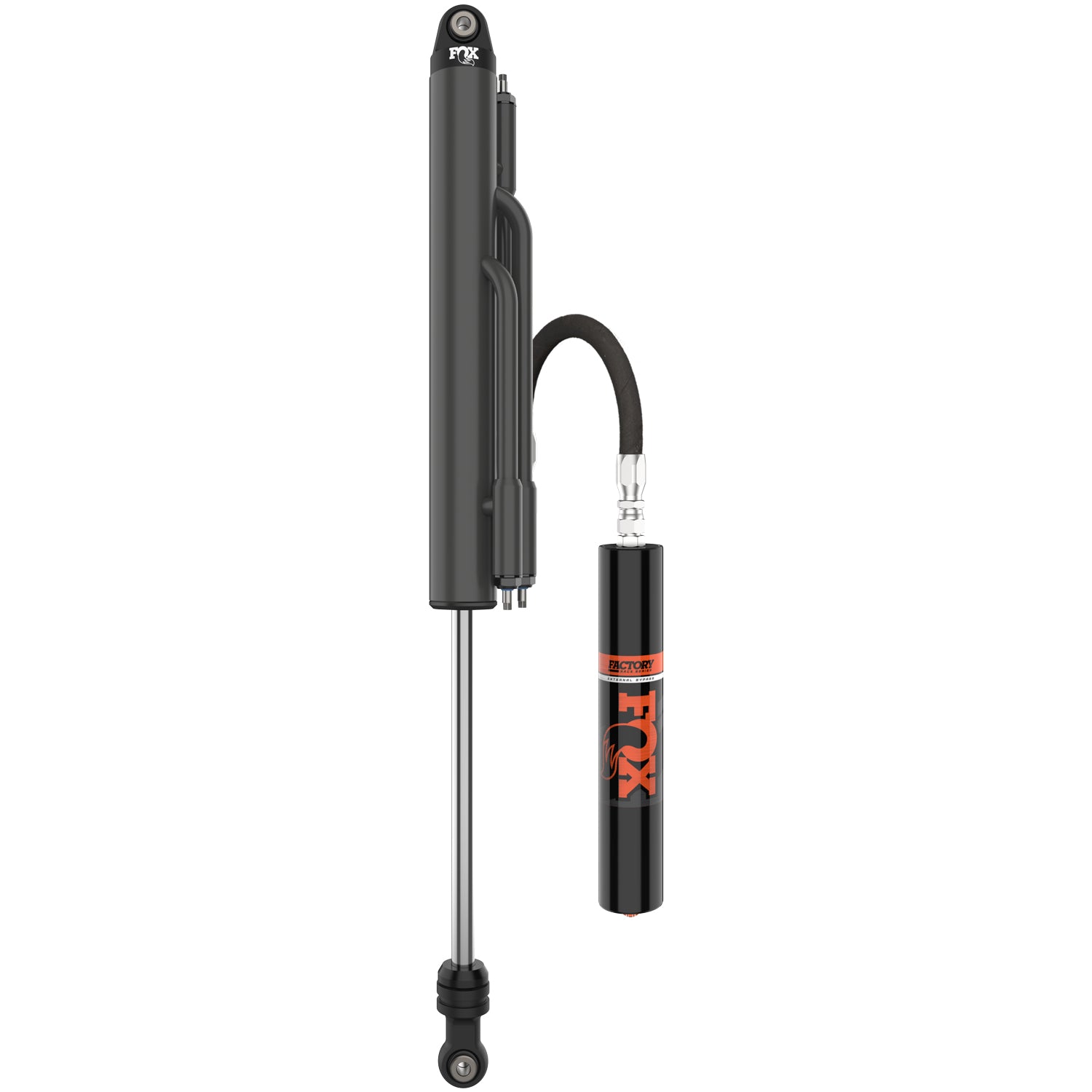

FACTORY RACE 2.5 X 8 EXTERNAL BYPASS (3 TUBE) REMOTE SHOCK (RIGHT) |
| Description_SHO |
2.5 External Bypass |
| Description_MKT |
FOX devotes countless hours of research and development to design race-winning suspension that withstands incredible punishment and provides consistent performance you can rely on. Regardless of whether you are flying high over the desert or struggling to stick to a rock face on an off-camber climb, our shocks will give you the damping performance, suspension control and proper spring rate to get the job done. |
| Description_LAB |
2.5 FRS, EXBP, 3T, R/R, 8", RH |
| Bottom Mount |
Eyelet |
| Bypass Tubes |
3 |
| Hose |
-10 x 28.00 |
| Shaft Size (in) |
7/8 |
| Adjuster Type |
External Bypass Clicker - Gen 2 |
| Body Diameter (in) |
2.5 |
| Body Finish |
FOX Grey Cerakote |
| Body Material |
Steel |
| Compressed Length (in) |
17.50 |
| Extended Length (in) |
25.45 |
| Eyelet Length (in) |
2.95 |
| Fox Catalog |
OFFROAD |
| Label Name |
2.5 FRS, EXBP, 3T, R/R, 8", RH |
| Mounting |
1/2 x 1-1/2 |
| Reservoir Dimensions |
2.55 x 8.00 |
| Reservoir Type |
Remote |
| Series |
Factory Race |
| Title |
FACTORY RACE 2.5 X 8 EXTERNAL BYPASS (3 TUBE) REMOTE SHOCK (RIGHT) |
| Top Mount |
Eyelet |
| Travel (in) |
7.95 |
| Type |
External Bypass |
| Valving |
807-24-303 |
| Length |
11.0000 |
| Width |
11.0000 |
| Height |
42.0000 |
