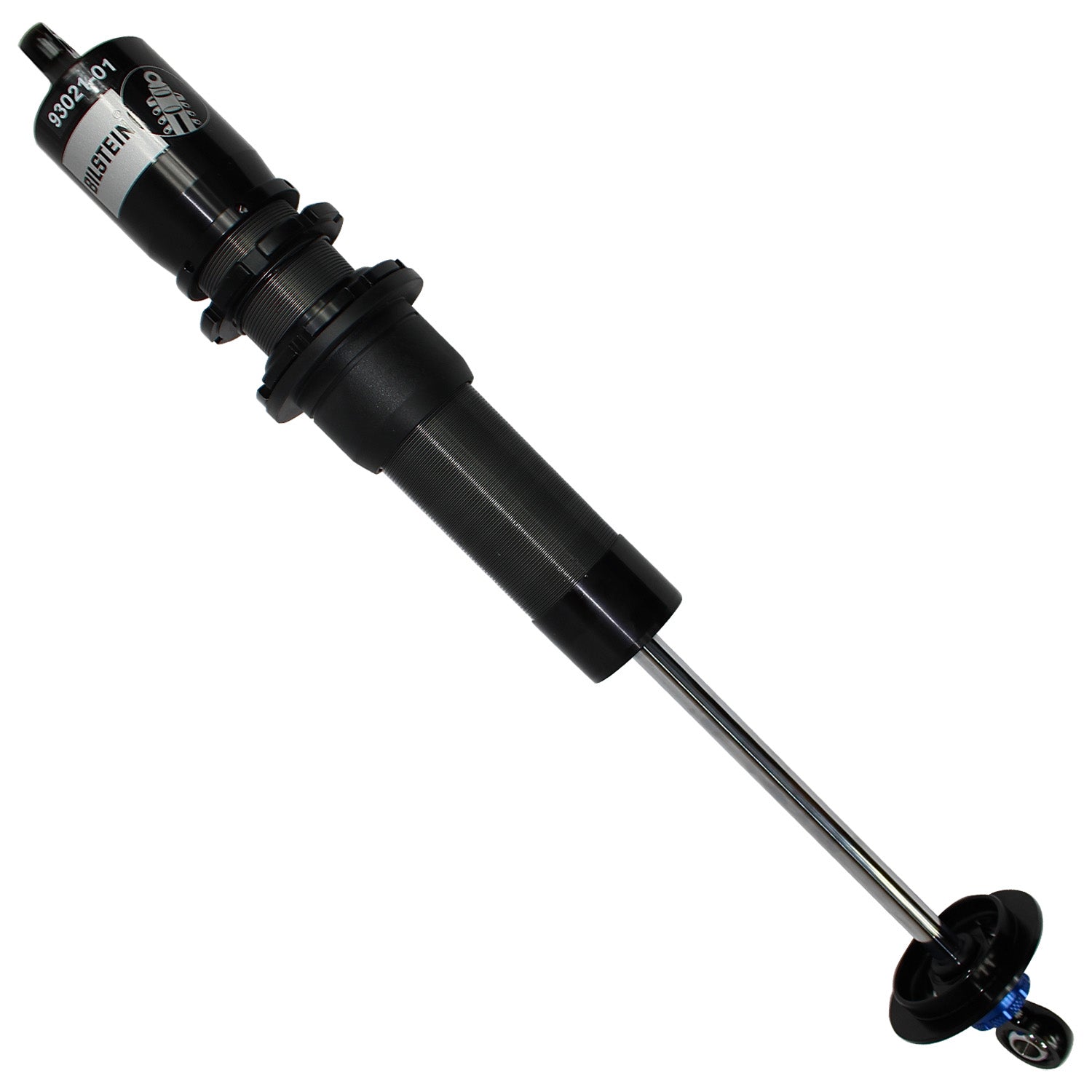

Bilstein XVA Series shock absorbers features aluminum threaded body construction designed for motorsports applications. The large volume dual zone nitrogen bulb, with optional base valve (sold separately), allows for lower gas pressure for increased grip. These shock absorbers are available in non-, single and double adjustable configurations for precise on-vehicle tuning options. Pistons, piston bands and heims are sold separately to allow the greatest flexibility in upgrade combinations. XVA Series shock absorbers are ideal for racers looking for an aluminum, rebuildable design with multiple upgrade options and superior performance.
Specifications:
| Description_ASM |
No Applications |
| Description_DEF |
Suspension Shock Absorber |
| Description_DES |
XVA Series - Suspension Shock Absorber |
| Description_LAB |
XVA Series - Suspension Shock Absorber |
| Description_EXT |
46mm Monotube Shock Absorber |
| Description_INV |
XVA, Single Adj. Crate RR |
| Description_MKT |
Bilstein XVA Series shock absorbers features aluminum threaded body construction designed for motorsports applications. The large volume dual zone nitrogen bulb, with optional base valve (sold separately), allows for lower gas pressure for increased grip. These shock absorbers are available in non-, single and double adjustable configurations for precise on-vehicle tuning options. Pistons, piston bands and heims are sold separately to allow the greatest flexibility in upgrade combinations. XVA Series shock absorbers are ideal for racers looking for an aluminum, rebuildable design with multiple upgrade options and superior performance. |
| Description_SHO |
Shock |
| Finish |
Clear Anodized |
| Collapsed Length (MM) |
396.5 |
| Spring Seat Included |
No |
| Body Design |
Threaded Body Large Bulb Screw Top (Coilover) |
| Series |
XVA Series |
| Valving Identifier |
Dry Kit (no valving) |
| Piston Type |
Digressive |
| Title |
Bilstein Shock Absorbers |
| Body Material |
Aluminum |
| Extended Length (IN) |
23.58 |
| California Proposition 65 |
WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov |
| Boot Included |
No |
| Upper Mount Type |
1/2in Heim |
| Collapsed Length (IN) |
15.61 |
| Extended Length (MM) |
598.9 |
| Adjustable Damping |
Single Adjustable - Rebound |
| Lower Mount Type |
1/2in Heim |
| Body Diameter (ID) |
46mm |
| Internal Design |
Monotube |
| Length |
4.0000 |
| Width |
4.0000 |
| Height |
30.0000 |
| Weight |
5.0000 |
