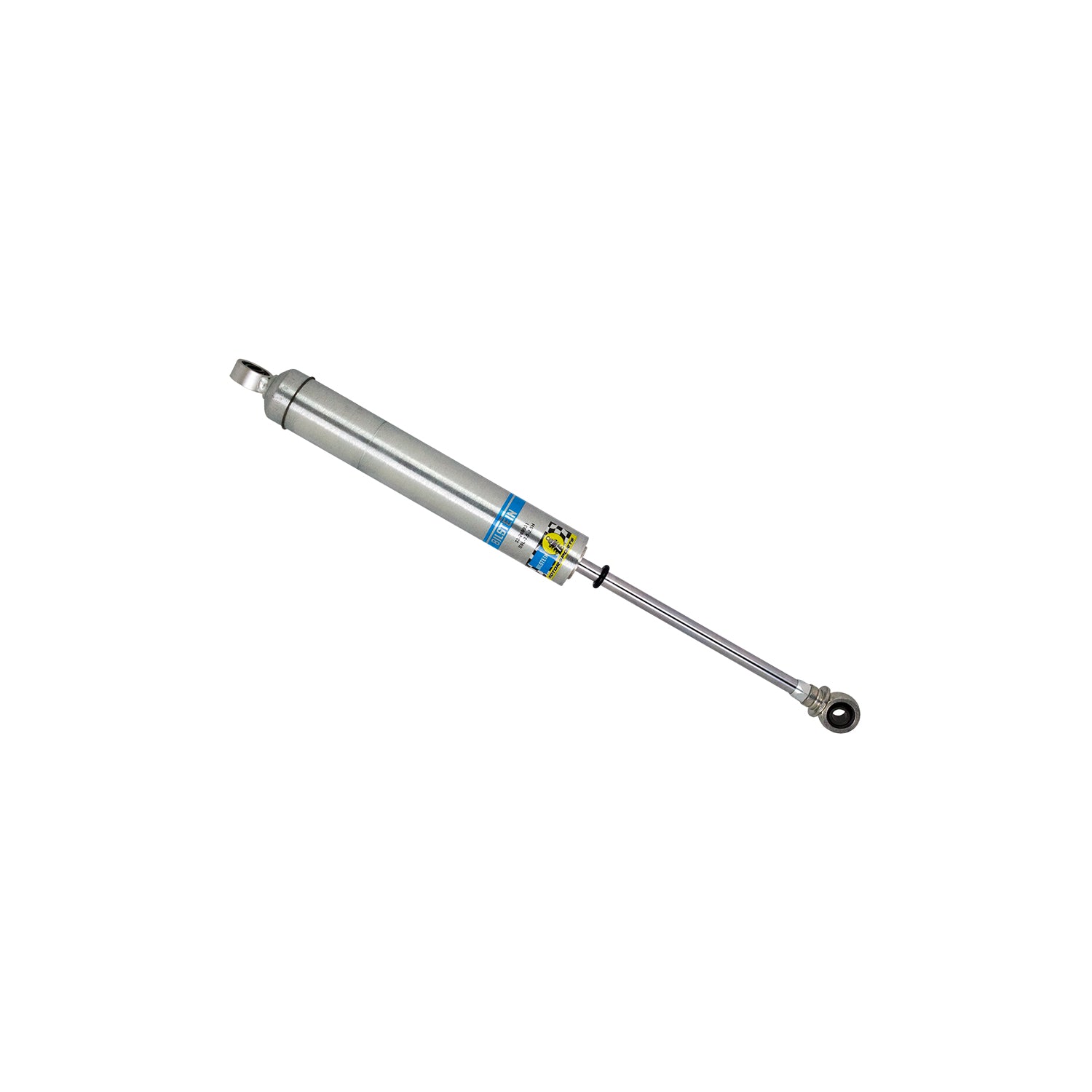

Bilstein SL Series shock absorbers feature a 46mm piston, steel construction, and a smooth body designed for motorsports applications. These shock absorbers are available in a variety of lengths, valve settings and can be converted to a coilover design (kit sold separately). Also available as dry kits (partially assembled wtih no valving or gas) that are geared towards giving tuners the versatility to build to their unique needs. SL Series shock absorbers are ideal for racers whose sanctioning rules do not allow or require rebuild capability.
Specifications:
| Description_ASM |
No Applications |
| Description_DEF |
Suspension Shock Absorber |
| Description_DES |
SL Series - Suspension Shock Absorber |
| Description_MKT |
Bilstein SL Series shock absorbers feature a 46mm piston, steel construction, and a smooth body designed for motorsports applications. These shock absorbers are available in a variety of lengths, valve settings and can be converted to a coilover design (kit sold separately). Also available as dry kits (partially assembled wtih no valving or gas) that are geared towards giving tuners the versatility to build to their unique needs. SL Series shock absorbers are ideal for racers whose sanctioning rules do not allow or require rebuild capability. |
| Description_LAB |
SL Series - Suspension Shock Absorber |
| Description_EXT |
46mm Monotube Shock Absorber |
| Description_INV |
S9L-3.5-2.5H, 9" STD. BODY STEEL |
| Description_SHO |
Shock |
| Finish |
Zinc Plated |
| Spring Seat Included |
No |
| Body Material |
Steel |
| Rebound @0.26m/s |
775 |
| Upper Mount Type |
1/2in Heim |
| Series |
SL Series |
| Piston Type |
Digressive |
| Valving Identifier |
3.5-2.5H |
| Collapsed Length (IN) |
15.00 |
| Boot Included |
No |
| Extended Length (IN) |
23.52 |
| Title |
Bilstein Shock Absorbers |
| Body Design |
Smooth Body (Non-coilover) |
| Compression @0.26m/s |
730 |
| Collapsed Length (MM) |
381.0 |
| Body Diameter (ID) |
46mm |
| Extended Length (MM) |
597.5 |
| California Proposition 65 |
WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov |
| Adjustable Damping |
Non-Adjustable |
| Lower Mount Type |
1/2in Heim |
| Internal Design |
Monotube |
| Length |
3.0000 |
| Width |
3.0000 |
| Height |
27.0000 |
| Weight |
4.0000 |
